Maximus Pedestal Systems

Adjustable supports for exterior elevated floors, it’s the most innovative solution that can be used on all of your installations. The simplicity and functionality of this system is to make the job easier and efficient. The Maximus triple screw thread technology outperforms most other products on the market.

• Rapid water outflow

• Durable and load rated

• Sound acoustic performance

• Speed of installation

• Increased thermal insulation

• Ease of maintenance

• Excellent absorption for expansion

• Elevated system to run services, conduits and pipes

• Installs level with seamless connections

• Load tested to 1000kg

• Compatible with Engineered Porcelain, 20mm Natural Stone, Marble Granite, Pre-fabricated Concrete, and Decking

Maximus Senior Standard Pedestal Unit

• Adjustable supports for exterior elevated floors.

• Use with tiles, pavers and timber decking to create raised surfaces on balconies, water features and terraces.

• Suits heights from 45-145mm

Maximus Junior Standard Pedestal Unit

• Suits heights from 20-45mm

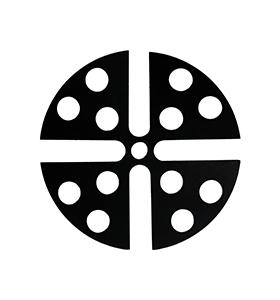

Maximus 3mm Spacer Tab

• Allows for superior water drainage and easy maintenance

Maximus Self Correcting Head

• The Maximus Self Correcting attachment, automatically compensates for substrate falls of up to 5% gradient

• The simple click and connect self corrector replaces the spacer tab providing an easy solution without the need for extra tools

• Please note this head adds 15mm to overall pod height

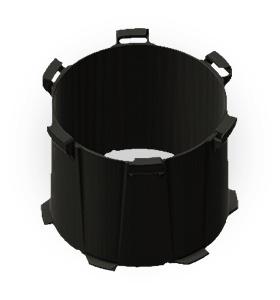

Maximus Pedestal Extender

• 100mm extenders with twist lock technology clip in fast to achieve heights up to 1000mm

Code Description

NATPED101

Maximus Pedestal Extender 100mm

Maximus Pedestal Slope Corrector

• 1-3 degree slope correctors

• Each slope corrector is designed with a gradient to compensate for substrate falls

• Add the slope corrector to the bottom of the pedestal. It will locate into the guide spaces on the base

• To increase gradient, simply add additional slope correctors

• They are all able to be stacked together

Code Description

NATPED102

Maximus Pedestal 1-3 Degree Slope Corrector

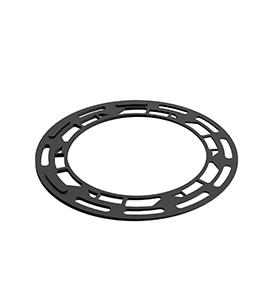

Maximus Pedestal Rubber Shims

• Available in 1mm, the Rubber Shims are placed on the head of the pedestal to stabilise pavers, provide acoustic values and compensate for variations in paver thickness.

• Each wedge can be torn apart to correct the height inconsistencies of pavers.

Code Description

NATPED103 Maximus Pedestal 1mm Rubber Shims

Maximus Pedestal Timber Joist Bracket

• Designed to be placed on the adjustable pedestal head securing timber joists horizontally.

• Rapid fixing with three available positions makes decking easy

• Suitable for most timber applications

NATPED104 Maximus Pedestal Timber Joist Bracket

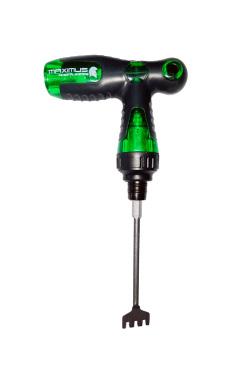

Maximus Pedestal Maintenance Adjustment Key

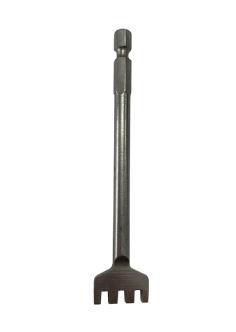

• Maximus has redesigned an innovative high speed adjustment system for rapid height changes during installation.

• The high speed chuck can rapidly extend (or contract) the Maximus Senior Pedestal, from 45mm to 145mm in just 3 seconds.

• It is easy to control using a normal electric drill, from rapid extension, to fine tuning the height on the fly.

Code

NATPED105 Maximus Pedestal High Speed Chuck

NATPED106

Maximus Pedestal Maintenance Adjustment Key
