Welcome to our latest catalogue...

This is our 23rd year supplying Australia and New Zealand with aftermarket performance parts and plumbing.

From rockets that have wheels to ones that go into space - our vast range means we can help you no matter what you’re doing. We only deal with the best parts manufacturers so we can guarantee you the best quality – simply speaking “NO CHINESE CRAP HERE!”

Over the last 3 years we have increased our inventory and now boast over 8,500 parts most of which is sourced from AUSTRALIA, USA and ENGLAND.

As the Australian distributor for SPEEDFLOW, BROWN & MILLER (BMRS), XRP, AEROFLEX, DJ SAFETY, TURBOSMART, SETRAB, PENNGRADE OILS and many more, we pride ourselves in being the go-to people for advice and how to use each and every product we sell.

I can assure you that we use the products we sell on our own vehicles.

Please stay safe, be kind to each other and remember... breathe!

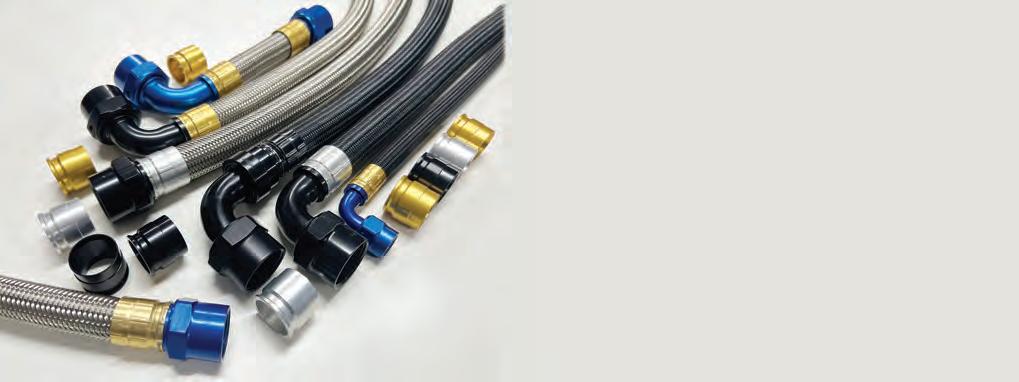

HOSE OPTIONS

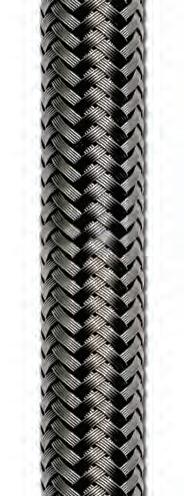

100 Series Hose

• Stainless steel braided synthetic rubber hose - Suits 100 Series Hose Ends.

page 8

• Synthetic rubber inner tube, integral Stainless braid, high tensile Stainless outer Braid.

• Temperature Range: -46°C (-50.8°F) to 150°C (302°F).

• Pressure Rating: -4 to -12 operating pressure of 1000psi with 100 series hose ends.

• Approved for Synthetic Lubricants, Oils, Air, Coolant, Methanol and Nitromethane.

• Not Recommended for Unleaded, E85 or corrosive fuels.

120 Series Start-Lite Hose

• Up to 45% lighter than 100 Series Hose - Suits 100 Series Hose Ends.

• Smooth-bore CPE liner with pre-dyed BLACK (with red trace) Nomex® cover.

• Temperature Range: -46°C (-50.8°F) to 150°C (302°F).

• Pressure Rating: Operating pressures of 350-500psi with 100 series hose ends.

• Approved for Synthetic Lubricants, Oils, Air, Coolant, Methanol and Nitromethane.

• Not Recommended for Unleaded, E85 or corrosive fuels.

200 Series Teflon ® Braided Hose

page 8

page 10

• A versatile all round hose for Performance Vehicles - Suits 200 or 520 Series Hose Ends. ®) inner tube with Stainless Steel braided cover. (Blackened available)

• Temperature Range: -70°C (-94°F) to 260°C (500°F).

• Outstanding operating pressures. (3380psi with -6 & 200 Series Hose Ends)

• Compatible with Brake, Clutch, Oils, Air, N2O, Coolant, Fuels, Hydraulics.

• Recommended Hose for Unleaded, E85 & corrosive fuels.

400 Series Pushlock

page 18

• 2 Brands - Gates 400 (smooth outer) & AQP A332 & A598 (rough outer) Blue or Black

• Use with our 400 Series Pushlock Hose Ends.

• Elastomer tube, Textile Braid reinforcement with a rough Elastomer outer cover.

• Temperature Range: -40°C (-40°F) to 100°C (212°F).

• Operating pressures up to 250psi

• Approved for Low Pressure Oils, Air, Coolant, & Methanol.

• Not Recommended for Unleaded, E85 or corrosive fuels.

480 Series Air Conditioning Hose

• Nylon inner tube with Stainless Steel braided cover. (Blackened available)

• Temperature Range: -40°C (-40°F) to 121°C (250°F).

• Suitable for R134a refrigerants for superior cooling.

490 Series Powersteer Hose

page 25

page 21

• Our best option for high pressure, high pulse applications - Suits 490 Series Hose Ends.

• Elastomer tube, textile inner braid, single wire braid, black polyester braid cover.

• Temperature Range: -40°C (-40°F) to 121°C (250°F).

• For use with Power Steering, Oils, Coolant & Air.

550 Series Teflon ® Hose

• Carbon impregnated PTFE smooth-bore inner tube with outer annular convolutions.

• Choice of Stainless Steel or Aramid Fibre Braided cover.

• Temperature Range: -70°C (-94°F) to 180°C (356°F).

• Compatible with Oils, Air, Coolant, Fuels including Unleaded, E85 & corrosive fuels.

550-900 Series Injection Hose

• Superior option for mechanical injection lines - Suits 550-900 & 200-04 Hose.

• Synthetic Rubber liner with textile reinforcing and smooth cover.

• Temperature Range: -40°C (-40°F) to 93°C (199°F).

• Suitable for use with synthetic lubricants, oils, air and methanol.

Barricade Fuel Hose

• Designed for modern EFI fuel systems and push on hose tails.

• Can be used with our 411, 414 & 421 Series hose tails utilising a hose clamp.

• Barrier liner, thermoplastic layer, adhesion layer, textile support and smooth cover.

• Low permeation rate - SAE R14 rating / Operating Pressure of 225psi.

• Multi-fuel compatible: leaded and unleaded fuels, Diesel, E85, Methanol & Gasohol.

page 22

page 24

page 20

Hoses & Fittings

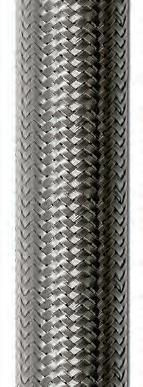

100 SERIES

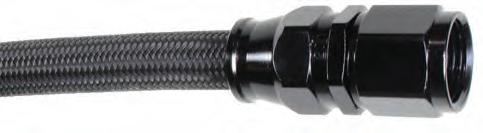

Stainless Steel Braided Hose

hose is the premier stainless steel nitrile hose and has been used by motorsport professionals all over the world! Used with our 100 Series hose ends it provides essential protection and resistance to high of a seamless synthetic nitrile inner tube with an integral stainless steel braid and a high tensile stainless resistance of any other nitrile braided hose.

• Temp. Range: -46°C to 150°C.

120 SERIES

New sizes available

Start-Lite Hose

The 120 Series hose is Lightweight, Durable and Race proven! Made from smooth-bore CPE liner with predyed BLACK (with red trace) Nomex® cover. Start-Lite® hose assemblies are lighter in weight than conventional high performance assemblies. Use 100 Series reusable Hose Ends, no crimping machines or special tools are required! Applications: Fuel*, lube, coolant, air.

• Temperature Range: -46°C to 150°C

• Note: -16 requires a special socket.

Nomex® is a registered trademark of DuPont.

Start-Lite® is a registered trademark of Eaton.

FULL RACE

115 SERIES

Hose may be provided with a red trace through it on occasion

Note: -16 requires a special socket. Please ask!

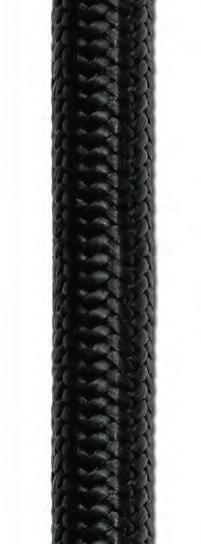

Full Race Black Nylon Hose HD

Full Race Black Nylon Hose features heavy duty side-wall for additional strength. This hose should be considered when using on dry sump “suction” applications. Vacuum not to exceed 28 ins/Hg. Full Race hose is manufactured by Parker USA.

• Temperature Range: -46°C to 150°C

• Note: -20 requires a special socket. Please ask!

Nomex® is a registered trademark of DuPont.

Start-Lite® is a registered trademark of Eaton.

APPLICATION NOTE

100, 120 & FR115 SERIES HOSE

COMPATIBILITY:

RESTRICTIONS:

Note: -20 requires a special socket. Please ask!

• Not recommended for use with unleaded fuels as it is known to allow the permeation of fuel smell through the

• Not recommended for use around extreme heat sources

® is a registered trademark of DuPont.

FUEL ADDITIVES &

THEIR

EFFECT

With the use of new blends of unleaded fuels and additives from fuel manufacturers in recent years

The best option is our 200 SERIES TEFLON® HOSE which can withstand all additives used in the 200 Series -6, -8, -10 and -12 sizes are also manufactured with a carbon lining to prevent static

See page 10 for details

Hoses & Fittings

Hose Ends

SUITS 100, FR115 & 120 SERIES HOSES

FR115 & 120 Series hose for a perfect seal every time! All our hose ends can be rotated once assembled.

Hoses & Fittings

200 SERIES

Teflon® Stainless Steel Braided Hose

®

®) inner tube compatible with all brake & clutch rating. Sizes -6 and up are manufactured with an anti-static PTFE tube suitable for use as main fuel lines. 200 Series has been more consistent braking. This hose has evolved to be recommended in clutch, pressure lines, turbo lines oil, water and fuel systems!

• Temperature Range: -70°C to 260°C.

200 SERIES

Teflon® Stainless Braided Hose - Black

We also offer their popular 200 Series hose with a BLACK STAINLESS supplied by the metre - they are only available up to a maximum length of 5 metres (our -12 is only available up to max length of 3 metres).

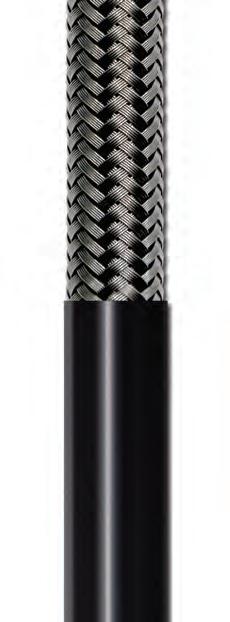

200 SERIES

Teflon® Braided Hose with PVC Cover

® Braided Hose with a Gloss Black* PVC cover. This abrasion resistant cover will stop the braid rubbing against other hoses, chassis or vehicle components & makes cleaning easier. • Temperature Range: -70°C to 260°C.

-3 size is also available with a Clear cover

Hoses & Fittings

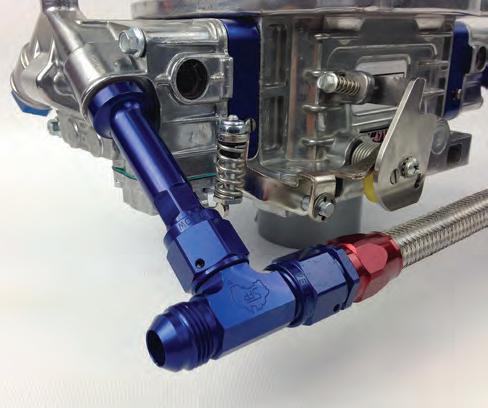

200 SERIES

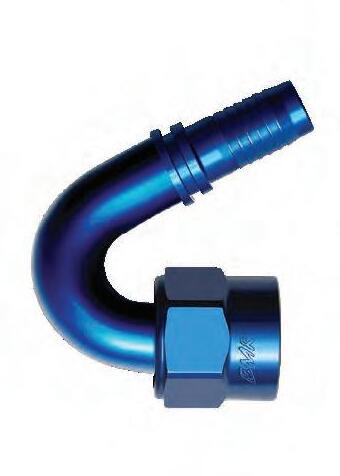

Hose Ends - Aluminium

SUITS 200 SERIES HOSE

MSCN carry the biggest range of 200 Series Hose Ends anywhere... 200 Series aluminium hose ends are ideal for those who are conscious of weight. There are three colour options - standard in BLACK anodised, a BLUE/BLACK combination and introducing the “Classic” range which is available in RED/BLUE.

STRAIGHT HOSE ENDS BLACK BLUE/ BLACK RED/ BLUE SIZE

201-03-BLK201-03-D201-03-CLASSIC -3

201-04-BLK201-04-D201-04-CLASSIC -4

201-06-BLK201-06-D201-06-CLASSIC -6

201-08-BLK201-08-D201-08-CLASSIC -8

201-10-BLK201-10-D201-10-CLASSIC -10

201-12-BLK201-12-D201-12-CLASSIC -12

BLACK BLUE/ BLACK RED/ BLUE SIZE

208-04-BLK208-04-D208-04-CLASSIC -4

208-06-BLK208-06-D208-06-CLASSIC -6

208-08-BLK208-08-D208-08-CLASSIC -8

208-10-BLK208-10-D208-10-CLASSIC

Withstands additives used in the manufacture of unleaded fuels & E85 lining to prevent static build up & discharge from fast moving liquids

Ideal for Brake Lines (off road use only), Clutch Lines, Fuel Systems (-6, -8, -10 & -12 with antistatic carbon lining), Turbo oil feed Hose, Coolant Systems, Oil

COMPATIBILITY:

• Brake Fluids, Unleaded Petrol, Methanol, Water & Oil

• Ideal for use with Unleaded fuel

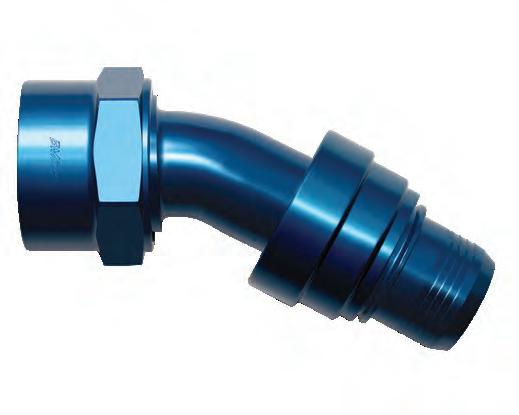

60° HOSE ENDS

Hoses & Fittings

200 SERIES

Hose Ends - Steel

Hose Ends - Swivel Crimp Aluminium

Hoses & Fittings

200 SERIES

Hose Ends - Adaptor Type

Brake, clutch & special purpose hose ends in both Metric & Imperial to suit American,

SUITS 200 SERIES HOSE

vehicles!

FEMALE - CONCAVE SEAT

Accepts 3/8” Bleed Nipple for remote bleeding of Clutch or Brake systems

FEMALE SWIVEL- INVERTED

SWIVEL - FLAT SEAT

FEMALE NPT HOSE END Available in Steel or Black anodised

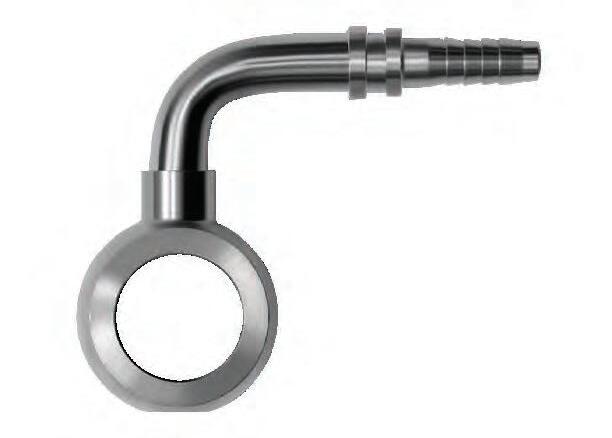

Hose Ends - Banjos

SUITS 200 SERIES

Banjo Bolts

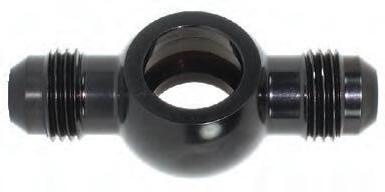

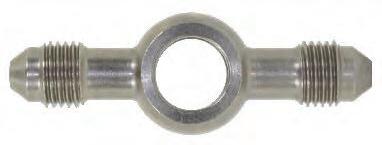

Banjo to Male Flare

200 SERIES 300 SERIES 310 SERIES New size available

Hoses & Fittings

200 SERIES

These slide onto a -3 hose during assembly and suit a variety of standard OEM mounting options including bolt on styles and C-clip versions.

200 SERIES

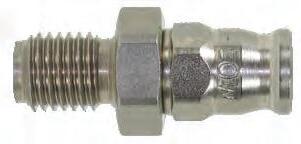

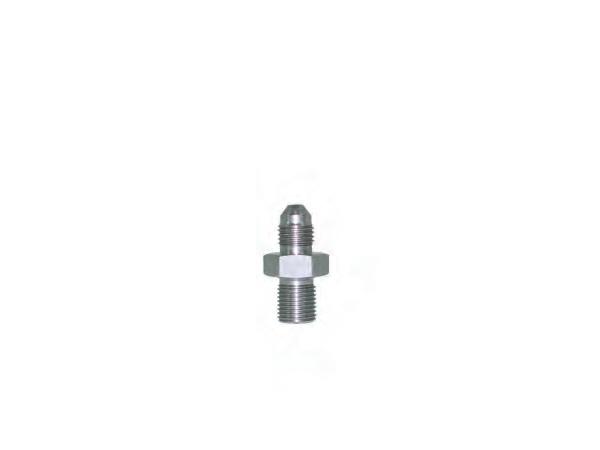

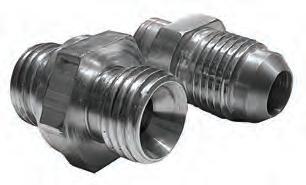

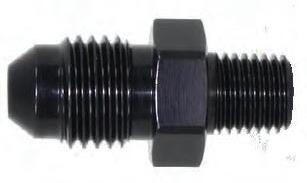

Male Flare Adapters

Ideal for adapting a gauge, a calliper, clutch or brake master cylinder or any -3 & 4 application.

WASHER SEAL - IMPERIAL

MALE WASHER SEAL - ALLOY

Hoses & Fittings

Male Flare Adapters (continued)

If you need to adapt a gauge, a calliper, clutch or brake master cylinder or any -3 & 4 application - we have what you need!

Hoses & Fittings

Male Flare Adapters (continued)

Adapt

Hoses & Fittings

400 SERIES

Pushlock Hose

has an elastomer tube with a smooth outer cover. This is not recommended for use with unleaded fuels or use in high pressure applications or suction systems. This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol.

Range: -46°C (-50.8°F) to 100°C (212°F)

332 SERIES 598 SERIES

AEROQUIP AQP® Socketless Hose

We have added the popular AQP® Socketless™ hose to our range. This hose has an elastomer tube, textile braid reinforcement with a rough elastomer outer cover. We do not recommend this hose for use with unleaded fuels or use in high pressure applications or suction systems. This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol. 332 has a BLUE outer cover and the 598 is BLACK.

Temperature Range: -40°C (-40°F) to 100°C (212°F)

APPLICATION NOTE

400 / 332 / 598 SERIES HOSE

Ideal for Fuel Lines (methanol only), Low Pressure/

COMPATIBILITY:

• Methanol, Water, Oil & Fuel

RESTRICTIONS:

• Not recommended for use with unleaded fuels & ethanol blends as it is known to allow the permeation of fuel smell through the layers as well as excessively reducing the life

• Not recommended for use around extreme heat sources

FUEL ADDITIVES & THEIR EFFECT

With the use of new blends of unleaded fuels and additives from fuel manufacturers in recent years

The best option is our 200 SERIES TEFLON® HOSE which can withstand all additives used in the 200 Series -6, -8, -10 and -12 sizes are also manufactured with a carbon lining to prevent static

See page 11 for details

Hoses & Fittings

Hose Ends

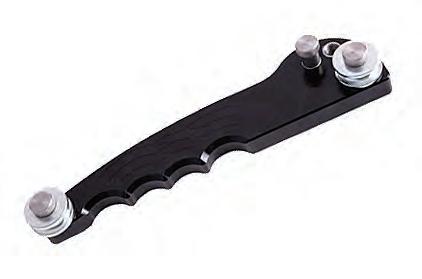

Pushlock Clamps & Pliers

Pushlock clamps are a self tensioning self A must for high heat and oil line applications to ensure a secure seal without damaging the is easy using these Pliers!

Hoses & Fittings

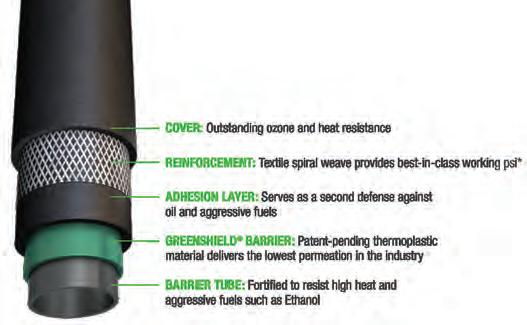

Barricade Premium Fuel Hose

MODERN FUELS REQUIRE MODERN FUEL HOSES

We now stock the Gates premium range of Barricade fuel injection hose. EFI fuel hose to meet the demands of modern fuel blends.

Installing Barricade protects the system against the aggressive fuel mixtures of today’s modern fuels, which can degrade basic rubber hose and result in leaks and failure. Plus with Barricade, you can be assured that you are complying with permeation laws, and providing you with the best hose - all while being environmentally-friendly.

• BEST-IN-CLASS working psi of 225 (for fuel injection)

• Lowest permeation rate on the market 1 gr/m2/day

• Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel†, E-85, 100% Methanol, ETHANOL and gasohol fuels

• SAE R14 rating

Barricade Fuel Injection Hose

• Fuel injection engines, fuel lines, EEC/EGR, cars and light duty trucks

• Air pump, PCV valve compatible with Gas/ Diesel and Ethanol

• Pressure rating: 225 psi (best-in-class)

• Temperature: -40°F to 257°F (-40°C to 135°C) continuous, up to 302°F (150°C) intermittent

NOTE: DO NOT SUBMERSE IN FUEL

411 SERIES

Hose Ends

*Barricade Fuel Injection has a best-in-class working pressure of 225 biodiesel fuel and be produced, marketed and distributed by BQ9000 accredited facilities.

SIZE INSIDE DIAMETER OUTSIDE DIAMETER OPERATING PRESSURE BURST PRESSURE INCHMM MM PSI PSI -4 485-04 1/4”6.3 12.7 225 900 -5 485-05 5/16”8.0 14.3 225 900 -6 485-06 3/8”9.5 15.9 225 900 -8 485-08 1/2”12.719.8 225 900

SUITS 485 & 444

411 Series Hose Ends are a push on hose end for use with standard style hose and a hose clamp for securing. As an example, these are great for adapting aftermarket pumps and fuel rails to standard fuel hose.

412-06412-06-BLK -63/8”

412-08412-08-BLK -81/2”

100 SERIES REDBLACKSIZE C1000-04C1000-04-BLK -4 C1000-06C1000-06-BLK -6 C1000-08C1000-08-BLK -8 C1000-10C1000-10-BLK -10 HOSE SOCKETS REDBLACKSIZE C1000-12C1000-12-BLK -12 C1000-16C1000-16-BLK -16 C1000-20C1000-20-BLK -20 400 SERIES HOSE COLLARS RED BLACK SIZE C4000-04C4000-04-BLK -4 C4000-06C4000-06-BLK -6 C4000-08C4000-08-BLK -8 C4000-10C4000-10-BLK -10 C4000-12C4000-12-BLK -12

Hose Ends Tails Hoses & Fittings

411

SUITS

Powersteer Hose

with a textile inner braid, a single wire braid reinforcement and a rubber impregnated textile braid cover that is black in colour. Temperature Range: -40°C (-40°F) to 121°C (250°F)

Hose Ends

SUITS

A non swivel tapered design hose end specially designed to suit our hose and tested to bursting pressures ideal for power steering applications.

Hoses & Fittings

SF-LITE HOSE SYSTEM - 550 SERIES

technologically advanced hose system available! The hose has a carbon impregnated anti-static PTFE inner tube that is manufactured with a smooth-bore and convolutions on the outside which allows for that can create turbulence or trap debris as commonly found with a fully convoluted hose.

SF-Lite is available in six sizes from -4 to -16, all with a large bore

It comes in a choice of two braid options, Aramid Fibre or Stainless Steel braid.

has well-known characteristics of durability and extraordinary tensile strength along with a high temperature rating.

550 SERIES

Stainless Steel braid is made from 304 stainless steel and offers a much tighter bend radius along with full vacuum rating below 130°C and protects the PTFE liner against internal pressure and mechanical abuse.

SF-Lite has an even higher resistance to permeation than a standard smooth-bore PTFE hose thanks to the unique manufacturing process which highly compresses the PTFE matrix ensuring a nonporous including fuels such as E85 along with refrigeration gases making it perfect for AC lines.

end series. The majority of the angled hose ends are made from our unique one piece formed bends that offer the most compact hose ends on the market with exceptional strength and allow us to achieve very light weight systems.

Teflon® Aramid Braided Hose

hose with an Aramid Fibre Braid which is light weight, abrasion and heat resistant. The working pressure rating will reduce by 1% per 1°C at temps above 130°C up to a maximum of 180°. The manufacturer does not specify this as a Vacuum rated hose. For vacuum applications use the below Stainless Steel Braided version.

• Temperature Range: -70°C (-94°F) to 180°C (356°F).

550 SERIES

Teflon® Stainless Steel Braided Hose

• Temperature Range: -70°C (-94°F) to 180°C (356°F).

The Stainless Steel braided version is made from the same liner as above, utilising a 304 Stainless Steel braid which provides more rigidity 160°C up to a maximum of 260°. This hose is vacuum resistant up to 130° (266°F).

Hoses & Fittings

550 SERIES

Hose Ends

SUITS 550 SERIES HOSE

Our 550 Series hose ends are now available in a double swivel option for a full 360° adjustment. This allows the hose to be rotated after crimping making alignment for installation a breeze. Made from 6061-T6 grade aluminium utilising our come complete with a Natural crimp collar and are hard coat anodised in Black. Black crimp collars are sold separately.

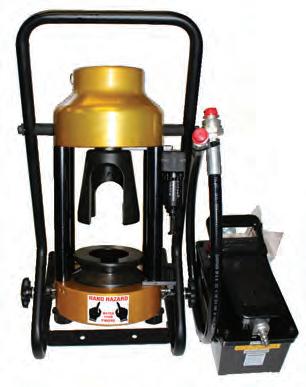

550 SERIES

Crimping Machine

To assemble our 550 Series hose ends, the assembly needs to be service via our distributor network or you can purchase a crimping machine and corresponding dies to suit each size.

This “go anywhere” crimping machine has the power Series assemblies.

The micrometer style adjustment allows the hose spacers. The Stand Alone Hose Crimper utilises a separate pneumatic pump which requires a constant supply of 80psi.

• Dies to suit hose sizes are sold separately so that you can purchase the ones you require.

Hoses & Fittings

550 SERIES

Mechanical Fuel Injection Hose

designed to withstand fuels. This hose suitable for use with synthetic lubricants, oils, air and methanol. •

550 SERIES

Hose Ends

threaded hose ends also available in 3/8” -24 O-ring Port and NPT to give the option of screwing directly into the distribution blocks. The crimp collars are made from 6061-T6 aluminium and require a crimp machine to crimp.

PL SERIES Clear Reinforced Hose

Transparent, plasticised PVC hose that is reinforced by a steel spiral helix which prevents the hose from Gasoline! •

Large Push on Hose Ends

Ideal for larger hoses for use with breather lines and intercooler hoses. Use with standard style hose and a hose clamp for securing.

SUITS 550 SERIES HOSE RED

Air Conditioning Hose & Fittings

Nylon AC Braided Air Conditioning Hose

keep the same look in your engine bay. This is made with a Nylon inner tube and stainless steel outer braid in either standard Stainless or Blackened lengths for superior refrigerant performance in keeping you cool! We have two braid options, Stainless Steel which is sold per adapters.

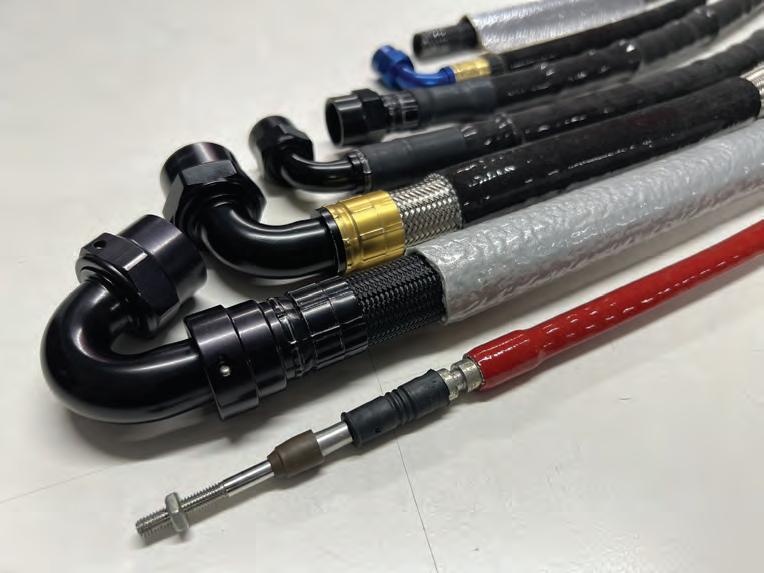

Hose Covers

Stainless Steel Braided Cover 111

This is the best quality Stainless Steel Braided Cover available on the market! It is strong, hard wearing and the close weave will not allow the hose to show through the braid unlike cheap covers. If you are after show quality looks for your Hot Rod, Street Machine, Custom Bike or for your daily drive, this is an economical and versatile option for fuel lines, radiator and heater hoses, power steering and AC lines. Available in several different sizes!

Hose Cover Clamps

aluminium and beautifully anodised! Smaller sizes are machined from hex bar, with larger sizes from -16 and up machined

Aluminium Tubing

440 SERIES

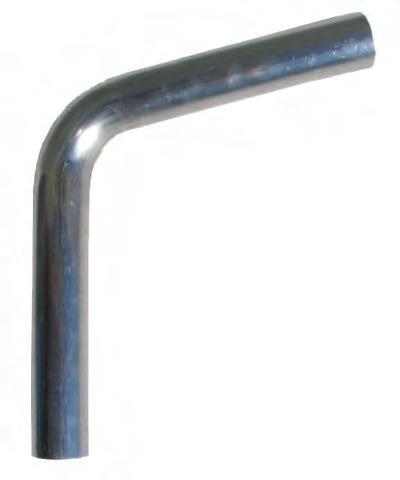

Aluminium Tube

818 & 819 tube nuts and sleeves, a totally leak free seal is achieved! Supplied coiled it can be straightened and routed with

Stainless Steel Hardline

it can be polished to a high lustre show car shine if desired. It is supplied in straight lengths in the dimensions shown below. For shipping a maximum length will be enforced, so we can either cut or coil to suit your order. All stainless hardline is sold by the metre.

Tube Adapters, Nuts & Sleeves

Tube Nuts, Adapters & Sleeves (continued)

RED PART NUMBERS Denote they are not are compatible with or

Pill Holder

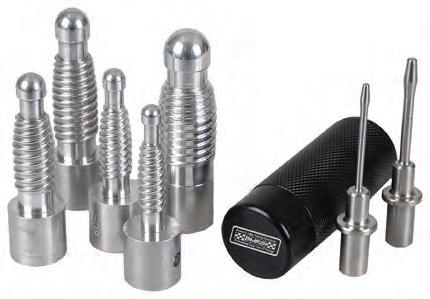

This tube bending tool is designed for tight radius bends and will simplify tube bending with very use on brake lines, nitrous & fuel

RED PART NUMBERS Denote they are not are compatible with or

431-50-BLK

Adapters

Swivel Adapters

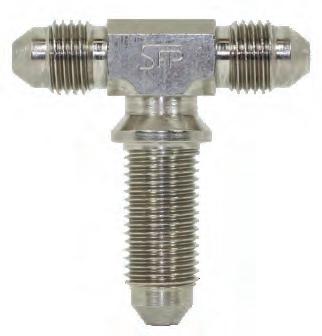

Swivel Adapters, Y Blocks & Tees

Adapters

Fuel Pump, Power Steer & Oil Flare Adapters

suit a wide variety of automotive applications.

VALVE COVER ADAPTER - SUIT NISSAN

in adapter to suit Nissan valve covers

PUSH IN OIL ADAPTER

POWERGLIDE

TH250, TH350, TH4001/4” NPS816-06-NPS

TORQUEFLITE – ALL1/8” NPT816-06-02

TRIMATIC1/8” NPT816-06-02

C4** 1/8” NPS816-06-02-NPS

FORD ZFO-Ring922-ZF-08-BLK

**C4 some cases manufactured with 1/4” NPT please check your case to identify.

Banjo’s & Bolts

Bosch 725-05-BLK

x 1.25Pumps, Filters

x 1.5Bosch, Turbo

Fuel Line Kits

Carburettor Fuel Line Kits

We can make a fuel line kit to suit any fuel system, and carry on the shelf kits for the popular Holley & Demon carburettors. We have several combinations depending on your application or call us if you require a custom made kit, or custom colour anodising!

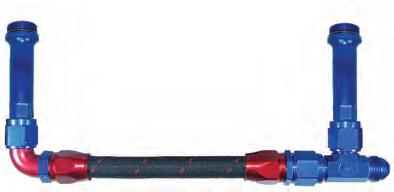

STAINLESS TUBE DUAL FEED KITS

Note: Rubber hose is not recommended for all fuel types

Note: Rubber hose is not recommended for all fuel types

160-06-EXT

160-08160-08-BLK Holley-8100 Series - Rubber

160-08-A160-08-A-BLK Holley-8120 Series - Rubber

160-08-T160-08-T-BLK Holley-8

160-HP-06160-HP-06-BLK HP & QFT-6100 Series - Rubber

160-HP-06-A160-HP-06-A-BLK HP & QFT-6120 Series - Rubber

160-HP-06-T160-HP-06-T-BLK HP & QFT-6

160-HP-08160-HP-08-BLK HP & QFT-8100 Series - Rubber

160-HP-08-A160-HP-08-A-BLK HP & QFT-8120 Series - Rubber

160-HP-08-T160-HP-08-T-BLK HP & QFT-8

161-06161-06-BLK Demon-6100 Series - Rubber

161-06-A161-06-A-BLK Demon-6100 Series - Rubber

161-06-T161-06-T-BLK Demon-6 ®

161-08161-08-BLK Demon-8100 Series - Rubber

161-08-A161-08-A-BLK Demon-8120 Series - Rubber

161-08-T161-08-T-BLK Demon-8 ®

162-06162-06-BLK Dominator-6100 Series - Rubber

162-08162-08-BLK Dominator-8100 Series - Rubber

162-08-A162-08-A-BLK Dominator-8120 Series - Rubber

162-08-T162-08-T-BLK

®

Carburettor Adapters

We have redesigned these adapters to suit a wider variety of carburettors including Holley, Demon, Quick Fuel Technology plus others.

BSPP Adapters

New sizes available

British Standard Pipe Parallel (BSPP) is commonly found in older English vehicles in Engine Blocks, Oil Pumps, Fuel and Oil Filters.

New sizes available

MALE BSPP ADAPTER

REDBLACKSIZEBSPP

750-06750-06-BLK -61/4”BSPP

750-08750-08-BLK -81/4”BSPP

751-06751-06-BLK -63/8”BSPP

751-08751-08-BLK -83/8”BSPP

751-10751-10-BLK -103/8”BSPP

752-06752-06-BLK -61/2”BSPP

752-08752-08-BLK -81/2”BSPP

752-10752-10-BLK -101/2”BSPP

752-12752-12-BLK -121/2”BSPP

753-10753-10-BLK -105/8”BSPP

753-12753-12-BLK -125/8”BSPP

754-10754-10-BLK -103/4”BSPP

754-12754-12-BLK -123/4”BSPP

NITROUS BOTTLE ADAPTER SIZE

NOS16220 -4

Converts bottle to a -4 hose as

BSP TAPERED ADAPTERS

Al range of BSP Tapered adapters to suit the increasing variety of parts that are adapters are machined with a notch in the hex to make it easier to identify

BLUEBLACKSIZEBSPT

817-06-02817-06-02-BLK -61/8”

817-06-04817-06-04-BLK -61/4”

817-06-06817-06-06-BLK -63/8”

817-08-06817-08-06-BLK -83/8”

817-08-08817-08-08-BLK -81/2”

817-10-06817-10-06-BLK -103/8”

817-10-08817-10-08-BLK -101/2”

817-10-12817-10-12-BLK -103/4”

NITROUS BOTTLE O-RING SIZE

NOS16200 20mm OD11.2mm ID

Nitrous bottle O-Ring to suit

Shown with 759-08-02-BLK

use of the standard sender and aftermarket

FEMALE

PORT thread and concave seat to accept

-3Steel

Check out our range of aluminium crush washers on page 48

- MALE M10

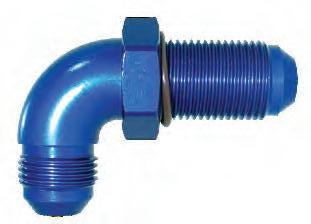

Male AN/JIC Adapters & Bulkhead Fittings

MALE FLARE REDUCERS

Adapters

Reducers, Expanders, Extensions, Plugs & Caps

of plugs and caps to include metric to complement our popular imperial sizes.

-8-6

950-10-06950-10-06-BLK -10-6

950-10-08950-10-08-BLK -10-8

950-12-08950-12-08-BLK -12-8

950-12-10950-12-10-BLK -12-10

950-16-10 - -16-10

950-16-12950-16-12-BLK -16-12

950-20-16950-20-16-BLK -20-16

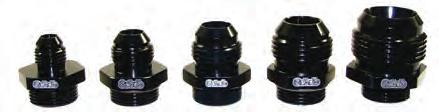

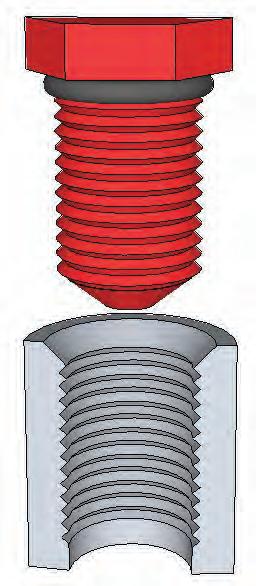

O-Ring Port Adapters

Adapters

816-10816-10-BLK816-10-SS

816-10-12816-10-12-BLK-

816-12-08816-12-08-BLK-

816-12816-12-BLK816-12-SS

816-12-16816-12-16-BLK-

816-16-12816-16-12-BLK-

816-16816-16-BLK-

816-20816-20-BLK-

816-20-16816-20-16-BLK-

-41/8”

NPT - FLARE SWIVEL

Steel

NPT Adapters (continued)

Weld-On Fittings, Male, Female & Special Purpose

are fabricating you don’t have the time to search for the right part, that is why we have this complete range available right off the shelf!

These are manufactured with a hex and an internal boss to accept the approriate sized

Weld on Necks & Caps

We have manufactured more weld necks in steel and stainless to suit our aluminium caps. If you are fabricating a tank, we have a cap to suit! Caps are supplied as Raw, add colour behind part number if you require an anodised version.

Filler Caps - AN Thread

caps, featuring male AN threads in either -12, -16 or a O-ring for a positive seal. They can be used in any AN Port threaded hole, or used our 990 series weld bungs to fabricate tanks, valve covers and other accessories.

460-16460-16-BLUE460-16-BLACK460-16-RED

460-24460-24-BLUE460-24-BLACK460-24-RED Aluminium 460-32460-32-BLUE460-32-BLACK460-32-RED

Steel 460-16-S460-16-S-BLUE460-16-S-BLACK460-16-S-RED

Steel 460-24-S460-24-S-BLUE460-24-S-BLACK460-24-S-RED

Steel -460-32-S-BLUE460-32-S-BLACK460-32-S-RED

Stainless Steel 460-16-SS460-16-SS-BLUE460-16-SS-BLACK460-16-SS-RED

Stainless Steel 460-24-SS460-24-SS-BLUE460-24-SS-BLACK460-24-SS-RED

Stainless Steel

460-32-SS460-32-SS-BLUE460-32-SS-BLACK460-32-SS-RED

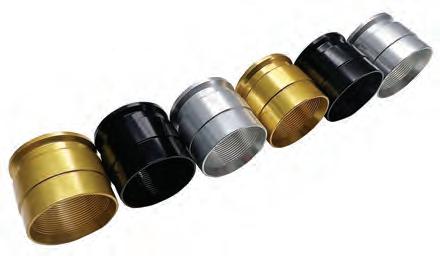

REPLACEMENT WELD NECKS

ALUMINIUMSTEELSTAINLESS STEEL

C460-16-DC460-16-SC460-16-SS

C460-24-DC460-24-SC460-24-SS

C460-32-DC460-32-SC460-32-SS

Note; 990 Weld Bung sold separately

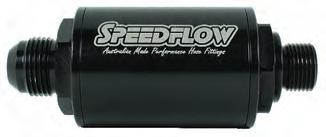

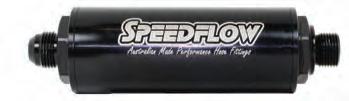

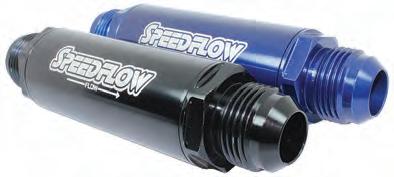

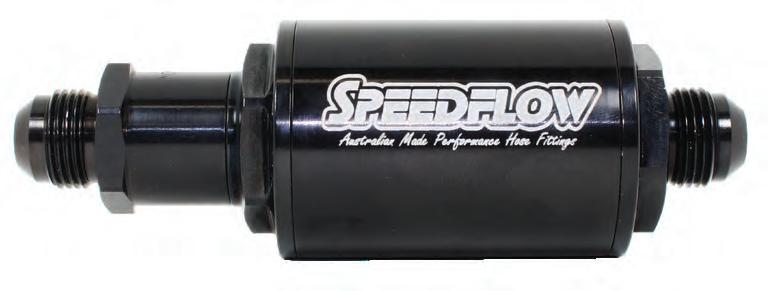

INLINE FILTERS

600 Micro Series

pleated disc screen.

601 Short Series

All mesh elements are stainless steel except the 12 micron versions

-8 SHORT SERIES

with minimal pressure loss using a -10 unit! these units are usable for applications over 3000hp! -10 SHORT SERIES BLACK SIZE 601-010-10-BLK -10 / 10 Micron 601-G12-10-BLK -10 / 12 Micron 601-040-10-BLK -10 / 40 Micron 601-065-10-BLK -10 / 65 Micron 601-100-10-BLK -10 / 100 Micron 601-150-10-BLK -10 / 150 Micron METRIC SERIES - M12 INLET BLACK SIZE 601-***-M1206-BLK M12 x 1.5 to -6 Male 601-***-M1208-BLK M12 x 1.5 to -8 Male 601-***-M1210-BLK M12 x 1.5 to -10 Male 601-***-M1212-BLK M12 x 1.5 to -12 Male

12 & 150 micron versions now available

/ METRIC SERIES - M18 OUTLET BLACK SIZE 601-***-M1806-BLK M18 x 1.5 to -6 Male 601-***-M1808-BLK M18 x 1.5 to -8 Male 601-***-M1810-BLK M18 x 1.5 to -10 Male 601-***-M1812-BLK M18 x 1.5 to -12 Male

/ CHECK VALVE SERIES BLACK SIZE 601-***-61006-BLK -6 Check Valve to -6 Male 601-***-61008-BLK -8 Check Valve to -8 Male 601-***-61206-BLK M12 x 1.5 Check Valve to -6 601-***-61208-BLK M12 x 1.5 Check Valve to -8

/

602 Long Series

Measures 1.75” OD (45mm) with a body length of 5.725” (145mm) inches (288.4cm²) with a choice of 6 micron sizes.

602 Metric Series

The 602 Long Series are also available with M12 inlet or M18 outlet ends along with our check valve series making it suitable for applications such as aftermarket fuel pumps. A great space saver for those tight situations.

603 Mega Series

place. Machined from 6061-T6 aluminium and hard anodised. Designed to be used for inline Fuel and Oil applications.

be plugged off using 814-M12 or adapted to 1/8” NPT with

SERIES - MALE BLACK SIZEMICRONELEMENT

MEGA SERIES - M12 SENSOR PORT

Filters

Individual Filter Components

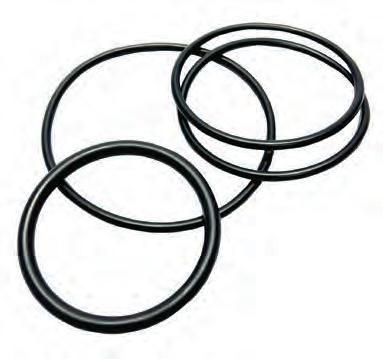

REPLACEMENT O-RINGS

COM-05 -45mm x 1mm COM-08 -68mm x 1mm COM-11

Inline Filters - Scavenge Filters

Designed to be placed on scavenge lines to protect the dry sump pump from debris.

We also do an XRP Scavenge Filter our Oil Systems section on page 159

Check Valves & Blower Relief

Our redesigned one way poppet valves have been proven to be very popular in every aspect of the performance industry!

NON-RETURN VALVE - INLINE

Unique one-way valves were designed with

to hold line pressure and make starting easier! BLUE/BLACKBLACKINLETOUTLET

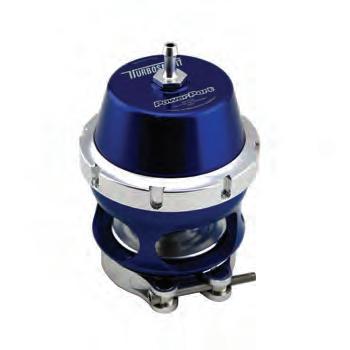

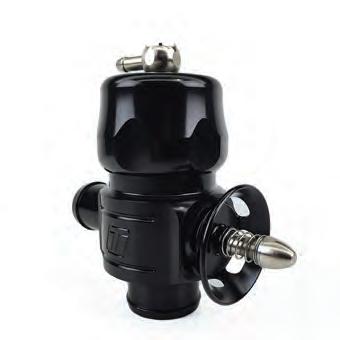

BLOWER RELIEF VALVES

These can be screwed into a Supercharger gear case or other applications that require pressure

We also off the 620-504 with a 1/4” tail that is RED/BLUEBLACKTHREAD 620-02620-02-BLK 1/8” NPT

7/16” -20 620-504620-504-BLK 1/8” NPT

TANK VENT / ROLL OVER VALVE

In-tank vent / roll over vlave has a spring-

BRAKE BOOSTER VALVE

These Billet Brake Booster Valves are machined from billet aluminium, and feature a -6 male

TEMPERATURE PROBE ADAPTERS

Range of adapters to suit a variety of threads to adapt mechanical temperature probes to your

Valves

Aluminium Ball Valves

These are lightweight, beautifully machined and anodised. Available in 3 body sizes to suit fuel, oil water and air applications.

Quality 6061-T6 aluminium & hard anodised in black, with the spool and hardware all made from stainless steel. A 12 point locating drive for multiple handle orientation designed to eliminate movement under vibration and tyre shake. Encapsulated o-rings greatly reduce the possibilities of leaks common with other three way valves.

Turbo Block Adapters, Flanges, Shims & Gaskets

Washers, O’Rings & Clamps

Washers, O-Rings, Clamps & Seals

MSCN is proud to be the Australian distributor for Brown & Miller Racing

We carry two ranges of BMRS products

PROGold Hose Systems

Stainless Steel Braid

Features: • Lightweight & Ultimate Flexibility

• Compatible with Virtually All Fluids

Applications:

High Temperature Polymer Braid - Black

Applications:

• Compatible with Virtually All Fluids

IMPORTANT PTFE

Why is PTFE is short for Polytetrafluoroethylene - is also known by the trademarked name TEFLON ® . Here are some reasons that it is better than rubber!

• PTFE lined hose has excellent chemical resistance properties and supports most automotive fluids that regular rubber just can’t. The most common of which is blended gasoline containing ethanol. Regular rubber hoses break down from exposure to this gasoline & eventually degrade to the point where they may begin to leak or spray fuel.

PROGold

PROGold Hose Systems (continued)

Aramid Braid - Black

Features:

• Very Lightweight & Ultimate Flexibility

• Compatible with Virtually All Fluids

Applications:

Clear Convoluted - PTFE

Features:

• Very Flexible & Lightweight

• Compatible with Virtually All Fluids

Applications:

All* ProGold convoluted hose comes with a static dissipating liner as standard and is available in sizes -6 to -20. Applications include fuel, oil, water & air systems.

*Sizes -24, -28 & -32 do not have a static dissipating liner

PTFE

• PTFE hose acts as a vapor barrier and prevents gasoline odors from seeping out.

• With PTFE lined hose you should use the same manufacturers appropriate fittings to ensure that perfect seal. They are created with a special fitting ferrule to suit the hose size rather than an insert as is sometimes used on rubber hose.

• It is worth noting that the bend radius on some PTFE hoses must not be exceeded as they will kink more easily if you go past the recommended specifications.

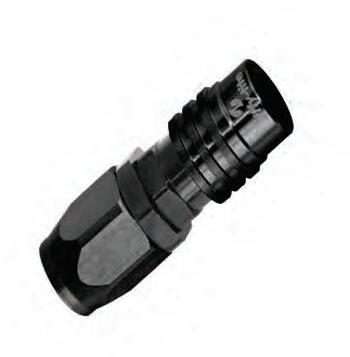

PROGold Hose Ends - AN Female

Straight

BLUE BLACK SIZE

Aluminum

BM-AC-06-F3BMB-AC-06-F4

BM-AC-08-F3BMB-AC-08-F4

BM-AC-10-F3BMB-AC-10-F4

BM-AC-12-F3BMB-AC-12-F4

BM-AC-16-F3BMB-AC-16-F4

BM-AC-06-30JIC-3BMB-AC-06-30JIC-4

BM-AC-08-30JIC-3BMB-AC-08-30JIC-4

BM-AC-10-30JIC-3BMB-AC-10-30JIC-4

BM-AC-12-30JIC-3BMB-AC-12-30JIC-4

BM-AC-16-30JIC-3BMB-AC-16-30JIC-4

BM-AC-20-F3BMB-AC-20-F4

BM-AC-24-F3BMB-AC-24-F4

Stainless Steel

BM-AC-06-F7

BM-AC-08-F7

Stainless Steel with Aluminum Nuts

BM-AC-06-F7-3BMB-AC-06-F7-4

BM-AC-08-F7-3BMB-AC-08-F7-4

Reducer Fittings Hose SizeNut Size

BM-AC-06-08-F3BMB-AC-06-08-F4

BM-AC-08-06-F3BMB-AC-08-06-F4

BM-AC-10-08-F3BMB-AC-10-08-F4

BM-AC-10-12-F3BMB-AC-10-12-F4

BM-AC-12-10-F3BMB-AC-12-10-F4

BM-AC-16-12-F3BMB-AC-16-12-F4

BM-AC-20-16-F3BMB-AC-20-16-F4

BM-AC-20-24-F3BMB-AC-20-24-F4

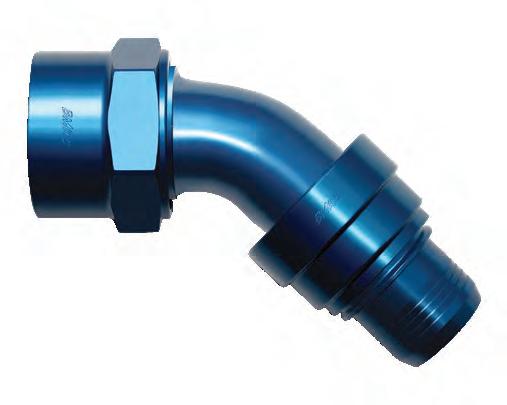

60°

BLUE BLACK SIZE

Aluminum

BM-AC-06-60JIC-3BMB-AC-06-60JIC-4

BM-AC-08-60JIC-3BMB-AC-08-60JIC-4

BM-AC-10-60JIC-3BMB-AC-10-60JIC-4

BM-AC-12-60JIC-3BMB-AC-12-60JIC-4

BM-AC-16-60JIC-3BMB-AC-16-60JIC-4

BM-AC-20-60JIC-3BMB-AC-20-60JIC-4

BM-AC-20-30JIC-3BMB-AC-20-30JIC-4 45°

BLUE BLACK SIZE

Aluminum

BM-AC-06-G3BMB-AC-06-G4

BM-AC-08-G3BMB-AC-08-G4

BM-AC-10-G3BMB-AC-10-G4

BM-AC-12-G3BMB-AC-12-G4

BM-AC-16-G3BMB-AC-16-G4

BM-AC-20-G3BMB-AC-20-G4

Stainless Steel

BM-AC-06-G7BMB-AC-06-G7

BM-AC-08-G7BMB-AC-08-G7

Stainless Steel with Aluminum Nuts

BM-AC-06-G7-3BMB-AC-06-G7-4

BM-AC-08-G7-3BMB-AC-08-G7-4

Reducer Fittings Hose SizeNut Size

BM-AC-06-08-G3BMB-AC-06-08-G4

BM-AC-10-08-G3BMB-AC-10-08-G4

BM-AC-16-12-G3BMB-AC-16-12-G4

BM-AC-20-24-G3BMB-AC-20-24-G4

90° SIZE

Aluminum

BM-AC-06-H3BMB-AC-06-H4

BM-AC-08-H3BMB-AC-08-H4

BM-AC-10-H3BMB-AC-10-H4

BM-AC-12-H3BMB-AC-12-H4

BM-AC-16-H3BMB-AC-16-H4

BM-AC-20-H3BMB-AC-20-H4

Stainless Steel

BM-AC-06-H7

BM-AC-08-H7

Stainless Steel with Aluminum Nuts

BM-AC-06-H7-3BMB-AC-06-H7-4

BM-AC-08-H7-3BMB-AC-08-H7-4

Reducer Fittings

BM-AC-06-08-H3BMB-AC-06-08-H4

BM-AC-10-08-H3BMB-AC-10-08-H4

BM-AC-16-12-H3BMB-AC-16-12-H4

BM-AC-20-24-H3BMB-AC-20-24-H4

Hose SizeNut Size

PROGold Series

PROGold Hose Ends - AN Female (continued)

90° Block Elbow

BLUE BLACK SIZE

Aluminum

BM-AC-06-B-H3BMB-AC-06-B-H4

BM-AC-08-B-H3BMB-AC-08-B-H4

BM-AC-10-B-H3BMB-AC-10-B-H4

90° Block - Male Orb

BLUE BLACK SIZE

Aluminum

SIZE

Aluminum

BM-AC-06-P3BMB-AC-06-P4

BM-AC-08-P3BMB-AC-08-P4

BM-AC-10-P3BMB-AC-10-P4

BM-AC-12-P3BMB-AC-12-P4

BM-AC-16-P3BMB-AC-16-P4

BM-AC-20-P3BMB-AC-20-P4

Stainless Steel

BM-AC-06-P7

BM-AC-08-P7

Stainless Steel with Aluminum Nuts

BM-AC-06-P7-3BMB-AC-06-P7-4

BM-AC-08-P7-3BMB-AC-08-P7-4

PROGold Hose Ends - AN Male Straight

Aluminum

BM-AC-06-J3BMB-AC-06-J4

BM-AC-08-J3BMB-AC-08-J4

BM-AC-10-J3BMB-AC-10-J4

BM-AC-12-J3BMB-AC-12-J4

BM-AC-16-J3BMB-AC-16-J4

Stainless Steel

BM-AC-06-J7

Aluminum

BM-AC-06-R3BMB-AC-06-R4

BM-AC-08-R3BMB-AC-08-R4

BM-AC-10-R3BMB-AC-10-R4

BM-AC-12-R3BMB-AC-12-R4

BM-AC-16-R3BMB-AC-16-R4

Stainless Steel

BM-AC-06-R7

BM-AC-08-R7

Stainless Steel with Aluminum Nuts

BM-AC-06-R7-3BMB-AC-06-R7-4

BM-AC-08-R7-3BMB-AC-08-R7-4

Reducer Fittings

BM-AC-16-12-R3BMB-AC-16-12-R4

Hose SizeNut Size

See page 61 for replacements if needed

Standard with Blue Fittings

BM-AC-08-B-M3-90 BMB-AC-08-B-M4-90 Gold

Standard with Stainless Fittings

Stainless

Standard with Black Fittings Black Clear Anodized

BLACK SIZE

PROGold Hose Ends - AN Female Double Swivel 30°

Aluminum

BM-AC-06-30JICDS-3BMB-AC-06-30JICDS-4

BM-AC-08-30JICDS-3BMB-AC-08-30JICDS-4

BM-AC-10-30JICDS-3BMB-AC-10-30JICDS-4

BM-AC-12-30JICDS-3BMB-AC-12-30JICDS-4

BM-AC-16-30JICDS-3BMB-AC-16-30JICDS-4

BM-AC-20-30JICDS-3BMB-AC-20-30JICDS-4

BLUE BLACK SIZE

Aluminum

BM-AC-06-G3-DSBMB-AC-06-G4-DS

BM-AC-08-G3-DSBMB-AC-08-G4-DS

BM-AC-10-G3-DSBMB-AC-10-G4-DS

BM-AC-12-G3-DSBMB-AC-12-G4-DS

BM-AC-16-G3-DSBMB-AC-16-G4-DS

BM-AC-20-G3-DSBMB-AC-20-G4-DS

Stainless Elbow with Aluminum Nut & Insert

BM-AC-06-G7-3-DSBMB-AC-06-G7-4-DS

BM-AC-08-G7-3-DSBMB-AC-08-G7-4-DS

Reducer Fittings

BM-AC-08-06-G3-DSBMB-AC-08-06-G4-DS

BM-AC-10-08-G3-DSBMB-AC-10-08-G4-DS

BM-AC-12-08-G3-DSBMB-AC-12-08-G4-DS

Hose SizeNut Size

Aluminum

BM-AC-06-60JICDS-3BMB-AC-06-60JICDS-4

BM-AC-08-60JICDS-3BMB-AC-08-60JICDS-4

BM-AC-10-60JICDS-3BMB-AC-10-60JICDS-4

BM-AC-12-60JICDS-3BMB-AC-12-60JICDS-4

BM-AC-16-60JICDS-3BMB-AC-16-60JICDS-4

BM-AC-20-60JICDS-3BMB-AC-20-60JICDS-4

BM-AC-12-10-G3-DSBMB-AC-12-10-G4-DS 90°

The more popular sizes are also available in either STAINLESS or STAINLESS WITH ALUMINIUM NUT

BLUE BLACK SIZE

Aluminum

BM-AC-06-H3-DSBMB-AC-06-H4-DS

BM-AC-08-H3-DSBMB-AC-08-H4-DS

BM-AC-10-H3-DSBMB-AC-10-H4-DS

BM-AC-12-H3-DSBMB-AC-12-H4-DS

BM-AC-16-H3-DSBMB-AC-16-H4-DS

BM-AC-20-H3-DSBMB-AC-20-H4-DS

Stainless Elbow with Aluminum Nut & Insert

BM-AC-06-H7-3-DSBMB-AC-06-H7-4-DS

BM-AC-08-H7-3-DSBMB-AC-08-H7-4-DS

Reducer Fittings

BM-AC-08-06-H3-DSBMB-AC-08-06-H4-DS

BM-AC-10-08-H3-DSBMB-AC-10-08-H4-DS

BM-AC-12-08-H3-DSBMB-AC-12-08-H4-DS

BM-AC-12-10-H3-DSBMB-AC-12-10-H4-DS

BM-AC-16-12-H3-DSBMB-AC-16-12-H4-DS

BM-AC-20-16-H3-DSBMB-AC-20-16-H4-DS

Hose SizeNut Size

Aluminum

BM-AC-06-P3-DSBMB-AC-06-P4-DS

BM-AC-08-P3-DSBMB-AC-08-P4-DS

BM-AC-10-P3-DSBMB-AC-10-P4-DS

BM-AC-12-P3-DSBMB-AC-12-P4-DS

BM-AC-16-P3-DSBMB-AC-16-P4-DS

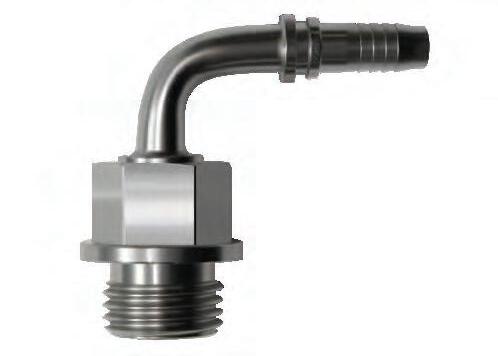

Stainless Elbow with Aluminum Nut & Insert

BM-AC-06-P7-3-DSBMB-AC-06-P7-4-DS

BM-AC-08-P7-3-DSBMB-AC-08-P7-4-DS

Reducer Fittings

BM-AC-12-10-P3-DSBMB-AC-12-10-P4-DS

BM-AC-16-12-P3-DSBMB-AC-16-12-P4-DS

SIZE

Hose SizeNut Size

BLUE BLACK SIZE

BLUE BLACK SIZE

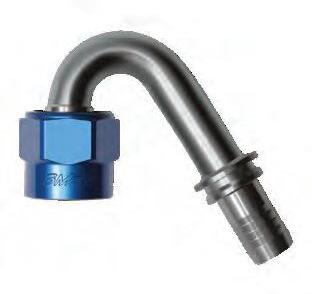

Stainless Steel Stainless Insert with Aluminum Nut

PROGold Series

PROGold Hose Ends - AN Female Double Swivel (continued)

150°

Aluminum

BM-AC-06-R3-DSBMB-AC-06-R4-DS

BM-AC-08-R3-DSBMB-AC-08-R4-DS

BM-AC-10-R3-DSBMB-AC-10-R4-DS

BM-AC-12-R3-DSBMB-AC-12-R4-DS

BM-AC-16-R3-DSBMB-AC-16-R4-DS

Stainless Elbow with Aluminum Nut & Insert

BM-AC-06-R7-3-DSBMB-AC-06-R7-4-DS

BM-AC-08-R7-3-DSBMB-AC-08-R7-4-DS

Reducer Fittings

BM-AC-12-10-R3-DSBMB-AC-12-10-R4-DS

4

LOOKING FOR OUR RANGE OF

180°

DON’T SEE WHAT YOU NEED? PLEASE CALL AS THIS RANGE IS EVER EXPANDING.

Wiggins Hose Ends - Male Straight

Aluminum

BM-AC-06-S3-DSBMB-AC-06-S4-DS

BM-AC-08-S3-DSBMB-AC-08-S4-DS

BM-AC-10-S3-DSBMB-AC-10-S4-DS

BM-AC-12-S3-DSBMB-AC-12-S4-DS

BM-AC-16-S3-DSBMB-AC-16-S4-DS

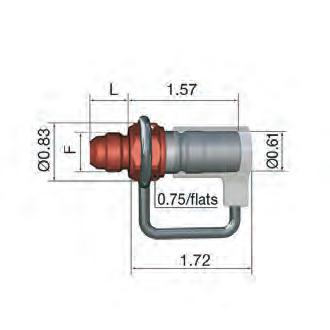

Pin Wire

Wiggins Hose Ends - Female

Straight

Single & Double ‘O’ Rings

Single 'O' Ring

Double 'O' Ring

BM-AC-06-08-ST-WFBM-AC-06-08-ST-WFFDBMB-AC-06-08-ST-WF-4BMB-AC-06-08-ST-WFFD-4

BM-AC-08-ST-WFBM-AC-08-ST-WFFDBMB-AC-08-ST-WF-4BMB-AC-08-ST-WFFD-4

BM-AC-10-ST-WFBM-AC-10-ST-WFFDBMB-AC-10-ST-WF-4BMB-AC-10-ST-WFFD-4

BM-AC-12-ST-WFBM-AC-12-ST-WFFDBMB-AC-12-ST-WF-4BMB-AC-12-ST-WFFD-4

BM-AC-16-ST-WFBM-AC-16-ST-WFFDBMB-AC-16-ST-WF-4BMB-AC-16-ST-WFFD-4

BM-AC-20-ST-WFBM-AC-20-ST-WFFDBMB-AC-20-ST-WF-4BMB-AC-20-ST-WFFD-4

BM-AC-24-ST-WF

Reducer Fittings

BM-AC-06-10-ST-WF

BM-AC-08-10-ST-WF

BM-AC-12-16-ST-WF

BM-AC-20-16-ST-WF

BM-AC-20-28-ST-WF

30°

BM-AC-20-24-ST-WFFD

BMB-AC-06-10-ST-WF-4

BMB-AC-08-10-ST-WF-4

BMB-AC-12-16-ST-WF-4

BMB-AC-20-16-ST-WF-4

BMB-AC-20-28-ST-WF-4

BMB-AC-20-24-ST-WFFD-4

BM-AC-12-30-WFBM-AC-12-30-WFFDBMB-AC-12-30-WF-4BMB-AC-12-30-WFFD-4

BM-AC-16-30-WFBM-AC-16-30-WFFDBMB-AC-16-30-WF-4BMB-AC-16-30-WFFD-4 Reducer Fittings

BM-AC-20-16-30-WF

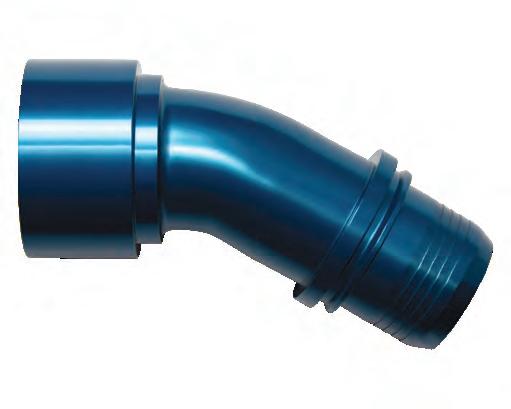

45°

Aluminum

BMB-AC-20-16-30-WF-4

Double 'O' RingHoseClamp

BM-AC-06-08-45-WFBM-AC-06-08-45-WFFDBMB-AC-06-08-45-WF-4BMB-AC-06-08-45-WFFD-4

BM-AC-08-45-WFBM-AC-08-45-WFFDBMB-AC-08-45-WF-4BMB-AC-08-45-WFFD-4

BM-AC-10-45-WFBM-AC-10-45-WFFDBMB-AC-10-45-WF-4BMB-AC-10-45-WFFD-4

BM-AC-12-45-WFBM-AC-12-45-WFFDBMB-AC-12-45-WF-4BMB-AC-12-45-WFFD-4

BM-AC-16-45-WFBM-AC-16-45-WFFDBMB-AC-16-45-WF-4BMB-AC-16-45-WFFD-4

BM-AC-20-45-WFBM-AC-20-45-WFFDBMB-AC-20-45-WF-4BMB-AC-20-45-WFFD-4

Reducer Fittings

BM-AC-20-0001-45

BM-AC-20-0002-45

BMB-AC-20-0001-45-4

BMB-AC-20-0002-45-4

PROGold Series

Wiggins Hose Ends - Female (continued)

60°

BM-AC-12-60-WFBM-AC-12-60-WFFDBMB-AC-12-60-WF-4BMB-AC-12-60-WFFD-4

BM-AC-16-60-WFBM-AC-16-60-WFFDBMB-AC-16-60-WF-4BMB-AC-16-60-WFFD-4

90°

Aluminum

BM-AC-06-08-90-WFBM-AC-06-08-90-WFFDBMB-AC-06-08-90-WF-4BMB-AC-06-08-90-WFFD-4

BM-AC-08-90-WFBM-AC-08-90-WFFDBMB-AC-08-90-WF-4BMB-AC-08-90-WFFD-4

BM-AC-10-90-WFBM-AC-10-90-WFFDBMB-AC-10-90-WF-4BMB-AC-10-90-WFFD-4

BM-AC-12-90-WFBM-AC-12-90-WFFDBMB-AC-12-90-WF-4BMB-AC-12-90-WFFD-4

BM-AC-16-90-WFBM-AC-16-90-WFFDBMB-AC-16-90-WF-4BMB-AC-16-90-WFFD-4

BM-AC-20-90-WFBM-AC-20-90-WFFDBMB-AC-20-90-WF-4BMB-AC-20-90-WFFD-4

Reducer Fittings

BM-AC-08-12-90-WF

BM-AC-12-28-90-WF

---

BM-AC-20-24-90-WFFD

120°

BMB-AC-08-12-90-WF-4

BMB-AC-12-28-90-WF-4

---

BMB-AC-20-24-90-WFFD-4

BM-AC-08-120-WFBM-AC-08-120-WFFDBMB-AC-08-120-WF-4BMB-AC-08-120-WFFD-4

BM-AC-10-120-WFFD

BMB-AC-10-120-WFFD-4

BM-AC-12-120-WFBM-AC-12-120-WFFDBMB-AC-12-120-WF-4BMB-AC-12-120-WFFD-4 BM-AC-16-120-WFFD

BMB-AC-16-120-WFFD-4

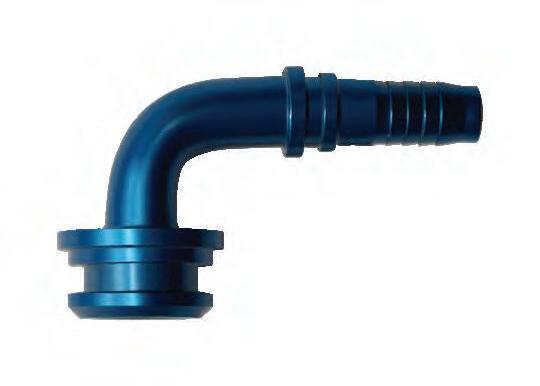

Wiggins Hose Ends - Female Double Swivel

BM-AC-10-45-WF-DS

BMB-AC-10-45-WF-DS-4

BM-AC-12-45-WF-DSBM-AC-12-45-WFFDDSBMB-AC-12-45-WF-DS-4BMB-AC-12-45-WFFDDS-4

BM-AC-16-45-WF-DSBM-AC-16-45-WFFDDSBMB-AC-16-45-WF-DS-4BMB-AC-16-45-WFFDDS-4

BM-AC-20-45-WF-DSBM-AC-20-45-WFFDDSBMB-AC-20-45-WF-DS-4BMB-AC-20-45-WFFDDS-4

Reducer Fittings

BM-AC-12-16-45-WFDS

BM-AC-16-20-45-WFDS

90°

BM-AC-06-08-90-WFDS

BM-AC-08-90-WF-DS

BM-AC-10-90-WF-DS

BMB-AC-12-16-45-WFDS-4

BMB-AC-16-20-45-WFDS-4

BMB-AC-06-08-90-WFDS-4

BMB-AC-08-90-WF-DS-4

BMB-AC-10-90-WF-DS-4

BM-AC-12-90-WF-DSBM-AC-12-90-WFFDDSBMB-AC-12-90-WF-DS-4BMB-AC-12-90-WFFDDS-4

BM-AC-16-90-WF-DSBM-AC-16-90-WFFDDSBMB-AC-16-90-WF-DS-4BMB-AC-16-90-WFFDDS-4

BM-AC-20-90-WF-DSBM-AC-20-90-WFFDDSBMB-AC-20-90-WF-DS-4BMB-AC-20-90-WFFDDS-4

Reducer Fittings

BM-AC-12-16-90WFDS

BM-AC-20-16-90WFDS

180°

BMB-AC-12-16-90WFDS-4

BMB-AC-20-16-90WFDS-4

BMB-AC-12-180-WF-DS-4

PROGold Series

Port Thread Hose Ends - Male Swivel

Straight

BLUE BLACK SIZE

Aluminum

BM-AC-06-M3-00BMB-AC-06-M4-00

BM-AC-08-M3-00BMB-AC-08-M4-00

BM-AC-10-M3-00BMB-AC-10-M4-00

BM-AC-12-M3-00BMB-AC-12-M4-00

BM-AC-16-M3-00BMB-AC-16-M4-00

BM-AC-20-M3-00BMB-AC-20-M4-00

Reducer Fittings

BM-AC-06-08-M3-00BMB-AC-06-08-M4-00

BM-AC-08-06-M3-00BMB-AC-08-06-M4-00

BM-AC-08-10-M3-00BMB-AC-08-10-M4-00

BM-AC-10-08-M3-00BMB-AC-10-08-M4-00

BM-AC-10-12-M3-00BMB-AC-10-12-M4-00

BM-AC-12-10-M3-00BMB-AC-12-10-M4-00

BM-AC-16-12-M3-00BMB-AC-16-12-M4-00

HoseThread

BM-AC-06-M3-30BMB-AC-06-M4-30

BM-AC-08-M3-30BMB-AC-08-M4-30

BM-AC-10-M3-30BMB-AC-10-M4-30

BM-AC-12-M3-30BMB-AC-12-M4-30

BM-AC-16-M3-30BMB-AC-16-M4-30

Reducer Fittings

BM-AC-12-10-M3-30BMB-AC-12-10-M4-30

BM-AC-16-12-M3-30BMB-AC-16-12-M4-30

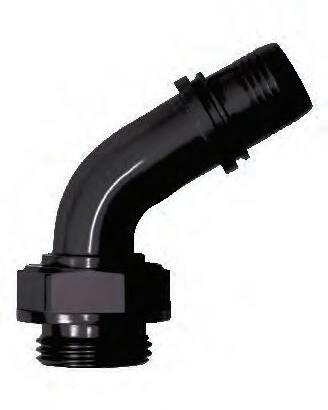

HoseThread

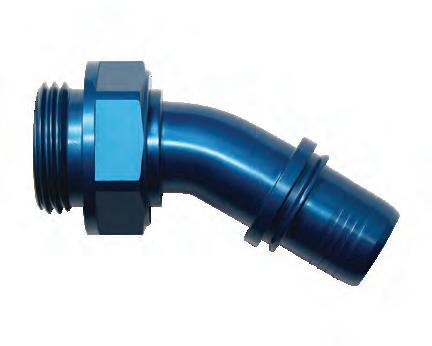

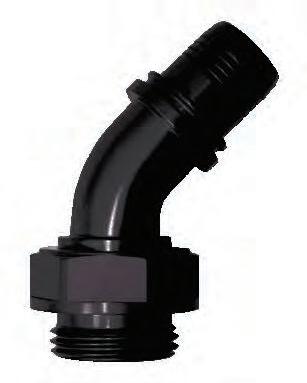

BM-AC-06-M3-45BMB-AC-06-M4-45

BM-AC-08-M3-45BMB-AC-08-M4-45

BM-AC-10-M3-45BMB-AC-10-M4-45

BM-AC-12-M3-45BMB-AC-12-M4-45

BM-AC-16-M3-45BMB-AC-16-M4-45

BM-AC-20-M3-45BMB-AC-20-M4-45

Reducer Fittings

BM-AC-06-08-M3-45BMB-AC-06-08-M4-45

BM-AC-08-10-M3-45 BMB-AC-08-10-M4-45

BM-AC-10-08-M3-45BMB-AC-10-08-M4-45

BM-AC-10-12-M3-45BMB-AC-10-12-M4-45

BM-AC-12-10-M3-45BMB-AC-12-10-M4-45

BM-AC-16-12-M3-45BMB-AC-16-12-M4-45

HoseThread

BM-AC-06-M3-60BMB-AC-06-M4-60

BM-AC-08-M3-60BMB-AC-08-M4-60

BM-AC-10-M3-60BMB-AC-10-M4-60

BM-AC-12-M3-60BMB-AC-12-M4-60

BM-AC-16-M3-60BMB-AC-16-M4-60

Reducer Fittings HoseThread

BM-AC-10-08-M3-60BMB-AC-10-08-M4-60

BM-AC-10-12-M3-60BMB-AC-10-12-M4-60

BM-AC-12-10-M3-60BMB-AC-12-10-M4-60

BM-AC-16-12-M3-60BMB-AC-16-12-M4-60

All BMRS Hose Ends are supplied with collars

Port Thread Hose Ends - Male Swivel (continued)

BLUE BLACK SIZE

Aluminum

BM-AC-06-M3-90BMB-AC-06-M4-90

BM-AC-08-M3-90BMB-AC-08-M4-90

BM-AC-10-M3-90BMB-AC-10-M4-90

BM-AC-12-M3-90BMB-AC-12-M4-90

BM-AC-16-M3-90BMB-AC-16-M4-90

BM-AC-20-M3-90BMB-AC-20-M4-90

Reducer Fittings

BM-AC-06-08-M3-90BMB-AC-06-08-M4-90

BM-AC-08-06-M3-90BMB-AC-08-06-M4-90

BM-AC-08-10-M3-90BMB-AC-08-10-M4-90

BM-AC-10-08-M3-90BMB-AC-10-08-M4-90

BM-AC-10-12-M3-90BMB-AC-10-12-M4-90

BM-AC-12-10-M3-90BMB-AC-12-10-M4-90

BM-AC-12-16-M3-90BMB-AC-12-16-M4-90

BM-AC-16-10-M3-90BMB-AC-16-10-M4-90

BM-AC-16-12-M3-90BMB-AC-16-12-M4-90

HoseThread

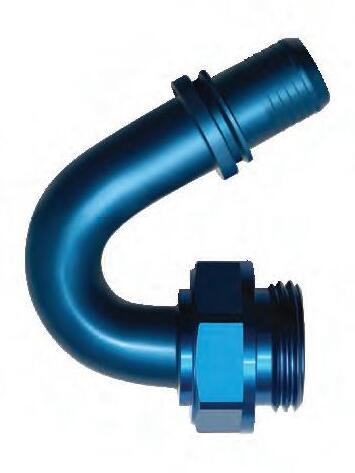

BM-AC-08-M3-120BMB-AC-08-M4-120

BM-AC-10-M3-120BMB-AC-10-M4-120

BM-AC-12-M3-120BMB-AC-12-M4-120

BM-AC-16-M3-120BMB-AC-16-M4-120

Reducer Fittings

BM-AC-10-08-M3-120BMB-AC-10-08-M4-120

BM-AC-12-M3-135BMB-AC-12-M4-135

BM-AC-12-10-M3-135 BMB-AC-12-10-M4-135

BM-AC-08-M3-150BMB-AC-08-M4-150

BM-AC-12-M3-150BMB-AC-12-M4-150

Reducer Fittings

BM-AC-06-08-M3-150BMB-AC-06-08-M4-150

BM-AC-10-08-M3-150BMB-AC-10-08-M4-150

Port Thread Hose Ends - Joiners & Adaptors

135° 1 x 1/8” NPT Port

BLUE BLACK SIZE

Aluminum

BMB-AC-12-0054-4

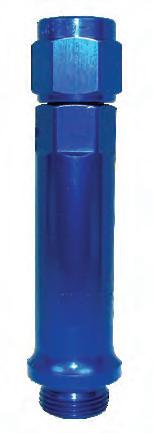

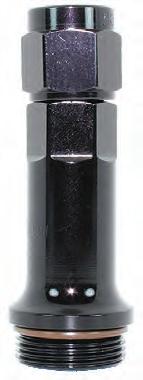

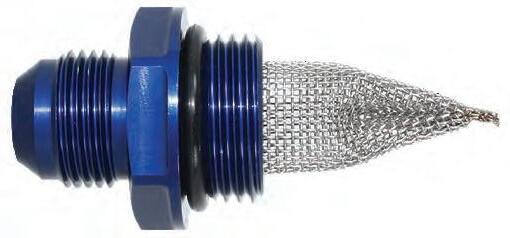

Port Thread Hose Ends - Male Swivel - Optional Filter Screen

Straight

BM-AC-12-0003-30BMB-AC-12-0003-30-4

60°

supplied separately.

New size available

BM-AC-12-0003-60 BMB-AC-12-0003-60-4

Filter Screens

BM-32-1.700-LBM-32-0002-12

BM-32-2.650-L

Crimp Collars

New sizes available

BM-05-0001-02-7

BM-05-0001-03-GOLDBMB-05-0001-03-4

BM-05-0001-04-GOLDBMB-05-0001-04-4

BM-05-0001-06-GOLDBMB-05-0001-06-4

BM-04-0003-06-3

BM-04-0003-08-3

BM-04-0003-10-3

BM-04-0003-12-3

BM-04-0003-16-3

BM-04-0003-20-3

BMB-04-0003-06-4

BMB-04-0003-08-4

BMB-04-0003-10-4

BMB-04-0003-12-4

BMB-04-0003-16-4

BMB-04-0003-20-4

BMB-04-0003-24-4

BM-05-0001-03-3

BM-05-0001-04-3

BM-05-0001-06-3

BM-04-0003-06-5

BM-04-0003-08-5

BM-04-0003-10-5

BM-04-0003-12-5

BM-04-0003-16-5

BM-04-0003-20-5

BM-05-0001-03-7

BM-05-0001-04-7

BM-05-0001-06-7

Metric Female Hose Ends Straight

BLUE BLACK SIZES

Aluminum HoseThread

BM-AC-06-ST-M14-3BMB-AC-06-ST-M14-4

BM-AC-06-ST-M16-3BMB-AC-06-ST-M16-4

BM-AC-08-ST-M18-3BMB-AC-08-ST-M18-4

BM-AC-10-ST-M22-3BMB-AC-10-ST-M22-4

BM-AC-12-ST-M26-3BMB-AC-12-ST-M26-4

BM-AC-12-ST-M30-3BMB-AC-12-ST-M30-4

BM-AC-16-ST-M30-3BMB-AC-16-ST-M30-4

90°

BLUE BLACK SIZES Aluminum HoseThread

BM-AC-06-90-M14-3BMB-AC-06-90-M14-4

BM-AC-06-90-M16-3BMB-AC-06-90-M16-4

BM-AC-08-90-M18-3BMB-AC-08-90-M18-4

BM-AC-10-90-M22-3BMB-AC-10-90-M22-4

BM-AC-12-90-M30-3BMB-AC-12-90-M30-4

Spigot Hose Ends

Straight

Aluminum

BM-AC-06-0009-00

90°

BLACK HOSE SIZE

45°

BLUE BLACK SIZES

Aluminum HoseThread

BM-AC-06-45-M14-3BMB-AC-06-45-M14-4

BM-AC-06-45-M16-3BMB-AC-06-45-M16-4

BM-AC-08-45-M18-3BMB-AC-08-45-M18-4

BM-AC-10-45-M22-3BMB-AC-10-45-M22-4

These Hose Ends use an INVERTED SEAT. Common uses include industrial applications and in many European cars etc...

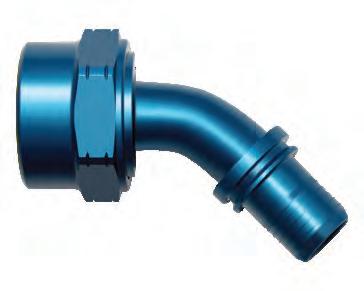

45°

BLUE BLACK HOSE SIZE

Aluminum

BM-AC-06-0009-45BMB-AC-06-0009-45-4

Machined Spigot

BLUE BLACK HOSE SIZE

Aluminum

BM-AC-06-0009-90-3BMB-AC-06-0009-90-4

BM-AC-06-0023-90-3BMB-AC-06-0023-90-4

Beaded Tube

'A' diameter should be matched to the nominal tube or spigot size. 'B' diameter should be matched as tightly as possible.

NOTE: DO NOT use with a plain tube.

Quick Connect Hose Ends

Male - Straight

Male - Straight

Female - Straight

Female - 90°

Male to Male ORB

Bulkhead Male to AN Male

Male to Swivel Port Thread - 90°

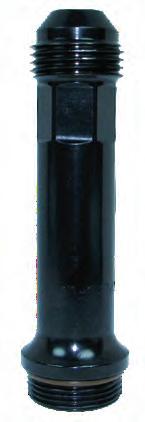

Male Extended to Male ORB

Protective Caps & Plugs

Bulkhead Female to AN Male

Adaptors, Tee & Special Fittings

Bulkhead Hose Ends

Bulkhead JIC Male to Wiggins Male

'T' Piece

'T' Piece to JIC (AN) Female

“T” Piece Carb Kits & Adapters

'T' Piece - AN to Crimp Tee & ORB

90° Breather Rear Vent Fitting

90° Carb Adapter

4 Bolt - Flanged - 90° Adaptors, Tee & Special Fittings (continued)

Straight Plug-In Crimp Fitting

45° Oil Pump Fitting

90° Oil Pump Fitting

Banjo Bolt

ORB Male to Wiggins Male

Double Banjo Bolt

Banjo Bolt with Wire Locking Holes

Smooth Bore Series

Smooth Bore Stainless Steel Braid Hose Systems

Stainless Steel Braid

Stainless Steel Braid - Black PVC Sheath

Features:

Stainless Steel Braid Hose - Black TPE Sheath

Stainless Steel Braid Series

• Designed for pressure systems such as brake, clutch, power steering, gearbox and suspension hydraulicsprovides a more positive brake pedal with less travel

• Able to operate at High Pressure and High Temperature

• Compatible with virtually ALL fluids

HOSES

• Use with any of our crimp fittings on the following pages

Smooth Bore Series

Smooth Bore Hose Systems

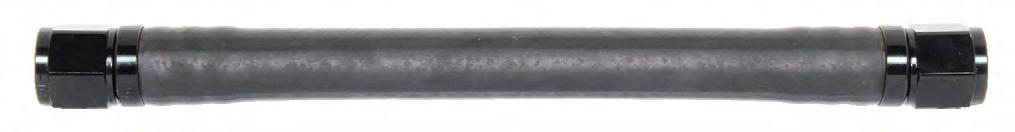

Polyester Braid - Black

Impregnated Glass Fibre Braid - Black

Translucent Tube

Smooth Bore Series

Straight

Aluminium

BM-SB-03-F3 BMB-SB-03-F4

BM-SB-04-F3 BMB-SB-04-F4

BM-SB-06-F3 BMB-SB-06-F4

BM-SB-08-F3 BMB-SB-08-F4

Stainless Steel with Aluminium Nuts

BM-SB-03-F7-3 BMB-SB-03-F7-4

BM-SB-04-F7-3 BMB-SB-04-F7-4

BM-SB-06-F7-3 BMB-SB-06-F7-4

BM-SB-08-F7-3 BMB-SB-08-F7-4

Stainless Steel

BM-SB-02-F7

BM-SB-03-F7 ---

BM-SB-04-F7

BM-SB-06-F7

BM-SB-08-F7

Reducer Fittings

Stainless Steel with Aluminium Nuts

BM-SB-02-03-F7-3BMB-SB-02-03-F7-4

BM-SB-02-04-F7-3BMB-SB-02-04-F7-4

BM-SB-03-04-F7-3BMB-SB-03-04-F7-4

BM-SB-03-06-F7-3BMB-SB-03-06-F7-4

BM-SB-04-03-F7-3BMB-SB-04-03-F7-4

BM-SB-04-06-F7-3BMB-SB-04-06-F7-4

BM-SB-04-08-F7-3BMB-SB-04-08-F7-4

Stainless Steel

BM-SB-02-03-F7

BM-SB-02-04-F7

BM-SB-03-02-F7 ---

BM-SB-03-04-F7

AN Hose Ends - Females 90°

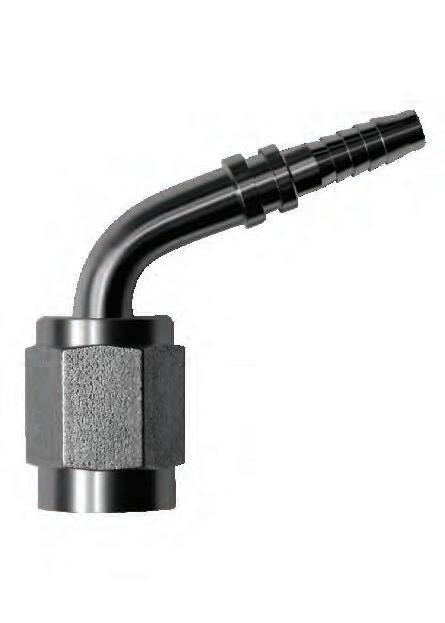

45°

BM-SB-03-G3 BMB-SB-03-G4

BM-SB-04-G3 BMB-SB-04-G4

BM-SB-06-G3 BMB-SB-06-G4

BM-SB-08-G3 BMB-SB-08-G4

Stainless Steel with Aluminium Nuts

BM-SB-03-G7-3BMB-SB-03-G7-4

BM-SB-04-G7-3BMB-SB-04-G7-4

BM-SB-06-G7-3BMB-SB-06-G7-4

BM-SB-08-G7-3BMB-SB-08-G7-4

Stainless Steel

BM-SB-02-G7

BM-SB-03-G7

BM-SB-04-G7 ---

BM-SB-06-G7

BM-SB-08-G7

Reducer Fittings Hose Size Nut Size

Stainless Steel with Aluminium Nuts

BM-SB-02-03-G7-3BMB-SB-02-03-G7-4

BM-SB-02-04-G7-3BMB-SB-02-04-G7-4

BM-SB-03-04-G7-3BMB-SB-03-04-G7-4

BM-SB-04-03-G7-3BMB-SB-04-03-G7-4

Stainless Steel

BM-SB-02-03-G7

BM-SB-02-04-G7 ---

BM-SB-03-02-G7

BM-SB-03-04-G7

BM-SB-04-03-F7 120°

BM-SB-04-03-G7

New sizes available

Aluminium

BM-SB-03-H3 BMB-SB-03-H4

BM-SB-04-H3 BMB-SB-04-H4

BM-SB-06-H3 BMB-SB-06-H4

Stainless Steel with Aluminium Nuts

BM-SB-03-H7-3BMB-SB-03-H7-4

Stainless Steel

BM-SB-03-H7

BM-SB-04-H7

BM-SB-06-H7 ---

Reducer Fittings - Stainless Steel with Alum. NutsHOSENUT

BM-SB-02-03-H7-3BMB-SB-02-03-H7-4

BMB-SB-04-03-H7-4

Reducer Fittings - Stainless Steel HOSENUT

BM-SB-02-03-H7

BM-SB-03-04-H7

BM-SB-04-03-H7

New size available

BLUE BLACK SIZE

Aluminium HOSENUT

BM-SB-06-P3 BMB-SB-06-P4

Stainless Steel HOSENUT

BM-SB-03-P7

BM-SB-03-04-P7

BM-SB-04-P7

BM-SB-06-P7

Smooth Bore Series

AN Hose Ends - Females (continued)

AN Hose End Adaptors

Female Block Elbows

90° ORB Swivel Male Block Elbow

'T' Piece to ORB Swivel Male to AN Male

'T' Piece to 3 Tails

Female Injectors (SAE 45° Seat)

Hose End Adaptors

Straight NPT Male Fixed

Straight NPT Female Fixed

AP Master Cylinders

Port Thread Hose Ends - Male Swivel

Smooth Bore Series

Banjos Straight

BM-SB-02-BJ-M10-7

BM-SB-03-BJ-M8-7

BM-SB-03-BJ-M10-7BM-SB-03-BJ-M10-3

BM-SB-03-BJ-04-7BM-SB-03-BJ-04-3

BM-SB-04-BJ-04-3

BM-SB-04-BJ-M10-7BM-SB-04-BJ-M10-3

BM-SB-04-BJ-04-7BM-SB-04-BJ-04-3

BM-SB-04-BJ-M12-7BM-SB-04-BJ-M12-3

BM-SB-04-BJ-M14-7BM-SB-04-BJ-M14-3

BM-SB-06-BJ-M12-7BM-SB-06-BJ-M12-3

BM-SB-06-BJ-M14-7BM-SB-06-BJ-M14-3

Banjo Double Swivel to Male External Drive

90° - Side Bend

Swivel - Internal Drive

Assembly Gear

Fully Adjustable Crimping Machine

BM-100724-06-BM

BM-100724-08-BM

BM-100724-09-BM

BM-100724-12-BM

BM-100724-14-BM

BM-100724-16-BM

BM-100724-19-BM

BM-100724-22-BM

BM-100724-29-BM

BM-100724-34-BM

BM-D105/KIT-3-16

Assembly Tools

PART NO.PRO GOLD AC EXPANDERS

BM-24-0003-06

BM-24-0003-08

BM-24-0003-10

BM-24-0003-12

BM-24-0003-16

BM-24-0003-20

BM-24-0006

PART NO.SMOOTH BORE EXPANDERS

BM-24-0315-03

BM-24-0315-04

BM-24-0315-06

DON’T FORGET TO CHECK OUT OUR GREAT RANGE OF TOOLS

See page 191...

Adel

Wiggins Clamps

A MUST HAVE WHEN RUNNING OVER 40 PSI BOOST

BM-ORW-20-VBM-ORW-20-N

BM-ORW-24-VBM-ORW-24-NBM-ORW-24-EP

BM-ORW-28-VBM-ORW-28-N

BM-ORW-32-VBM-ORW-32-N

BM-ORW-40-V-

BM-ORW-48-V-

BM-ORW-56-V-

BM-ORW-64-V-

WIGGINS MALE TO MALE ADAPTOR SINGLE “O” RINGMALE

Tube Fittings, Caps & Plugs

Rigid Tube Fittings

MALE SOCKET WELD - SINGLE O RING

SIZECLAMP SIZE

BM-TF-08-WM-J

BM-TF-10-WM-J

BM-TF-12-WM-J

BM-TF-16-WM-J

BM-TF-20-WM-J

BM-TF-24-WM-J

BM-TF-28-WM-J

STAINLESSTUBE

BM-TF-12-WM-7

MALE SOCKET WELD - DOUBLE O RING STAINLESSTUBE SIZECLAMP SIZE

BM-TF-20-WM-D0-7

ALUMINUMTUBE SIZECLAMP

BM-TF-08-WM-D0-J

BM-TF-24-WM-D0-J

New types available

MALE WIGGINS BUTT WELD

BM-WTF-08-WM-J

BM-WTF-10-WM-J

BM-WTF-12-WM-J

BM-WTF-16-WM-J

BM-WTF-20-WM-J

BM-WTF-24-WM-J

BM-WTF-28-WM-J

BM-WTF-32-WM-J

BM-WTF-40-WM-J

BM-WTF-48-WM-J

BM-WTF-56-WM-J

BM-WTF-64-WM-J

STAINLESSTUBE SIZECLAMP SIZE

BM-WTF-32-WM-7

All these Tube Fittings are also available in Stainless Steel. They are a special order item so check for delivery times.

for our Wiggins Hose Ends?

Looking

See pages 55 to 58

They are listed them with all the other PROGold Series Hose Ends...

Caps & Plugs

Wiggins Male & Female Fittings

Wiggins Double Swivel Fittings

WIGGINS CAPS CAPS SIZE ins

BM-W-CAP-08

BM-W-CAP-10

BM-W-CAP-12

BM-W-CAP-16

BM-W-CAP-20

BM-W-CAP-24

BM-W-CAP-28

BM-W-CAP-32

BM-W-CAP-40

WIGGINS PLUGS PLUGS SIZE ins

BM-W-PLUG-08

BM-W-PLUG-10

BM-W-PLUG-12

BM-W-PLUG-16

BM-W-PLUG-20

BM-W-PLUG-24

BM-W-PLUG-28

BM-W-PLUG-32

BM-W-PLUG-40

PLASTIC CAPS

PLASTIC CAPSSIZESIZE insins

BM-VC-725-16

BM-VC-875-16

BM-VC-1062-16

BM-VC-1312-16

BM-VC-1593-16

BM-VC-1875-16

BM-VC-2125-16

HS-79 Series Hoses

Hoses & Fittings

HS-79 Series Hoses

ProPlus Hose - Aramid Fibre

HS-79 Series Hose Ends

Hoses & Fittings

Hose Ends

HS-79 Series Collars

XRP Pressure Tester Manifold Crimping Machine & Dies

Inline Filters

-12 AN Inline Filter

HP 45MC Element

We offer a comprehensive range of Stäubli quick release couplings. Applications include - shock absorbers, brake and hydraulic lines, quick-release couplings for fuel, lubrication and coolant lines. They are available in aluminium and titanium, are extremely lightweight and designed for safety. Both SPH and SPT couplings are

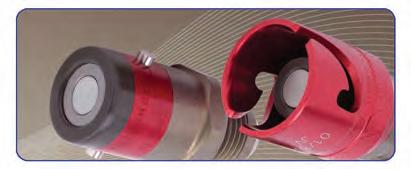

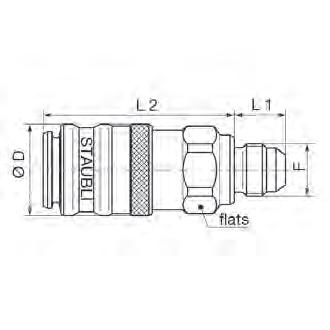

True Dry Break Couplings - SPH Series

True Dry Break Couplings for: Shock Absorbers, Brakes, Hydraulic Lines, Lubrication and Coolants.

SPH 03 Series

SEAL TYPES

it is important you pick the right kind Staubli SPH series is colour coded to help

Quick Release Couplings

True Dry Break Couplings (continued)

SPH 05 Series

SPH 08 Series

Quick Release / Breakaway Couplings - SPT Series

SPT 05 Series

Quick Release / Breakaway Couplings - SPT Series (continued)

SPT 08 Series

SPT 12 Series

RMI/EA Couplings - RMI Series

RMI/EA 09 Series

Jiffy-Tite’s Quick Connect Fluid Fittings are for use in all fuel, oil, and water systems in any high performance race or street application.

Available in a variety of thread styles including AN, NPT pipe thread, reusable hose ends and hose barb type. used with steel braided rubber hose.

Jiffy-tite's revolutionary Quick Connect Fluid Fittings provide unsurpassed performance under extreme racing conditions. Made of lightweight, 6061-T6 aluminium, brass valves, and stainless steel ball bearings, they are corrosion resistant for extra long life.

tested and proven to have a 100% leak proof seal, even at 200 psi.

currently available for all forms of high performance race and street applications.

SEAL REFERENCE CHART

2000 Series 3000 Series 5000 Series

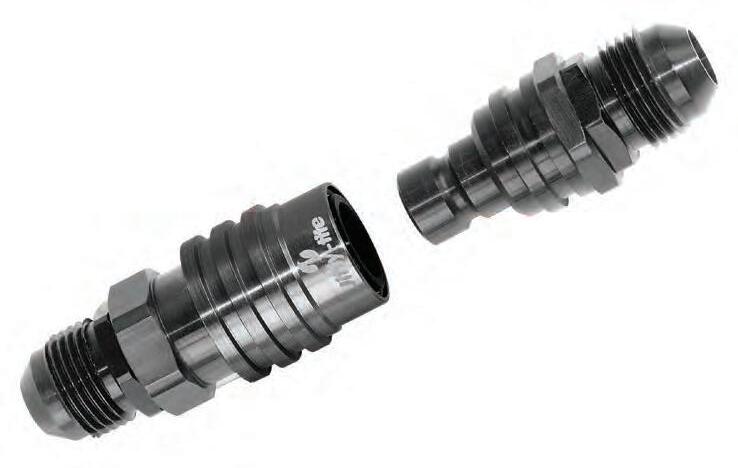

Quick Connect Fittings

2000 Series Q/C Fittings

clycol and methanol applications..

Seal Compatibility Chart

Quick Connect Fittings

3000 Series Quick Connect Fittings

Jiffy-tite’s Quick Connect Fluid Fittings provide minimal flow restriction for virtually any fuel, water or oil system on the market today.

Seal Compatibility Chart

Automatic Trans Fluid FKM, Flurocarbon, Viton, FPM

Brake Fluid EPDM, Ethylene Propylene, EPR

Engine Oil FKM, Flurocarbon, Viton, FPM

Glycol EPDM, Ethylene Propylene, EPR

Methanol EPDM, Ethylene Propylene, EPR

Water FKM, Flurocarbon, Viton, FPM

Unleaded Fuel FKM, Flurocarbon, Viton, FPM

E85 Fuel FKM, Flurocarbon, Viton, FPM

Nitromethane EPDM, Ethylene Propylene, EPR

Diesel FKM, Flurocarbon, Viton, FPM

5000 Series Quick Connect

Quick Connect Fittings

Seal Compatibility Chart

clycol and methanol applications.

Epik Industries supply a range of economically priced products to help with your plumbing build.

Billet Thermostat Housings

Epik Industries thermostat housings are machined from billet aluminium and then anodised in a variety of common colours and supplied with sealing o-rings and stainless steel bolts. Our Epik logo is then laser engraved on the hose tail so it is hidden away once the hose is installed so that your engine bay is not covered in company logos.

SB CHEV, BB CHEV, CHRYSLER PART NO.COLOUR

EP20-1000-1

EP20-1000-2 Black

EP20-1000-3 Red

EP20-1000-4 Blue

FORD CLEVELAND PART NO.COLOUR

EP20-1015-1 Silver

EP20-1015-2 Black

EP20-1015-3 Red

EP20-1015-4 Blue

FORD CLEVELAND 90°

NO.COLOUR EP20-1016-1 Silver

EP20-1016-2 Black EP20-1016-3 Red

Blue

SB FORD (WINDSOR) PART NO.COLOUR

EP20-1010-1 Silver

EP20-1010-2 Black

EP20-1010-3 Red

EP20-1010-4 Blue

Billet P-Clips & Hose Separators

Billet P-Clips & Hose Separators

BILLET P-CLIPS

(7.9mm) EP15-1030-1 EP15-1030-2EP15-1030-3EP15-1030-4 3/8” (9.5mm) EP15-1040-1EP15-1040-2EP15-1040-3EP15-1040-4

(11.1mm) EP15-1050-1EP15-1050-2EP15-1050-3EP15-1050-4

Pump Block Offs, Clamps & Filters

Billet Fuel Pump Block Off

Epik Industries’ fuel pump block off plates are machined from billet aluminium and anodised in a variety of common colours and supplied with stainless steel bolts. Our Epik logo is laser engraved on the back side so it is hidden away after installation to give your engine a clean look.

Distributor Clamps

AN Flare Filters

Brackets & Adjustable Spanners

Billet Throttle Brackets

to suit morse style cables. The 4500 Series does not include a kick-down bracket.

Tools

Adjustable Spanners

engraved with our logo on the handle. These suit -3 to -12 sized handy. Not recommended for use when torque is required to tighten or loosen as it will stretch the aluminium and cause the spanner to become inoperable.

Tube Bender

Billet aluminium tube benders designed for

Fuel Pump Brackets

This high quality 4 & 5 ply silicone has been tested and used in the industry for years and is commonly used on intercooler and intake piping, radiators, methanol fuel hose, turbo, transport and industrial applications.

Aeroflex Performance Silicone Hose

(1m)

SMS S275 2.75” (70mm)5.3mm39” (1m)

SMS S300 3.00” (76mm)5.3mm39” (1m)

SMS S325 3.25” (82mm)5.3mm39” (1m)

SMS S350 3.50” (88mm)5.3mm39” (1m)

SMS S375 3.75” (95mm)5.3mm39” (1m)

SMS S400 4.00” (102mm)5.3mm39”

Aeroflex Performance Silicone Hose

(38mm)4.5mm140mm

(51mm)5.3mm140mm

SMS

(76mm)5.3mm140mm

SMS 60325 3.25” (82mm)5.3mm140mm

SMS 60350 3.50” (89mm)5.3mm140mm

SMS 60375 3.75” (95mm)5.3mm140mm

SMS 60400 4.00” (102mm)5.3mm140mm

HUMP HOSE

PART NO.BORE (I.D.)WALLLENGTH

SMS HH150 1.50” (38mm)4.5mm100mm

SMS HH200 2.00” (51mm)5.3mm100mm

SMS HH225 2.25” (57mm)5.3mm100mm

SMS HH250 2.50” (63mm)5.3mm100mm

SMS HH275 2.75” (70mm)5.3mm100mm

SMS HH300 3.00” (76mm)5.3mm100mm

SMS HH325 3.25” (82mm)5.3mm100mm

SMS HH350 3.50” (88mm)5.3mm100mm

SMS HH375 3.75” (95mm)5.3mm100mm

SMS HH400 4.00” (102mm)5.3mm100mm

VACUUM HOSE

Extruded silicone rubber tubing is ideal for use as:

Emission Control, Wire Insulation etc.

Temperature Range: 200°C ( 392°F ) Not designed for pressurised installations PART NO.BORE (I.D.)WALL

BLK BL

135° ELBOW

PART NO.BORE (I.D.)WALLLEG

SMS 135100 1.00” (25mm)4.5mm100mm

SMS 135150 1.50” (38mm)4.5mm80mm

SMS 135175 1.75” (45mm)4.5mm80mm

SMS 135200 2.00” (51mm)5.3mm80mm

SMS 135250 2.50” (63mm)5.3mm80mm

SMS 135300 3.00” (76mm)5.3mm80mm

SMS 135400 4.00” (102mm)5.3mm80mm

SMS 135 EX400 4.00” (102mm)5.3mm80mm

180° ELBOW

PART NO.BORE (I.D.)WALLCENTRES

SMS 180100 1.00” (25mm)4.5mm105mm

SMS 180125 1.25” (32mm)4.5mm115mm

SMS 180150 1.50” (38mm)4.5mm115mm

SMS 180175 1.75” (45mm)4.5mm115mm

SMS 180200 2.00” (51mm)5.3mm110mm

SMS 180250 2.50” (63mm)5.3mm110mm

SMS 180300 3.00” (76mm)5.3mm110mm

BLK BL

BLACKBLUE

BLK BL BLACK BLUE

BLK BL

BLK BL BLACKBLUE

Silicone Hose

Silicone Reducer Hoses

STRAIGHT REDUCERS

PART NO.BORE (I.D.)LENGTH

SMS SR16-13 16-13mm / 0.70-0.50”127mm

SMS SR19-13 19-13mm / 0.75-0.50”127mm

SMS SR19-16 19-16mm / 0.75-0.70”127mm

SMS SR22-16 22-16mm / 0.85-0.70”127mm

SMS SR22-19 22-19mm / 0.85-0.75”127mm

SMS SR25-16 25-16mm / 1.00-0.70”127mm

SMS SR25-19 25-19mm / 1.00-0.75”127mm

SMS SR28-22 28-22mm / 1.125-0.85”127mm

SMS SR28-25 28-25mm / 1.125-1.00”127mm

SMS SR32-25 32-25mm / 1.25-1.00”127mm

SMS SR32-28 32-28mm / 1.25-1.125”127mm

SMS SR35-25 35-25mm / 1.375-1.00”127mm

SMS SR35-28 35-28mm / 1.375-1.125”127mm

SMS SR35-32 35-32mm / 1.375-1.25”127mm

SMS SR38-22 38-22mm / 1.50-0.85”127mm

SMS SR38-25 38-25mm / 1.50-1.00”127mm

SMS SR38-28 38-28mm / 1.50-1.125”127mm

SMS SR38-32 38-32mm / 1.50-1.25”127mm

SMS SR38-35 38-35mm / 1.50-1.375”127mm

STRAIGHT REDUCERS

PART NO.BORE (I.D.)LENGTH

SMS SR40-35 40-35mm / 1.625-1.375”127mm

SMS SR45-32 45-32mm / 1.75-1.25”127mm

SMS SR45-38 45-38mm / 1.75-1.50”127mm

SMS SR51-38 51-38mm / 2.00-1.50”127mm

SMS SR51-45 51-45mm / 2.00-1.75”127mm

SMS SR51-48 51-48mm / 2.00-1.875”127mm

SMS SR54-51 54-51mm / 2.125-2.00”127mm

SMS SR57-45 57-45mm / 2.25-1.75”127mm

SMS SR57-51 57-51mm / 2.25-2.00”127mm

SMS SR60-51 60-51mm / 2.36-2.00”127mm

SMS SR63-51 63-51mm / 2.50-2.00”127mm

SMS SR63-57 63-57mm / 2.50-2.25”127mm

SMS SR70-51 70-51mm / 2.75-2.00”127mm

SMS

45° REDUCERS

PART NO. BORE (I.D.)LEG

SMS 45R150-100 38-25mm / 1.50-1.00”140mm

SMS 45R150-125 38-32mm / 1.50-1.25”140mm

SMS 45R175-150 45-38mm / 1.75-1.50”140mm

SMS 45R200-175 51-45mm / 2.00-1.75”140mm

SMS 45R225-200 57-51mm / 2.25-2.00”140mm

SMS 45R250-200 63-51mm / 2.50-2.00”140mm

SMS 45R250-225 63-57mm / 2.50-2.25”140mm

SMS 45R275-250 70-63mm / 2.75-2.50”140mm

SMS 45R300-200 76-51mm / 3.00-2.00”140mm

SMS 45R300-225 76-57mm / 3.00-2.25”140mm

SMS 45R300-250 76-63mm / 3.00-2.50”140mm

SMS 45R300-275 76-70mm / 3.00-2.75”140mm

SMS 45R350-250 89-63mm / 3.50-2.50”140mm

SMS 45R350-300 89-76mm / 3.50-3.00”140mm

SMS 45R400-300 102-76mm / 4.00-3.00”140mm

SMS 45R400-350 102-89mm / 4.00-3.50”140mm

90° REDUCERS PART NO.BORE (I.D.)LEG

SMS 90R075-063 19-16mm / 0.75-0.50”100mm

SMS 90R100-075 25-19mm / 1.00-0.75”100mm

SMS 90R125-100 32-25mm / 1.25-1.00”100mm

SMS 90R150-100 38-25mm / 1.50-1.00”100mm

SMS 90R150-125 38-32mm / 1.50-1.25”100mm

SMS 90R175-150 45-38mm / 1.75-1.50”100mm

SMS 90R200-150 51-38mm / 2.00-1.50”100mm

SMS 90R200-175 51-45mm / 2.00-1.75”90mm

SMS 90R225-200 57-51mm / 2.25-2.00”90mm

SMS 90R250-200 63-51mm / 2.50-2.00”90mm

SMS 90R250-225 63-57mm / 2.50-2.25”90mm

90° REDUCERS

PART NO.BORE (I.D.)LEG

SMS 90R275-225 70-57mm / 2.75-2.25”80mm

SMS

4.00-3.50”80mm

Rubber & Silicone Hose

Fuel Filler Hose

FILLER HOSES

Wrapped Type Filler Hose in Nitrile - These Owing to the method of construction the wrapped hoses do not bend easily. Straights and elbows should be used as required.

High Temperature Hose

Block Off Caps

Silicone Hose - Lined

SMS Fluoro Lined Silicone Hose

DRAIN HOSE TURBO

39” LONG STRAIGHT (SOLD PER INCH) PART NO.BORE (I.D.)WALLLENGTH

SMS FLS038 0.38” (9mm)4.5mm39” (1m)

SMS FLS050 0.50” (13mm)4.5mm39” (1m)

SMS FLS063 0.63” (16mm)4.5mm39” (1m)

SMS FLS075 0.75” (19mm)4.5mm39” (1m)

SMS FLS085 0.85” (22mm)4.5mm39” (1m)

Flexible Heater Hose

45° ELBOW PART NO.BORE (I.D.)WALLLEG

SMS FL45050 0.50” (13mm)4.5mm140mm

SMS FL45063 0.70” (16mm)4.5mm140mm

SMS FL45075 0.75” (19mm)4.5mm140mm

SMS FL45085 0.85” (22mm)4.5mm140mm

90° ELBOW PART NO.BORE (I.D.)WALLLEG

SMS FL90050 0.50” (13mm)4.5mm120mm

SMS FL90063 0.63” (16mm)4.5mm120mm

SMS FL90075 0.75” (19mm)4.5mm120mm

SMS FL90085 0.85” (22mm)4.5mm120mm

FLEXIBLE HEATER HOSE (PER METRE) PART NO. BORE (I.D.)

SMS FH050

SMS FH063

SMS FH075

SMS FH100

BLK BL BLACKBLUE

BLK BLACK

BLK BLACK

BLK BLACK

BLK BL BLACKBLUE

Ducting Hose & Clamps

SMS Ducting

SMS Hose Clamps

“SCAT”

SHU36 2.25”46-70mm

SHU40 2.50”52-76mm

SHU48 3.00”65-89mm SHU56 3.50”78-102mm SHU64 4.00”91-114mm SHU80 5.00”116-140mm

Aluminium Tube

Aluminium Tube & Mandrel Bends

Made in Australia!

Aluminium Tube

Aluminium Mandrel Bends

Reducers & Donuts

Alloy Tube

Turbosmart is a world leading manufacturer in performance accessories including the highest quality blowoff valves, wastegates, boost controllers, gauges, pressure regulators, and hoses for both the track and the street. Turbosmart now have a new range of GEN-V products so if you’re looking for External Wastegates and/or Blow-Off Valves look for the logo. The GEN-V range of products have won a total of ten SEMA global media awards between them. GEN-V

Boost Control

e-Boost 2

e-Boost2 is the ultimate boost controller, designed with high performance and racing in mind, it is perfect for the tough conditions of track use, and absolutely untouchable in a street application. e-Boost2 is available in two sizes (60mm and 66mm). With an e-Boost2 you can:

• Control six levels of boost, with a maximum boost of 60PSI

• Enjoy faster boost response, thanks to Turbosmart’s unique Gate Pressure function, and longer boost duration at high RPM via RPM correction factor

• Use Boost on Demand for instant overtaking power

• Set a different boost level for each gear, or if you prefer, program boost against time orRPM

• Control water spray, methanol, nitrous injection, or just about anything else with e-Boost2’s handy auxiliary outputs

• Monitor your boost and RPM with Peak Hold/Max Boost recall

• Protect your motor with Overboost Shutdown safety feature

e-Boost Street - 40psi

Racing technology for the street E-Boost STREET is an electronic boost controller aimed at the street performance market. It features many boost control capabilities found on its big brother the e-Boost2, continuing the e-Boost tradition of providing classleading boost control, value for money and no nonsense features. New features include 40psi max boost operating pressure and an auxiliary output.

Mechanical Boost Gauges

A Turbosmart mechanical boost pressure gauge is the perfect accompaniment to a Turbosmart manual boost controller. Available in both PSI and bar, Turbosmart’s mechanical boost gauges are a simple and reliable way to monitor boost pressure.

PART NO.

TS-0301-1002

TS-0301-1003

TS-0301-1011

eBoost 2 60mm Boost Controller Black/Silver

eBoost 2 60psi 60mm Sleeper

eBoost 2 60psi 66mm Sleeper

TS-0301-1013 eBoost 2 60psi 66mm Boost Controller Black/Silver

TS-0301-1103

eBoost 2 60psi 60mm Sleeper 4 Port

TS-0301-2001 eBoost 2 60mm Dash Mounting System

TS-0301-2002 eBoost 2 Roll Cage Mount

TS-0301-2003 eBoost 2 4 Port Solenoid

TS-0301-2013

TS-0301-3003

eBoost2 66mm Dash Mounting System

eBoost 2 Solenoid System

PART NO.

DESCRIPTION TS-0302-1002 e-Boost Street

Boost Control & Blow-Off Valves

Boost Control

Electronic Gauges

Our new range of electronic stepper motor-controlled gauges for turbo diesel vehicle includes Exhaust Gas Temperature (EGT), transmission temperature and electronic boost gauges. These gauges are a complete standalone solution, with everything you need to obtain this information from your vehicle - including thermo couplers for EGT and transmission temperature gauges, and electronic boost gauges.

Manual Boost Controllers

operation, and require little maintenance – making them one of the best “bang for buck” performance mods on the market.

• A simple, cost effective solution to boost control

• A small, elegant design

• An easy to use detent adjustment system

• Robust engineering with the one piece body and solid needle valve

• Our exclusive gate feature which brings boost on earlier

• Easy mounting with the supplied bracket

- Boost Tee - The perfect “set it and forget it” boost controller

- In-Cabin - Adjust the boost from the driver’s seat

TS-0701-3011

TS-0701-1011

PART NO.

TS-0701-1011

TS-0701-2011

DESCRIPTION

30PSI Boost Only Gauge

TS-0701-2011 Exhaust Gas Temperature Gauge - Fahrenheit

TS-0701-3011 Transmission Temperature Gauge - Fahrenheit

Boost Reference Adapters

Many popular modern turbocharged vehicles are incompatible with traditional vacuum-operated accessories, due to the lack of an accessible vacuum source to tap into. Turbosmart’s BRA kit gives the vehicle a boost reference source, and is a must for anyone planning to add a Blow-Off Valve, mechanical boost gauge or other vacuumoperated accessories to such a vehicle.

Turbosmart’s Boost Reference Adapter kits include everything you need to reliably obtain a boost reference from a wide range of vehicles. For

PART NO. DESCRIPTION

TS-0720-1001 Ford Ranger/Mazda BT50 Diesel 2.2/L3.2L

TS-0720-1008 Nissan TD42T/ZD30DDTi Engine

Blow-Off Valves

Plumb Back

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

Turbosmart’s Plumb Back BOV operates quietly, just like a standard diverter valve, so it does not draw unwanted attraction. The Plumb Back offers all the Turbosmart BOV, but with quiet operation that keeps you under the radar.

• A full time recirculating BOV, with one plumb back port

• Quiet operation

TS-0205-1262 32mm Black

TS-0101-1001 Boost Tee - Blue

TS-0101-1002

TS-0106-1001 BLUE

Boost Tee - Black

In-Cabin - Blue

TS-0106-1002 BLACK In-Cabin - Black

Supersonic

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

The quintessential Turbosmart BOV, with that classic Blow-Off Valve noise. The Supersonic vents completely to atmosphere for big sound and big performance. The Supersonic is the BOV for the driver who wants the show along with the go.

• A full-time vent to atmosphere BOV, featuring a single trumpet provides the characteristic Turbosmart Blow-Off valve noise we know and love.

PART NO. DESCRIPTION

TS-0205-1301 Black

TS-0720-1001

TS-0720-1008

Blow-Off Valves

Blow-Off Valves (continued)

Vee-Port Pro

POWERSPORTS / HIGH PERFORMANCE - BUILDS (UP TO 600 HP)

Originally designed for the Powersports market, the Vee-Port PRO is an ideal Blow-Off Valve for anyone who is short on space, or looking for a low-weight BOV solution.

• A full-time vent to atmosphere Blow-Off Valve

• A hard anodized aluminium piston for lightness

• Precision machining and assembly – the piston and valve body are measured to mere fractions of a millimetre, and perfectly matched

• Quick release V-band clamp for ease of fabrication and installation

Smart Port Technology

HIGH PERFORMANCE/ OEM UPGRADE (UP TO 600 HP)

The Smart Port is a revolutionary Blow-Off Valve design, combining precision construction with state of the art materials to give unrivalled valve performance. The Smart Port’s unique piston is made from an aerospace alloy with a military-spec coating, ensuring its weight and friction are as low as possible, resulting in quicker valve response, better sealing and superior durability.

• Drive-by-wire friendly staging technology, eliminating compressor surge at both low and high RPM while integrating smoothly with the car’s factory engine mapping

• A hard-anodised, lightweight, aluminium piston providing better valve response and prolonged piston life

• New Smart Port trumpet design which allows the use of a softer spring in the body of the BOV to aid valve response to the plumb back port, while still retaining the ability to vent to atmosphere

• The Smart Port is currently available on Type 5 BOVs to suit a wide range of vehicles.

TS-0205-1130

TS-0205-1131

Big Bubba

Vee-Port PRO Universal - Blue

Vee-Port PRO Universal - Black

Sometimes bigger is just better. Designed for large capacity supercharged and turbocharged engines, including turbo-diesel engines, the Big Bubba is our largest piston style Blow-Off Valve.

• Huge 50.8mm/2” inlet and outlet

• Hard anodised aluminium piston for light weight

• Strong V-band mounting interchangeable with the Race Port BOV

Available in two different styles:

- Big Bubba - Full time recirculating

- Bubba Sonic - Full time vent to atmosphere

TS-0204-1202

TS-0204-1302

PART NO.

TS-0215-1018

Power Port

DESCRIPTION

Dual Port Subaru WRX 2015-current - Black

HIGH LEVEL DRAG RACING FOR TURBO / SUPERCHARGED APPLICATIONS (UP TO 3000+ HP)

massive 2.5” inlet, unprecedented valve lift, supersized ports and breathing room for even the most powerful turbocharged drag racing engines. Its cutting edge dual-chamber design means it can be held open with the use of a solenoid to aid turbo response and control during staging to give the best possible launch. Also available with a sensor cap, which can be used to log valve position. Supplied With: 1/4” -4AN Nipple, 1/8” NPT Blank, 1/8” NPT Nipple,

• Billet 6000 series aluminium, MILSPEC hard anodized valve

• Quick release V-band collar for ease of installation and removal

• Twin 1/8”NPT port lower chamber for advanced control strategies

• -4 AN Upper port

• Collar secured cap for quick spring changes

PART NO. DESCRIPTION

TS-0204-1202 Big Bubba Plumb Back - Black/Silver

TS-0204-1302 Bubba Sonic BOV - Black/Silver

TS-0204-1203 Big Bubba BPV Sleeper

TS-0204-2006 V Band Blanking Plate Race Port & Big Bubba

TS-0204-2204 21” HG Spring

TS-0204-3001 Alloy Weld Flange

TS-0204-3004 V Band

TS-0204-3005 Flange O Ring

TS-0207-1001 BLUE Blue

TS-0207-1002 BLACK Black

Blow-Off Valves

Blow-Off Valves (continued)

Race Port GEN-V SERIES

ULTRA HIGH PERFORMANCE (UP TO 2,500 HP)

Amazingly small and light BOV for forced induction competition level engines. Featuring our (installed)

• Twin 1/8” NPT pressure ports for convenient positioning

• Billet 6000 series aluminium construction

• Quick release v-band collar for ease of installation and removal

• MILSPEC hard anodized valve guide and stem

• Hi Temp Silicon Nomex diaphragm

• Collar secured cap for quick spring changes

• 4”Hg to 26inHg activation range with spring kit (TS-0204-2104)

• Hall Effect, Non-Contact Valve Position Sensor option available

Dual Port

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

The Dual Port is a 50-50 recirculating and vent to atmosphere BOV. Offers quiet operation on low boost, avoiding unwanted attention, but vents to atmosphere on high boost for that sought-after sound.

• Quiet operation on low boost, classic Turbosmart BOV noise and full performance on high boost

• Features one plumb-back port to route to the vehicle’s intake, and one vent to atmosphere trumpet

• Modular design, supplied with an additional trumpet and blanking plug to allow the valve to be easily transformed into a Supersonic, Plumb Back, or Megasonic

Kompact - Heavy Duty Upgrade

Turbosmart’s billet construction Kompact range has been designed as a bulletproof replacement for OEM parts. They will not leak or burst under increased pressure. Each Kompact Blow-Off Valve features a tolerance-matched piston between the moving parts, eliminating the need for a body to piston o-ring seal.

PART NO.

TS-0203-1009

TS-0203-1010

DESCRIPTION

Kompact Dual Port Mazda

Kompact Dual Port Nissan Juke Pulsar SSS / Subaru WRX MY08+

TS-0203-1015 Kompact Dual Port Subaru

TS-0203-1023

Kompact Dual Port 34mm

TS-0203-1026 Kompact Dual Port Nissan

TS-0203-1041

Kompact VAG 2.0T Dual Port

TS-0203-1061 Kompact Shortie Dual Port

TS-0203-1066

Kompact Shortie Dual Port Ford Fiesta ST 1.6L Ecoboost

TS-0203-1209 Kompact Plumb Back Mazda/Subaru

PART NO.

TS-0205-1026

TS-0205-1072

Dual Port Uni 38mm Black

PART NO.

TS-0203-1215

DESCRIPTION

Kompact Plumb Back Subaru

TS-0203-1222 Kompact Plumb Back 25mm

TS-0203-1223

Kompact Plumb Back 34mm

TS-0203-1226 Kompact Plumb Back Nissan

TS-0203-1241

TS-0203-1261

TS-0203-1263

TS-0203-1266

TS-0203-2002

Kompact VAG 2.0T Plumb Back

Kompact Shortie Plumb Back

Kompact Shortie Plumb Back VW Golf MK7 GTI/R

Kompact Shortie Plumb Back Ford

Fiesta 1.6L Ecoboost

Kompact Block Off Borg Warner KKK

Blow-Off Valves

Blow-Off Valves

25mm Kompact Dual Port

Dual outlet-type BOV. Dual Port vents both to the atmosphere and back into the air intake. Ports with sequential timing allow quieter operation during normal driving, while getting all the under race conditions. Easily converted to a full atmospheric or full bypass unit by using supplied port blanking plug.

Please note; that for twin-turbo applications, such as the Audi S4 2.7L (B5) 97-01, this will require two valves.

Kompact Dual Port/Plumb Back Parts

Suits both the Kompact Dual Port and Plumb back BOV’s.

TS-0203-3008 Kompact Blow-Off Valve Fitting - 20mm

TS-0203-3009 Kompact Blow-Off Valve Fitting - 50mm

TS-0203-3010 Kompact Blow-Off Valve Fitting - 34mm

BOV V-Band Clamp Assembly

Suits Turbosmart Plumb Back, Dual Port, Supersonic and Vee Port Pro BOVs

V-Band Clamp Assembly

BOV O-Ring Kit

O-Ring Service Kit for Turbosmart Plumb Back, Dual Port, VeePort Pro, and Supersonic BOVs

O-Ring Kit

20mm Kompact Plumb Back

Full recirculating BOV. The Plumb Back system recirculates all excess pressure back into the intake system. Great for enthusiasts not wanting to be noticed but wanting the performance and

APPLICATION: Fits most cars using the factory BOSCH or DENSO bypass valves.

Dual Port Uni 38mm - Blue

Four BOVs in one. The Dual Port Megasonic, Plumb Back or Dual Port! Features sequential ports for quiet operation on mild boost and full performance at full boost. With a Quick release V-Band clamp, tool-free adjustment and all the parts needed for conversions included it is Turbosmart’s most versatile BOV.

FPR / OPR Mounting Bracket / Clip

Mounting Bracket to Suit all Turbosmart FPRs and OPRs

Turbosmarts GEN-V product range have won a total of ten SEMA global media awards between them.

Fuel Management

Fuel Management

Fuel Pressure Regulators

Turbosmart’s newest range of High-performance EFI fuel pressure regulators are smaller, lighter and better! They feature two 1/8” inlet ports, one return port and one 1/8” gauge port, premium diaphragm and stainless steel valves/seat and allow for ANY fuel type including E85. Non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same.

port blank.

• 1:1 manifold pressure ratio with no load losses

• 30-90psi base pressure adjustment

• Operational between -35ºC to +200ºC

• MILSPEC diaphragm

• Bracket and retaining clip supplied

• Pressure port 1/16” NPT with nipple supplied

Fuel Cut Defender

A fuel cut defender raises the fuel cut-out level, allowing youthrough the use of a Turbosmart boost controller - to increase boost pressure without the ECU triggering the fuel injector shutdown.

PNEUMATIC

• Suits most cars using a manifold absolute pressure (MAP) sensor

• Allows an accurate increase in the factory fuel cut-out level

• No need to cut/splice wires

• Does not affect off-boost conditions

• Can be locked to prevent tampering

ELECTRONIC

• Suits most cars using an Air Flow Meter (AFM)

• Allows an accurate increase in the factory fuel cut-out level

• Features LED indicators for easy set-up

• Adjustable release feature ensures you set your own fuel cut-out level to protect your engine from over-boosting

Fuel Rail Adaptors

Adapt fuel pressure regulators to the following OEM fuel rails:

Mazda 13BREW = FD3S RX7 Series 6

Nissan RB26DETT = BNR32, 33, 34 GTR

Nissan RB25DET = HCR32, ECR33, ER34 Skyline

Nissan SR20DET = S13, S14, S15 SILVIA

Nissan CA18DET = S13, 180SX

Subaru EJ20 = GC8 WRX before Bug Eye

Subaru EJ25 = WRX 08 - CURRENT, Forester 08 - CURRENT, Liberty 05 - 18

PART NO. SUITS

TS-0402-1001 Nissan/Subaru/Mazda

Subaru EJ20 = GDA WRX Bug Eye

onwards

Toyota 2JZGTE = JZ80 SUPRA, JZS147 ARISTO

Toyota 4EFTE = EP STARLET

Toyota 4AGZE

Toyota 4AGE

PART NO.SUITS

TS-0402-1002 Toyota / Subaru

Mazda 13B = RX7 Series 4

Toyota 3SGTE = MR2, CELICA GT4

Toyota 1UZ-FE Lexus/Soarer V8

Toyota 1JZGTE = SUPRA, CRESTA, CHASER, MARK II

PART NO.SUITS

TS-0402-1003 Toyota / Mazda

Honda B16A = EG6 CIVIC SIR, EK4 CIVIC, CRX DEL SOL

Honda B16B = EK9 CIVIC TYPE R

PART NO.SUITS

TS-0402-1004 Honda

Mitsubishi 4G63 = Evo 4, 5, 6, 7, 8

Mitsubishi 6A12 Mivec = FTO

PART NO.SUITS

TS-0402-1005

Mitsubishi

Ford BA, BF, FG XR6 Turbo & Territory Turbo, Audi/VW 1.8L Turbo

PART NO. SUITS

TS-0402-1006

Ford / Audi / VW

Subaru WRX STI 08 onwards

TS-0402-1013

(STi 08)

Mitsubishi 4B11T = EVO X (10)

FPR 800 SERIES SHOWN

Wastegates

Wastegates

Ultra-Gate38

• Interchangeable with all other 2 bolt wastegates

• 38mm valve size

• High temp spring combinations from 3 - 26psi supplied in the box

• 1/8”NPT ports

1-5/8” OD pipe

• Locking collar for compact size and easy spring changes

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, valve seat, blanking plugs, collar tool and bolts to

Hyper-Gate45

• Direct swap for Turbosmart Gen-4 HyperGate45 and other 44mm V-band wastegates

• 45mm valve size

• High temp spring combinations from 3 - 26psi supplied in the box

• 1/8” NPT ports

• V-band clamp mounting system to suit 1-7/8” OD pipe

• Locking collar for compact size and easy spring changes

• Available in Motorsport and Compressed Gas versions

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet, outlet weld

Comp-Gate40

• Direct swap for Turbosmart Gen-4

Comp-Gate 40, inlet the same as other 38/40mm

V-band wastegates

• 40mm valve size & 1/8” NPT ports

• High temp spring combinations f 3 - 26psi supplied in the box

• V-band clamp mounting system to suit

1-3/4” OD pipe

• Available in Motorsport and Compressed Gas versions

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet, outlet and collar tool.

Pro-Gate50

ect swap for Turbosmart Gen4

Pro-Gate50

• 50mm valve size & 1/8” NPT ports

High temp spring combinations rom 3 - 26psi supplied in the box

-band clamp mounting system to suit 2” OD pipe vailable in Compressed Gas

l Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet, outlet plugs, and collar tool.

Power-Gate60 GEN-V SERIES

• Direct swap for Turbosmart Gen 4

Power-Gate60 wastegates.

• 60mm valve size

• High temp spring combinations from

3 - 26 PSI supplied in the box

• 1/8” NPT ports

• V-band clamp mounting system to suit 2-1/2” OD pipe

• Available in Compressed Gas version

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet and blanking plugs, and collar tool

GenV High Pressure 35psi External Wastegate GEN-V SERIES

The GenV HyperGate45 HP external wastegate is a Motorsport proven, cost effective external wastegate with base spring pressure options of up to 50psi! Add to that some reference signal manipulation and you have some serious boost! The GenV provides extensive extended thermal performance, fatigue resistance and best in class control and longevity.

Wastegates

Wastegates (continued)

Internal Actuator (IWG-75)

On an internally wastegated turbo, the wastegate valve is built into the turbine housing. The wastegate valve is controlled by an internal wastegate actuator. As boost rises the actuator controls the position of the wastegate valve, which in turbine. Like all Turbosmart parts, billet construction means they are stronger and more durable than a stock actuator, while Turbosmart’s focus on performance means boost comes on faster and holds on longer, putting you in control!

• Base spring pressure available from 3PSI to 26PSI

• Stable boost control and improved boost response

• Flatter boost curve in the top end

PART NO.

DESCRIPTION

TS-0681-5142 Universal 150mm Actuator - 14 PSI

TS-0625-1072 Garrett GT2860RS (Disco Potato) - 7 PSI

TS-0620-1142 Borg Warner EFR B1 Single Scroll - 14 PSI

TS-0620-3142 Borg Warner EFR B2 Single/Twin Scroll - 14 PSI

Wastegate Actuator Suit Mitsubishi EVO

IWG75 Wastegate Actuator Suit

Mitsubishi EVO 4-8 22 PSI Black. Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.

Coupling, Springs & Clamps

V-Band Coupling Kits

Premium Quick Release V-Band Coupling Kits made of 304 stainless steel.

• Cad Plated, Aerospace Grade Hi-Temp Locking Nut

• Triple Welded 304 Stainless Clamp

Twin Port Actuator

The Twin Port IWG-75 uses the airpressure differential between two sealed chambers to create a dynamic force which overcomes the mechanical spring force in the actuator.

• More precise boost curve and wider range between minimum and maximum boost compared to conventional single-port actuators

• Ideal for traction-limited applications where precise control is important, such as frontwheel-drive or drag racing vehicles

• Billet construction for greater durability and strength than a stock wastegate actuator

• Improved response means boost comes on faster and holds longer, with less drop off at high RPM

• Interchangeable springs for a huge range of boost levels

TS-0681-6142 Twin Port Universal Actuator 14 PSI

TS-0620-1143 Twin Port Borg Warner EFR B1 Single Scroll 14 PSI

Oil Pressure Regulators

Turbo Oil Pressure Regulators (OPR)

Turbosmart’s new patent pending OPR T40 is an oil pressure regulation system for your turbocharger. The oil pressure regulator ensures the oil pressure going to the turbocharger never exceeds the maximum pressure turbocharger manufacturers specify for oil supply, regardless of engine oil pressure. The result is an oil delivery system that is more reliable and easier to setup than a standard restrictor system.

Constant Tension Clamps

Turbosmart stocks and recommends Murray Corporation Turbo Seal Series Stainless Steel Specialty Worm Drive Clamps.

• Two per pack

GenV HP Spring 40psi

Suit GenV HP External Wastegates. installed with 10psi Inner Spring.

Adaptors

Sensors

Exhaust Wrap

Tan or Black

in controlling unwanted under hood radiant heat. Keeping exhaust gases hotter within the exhaust system helps in improves exhaust scavenging resulting in cooler air intake temperatures for an improvement in performance and a gain in way to fasten exhaust wrap for a easy, clean and professional installation.

• Reduces under hood temperatures a realistic 50%

• Improves horsepower

• Withstands 1,200°F direct/2,000°F radiant

• Only exhaust wrap with installation guide lines

• Added durability and heat retention

Titanium

than typical wraps. It has the ability to handle higher heat for improved performance and durability!

• High resistance to chemical, oil spills and abrasions

• Extremely pliable for easy install - will not shrink

• No need to “wet” wrap to install

NOTE: Our HT Silicone Coating spray shown on the next page is highly recommended for exhaust wrap to penetrate, seal, protect and prolong the life span.

NOTE: Design Engineering HT Silicone Coating spray is NOT recommended for DEI Titanium wrap.

Thermal Protection

Exhaust Wrap & Accessories

Exhaust Wrap Silicon Coating

have not been able to withstand the extreme use that off-road, dirt track, desert and other

HT SILICONE COATING

It is easy to install on any type of header, exhaust pipe or exhaust system. It is ideal for high impact spot protection and in addition the stainless steel exoskeleton locks together when overlapped, keeping the wrap tight and making installation easy.

• Available in Black in either 10ft or 20ft rolls.

Pipe Wrap Speed Sleeves

PIPE WRAP & LOCKING TIES KIT - TAN

Includes one roll of Tan 2” x 25’ exhaust wrap 4 x 8” stainless steel locking ties to secure wrap.

Wrapping uses include:

Header tubes to protect plug wires

Downpipes to improve velocity

Sections of exhaust and tail pipe to reduce heat Motorcycle pipes to prevent leg burns.

Lock Ties

The High Temperature (HT) Silicone Coating provides lasting protection for any hot surface up to 1500°F. Seals exhaust wrap providing protection from oil, dirt and road grime. Don’t limit the use to exhaust header wrap, this products works well on headers, blocks, starters and even on your grill at home. PART

DEI010301 Black DEI010302 Aluminium DEI010303 White

Speed Sleeves provide everything needed to cover and protect primary exhaust header pipes. An alternative to wrapping complete headers and ideal for spot protection from heat generating pipes and manifolds. Serves as an insulator and radiant heat barrier. Quick and simple installation!

Includes 8” wide exhaust wrap, lock fasteners and locking ties.

SPEED SLEEVE - TAN

• Supplied wrap covers pipes to 2-1/2” diameter.

STAINLESS STEEL LOCKING TIES

These locking ties were designed to secure DEI’s exhaust wrap but the uses are endless. Made of high grade stainless steel they will withstand temperatures in excess of 2500°F and have a tensile strength over 100lbs. They will provide a

STAINLESS STEEL POSITIVE LOCK TIES

Designed to secure DEI’s exhaust wrap but the uses are endless. Made of high grade stainless steel they will withstand temps in excess of 2500°F and have a tensile strength over

STAINLESS STEEL POSITIVE LOCK TIES

Saves time and hassle while providing a professional looking result. Simply slide the tool on the end of any ¼” nut driver, engage the tie, and twist. This gets the tie nice and secure.

standard ¼” drive extension so working in tight spaces is not a problem. This specialty tool works with all popular styles of stainless ties - up to ½” wide.

Made from hardened tool steel and black oxide coated for years of trouble free use this is one specialty tool no tool box should be without.

PART NO. DESCRIPTION

DEI010220

Thermal Protection

Heat Protection

Cool Tape

adhesive backing capable of protecting up to 2000°F radiant heat and available in two different widths and three different lengths.

• Flexible and easy to apply

• Strong self-adhesive backing

• Withstands 2000°F radiant heat

• Secure & seal panels, seal air boxes & more

DEI010408 1-1/2”15 foot (4.55m) DEI010416 1-1/2” DEI010413 2”60 foot (18.2m)

DEI010468 2”

Reflect A Gold

We also have a huge range of Tapes and Adhesives worth checking out in our Tool section on page 194

environments, this state-of-the-art polymer is extremely light weight and capable of handling continual operating temperatures up to 850 F.

bulk heads, seat bottoms - or any area that needs protection from heat.

• Self-adhesive backing for easy install and removal

Heat Screen

aluminised mylar surface capable of withstanding direct heat up to 1200°F.

Heat Screen can be used to protect areas where excessive heat can blister paint, where exhaust pipes run close to

• Used in aviation and aerospace industry

Heat Protection Floor & Tunnel Shield

fuel cells, exterior areas such as transmission locations.

• Excellent heat and sound barrier

• Withstands 1750°F direct continuous heat

• Self adhesive backing for easy installation

Reflect A Cool

used and has many industrial uses.

source of radiant heat and remove self-adhesive backing. It’s that easy.

• Withstands 2000°F of radiant heat

• Self adhesive for easy installation

Heat Shroud

facing. Same as Heat Sheath but with the added convenience of hook & loop closure design along the open edges. Without the need of removing one end of connected wires, cables and hoses, simply wrap Heat Shroud around whatever needs protection and close edges.

• Withstands 500°F direct continuous/2000°F radiant heat

• No need to remove wires and hoses

• Easily trimmed to length

• Fireproof

HEAT SHROUD

PART NO. DESCRIPTION

DEI010405

Fire Wrap 3000

convenience of a hook & loop edge closure design. Simply wrap of disconnecting.

• Withstands direct heat up to 500°F

• Protects against oil, dirt, road grime and other contaminants

FIRE

1 BEST SELLER #

Thermal Protection

Heat Barrier

Heat Sheath - Aluminized Sleeving

Designed to slide over wires, cables and hoses, Heat Sheath provides the ultimate protection from withstands direct heat up to 500°F.

• Pliable for tight bends

• Withstands 500°F direct / 2000°F radiant heat

• Five popular diameters to choose

Ultra Sheath MA

high heat applications.

• Direct heat up to 1100°F

• Easy to cut and trim.

Aluminized Plug Wire Sheath

ignition wire and boot locations from damaging heat generating sources.

• Inexpensive alternative for protecting ignition wires and boots

• Ideal for protecting electrical wiring, harnesses, hoses, cables & more

• 4 to a pack

ALUMINIZED PLUG WIRE SHEATH

DEI010409

MSCN recommends using Protect-AWire kits for ignition leads to prevent

Thermal Protection

Heat Barrier

Protect-A-Boots

Protect-A-Boots provide spark plug boot and wire protection from extreme under hood heat.

• Double-wall construction for added durability

• Helps prevent burn-through, hardening and cracking of boots

• Installs in seconds

•

1200°F direct continuous heat

• Standard length 6” / XL Length 8”

Protect-A-Wire

Protect expensive spark plug wire sets from potential burning, cracking, and hardening typically caused by severe under hood heat. Easily installs on wire by removing distributor boot and sliding Protect-A-Wire over spark plug wire.

• Withstands 500°F continuous 1200°F radiant heat

• Four vivid colors; Silver, Black, Red & Blue

• Available in 2 and 8 cylinder kits

• Protects electrical wiring, speedometer cable, hoses & more up to 10mm diameter

Titanium Protect-A-Sleeve

plug wires and protect them from hot exhaust manifolds and headers.

Thermal Protection

Heat Shield

Shrink Tube

Perfect for sealing spark plug wires to boots at each end forming a water-tight, weather alternative to tape or plastic ties.

• Easy to install using a heat gun

• 25 tubes to a pack

Titanium Pipe Shield

Extreme heat can rob power and potentially damage engines, transmissions, shield and pipe that together provides the maximum potential for cooling and heat dissipation.

stacks or motorcycle pipes, radiant heat can be controlled for maximum protection and performance.

• Protects heat sensitive components, hoses, lines and wiring brackets and pipe clamps

• Reduces heat from entering vehicle when placed on exhaust pipes

Form A Barrier

DEI Form-A-Barrier is designed to provide the best heat protection where high temperatures are problematic. It limits heat transfer on components that aren’t the easiest shape for a wrap or heat screen. Light weight, formable rigid shield

odd shapes. Resistent to most automotive chemicals, the Form-A-Barrier can be

• Light Weight

• Easily Formable

Looking for DEI’s range of Radiator Relief products - check out our Race Car Maintenance section on page 182

Component Specific Products

Versa-Shield

by extreme heat and has multiple uses such as protecting master cylinders, cool cans, distributors, fuel pumps, electrical boxes to name a few.

to itself using a hook & loop edge closure design. In most cases there is no need to

• Protective heat source barrier to prevent heat soak conditions

• Starter / Universal Heat Shield

• 7” wide x 24” long

Ultra 47 Starter Shield

• Hook & loop fastening system

• Protect against heat soak

Cell Saver - Battery Insulation Kit

Batteries are very susceptible to heat and vibration that could cause premature failure

• Protects batteries from harmful radiant heat

• Protects environment and your vehicle

Muffler Shield

protection from damaging heat.

• 40” long x 7” insulation material

• 12” x 7” treated base mat

• Edge sealing tape

Firesleeve

Firesleeve

MSCN offers several brands of FIRESLEEVE to protect engine hoses and wires in high temperature applications. Sized for stainless steel braided hose. Use I.D. dimensions for other hoses or cables.

Firesleeve - Light Weight

hose assemblies in areas of high radiant heat its braided

harnesses, sensor wires and, due to its elastic structure, small electrical components.

• Ligtweight - thin wall

• Black in colour

Firesleeve

coated with a custom compounded black silicone rubber to protect and extend the life of hoses, cables and wires.

• Outstanding Flexibility & Durability, Expandable for installation

MSCN Firesleeve

to withstand continuous temps to 500°F. It can provide short term completed hose assemblies. on our braided hose.

An extensive range of FIRESLEEVE to protect engine hoses and electrical wiring.

Helps prevent potential burning, cracking and hardening typically caused by severe under hood engine bay heat!

Sized for stainless steel braided hose. Use I.D. dimensions for other hoses or cables.

Fire Foil Lite Firefoil

aluminium surface for radiant heat protection to 800°F, using an internal seam for a smooth exterior with no visible stitching. Repels

Fire Foil II

Both these products are NOT expandable, the sleeving should be slipped over the hose BEFORE assembly.

DEI Boom Mat

Boom Mat Spray-On

• Reduce unwanted road noise and vibration

• Won’t crack or chip

• Helps prevent rust

• Paintable in 6 hours

Accoustic Products

DEI Boom Mat

Boom Mat

backing and apply to a clean surface.

a durable aluminum wear surface and it’s strong adhesive backing is unaffected by extreme hot and cold temperatures and can

BOOM MAT PART NO. DESCRIPTION

DEI050200

DEI050202

DEI050206

DEI050210

Applications

2 Pack - Speaker

4 Pack - 4 Speakers / Dash

6 Pack - Hatchback

What’s in it for you...

• Enhances stereo performance

• Performs in extreme temperatures only 25-50% coverage for optimal performance

Where to use: Floors, Door Skins, Trunks, Roofs, Any vertical or horizontal interior surface

Thick HD Damping

24” x 54” (.070” thick)

areas without complex contours.

Provides the widest temperature range of active damping, essential in automotive applications.

Supplied with a 96/lb bleached craft release liner, the thickest in the industry, for Excellent thermal properties and anti-corrosion protection

24” x 54” (.070” thick)

What’s in it for you...

• Best vibration damping in the market... PERIOD!

• Enhances stereo performance and sound

• Performs in extreme temperatures

Where to use:

THICK HD DAMPING PART NO. DESCRIPTION

DEI050230

Accoustic Products

Under Carpet - Sound Deadening Insulation Material

Sound Deadening / Insulation Mat

by preventing unwanted noise from being transferred into the vehicle’s interior. In addition to its sound deadening properties, this two layer acoustic material provides superior insulation keeping vehicles cool in the heat of summer, and warmer in cold temperature climates. where additional sound deadening or insulation is needed. For the ultimate experience vibration dampening material.

• 5.6 db(A) reduction... a 25% noise reduction over competitors product

• Insulate from heat and cold

What’s in it for you...

• Enhances stereo performance & sound

• No mould or mildew issues UNDER

Where to use: Firewalls, Floor boards, Transmission tunnels, Behind

Under Carpet Sound Deadening - Lite

in a lightweight padding that provides less heat transfer in the summer while protecting against the transfer of cold air in the winter.

composite material offers unmatched thermal and acoustic protection in an vertical and overhead surfaces.

thermal insulation.

Where to use: Floor pans, Fire walls, Transmission tunnels, Behind back seats, Inner fender wells,

Accoustic Products

Sound Barrier

Moldable Noise Barrier

limited, and the need to have an acoustical noise barrier is desired.

Blocks unwanted Road Noise when used over the entire surface area. Not a permanent installation, easily removable for

• Highly effective low cost alternative to using damping products only

• 1/16” thick

What’s in it for you...

• Easy installation

• Easy removal for repairs or service

Where to use: Behind door panels, Floor pans, Fire walls, Transmission tunnels, Behind back

Leather Look Sound Barrier

a premium leather appearance. Available in a moisture resistant, black leather embossed wear surface features a 1 lb./ft. 2 loaded barrier and is designed for

transfer of heat and cold in any climate.

48” widths sold by the linear foot.

• Embossed leather grain

• Finishing touch for your interior

• Insulate interior from unwanted heat & vibration

• Heat resistant to 210°F

• 5/16” thick

What’s in it for you...

• Enhances stereo performance and sound

• No mould or mildew issues

Speaker Baffles Sound Barrier

sheet metal and panel to frame resonance. Also forms a water tight protective shell to prevent moisture intrusion.

prevents sound from migrating to unfavorable areas in the vehicle such as door panels.

improved sound clarity.

unfavorable areas in the vehicle such as door panels. Serves as a protective barrier for speaker cone and voice coil against dirt and dust. Damping properties help reduce distortion for enhanced acoustical response.

mounting surface to isolate speakers from vehicle. Acts as a protective guard

Extends speaker lifespan and protects owner’s speaker investment.

• All sold in pairs

and insulate from any heat source.

Floor & Tunnel Shield II

Designed to provide the best possible heat protection in areas where high

is an issue. It also provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well.

holds past 450°F. It’s improved multifaceted modern aluminum surface offers

minimal clearance areas.

most cost effective way to control thermal transfer while protecting expensive components & occupants from extreme heat situations and sound.

• Blocks radiant heat from entering driver compartment

• Withstands direct high heat temperatures up to 1750°

• Serves as a barrier to unwanted road, tire, & engine noise

• Easy to form to shapes and contours

• Excellent heat & sound barrier

• Wind and water will not affect adhesive

• Just trim, peel & stick

• Aggressive self-adhesive backing holds past 450°F

• Withstands 1750°F direct continuous heat

FLOOR & TUNNEL SHIELD II

DEI050507

DEI050508

DEI050509

exhaust pipes, Fuel cells, Motorcycle fairings, Engine covers

Our safety gear is one of the most important sections of our catalogue. We put uncountable hours, days and weeks of effort into our Safety products. Not only do we have the best brands but we make sure they meet Australian safey standards required to keep our family of sports men and women safe.

Helmets

Pro Air Flow - Full Face

Pro Sport - Full Face Duck Bill

The Pro Air Flow helmets are unmatched by the competition. They come with with a unique six pad interior system which allows for which allow for better heat transfer. The interior foced air channels were redesigned and improved upon, by incorporating additional ventilation ports strategically placed to provide optimal cooling throughout.

• stainless steel hardware and a kevlar chinstrap

• new head liner air channel design for better adjustability, added

• removable pad headliner and cheek pad system for cleaning

• 0.125” Polycarbonate shield with tear off post

• compatible with Racing Optics or Ultra Shield tear offs

• large eye port offers greater visibility with rubber eye port seal

• M6 inserted for head-neck restraint devices

These Pro Sport composite helmets have been designed for increased safety, comfort and unmatched quality at an affordable price. A unique six pad interior system allows resizing the interior superior helmet strength and durability. The duckbill style improves aerodynamics and reduces neck strain of drivers who race open wheel cars by increasing downforce in the front. Ventilation ports in the front and top rear help air circulation.

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable 6 pad headliner & cheek pad system

• Front/rear top venting

• 0.125’ Polycarbonate shield with tear off posts

• Compatible with Racing Optics or Ultra Shield tear offs

• M6 inserted for head-neck restraint devices

Pro Air Flow - Full Face - Carbon Pro Sport - Full Face Duck Bill - Carbon

A light weight version of the Pro Air Flow shown above, but made from lightweight Carbon Fibre to help minimize the acceleration of the head during an impact due to increased g-forces. This has the same impressive features as the Pro Air Flow helmet shown above!

A light weight version of the Pro Sport shown above, but made the head during an impact due to increased g-forces. This has the same impressive features as the Pro Sport helmet shown above.

Helmets

Helmets

Pro Airflow - Full Face Duck Bill

Pro Sport - Side Forced Air Full Face Duck Bill

unmatched by the competition. They come with a unique six pad along with corrugated ridges which allows for better heat transfer to keep you cooler and reduce fogging.

• 100% carbon weave vacuum bagged and autoclave cured light weight shell for maximum durability

• Stainless steel hardware and a Kevlar chinstrap

• Removable six pad headliner and cheek pad system for cleaning

• 0.125” polycarbonate shield with tear off post

• Rubber eye port seal

• Compatible with Racing Optics or Ultra Shield tear offs

• Large eye port offers great visibility

• M6 inserted for head neck restraint devices

• Great aerodynamics

• Snell SA2020 rated

• Sizes M, L, XL & 2XL only

Helmet Shields & Stickers

Pyrotect’s SA2020 Tri-Weave Composite helmets are designed for increased safety, comfort and unmatched quality at an affordable price. They come with the same features as the other helmets in the range, but these feature the Side Forced Air vents for use with ventilation system. The helmet is designed with a duckbill and built in airfoil on the back to reduce neck strain and wind drag.

• Composite Tri-Weave vacuum bagged and autoclave cured lightweight shell for maximum durability

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable six pad headliner and cheek pad system for better adjustability, added comfort and cleaning

• 0.125” Polycarbonate shield with tear off posts

• Compatible with Racing Optics and Ultra Shield tear offs

• Large eye port offers great visibility

• Great aerodynamics due to the duckbill design

• Available in White and Black

• Available in M, L, XL, 2XL & 3XL only.

Helmet Cheek Pads

easily removable/replaceable cheek pads.”

Available in four sizes and all sold as a pair.

Helmet Accessories

Helmets - Accessories

Helmet Strap

Attach to a D-ring on your helmet and insert into the harness to reduce the movement of the helmet under acceleration. Fully adjustable length and includes a D-ring.

• Colour: Black

Helmet Skirt

to help keep the air inside your helmet & smoke. Includes self adhesive Velcro for installation.

• Colours available: Black / Blue / Red

Helmet Support

Made from high density foam to help support the helmet and restrict movement. Size - adult 16” circumference. Meets SFI 3.3.

• Colours: Black / Blue / Red

HANS Posts

threaded backing plate.

• Suits 2015/20 models with backing plate pre

Balaclavas

Lid Lifter Balaclava

The retrieval of a driver from a crashed car is an extremely delicate operation to be performed solely by professionals. Removal of the minimise the risk of damage to the cerebral vertebrae Stand 21 have introduced this new device. Developed with medical motor racing personalities it is made of an exclusive airy fabric offering comfort, protection and also helps with perspiration.

Available in black only.

Helmet Sizing Chart

Be sure to measure around your head just above the ears.. Refer to the chart below for your correct helmets size.

Don’t guess your size. Your helmet must be securely and snugly fastened before engaging in any activity.

Black Top Fit Balaclava

while eliminating any hindrances that would have caused even minor discomfort.

• Black with grey overstitching.

• Get both a small or larger opening from the same balaclava

• Drink straw hole.

Two sizes available: Small: 54-57, Large: 57+

Fire Resistant Underwear - PXP Range

Long Sleeve Undershirt

Wicks sweat away from your Racing Suit keeping it much fresher - perfect for those race meets that last for several days between washes

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing

Balaclavas

Balaclava with large single eye port. Choose from the Single layer option or for an even safer option choose the Double Layer version.

• All PXP underwear is also machine washable

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing

Long Pants

our NEW Stand21 range on page 130

PXP’s long pants or bottoms - the latest technology in fabrics to keep you safe and comfortable.

• Wicks sweat away from your Racing Suit keeping it much fresher.

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI

PXP Professional racewear with comfortable underwear. The latest technology in fabrics to keep you safe and comfortable.

Racing Socks

Very comfy racing socksexceeds SFI 3.3.

• Wicks sweat away from your Racing Shoes or Boots

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3

• Solution-dyed - so the colour machine washable

• Retains its shape so your look sloppy

• Quality sewing and construction

Fire Resistant Socks

Socks - FIA

FIA8856-2000 homologated. These socks come with reinforced heels and keep your feet comfortable and dry.

Size 4 to 6

MEDIUM Size 7 to 8

SOCKS LARGE Size 9 to 12

X LARGE Size 13 to 15

MSCN TURBO ALTERED - DRIVER CHRIS MANKS

Driving Suits

-5 SERIES Driving Suits - Fire Safety 3-2A/5

Meet the SFI 3-2A/5 standard required in many forms of motorsports. Choose from either a 1 or 2 piece suit

1 2 PIECE & DRIVING SUITS

Proban

• White Piping Trim

Box Quilt

Wrap Around Collar

360° Sleeve Gusset

Contoured Epaulet

Knit Cuffs on wrist and ankle with Straight Boot Cut.

SFI 3-2A/5 approved with ag sewn into left arm.

SUIT OPTIONS

• Sewn in arm restraints

• Custom sizing

• Custom embroidery

1 Piece 3-2A/5 Suit

PART NO.STYLESIZE

DJ012100 1 PieceS-XXXL

2 Piece 3-2A/5 Suit

PART NO.STYLESIZE

DJ012200 JacketS-XXXL

DJ012300 PantsS-XXXL

FEATURES YOU WON’T FIND ANYWHERE ELSE!

Suit Sizes

SIZEHEIGHTWEIGHTCHESTWAISTINSEAMSLEEVE Small5’6”-5’9”55-70kg36-39”28-29”27-29”30-32” Medium5’9”-6’70-80kg40-43”30-34”30-31”31-32” Large5’9”-6’1”80-90kg44-48”35-39”31-32”32-33” XL5’11”-6’2”90-100kg49-52”40-44”31-32”33-34” XXL6’-6’3”100-110kg56-56”45-49”32-34”33-34” XXXL6’3”115kg +56”51”34”34”

Driving Suits

-5 SERIES Driving Suits - Fire Safety 3-2A/5

We have assembled a variety of suit packages to cater for a wide array of motorsports - the most economical way to buy your gear! See the 3-2A/20 packages on the following pages if you need higher spec.

“Entry Level” Packages

Kit includes:

• One piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

2 PIECE SUIT

1 PIECE SUIT

• Two piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

“Race Ready” One Piece Package

Kit includes:

• One piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

1 PIECE SUIT

PART NO. ENTRY LEVEL - PKG 2

STAY SAFE ON THE TRACK

OPTIONAL PART NO. ENTRY LEVEL - PKG 1

“Race Ready” Two Piece Package

Kit includes:

• Two piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

Driving Suits / Arm Restraints

-20 SERIES Driving Suits - Fire Safety 3-2A/20

DJ Safety manufactures their SFI 3-2A/20 suits from the best quality materials to meet and easily exceed the SFI 3-2A/20 standard required for professional Drag Racing classes.

Features include: 4 layer light weight construction, Box Quilt, Wrap Around Collar, Knit Cuffs on wrist and ankle. Choose from either a 1 or 2 piece suit in a standard range of colours and sizes.

SFI 3-2A/20 approved with tag sewn into left arm. For the best protection and comfort - choose DJ Safety Inc!

1 & 2 Piece Firesuits 3-2A/20

Arm Restraints

Arm Restraints - SFI 3.3

Our Arm Restraints have a 2” wide arm band with a fully adjustable Velcro system. 1” wide individual straps are fully adjustable from 4-15” with a steel buckle clip to attach to the harness.

• Colours: Black / Blue / Red / Grey / Purple

Approved for all types of racing where arm restraints are required. Suits both Latch and Cam Lock Harnesses.

Boots & Gloves Gloves, Shoes & Boots

Sportsman Glove

of your hand with a high grade a padded leather grip and knuckle guard. This is a mid length glove with an elastic wrist.

Pro Series 3.3/15

strips and a leather encased Velcro adjusting strap. Full length gloves to give maximum protection to your hands and wrist joints.

• Colour: Black with Tan inserts

• Colours: Black or Blue only PART

• Available in sizes Small to Extra Large

Glove Sizing Chart

Very Firm

Sportsman SS Shoe

top design made from a satin suede leather with toe, lace and heel guard

insert with lace up and twin straps to secure your foot.

• Colours: Black only

-20 Shoe

To suit Top Fuel, Alcohol & Doorslammer, this shoe is designed to meet this tough environment without the use of an over boot. This makes a much more

resistant materials to meet the SFI 3.3/20

• Colours: Black only

Funny Car Over Boot

To suit Top Fuel, Alcohol & Doorslammer or where an over boot is required. Made from with a suede leather sole and heel guard entry along with a fully adjustable instep strap.

• Colours: Black only

• Use with -5 shoe

Shoe Sizing Chart

Boots & Gloves

Stand 21 Boots & Gloves

Ultimate Racing Gloves SFI 3.3/20

These are extremely lightweight - each glove weighs 125 grams.

• SFI Rated 3.3/20

• Colour is black & tan

• All sizes available

Ultimate Racing Boots SFI 3.3/20

• Suitable for Pro Slammer, Supercharged Outlaws and Top Fuel

• Fully lined in grey aramid

• Padded ankle

• Ultra low back

• Curved sole around the heel with shock-absorbing heel

• Two ankle Velcro-fastening straps

• Contoured and padded tongue

• Color: black with red sole

• All sizes available

to wear overboots over these boots.

Fire Resistant Underwear Stand 21 Hans Device

Topfit Pants

An exclusive lighter fabric offering comfort, protection, softness and helping perspiration.

• Available in black or white.

• Available in Medium, Large and Extra Large

Topfit EVO Top

An exclusive lighter fabric offering comfort, protection, softness and helping perspiration.

• 200 gr/m² emerized fabric

• Turtleneck

• FIA 8856-2018 homologated

• Available in black or white.

• Available in Medium, Large and Extra Large

Featherlite Series

This Featherlite is a true technological achievement

to provide the highest level of safety at the incredible low weight of 310 grams (12 ounces - not including

The use of ultra-high-strength carbon composites combined with a new and more ergonomic leg design make such device ever created.

A revolutionary new belt loop allows for perfect integration within the cockpit thanks to a unique shape reducing the interference between the helmet and the seat’s headrest. It has quickly reached the world’s top racing class’ drivers and permeated in the professional racing classes and among the more demanding drivers in terms of performance.

Gear Underwear on page 125

Stand 21 Hans Device

Club Series

The 20° Club Series has been developed to offer a more economical While more economical it offers all the safety standards of the far more expensive versions but at a more affordable price. The Club Series device is manufactured from plastic in an injection moulded construction, but unlike other plastic Sport Devices (1160 950 grams, some 30% lighter, and is only 100gm’s heavier than the Carbon Racing Series.

The Club Series is FIA homologated and uses the same evolution design as incorporated on the Racing Series, making it far more comfortable to wear, and easier to use in the car due to its wider seat belt slots.

drivers. Supplied with sliding tethers for full head rotation when connected to a helmet.

Club Series 3

suit many drivers. The Club Series 3 is very lightweight - weighing

It is made from a Thermoplastic injected resin reinforced with

It is supplied with black paddings, sliding tether and protective bag. It comes as standard with a sliding tether offering the driver more head rotation but still giving protection against whiplash injury in an accident.

Hi Tec Carbon Series

is made from high strength carbon 2002, a standard which established the criteria for optimal resistance to the forces applied to a driver’s head and neck in the sudden deceleration experienced in an impact.

sliding tethers for ease of movement.

Ultimate Series

Exceptional ergonomics, geometrics and light weight. The Ultimate device is the world’s most evolved device to date. The all-carbon monolithic technology allows a new design for the device arms - their thickness is greatly reduced from 14mm down to 4mm which between the driver and the device.

The arched top has been reengineered and re-designed offering a reduction of the physical thickness to below 2mm which in turn allows a reduction of helmet-to-seat / headrest space to improve safety. FIA 8858tethers allowing greater head motion.

HANS POSTS Find them in our HELMETS at the beginning of this sectionsee page 122-123.

TOP SELLER

Sportsman Chute Sportsman 250 Chute

DJ Safety manufactures these parachutes with the sportsman racer in mind. They are made from a very strong long lasting material that can take the beating of going round after round as common within the sportsman ranks. The chutes are a 12ft crossform design with eight canopy lines. Designed to be used for vehicles reaching up to 200mph. Parachutes come ready for racing, complete with Pilot Chute,

• 9” x 9” x 5” tall

• Available in black, blue, red or purple.

A newly designed chute for sportsman style Sedans or Altereds modelled from our popular Sportsman 12’ chute but made from heavy duty Twill Material and heavier canopy lines to endure Parachutes come ready for racing, complete with Pilot Chute,

• 9” x 9” x 5” tall

• Available in black, blue, red or purple.

cars over 2500lb.

Pilot Chute, Spares & Cable

Replacement Chute Packs

Custom

Manual Launcher Upgrade

An alternative to using a pilot chute, these launcher systems include a new pack and associated parts to convert your vehicle to a launcher system.

Pilot Loop Straps attach to the small end of the pilot to connect the pilot chute to the bridle line. The bridle line connects the pilot chute and canopy.

Parachutes

Parachutes

12’ Comp Series Chute

Suits vehicles running between 180-220mph, making it suitable for many classes of cars, from Sedans to Funny Cars and Dragsters. They are made from a very strong twill nylon material, the same as used in our Pro Series Chutes to deliver fantastic stopping power for your vehicle! They are designed to be used for vehicles reaching up to 220mph. When running over 200mph you require 2 parachutes for your car!

Parachutes come ready for racing, complete with Pilot Chute,

• 9” x 9” x 7” tall

• Available in black, blue, red or purple.

DJ

12’ Pro Series Chute

These parachutes suit Pro Class cars that can reach speeds of 330mph. Suitable for Top Fuel, Top Alcohol & Top Doorslammer. They are made from a very strong twill nylon material that can take the severe strain of being deployed at high speeds. The chutes are a 12ft crossform design with eight canopy lines. Parachutes come ready for racing, complete with Pilot Chute,

• 9” x 9” x 7” tall

• Available in black, blue, red or purple.

12’ Sportsman Chute

Suits: Sedans, Altereds & Dragsters up to 180mph

• 7” x 7” x 5” tall

Jim Deist is credited with has maintained a position of leadership to this day. Deist Chutes have always employed the latest state-of-theart materials and technology. We are also able to custom build chutes to order and can supply chutes for Salt racing, Boat racing, or any other custom parachute.

Safety Flag

DJ Safety / Motorsport Connections safety deployment in the pits, staging lanes or during transport. It can also be used for any safety pin,

let you forget that the locking pin is in place.

PART NO. STYLE

DJ530500

Safety offers a full custom chute service. If you need a parachute for a Boat, Land Speed / Salt Car, Top Fuel Motorbike or any other application, DJ Safety & MSCN can handle your enquiry. Custom Lettering is also available on all chutescontact us for more info.

PART NO. DESCRIPTION

Engine Protection

Engine Diapers

Ballistic Nylon Diaper

accessories. If you have clearance issues or need to clear a cross member or dry sump pump, the special series will and will contain oil & parts without leakage as common with universal diapers! SFI 7.2 Spec.

Ballistic Nylon Diaper - Flat Pan

oil & parts without leakage as common with universal diapers! Available with Quick Disconnect adjustable Bolt-On or Frame Rail Straps.

Top Fuel Soft Kevlar Diaper Carbon Fibre Bucket Diaper

The top of the line, easy to take on & off the car, strong & light. These are the choice of professional teams worldwide! These

Custom made diapers are available - please contact us for more info.

Complete with Quick Release Adjustable Kevlar Straps & Absorbent Pads.

Custom made diapers are available - contact us for more info. Complete with Kevlar Liner, Quick Release Kevlar Straps & Absorbent Pads.

Diaper Straps & Spares

Diaper Absorbent Pads

We carry replacement pads to suit the DJ Diapers. We also have the Diaper Tube that is inserted in the diaper around the pan for added absorption.

Engine Protection

Blower Restraints

Universal Blower Restraints Blower Restraints - SFI 14.1

These universal blower restraints have a aluminium top plate with a small opening to suit most blower openings. The straps are fully adjustable from 6” to 28”. Paddles and hardware included. *Extra holes may need to be drilled.

We carry a large range of SFI 14.1 blower restraints on the shelf to suit different blower openings and engine combinations. Simply measure from the top of the supercharger to the top of the cylinder head to determine your strap length. Made from an aluminium top and include all hardware to install.

Custom length straps are available by special order along with a huge range of top plates to suit a variety of superchargers and inlets!

PSI Restraint - SFI 14.21

DJ Safety make Screw-Type Supercharger Restraint Devices & Bags to suit Top Alcohol & Top Doorslammer when you are running a PSI or Whipple style superchargers. Please contact us for an information/order sheet to determine the correct restraint.

Blower Restraint - SFI 14.2

We have custom made Alcohol Supercharger Restraints & Bags to suit Top Alcohol & Top Doorslammer when you are running a roots style supercharger. Contact us for an information/order sheet to determine the correct restraint.

NO.OPENING SUIT

DJ142100 PSITop Alcohol / Doorslammer - PSI Supercharger

Blower Restraint - SFI 14.3

Designed to suit the explosive nature of Top Fuel, the 14.3 spec restraint is available by custom order only to suit your sheet to determine the exact restraint & bag. From nostalgia to modern fuel cars - DJ has the right equipment!

Blower Restraint - Spares

If you have a damaged restraint or bag, need to make your straps shorter or longer, we can help. DJ has the ability to fully service any restraint and can recertify to the latest SFI spec and date in the process.

Restraint Pin

Transmission Blankets / Tow Straps

Auto Lenco Other Transmissions

blankets simply wrap around the case of the transmission and are held in place with buckles and forward mounting straps. Designed to contain parts within the blanket if a failure occurs. Custom blankets are made to

Blankets can be made to suit almost any transmission, other styles are availablecall with your enquiry.

Available to suit with or without reverser. All styles are available in CS1, CS2 and CS3 cases.

Tie Downs & Tow Straps

Tiedowns

Made from 2” webbing with a heavy duty ratchet in two standard lengths of 8 and 12 foot.

Standard colour is black, custom colours and lengths are available by special order. Call for details.

Attachment Straps Slings, Straps & Hardware

Made from 2” webbing in two different adjustable while the D ring style are a set length.

Standard colour is black, call for custom colours.

Harness Systems

Motorsport Harness Systems

DJ Safety Motorsport Harness Systems are proudly made in the USA at our factory located in Los Angeles California. Made by craftsmen using quality hardware to stringent quality control so that you can feel 100%

will be able to suit any vehicle, with several options available to make your installation easy and hassle free. Custom systems are available by special order with a wide variety of colours to choose from along with new style adjusters and helmet restraint harness systems. Talk to one of our sales team for more information.

Integral Latch Cam Lock

Optional Sewn in shoulder Pads available Bolt

Pull Up Adjuster or Pull Down Adjuster

Optional 2” Webbing Helmet Support Shoulder Restraint

Optional Loop Shoulder Harness (Shown with Fireproof Cover)

Dragster

Sedan Junior Dragster

* Please speci length required.

Fire Suppression

Coldfire - Fire Suppression Systems

Injector Heads Replacements

Cable Assemblies

Spares

Coldfire Recertification Servicing

DJ Safety to service and recertify

The process includes: We only service DOT 3AL stamped bottles.

• Clean, Check Bottle Integrity & Gauge Accuracy & Replace burst disc & O-rings

• Pressurise Bottle to Recommended Spec. & Apply new Date Tag

The bottles are left to settle for 3-5 days before returning to you.

Bottle Brackets

Coldfire - Fire Suppression Systems

custom kits for industrial and other applications.

• Every second counts

• Leaves surfaces cool to touch

• Trusted and used by professionals for years

• Completely environmentally friendly

• No Damage to paint

• Will not harm driver

A,B & D Class Fires

will stop.Without

Fire Systems

FIA 2.25L Electrical Fire System

has been created for use in competition suppression technology.

SFI 17.1 Novec 5lb Mechanical Fire System

an ozone friendly, next generation, halon suppression properties. It is safe for the driver, nonconductive so it’s safe on delicate electronics and won’t leave residue as it evaporates and therefore requires no clean up.

The systems comes with: activation type of your choice

aluminium tubing

• 1 x standard bottle mount

which is alcohol resistant, non-toxic and ozone friendly.

Fire Suppression

FireSense® Suppression Systems

Steel Mechanical Kit - 4.0L

system comes as a complete kit ready to install. Tested by the British standard institute on behalf of

• FIA approved/homologated system

• 4.5 meters 8mm tubing / 0.5 metre 10mm tubing

• Bulkhead connectors and T-Pieces

• Mounting brackets & Anti-torpedo tabs

• Mechanical Pull cables - 6ft interior & 12ft exterior

Alloy Electrical with Auto Activation

Fitted with an automatic activation in the event temperatures rise too high within the cockpit area. Comes as a complete kit ready to install. Tested by the

• Power Pack control box

• 2 x Activation Buttons - Internal & External waterproof

• 4.5 metres 8mm tubing

• 0.5 metre 10mm tubing

• Bulkhead connectors and T-Pieces

• Mounting brackets & Anti-torpedo tabs

• 2 x E stickers - Small for interior & Large for exterior

Extreme® Suppression Systems

SPA Extreme Fire System 3.0Kg Electrical

Protection Fluid. Carrying the latest FIA homologation EX.029.09. Environmentally friendly, non-toxic, nonconductive, non-corrosive, alcohol-resistant (effective on that releases as a gas and leaves no residue - zero clean-up afterwards, and has no effect on delicate electronics. saloon and sports cars. Utilizing multi-directional nozzles, recommended for Bio fuel, petrol and diesel applications. All Cars competing in International Rally events from 2013 require a minimum 3.0kg system.

• FIA approved homologation number EX.029.09

• Power Pack control box

• 2 x Activation Button - Internal with Shroud & External waterproof

2 for engine, 2 for cockpit

• 4.5 metres 6mm tubing

• 2.5 metres 8mm tubing

• 1.0 metres 10mm tubing

• 0.5 metre 12mm tubing

• Bulkhead connectors and T-Pieces

• Mounting brackets & Anti-torpedo tabs

• 2 x E stickers - Small for interior & Large for exterior

Hand Held Fire Extinguishers

Hand Held - 2.4L

2.4 Litre hand held extinguisher that utilizes an alcohol resistant, freeze-protected AFFF (Aqueous

• Complete with strap and mounting bracket

Hand Held - 2.0Kg

1230 Fire Protection Fluid.

• Complete with strap and mounting bracket

Roll Bar Padding

Roll Bar Padding - SFI

Our Urethane Science padding is available in a variety of sizes and is endorsed by ANDRA and CAMS vehicles running in National events. One advantage of USI SFI padding is that it is install than other brands. The padding is available in a variety of sizes. Also available is the SFI 45.2 Side impact / Helmet Padding this is available in Flat Sheets. Our testing has provided proof that the padding can be soft and absorb high "G" forces, accomplished only with our formulated Urethane compounds.

• Best impact absorbing padding made

• Soft feel than other pads

SFI 45.1 Small

• Easy to bend and shape

• Shaped for better visibility

• SFI 45.1 licensed approved

SFI 45.1 Medium

• SFI 45.2 licensed approved

• All pads made in USA

• Colour: Black

3ft (900mm) Long, Meets SFI 45.1 Spec. Colour: Black only

SFI 45.1 - Large

• Meets SFI 45.1 Spec. • Colour: Black only

Extract from CAMS Manual:

3: Application: where the helmet of an occupant could come into contact with the safety cage structure, protective padding shall be the head rest is permitted. Where it could be demonstrated that ability to operate the vehicle in a safe manner, the requirement for padding will be negated in the immediate area of concern at the discretion of the Chief Scrutineer.

11.2 Body Protection:

Where the body of an occupant could come into contact with the

3ft (900mm) Long, Meets SFI 45.1 Spec. Colour: Black only

SFI 45.2 Side Impact Pads

by many Top Teams. Fabrication is required to mount to your

Extract from ANDRA Rulebook:

Where the driver’s helmet can make contact with roll bars or cages, padding meeting SFI 45.1 or FIA 8857-2001 must be protected with padding and suitably fastened to the tubing to prevent it from slipping or detaching. If cable ties are used they must be regularly checked to ensure they have not deteriorated

rollcage on both sides of the drivers helmet is mandatory in all cars faster than 225mph. Padding must be securely mounted recommended. Vehicles with FIA or SFI rated seats with built in “halo” are exempt from this regulation.

TECHNICAL INFORMATION

Heating the padding above 80°C in hot water will allow the padding to be bent at sharper or odd angles reducing the risk of breaking the USI roll bar padding!

Our gun supplier for Racing Seats and Steering wheels. VELO also produces a nice range of FIA harnesses and accessories that should be checked out as well.

Velo Racing Seats

The GP-90 is a seat which again offers excellent support however, it is equipped with removable and adjustable leg, base and back cushions.

It is also ADR approved making it equally at home on the track or the road.

It is a side mounted seat equipped with 5 harness holes to allow any used.

It is available in standard, XL & XXL. Black is standard colour. Other colours available as a custom order with a long lead time.

We stock a huge range of Velo Gear - but the seats are quite large. Please call for availability and shipping options. Go to www.mscn.com.au for Velo

This is the FIA evolution of the popular GP-90 seat.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in standard size only. Black is standard colour. Other colours available as custom order with a long lead time.

This is our entry level FIA approved seat, however it and therefore is equally suited for road use.

GPT-3

GPT-1 GP90 GPT-2

This is the FIA evolution of the popular GP-90 seat.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in XL size only. Black is standard colour. Other colours available as custom order with a long lead time.

This is our entry level FIA approved seat, however it therefore is equally suited for road use.

This is the FIA evolution of the popular GP-90 seat.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in a XXL size only. Black is standard colour. Other colours available as custom order with a long lead time

This is our entry level FIA approved seat, however it retains is equally suited for road use.

Viper

The Viper Seat is designed for competition use and features ultra deep sides and an integral head restraint. It is available in non FIA approved.

The Viper XL/XXL cater for the larger/taller framed driver/ navigator, being wider and 50mm taller than the standard Viper.

The seat is HANS compatible and offers excellent value for money, and has become particularly popular for use in targa events.

This is the ultimate in competition seating and is designed for required to satisfy the most demanding driver.

This seat is FIA homologated and our integral lateral head support is compatible with the HANS device.

The seat also features removable back, base and front cushions and

Seats & Steering Wheels

Podium II

The all new VELO Podium II has been developed following the feedback received from the very popular original Podium. Its deep sided construction featuring extra high bolsters ensures maximum support.

It has also gained in rigidity through the utilisation of new sandwich construction techniques. This seat is able to accommodate a wide range of driver and co-driver sizing and is also equipped with removable insert cushions and adjustable padding.

The VEL Podium II has 5 harness holes and is available in a range of colours.

Also available in Carbon Fibre.

Velo Steering Wheels

350mm dia, 65mm dish wheel. Yellow stripe on top for reference.

• Includes horn button.

• Lifeline Boss/Hub kits

• Suede leather

NOTE ON VELO SEATS

We stock a huge range of Velo Gear - but the seats are quite large. Please call for availability and shipping options.

Version

350mm dia, 28mm dish (Flat). Yellow stripe on top for reference.

• Includes horn button.

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits.

• Suede leather

• Italian made.

350mm dia, 90mm dish wheel. Yellow stripe on top for reference.

• Includes horn button.

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits.

• Suede leather

• Italian made

380mm dia, 65mm dish wheel. Yellow stripe on top for reference.

• Includes horn button.

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits.

• Suede leather

28MM DISH PART NO.DESCRIPTION VEL R28 350mm Diameter

90MM DISH PART NO.DESCRIPTION VEL R90 350mm Diameter

VEL R380 380MM PART NO.DESCRIPTION VEL R380 380MM 380mm Dia

Seats, Harnesses & Tow Straps

Velo Seat Brackets

The universal Seat track can bolt directly to the bottom mount seats, or can also be used on side mounts if desired. Requires custom brackets to

mounting brackets to suit Side mount seats. Powdercoated black.

long x 135mm high

approx 1.5kg a pair.

Alloy mounting brackets to suit side mount seats. Undrilled base

CURVED BRACKETS

Alloy Seat mounting brackets, extra length and height to suit larger cabins, and a much greater range of seat position adjustment.

395mm long x 125mm high

Weight approx 500g a pair.

FIA Harnesses & Tow Straps

All Velo Belts are made in the UK so you can be sure of great quality. FIA Approved. Now available in Black, Blue & Red.

VELO FIA PRO 6PT HARNESS

All Velo Belts are made in the UK so you can be sure of great quality.

FIA Approved. Available in Black, Blue or Red

BILLET ALLOY LONG TALL BRACKETS

Alloy Seat mounting brackets, extra length and height to suit larger cabins, and a much greater range of seat position adjustment. 485mm long x 125mm high

Weight approx 500g a pair.

Partial Synthetic Multi Grade High Performance Motor Oils

0W-30

enhance performance throughout a wide range of operating temperatures and conditions including gasoline

methanol powered vehicles.

10W-30

engines used both on the street and/or the track using gasoline or methanol.

components facilitate cold starting and quicker engine warm-up while ensuring adequate engine protection during competition.

5W-30

®

It contains strong detergent, dispersant and ZDDP anti-wear additives to help protect critical engine parts.

B109-7109 Bottle - 1

10W-40

Designed to meet the lubrication demands of traditional classic and muscle car engines as well as high-performance competition engines

component anti-wear protection.

PART NO.

PACKAGING

B109-7150 Bottle - 1 quart (0.946 litres)

B009-7150 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7150 Drum - 55 gallons (208 litres)

15W-40

PART NO.

®

provide required performance in a wide range of operating situations for gasoline and methanol fuelled engines.

PACKAGING

B109-7158 Bottle - 1 quart (0.946 litres)

B009-7158 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7158 Drum - 55 gallons (208 litres)

PART NO.

PACKAGING

B109-7144 Bottle - 1 quart (0.946 litres)

B009-7144 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7144 Drum - 55 gallons (208 litres)

20W-50

Designed to offer higher performance engines running on either gasoline or methanol the cold strength; sealing abilities; bearing, crankshaft, piston ring and valve train component anti-wear engine operating temperatures.

PART NO.

PACKAGING

B109-7119 Bottle - 1 quart (0.946 litres)

B009-7119 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7119 Drum - 55 gallons (208 litres)

High Performance Oil

Mineral Mono Grade High Performance Motor Oils

SAE 30

gasoline and methanol.

- 1 quart (0.946 litres) B009-7139 Case - 12 bottles - 12 quarts (11.35 litres)

SAE 50

to provide superior lubrication to high-performance

SAE 40

Formulated with the unique cut from our Penncompetition engines using gasoline or methanol. an optimal lubrication choice for muscle cars & hot for vintage car and air-cooled applications where a

- 1 quart (0.946 litres)

- 12 bottles - 12 quarts (11.35 litres)

SAE 60

®

grade motor oil is designed to provide superior lubrication to high-performance competition

continual lubricant protection to the engine under the harshest conditions.

B109-7115

- 1 quart (0.946 litres)

B009-7115 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7115 Drum - 55 gallons (208 litres)

Nitro 70

and nitro-methane fueled racing engines that temperature conditions.

fuel into the engine oil while maintaining critical performance racing engines.

PACKAGING

B109-7117 Bottle - 1 quart (0.946 litres)

B009-7117 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7117 Drum - 55 gallons (208 litres)

Engine Builder Products

Engine Assembly Lubricant

This engine assembly lubricant is a premium high engine assembly applications. The Pennsylvania other applications!

PART NO.

PACKAGING

B1572-7105 Bottle - (177ml - 6FL. OZ)

B0572-7105

PART NO.

PACKAGING

B109-7116 Bottle - 1 quart (0.946 litres)

B009-7116 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7116 Drum - 55 gallons (208 litres)

WHY ARE PENNGRADE OILS GOOD?

PennGrade® brand products are proudly “MADE IN THE U.S.A” in Bradford, PA. of “The Green Oil”® that racers, engine builders & enthusiasts alike have all come to know and love!

The unique green colour and outstanding performance of PENNGRADE® High Performance Oils set them apart.

Break-In Oil SAE 30

meet the critical lubrication needs of new engines during break-in while allowing proper seating of rings and component ‘run-in’.

Enhanced levels of “zinc” (zinc

offer protection for even the most demanding of

PART NO.

PACKAGING

B109-7120 Bottle - 1 quart (0.946 litres)

B009-7120 Case - 12 bottles - 12 quarts (11.35 litres)

High Performance Oil

High Performance Wet Clutch 4 Stroke Motorcycle Oils

10W-40 Motorcycle Oil

20W-50 Motorcycle

, Kawasaki® ®, Yamaha® and other 4-stroke carts, 4-wheelers and other 4-stroke engine applications.

- 1 quart (0.946 litres)

Case - 12 bottles - 12 quarts (11.35 litres)

Gear Oils

Full Synthetic SAE 75W-90

For the ultimate in protection for supercharger,

shock loading is a concern.

Bottle - 1 quart (0.946 litres) B009-7766 Case - 12 bottles - 12 quarts (11.35 litres)

Limited Slip SAE 80W-90

speed high torque operations. It is formulated

Grease

- 1 quart (0.946 litres)

- 12 bottles - 12 quarts (11.35 litres)

High Temp EP No2 Blue Grease

industrial and automotive applications.

and resistance to chemical breakdown.

and other domestic and imported

- 12 bottles - 12 quarts (11.35 litres)

Classic SAE 80W-90

additive technologies. It is designed to be used bushings, thrust washers and other components

- 1 quart (0.946 litres)

- 12 bottles - 12 quarts (11.35 litres)

Multi Purpose SAE 85W-140

against wear in gear applications. It provides the most severe operating conditions.

WHY ARE PENNGRADE OILS GOOD?

PennGrade® brand products are proudly “MADE IN THE U.S.A” in Bradford, PA. of “The Green Oil”® that racers, engine builders & enthusiasts alike have all come to know and love!

The unique green colour and outstanding performance of PENNGRADE® High Performance Oils set them apart.

Racing

Racing Oil Coolers

Setrab Coolers & Accessories

and towing vehicles. Modular construction

Racing Oil Coolers

Setrab Coolers & Accessories

Power Steering Reservoir

Filters & Breather Tanks

Wix Racing Filters & Oil Accessories

provides up to 500 psi burst pressure protection for high performance racing performance engines.

high temperatures and water levels in the oil that can plug standard

PRESSURE SWITCHES

These pressure switches are designed to activate a light when pressure drops below the closed pressure range as above. Light remains off at open pressures.

PART NO.ACTIVATED PRESSURETHREAD

AU3241 Closes 15psi Opens 18psi

AU3242 Closes 30psi Opens 32psi

AU3243 Closes 50psi Opens 52psi

Breather Tanks

PRESSURE TEES

Perfect for adapting an aftermarket gauge to a standard sender location or for running a turbo feed line. This has 3 x 1/8”NPT holes for multiple uses from the same outlet!

PART NO.ABC

810-M12-02-BLK

810-M14-02-BLK

810-M16-02-BLK

PRESSURE TEES

A great way to take off pressure lines for gauges or turbo feed lines while still retaining the original sender. Made from brass these tees are strong and suit a huge range of vehicles.

-6 BREATHER TANK

Use as a remote Air/Oil Separator.

• -6AN Drain, 1-1/2” breather tube and 6mm

• Mounting Spuds.

• Size: 80mm dia. 155mm high

• Capacity: 400ml

PART NO. INLET

CA020-06-06

-6 & -8 BREATHER TANK

Use as a remote Air/Oil Separator.

• -6AN Drain, 1-1/2” breather tube and 6mm

• Mounting Spuds.

• Size: 80mm dia. 155mm high

• Capacity: 400ml

PART NO. INLET

CA020-08-06

-8 & -6 Male

-8 BREATHER TANK

Use as a remote Air/Oil Separator.

• -6AN Drain, 1-1/2” breather tube and 6mm

• Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

PART NO. INLET

CA020-08-08

SYSTEMS

Breather Tanks & Filters

-10 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

-10 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high

• Capacity: 400ml

PART NO.INLET

CA020-10-10

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

Breather Tanks

Fabricated in Australia!

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

PART NO.INLET

CA020-12-12

BREATHER FILTERS PART NO.STYLE I.D.

KN62-1460 Clamp On

-16 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

-10 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml PART

SHIELD TYPE FILTERS

PART NO.STYLE I.D.

KN62-1514 Clamp On

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

-16 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

PART NO.INLET

CA030-16-16

-16 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

PART NO.INLET

CA030-16 -16 Male

CAMS 2L BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 260mm high.

• Capacity: 2 litres

PART NO.INLET

CA032-10-10

CA032-08-08

CA032-12-12

Fittings & Valves

Moroso Accumulators, Fittings & Valves

street performance and mild off-road applications.

wear.

REPLACEMENT GAUGE

Replacement Gauge for Moroso and other brand accumulators

Once you have installed your New Moroso Accumulator put 6psi of air pressure into the cylinder by using the air valve and reading the gauge provided on the unit. Once engine is running you will notice a pressure increase on the gauge. The system is now primed and ready to go.

ACCUMULATOR MALE FITTINGS

are the most commonly used for an accumulator set-up.

BLUEBLACKDESCRIPTION

816-08-08816-08-08-BLK

816-10816-10-BLK

816-12-08816-12-08-BLK

ACCUMULATOR MOUNTING KIT

Provides a safe, sure mount for Moroso and secured with T-Bolt type clamps.

12 VOLT SOLENOID VALVE switch. Each side of the solenoid valve contains a 1/2” NPT female port. Solenoid Valve is open when toggle switch is on, when switched off remains closed regardless of ignition switch position. Use the toggle switch and 16 gauge wire included in the kit to wire the valve. A 20-amp fuse must be used between the power source and the switch. Use a power source that is active (i.e., “hot”) only when the ignition switch is in the “on” position.

CAUTION!: Do not use with any fuels. PART NO. DESCRIPTION

Oil Accessories

¾” -16 OIL FILTER (FITS FRAM PH8A OR HP1 OIL FILTERS)

• -10 AN O-Ring ports and a 1/8” NPT port

• 1/8” NPT port

• 2 bolt mounting with 2.0” C/L to C/L

• Dual inlets/outlets for easy plumbing from either side

PART NO. DESCRIPTION

EAR2077

• Size: 3.750” Wide x 4.000” long x 1.630” tall

• Bolt spacing 2 bolt with 2.860” C/L to C/L

OIL COOLER TRANSMISSION ADAPTER

Allows easy installation of -6 AN hoses and oil cooler on late model transmissions. Replaces the factory thermostat.

• Bolts to transmission & features O-Ring seals

NO.

EAR1128

Y BLOCKS Updated CNC machined design with 1/8” NPT gauge port.

OIL FILTER ADAPTER FOR 2011 ONWARDS FORD 5.0L COYOTE ENGINE

• Includes stainless steel hardware

• -10 AN O-Ring Ports

• Must be used with Remote Filter Housing - EAR2077 is recommended

• Fits 2011 and up 5.0L Coyote Engine turbo oiling (eliminates need for T junction

• Special sculpting of the adapter allows extra clearance

PART NO.

EAR1125

DESCRIPTION

OIL FILL CAP WITH PCV VENT

ordinary cap. It is an easy way to add a catch tank to a racing engine without modifying the valve cover.

• -10 AN ORB (7/8” -14 straight thread) O-Ring Boss Port for use with AN hose to the catch tank or PCV

• Use with O-Ring Port hose end or O-Ring Adapter

• Billet aluminium, black anodized

• Fits factory GM LS, GM Gen-V LT and Ford Coyote valve covers

PART NO.

DESCRIPTION

EAR3434122 Oil Fill Cap

Tilton Continuous Oil Pump

Ideal for pumping oil through transmission and differential up to eight feet (2.5 metres) above the source. Designed for for longer than two hours at a time.

Oil Cooler Delete & “O” Rings

Inline Filters - Scavenge Filters

Mocal Oil Components

SANDWICH BLOCK

Made from Die-Cast aluminium, these sandwich oil cooler. They are not supplied with a centre extension bolt.

PART NO.SEAL I.D. SEAL O.D.OIL PORT

MO-SP1 55mm74mm

OILSTAT SANDWICH BLOCK

Made from Die-Cast aluminium, these sandwich blocks have a built-in thermostat set to divert oil to the cooler once the oil is at a temperature of 80°C.

PART NO.SEAL I.D. SEAL O.D.OIL PORT

MO-OTSP1 55mm74mm

INLINE OILSTAT

Made from Die-Cast aluminium, these are set to divert oil to the cooler once the oil is at a temperature of 80°C. This is a positive control for engine oil in conjunction with all types of coolers.

PART NO.BYPASSOIL PORT

MO-OT/2A 80°C

MO-OT/2C 80°C

BLANKING PLATE

OTSP1 sandwich blocks to convert them to a It can be turned to face any direction and tightened.

PART NO.SEAL I.D. SEAL O.D.THREAD MO-MO1 60mm72mm

MOCAL BANJO FITTINGS

The -10 banjo bolt (MO-BANJO-10) suits Mocal sandwich plates

REMOTE FILTER BRACKET

Made from Die-Cast aluminium, suits most in the front for temp or pressure senders. • Secures with 2 x 5/16” mounting holes.

PART NO. FILTEROIL PORTTEMP PORT MO-RFH1H

Prolonged use of a car engine in conditions where the oil cannot reach its correct working temperature will cause sludge formation and crankcase oil dilution, leading to excessive wear especially in the cylinder bores.

that diverts oil to the cooler at 80°C.

Adapters & Mounts

Remote Adapters & Filter Mounts

CAST FILTER BRACKET - TOP ENTRY

1/2” NPT on BOTH models

TD1029

BILLET FILTER BRACKET - TOP ENTRY

NPT

CAST DUAL FILTER BRACKET PART NO.FILTERSFLOWOIL PORT

CAST FILTER BRACKET - SIDE ENTRY PART NO.FILTERFLOWOIL PORT

CAST FILTER BRACKET - SIDE ENTRY PART NO.FILTERFLOWOIL PORT TD1701

CHEVROLET SANDWICH BLOCK - CAST Trans-Dapt Performance Products sandwich on your engine block, and allow for the installation of an engine oil cooler, with the thread & o-ring diameter.

PART NO.THREADSEAL(I.D.-O.D.) OIL PORT

TD1322 76 - 87mm

SANDWICH BLOCK - CAST PART NO.THREADSEAL(I.D.-O.D.) OIL PORT

SANDWICH BLOCK - BILLET Oil Port 3/8” NPT on ALL models PART NO.THREADSEAL(I.D.-O.D.)

*EAR510-TD1313B 63 - 70mm

* Denotes supplied as Black

* Denotes supplied as Black

Ryco Oil Filters

Aeroflex Fuel Filler Hose

Aeroflex Heavy Duty Filler Hose

Fuel Caps

Fuel Caps

• Aluminium Alloy 6082/T6 Clear Anodised • Weight: 99.5g

300 SERIES REMOTE MOUNT

• 6 Bolt Flange, Non-Locking Cap.

• Stepped Neck for 2” & 2-1/4” Filler Hose.

• Application: Fuel, Oil & Water Tanks. • Aluminium Alloy 6082/T6 Clear Anodised

232.5g

400 SERIES REMOTE MOUNT

• 8 Bolt Flange, Locking Cap.

• Neck for 2” Filler Hose.

• Application: Fuel, Oil & Water Tanks.

• Aluminium Alloy 6082/T6 Clear Anodised • Weight: 359.5g

300 SERIES REMOTE MOUNT

• 6 Bolt Flange, Locking Cap.

• Stepped Neck for 2” & 2-1/4” Filler Hose.

• Application: Fuel, Oil & Water Tanks.

• Aluminium Alloy 6082/T6 Clear Anodised

• Weight: 251.5g

Fuel Caps

Fuel Caps & Parts

REPLACEMENT CAPS

Lost or damaged your cap? At MSCN we have replacement centre caps to suit all AERO series Newton Fuel Caps.

PART NO. SUIT

AERO3LCAP

AERO3SCAP

AERO4LCAP

AERO4SCAP

FUEL CAP TETHER KIT

NO. DESCRIPTION AEROCAPRT1

300 SERIES FLUSH WELDED FLANGE

UNLEADED FUEL FLAP

If you need your AERO remote mount to suit unleaded fuel regulations, simply insert this ULP Fuel Flap into your remote mount neck and retain with the supplied wire clip.

PART NO. SUIT

AEROULF

WARNING - COPIES!

A number of people like our Newton Equipment Aero cap design so much that they have copied it. There are several copied versions on the market and they are not made from the same quality materials and are not subjected to the same level of safety and quality checks that original Newton Equipment Aero caps must comply to.

HOLLEY REMOTE VENT VALVE

Remote Mount Vent Valve for EFI Fuel Tanks. Barb size is 5/16”.

• Suits Holley Sniper EFI.

PART NO. DESCRIPTION

HO19 - 174

ROLL OVER VALVES

Designed primarily for car fuel tanks in motorsport applications, where they will be subjected to violent movement.

Access to inside of tank is not required for installation. A 9/16” UNF nut can be brazed or welded to the tank and mounting hole made in the tank from the outside. Red anodised 6082 Aluminium.

PART NO. SIZE

AEROROV

AEROROV -6

AEROROV-BARB

AEROTRV86

AEROTRV68

RETENTION RINGS

This ring is inserted into the tank to allow the cap to be secured without the risk of dropping the nuts into the tank

PART NO. SUIT

AERO200-RETRING

AERO300-RETRING

FUNNEL FOR AERO400 L & S CONVERSION TO TANK MOUNT

SUITS 57MM / 2.25” HOSE.

• pcd for 57mm / 2.25” hose.

PART NO. DESCRIPTION

AERO57FUN

WELD ON RINGS

Can be welded to an alloy tank to allow caps to be bolted directly to a tank.

PART NO. SUIT

AERO300-WELDRING

Inline Filters

These units are usable for applications over 3,000hp!

Inline Filters - 600 Micro Series

Inline Filters - 601 Short Series

Inline Filters - 601 Metric & Check Valve Series

Inline Filters

Inline Filters - 602 Long Series

Inline Filters - 602 Metric Series

Inline Filters - 603 Mega Series

Individual Filter Components

Valves

Check Valves, Blower Relief & Turbo Adapters

BLOWER RELIEF VALVES

These can be screwed into a Supercharger gear case or other applications that require pressure to be released.

RED/BLUEBLACKTHREAD

620-02620-02-BLK

620-04620-04-BLK

620-504620-504-BLK

NON-RETURN VALVE - INLINE

designed with a high performance vehicles in poppet valve that seals securely to positively

BLUEBLACK SIZE

-610-03-BLK

-610-04-BLK

610-06610-06-BLK

610-08610-08-BLK

610-10610-10-BLK

610-12610-12-BLK

ROLL OVER VALVE

We have manufactured a universal roll over valve that utilises a -12 Male thread with a -8 female thread and a stainless steel ball. This can be used with our 990-12 weld on or a 92412 bulkhead nut with a choice of outlet from our 920 series adapters.

BLUE BLACKSIZE

613-12613-12-BLK

613-12-BALL613-12-BALL-BLK

TANK VENT / ROLL OVER VALVE

3/8” In-tank vent / roll over valve has a springspring can be removed if you prefer the ball to act be replaced with a 920 Series adapter if a hose is required to be used from the valve.

BLUE BLACK SIZE

613-06613-06-BLK

Aluminium Ball Valves

FUEL PUMP NON-RETURN VALVE

thread to hold line pressure and make starting easier!

BLUE/BLACKBLACKINLET OUTLET

612-06612-06-BLK

612-08612-08-BLK

-C6000-08-BLK

612-012-BALL612-12-BALL-BLK

TURBOCHARGER ADAPTERS

Hard anodised & includes a silicone sealing O-ring.

RAWBLACKPORT HOLE CENTRES SUIT

463-01463-01-BLK

463-02463-02-BLK 50.8mm

463-03463-03-BLK 52.4mm

XS BODY BALL VALVES BLACK SIZEBALL ID

650-02-BLK

650-03-BLK

650-04-BLK

SMALL BODY BALL VALVES

BLUEBLACKSIZEBALL ID

650-06650-06-BLK

650-08650-08-BLK

LARGE BODY BALL VALVES

BLUEBLACKSIZEBALL ID

650-10650-10-BLK

650-12650-12-BLK

REPLACEMENT VALVE LEVER FOR SMALL & LARGE BODY BALL VALVES BLACK SUITS SF-LEVER

Surge Tanks

Accessories

Nuke Performance

We believe in performance and motorsport

Made in Sweden, it makes the biggest difference

Developed in close association with professional racers

The Nuke Performance Vacuum Station / Vacuum Manifold is the easiest way to get rid of too many vacuum hoses in the engine bay. Combine all your parts with need for vacuum connection into one connected to the manifold.

The body is CNC-machined from aluminium alloy 6082, anodized and laser engraved for long-lasting appearance and function. Often used when using many parts that all need to be connected to the manifold, perfect for connection of fuel pressure regulator, blow off valve, fuel pressure gauge, fuel pulse dampers etc.

• For use on turbo- super-charged engines

• Thread size for the output ports are 1/8 BSPP and are sold separately due to the wide variety of different needs.

PART NO.

NK-600

DESCRIPTION

Competition Fuel Cell Unit, with integrated fuel surge tank and fuel pump hanger. Fits the most common fuel cells for your every need.

functional fuel setup for serious builds. Be it, track days, time attack, drifting, or any other type of motorsport. • Eliminate fuel starvation.

• Lowest weight “drop-in surge tank” available

• Integrated 2 litre Fuel Surge Tank function included for both the outlet and return)

• Made in Sweden

• 100% proof for E85, methanol, and petrol tank which is often needed when running a fuel cell. It is perfect for fuelinjected systems. Combine the CFC Unit with staged pumps to prevent emerging heat. This is the best way to eliminate fuel starvation that may occur in

PART NO.

NK-CFC-01

DESCRIPTION

FUEL SURGE TANK

2nd generation Fuel Surge Tank from Nuke Performance, with everything you need to mount the popular Ti Automotive GST400 / GST460 / GST525/ GST550 high-pressure fuel pumps.

to three Ti Automotive / Walbro GST400, GST460, GST525 AND GST550 motorsport fuel pumps into one AN-10 (7/8 UNF) outlet (that outperform all current in-tank fuel pumps in its price

• Lightweight motorsport surge tank

• Combined into a single AN-10 outlet

PART NO.

NK-FST-01

• Fits a single, dual or triple high-pressure fuel pumps

• 3.0 litre surge tank capacity (empty)

DESCRIPTION

FUEL

FILLER ADAPTER 51MM

The Remote Fill Neck for the Nuke Performance

Competition Fuel Cell Unit (CFC Unit), threaded on with a hose clamp. This setup is installed by being cap has been removed and is sealed with an ethanol protection.

• For 51mm fuel hose.

• O-ring for use with alcoholic fuels included.

• No fuel hose or hose clamp is included.

• 1 pc with O-ring included

PART NO.

NK-FF51

DESCRIPTION

VACUUM STATION 5 PORT

COMPETITION FUEL CELL UNIT

Shut Off Valves, Fuel Pumps

Shut Off Valves

Electric Fuel Pumps

Pumps, Regulators & Gauges

Bosch Electric Fuel Pumps

BOSCH IN-TANK PUMP - 200 LITRES PER HOUR @ 5 BAR

• >200l/h @ 5bar

• M4 & M5 +/- screw terminals

• Includes Pressure relief valve

As used in V8 Supercars PART NO.

BOS-580 464 201

Intank Pumps

• Supercedes the BOS 580 254 979

• No non-return check valve

• 60mm diameter body

•

•

HOLLEY HYDRAMAT

acceleration, stopping, inclines, and low fuel conditions

fuel from the tank or cell even when part of the mat uncovered

HO16-102

HO16-103

HO16-108

HO16-116

HO16-124

HO16-125

Also See the Bosch Motorsports Section See page 105

WALBRO INTANK FUEL PUMPS

Note: Wiring kit not included with any pump.

PART NO.

WAGSS341

WAGSS341 FILTER

WAGSS342

WAGSS352

for all performance and high pressure applications PART NO.

WA525E85

WA460E85 WIRING

WA-RAD20-0298

WA-RAD20-0598

Regulators, Rail Extension, Gauges

Carburettor Fuel Pressure Regulators

Fuel Rail Extrusion

Popular Speedflow Adaptors

Pressure Gauges

NBM Hydraulics manufacture a large selection of brake line adapters - ideal for us to make STREET LEGAL BRAIDED BRAKE LINES which comply to Australian FVMSS106 Standards. We stock all

Hose Ends

NB6103-03-ST -3Stainless

NB6103-04 -4 Nut to -3Steel

MALE

NB6104-03-ST 3/8”-24Stainless

NB6104-31 M10 x 1.0Steel

NB6104-31-ST M10 x 1.0Stainless

NB6104-32 M10 x 1.25Steel

NB6104-32-ST M10 x 1.25Stainless

45° MALE - SWIVEL INVERTED PART NO.SIZETYPE

3/8”-24Stainless

ENDS PART NO.SIZETYPE

NB6191-03 -3Steel NB6191-03-ST -3Stainless

90° MALE - SWIVEL

NB6105-2003 M8 x 0.75Steel

NB6105-31 M10 x 1.0Steel

MALE - SOLID INVERTED PART NO.SIZETYPE

NB6123-31 M10 x 1.0Steel

NB6123-31-ST M10 x 1.0Stainless

NB6123-32 M10 x 1.25Steel

NB6123-32-ST M10 x 1.25Stainless

MALE - SOLID INVERTED PART NO.SIZETYPE

NB6132-04 7/16”-20Steel

M12 x 1.0Steel

Brake Line Hose Ends

Hose Ends

PART NO.SIZETYPE

NB6143-31 M10 x 1.0Steel

CUSTOM BUILT STREET LEGAL BRAKE LINES

FEMALE - SOLID CONCAVE PART NO.SIZETYPE

NB6101-31

- SWIVEL CONCAVE

- SWIVEL INVERTED

FEMALE - SWIVEL CONCAVE PART NO. SIZE TYPE

NB6141-03 3/8”-24Steel

NB6141-03-ST 3/8”-24Stainless

NB6141-07 7/16”-24Steel

NB6141-31 M10 x 1.0Steel

NB6141-31-ST M10 x 1.0Stainless

NB6141-31-P M10 x 1.0 PorscheSteel

NB6141-31-RH M10 x 1.0 Round HeadSteel

NB6141-31-T M10 x 1.0 Flat HeadSteel

NB6141-31-Z M10 x 1.0 Large HexSteel

NB6141-41 M12 x 1.0Steel

NB6141-31-03A M10 x 1.0 suit AudiSteel

FEMALE - SWIVEL INVERTED

NO. SIZE TYPE

3/8”-24 Steel

NB6142-03-ST 3/8”-24Stainless

NB6142-07 7/16”-24Steel

NB6142-17 7/16”-20Steel

NB6142-31 M10 x 1.0Steel

NB6142-31-ST M10 x 1.0Stainless

NB6142-31-RH M10 x 1.0 Round HeadSteel

NB6142-31-T M10 x 1.0 Flat HeadSteel

NB6142-31-Z M10 x 1.0 Large HexSteel

NB6142-32 M10 x 1.25Steel

NB6142-32-ST M10 x 1.25Stainless

NB6142-41 M12 x 1.0Steel

Our Street Legal Brake Lines are Fully Australian Standards compliant

Brake Line Hose Ends & Supports

Banjo Hose Ends & Bolts

A huge range of banjos are available to suit almost any application in any angle. The handy banjo bolt with switch is also available. BANJO

Hose Supports

We carry a range of hose supports that slide onto a -3 hose during assembly that suit a variety of standard OEM mounting options including bolt on styles and C-clip versions. These allow you to follow the original orientation of your hose or to make sure you can mount your hose away from the strut, wheels and tyres.

-3 HOSE SUPPORT

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace

PART NO.HOSE SIZE

NBBLT4 -3 200 Series

-3 HOSE SUPPORT

This hose support is made from plastic and is designed to slide over -3 hose with a cover to replace

Honda & others

PART NO.HOSE SIZE

NBBLT301NY -3 200 Series

-3 HOSE SUPPORT

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace

PART NO.HOSE SIZE

NBBLT3 -3 200 Series

-3 HOSE SUPPORT

This hose support is made from plastic and is designed to slide over -3 hose with a cover to replace

Honda & others

PART NO.HOSE SIZE

NBBLT302NY -3 200 Series

-3 HOSE SUPPORT

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace Nissan & others

PART NO.HOSE SIZE

NBBLT1 -3 200 Series

-3

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace Commodore.

PART NO.HOSE SIZE

NBBLT9 -3 200 Series

C-CLIP FOR BULKHEAD

This is a standard replacement bulkhead groove to secure the Stamped from steel and nickle plated, these are a must if installing a new set of brake lines!

utilise a C-Clip

PART NO. 230-00

Our Street Legal Brake Lines are Fully Australian Standards compliant

HOSE SUPPORT

Brake Tubing

Brake Tubing, Tube Nuts & Bleeders

Speed Bleeders

Our

• Makes bleeding brakes a one person task.

• Fit virtually any hydraulic brake or clutch system. • Dust protection caps • Permanently replace original bleeder screw

pair.

Russel Proportioning Valve

Adjustable up to a 60% pressure reduction. Valves hard line adapter and anticorrosive brass components.

Tilton Proportioning Valve

Tilton’s screw-type proportioning valve pressure reduction:

• Fine adjustment set at any point

• Metric or Standard inlet port (either 10mm

All tube nuts & adaptors must use the standard 45° flare as made by our Flaring Tool BP190 on page 193

Fluid, Ducting & Launch Control

Brake Fluid

hydraulic actuated brake and clutch systems

• Product Range: Car, Motorcycle

Launch Control

Easily installs into your existing brake system. This solenoid provides the brake holding capacity you are looking for. Ideal for racing or for street applications if you need a hill holder while stopped on an uphill grade. Can be used on either the front or rear brakes of your vehicle and can handle pressure spikes up to 1500 psi or maintain constant pressure of up to 400psi. Includes: in-dash line fuse assembly, indicator light, aluminium switch mount,and button switch. Works with 12 and 16 volt systems. Also can be used as a brake locking device for drag racing.

Ducting

•

•

•

•

These keep your manual or auto car out of the staging lights until you’re ready to launch. Controlled by a solenoid valve attached to a switch on your shifter, roll controls keep you from rolling by locking your front or rear brakes. When you hit the switch, your brakes are unlocked and you’re ready to hit the throttle. Rigorous testing has proved a 1/100,000th of a second release time, and vibration tests have surpassed 30 Gs without mechanical failure. Each roll control comes with a rebuildable stainless steel solenoid valve, indicator light, inline fuse holder, and complete instructions.

• Brake ducting

• Hi-Carbon steel wire

• Single wall

• Rated up to 550°F

• 11ft / 3.35m lengths

• Sold in Half or Full lengths. 550°F

See page 94...

Valves, Cylinders & Accessories

Brake Accessories

WILWOOD PROPORTIONING VALVE

Valves weigh only 5.2oz and have two 1/4” side mounting holes. Standard in and out ports are

PART NO. DESCRIPTION

WIL260-8419 Proportioning Valve, Knob Style.

WILWOOD RESIDUAL VALVE - 10LB

Retain a minimum brake line pressure to help systems. Made from billet aluminium and colour coded. 1/8” NPT Female threads.

PART NO. DESCRIPTION

WIL260-13707 10lb Residual - Red w/o Fittings

WILWOOD RESIDUAL VALVE - 2LB

Retain a minimum brake line pressure to help and drum brake systems. The minimal two drag. Residual Pressure Valves are made from billet aluminium and are colour coded. 1/8” NPT Female threads.

PART NO. DESCRIPTION

WIL260-13706 2lb Residual - Blue w/o Fittings

WILWOOD MASTER CYLINDERS

All three sizes have a 3/8”-24 outlet thread with a 7/16”-20 reservoir thread.

PART NO. DESCRIPTION

WIL260-6087 5/8” (0.625) Bore Master Cylinder

WIL260-6088 0.700 Bore Master Cylinder

WIL260-6089 3/4” (0.750) Bore Master Cylinder

BALANCE BAR & BIAS ADJUSTER

The Standard Model features a plastic adjustment knob and a single detent design. Fits balance bars with 3/8”-24 and 7/16”-20 threaded shafts.

REMOTE RESERVOIR

Durable, high-strength plastic with a 7/16”-20 thread to screw directly into the master cylinder or remotely mount with adapters.

Measures 80mm high, 60mm in dia.

BLEED SCREW ASSEMBLY

For use in repair and maintenance of your Wilwood callipers or as a remote bleed screw as used in clutch applications. Contact us to make a remote mount line kit.

PART NO.

DESCRIPTION

WIL220-0627 Bleed Screw Assembly - 1/8” NPT

into a master cylinder for a remote reservoir to accept a 5/16” reservoir hose.

in black or blue.

BRAKE LIGHT SWITCH

Hydraulic Brake Light Pressure Switches to hook up your brake lights without having to wire a new switch in to the brake pedal assembly. Complete w/plug-in pigtail. 1/8” pipe thread.

ALKY MAINTENANCE PLAN

Alky Race Products

Need

For many years we have all believed penetrating oil was the best lubricant to use after racing to protect and preserve alcohol fuel systems - but we now know penetrating oil of any kind is bad news in an alky motor. Firstly if penetrating oil is sprayed in the cylinders it will break down any good lubrication already there and allow fuels to attack the cylinder walls. Secondly penetrating oil does not dissolve in methanol or nitromethane. It will separate and sit in your tank, fuel system or intake. Race fuels are very corrosive when left to dry out in your fuel system and there is no lubrication in the fuel system and supercharger - this is when damage can occur.

Fuel Flush

Fuel Flush is the best after treatment for your methanol/nitro fuelled engine between races, race seasons or long term storage.

Fuel Flush absorbs residual methanol/nitro and gelling damage and corrosion. It also lubricates superchargers, valve guides, fuel pumps, barrel valves, solenoids and other fuel components to provide fuel system protection in storage and

Flush will readily dissolve in methanol/nitro fuels and burn up in combustion.

Fuel Lube

Fuel Lube has been specially formulated for use in methanol/nitro fuels without affecting to fuel while helping to reduce wear on engine components.

Fuel Lube will not settle at the bottom of fuel tanks.

• Mix Ratio is 50ml to 20 litres

• 150ml to an average 60 litre tank

• 500ml bottle will treat up to 200 litres

Looking for TOOLS?

See page 191

Blower Lube

Suitable for all Superchargers to help prevent dry start by lubricating rotors. New blended viscosity designed to be used before, during and after racing.

Pump Lube has been specially formulated as an after treatment for use in methanol/ that adheres to fuel pump gears, absorbing residual methanol/nitro to leave a lubricating

Lube will readily dissolve in methanol/nitro fuels and burn up in combustion.

Pump Lube can be used as an assembly lube for all fuel system related components.

E85 Fuel Lube

E85 Fuel Lube has been specially formulated for use in E85 fuels without affecting fuel quality. It adds lubrication to fuel while helping to reduce wear on engine components. Adding lubrication and protection to electric fuel pumps and injectors, E85 Fuel lube will leave fuel has evaporated and then dissolve in the presence of new fuel. E85 Fuel Lube will not settle at the bottom of fuel tanks.

• Mix Ratio is 50ml to 20 litres

• 150ml to an average 60 litre tank

• 500ml bottle will treat up to 200 litres

Pump Lube

Radiator Relief & Hose Kits

Radiator Relief Products

Radiator Relief

• Includes anti-foaming agent

• Formulated with a corrosion inhibitor

• Reduces pre-existing scale build-up

• Safe with all alloys

• 100% Biodegradable and Non-Corrosive

• For use in all water cooled engines

• Contains No Glycol

Radiator Relief Flush

Effectively removes rust and mineral deposits left behind in the radiator core and hose lines. Also dissolves oily residue build-up left behind in old anti-freeze and coolant mixtures.

• Removes rust deposits & dissolves oily residue

• 100% biodegradable

• Contains No Glycol

Radiator Relief Diesel

Formulated with a corrosion inhibitor that reduces mineral deposits and maintains pH resulting in core damage.

• Decrease coolant temperature up to 30°F

• Concentrated for larger systems

• Helps reduce engine wear

• Contains No Glycol

Chill Charger

Protects water-to-air intercoolers while also protecting core corrosion, electrolysis & harmful mineral build up.

events core corrosion and electrolysis

• Prevents mineral build up

Maximizes thermal transfer to reduce temps

• Simply add to intercooler water

• Non-toxic and environmentally friendly

• Contains No Glycol

OEM Hose Kits by Motorsport Connections

Replace your factory turbo feed, water and drain hoses with MSCN braided hose kits. Designed to bolt straight into the application listed.

Radiator & Cooling

Radiator Accessories

Fabricated in Australia!

Radiator Cover Braid

Got a late model car and want to “HOT ROD” the engine bay? Perhaps you have a Rod and really want to show off your Hoses, Now you can with MSCN stainless cover braid.

guarantee that the braid won’t fade or become ugly like most other brands after installation. To achieve this process simply supply us your factory hoses or purchase new replacements.

return to you within the week.

MSCN only uses Clamps so you can be sure of a great looking job.

LS Steam Vent Adaptors

Bolts & Nuts

UNF Bolts & Nuts - Specialty Fasteners

save on weight. The 12 Point Bolts comes in Coarse Thread (UNC) or Fine Thread (UNF).

Burst Panels

Bolts & Nuts

UNC Bolts & Nuts

Metric Bolts

DZUS Fasteners

How to Measure your DZUS Fasteners

Button length is easily calculated by adding the total material thickness plus the spring height, as shown in the diagram to the right. Measure

DZUS-OH-6650 0.650”Steel DZUS-OH-6750 0.750”Steel

DZUS-OHA-6600 0.600”Alloy

from the bottom of the head to the bottom of spring locking area.

DZUS Fasteners

DZUS Accessories & Tools

WELD PLATE - 1” SPRING 5/16” bore to suit 1” spring lightweight PART NO.DESCRIPTION

DZUS-WP-100L

WELD PLATE - 1” SPRING 5/16” bore to suit 1” spring PART NO.DESCRIPTION

DZUS-WP-100F

PANEL DOUBLER - SQUARE

These panel doubler plates are great where a little more strength is required.

PART NO.DESCRIPTION

DZUS-8101 Panel Doubler Square S6

WELD PLATE - 1-3/8” SPRING 7/16” bore to suit 1-3/8” spring. Weighs 20 grams.

PART NO.DESCRIPTION

DZUS-WP-138F

WELD PLATE - 1-3/8” SPRING 7/16” bore to suit 1-3/8” spring lightweight. Weighs 16 grams.

PART NO.DESCRIPTION

DZUS-WP-138R

Bring it with you to the track! If a body section takes a beating and DZUS springs get bent use this tool to massage them back into shape.

CLECOS PLIERS CLECOS FASTENERS

PART NO.DESCRIPTION

DZUS-8440 Clecos Pliers

gives you plenty of torque and the blade has a radius than a standard screwdriver. Heat treated steel with zinc plating.

PART NO.DESCRIPTION

DZUS-Z-TOOL Moroso DZUS Tool

Hose & Wire Accessories

Hose & Wire Separators

Precision moulded from 6-6 Dupont Zytel nylon, with an UNCONDITIONAL guarantee (under normal operating conditions)

• Non-conductive.

Engineered to "pre-load", working as their own lock washer, our T-Clamps hold tubing, hoses, and wire away from the application, thereby eliminating

Separate, organize, and support all types of hose, tubing, and wire. Economical, lightweight alternatives to expensive aluminium and metal products. Available to secure single lines or hoses (Single Place T-Clamp) or if you have two lines or hoses running next to each other, the Double Place T-Clamp is the perfect option to separate your hoses.

Colours Available

When ordering please behind the part number. Black, Blue & Red are available.

UNIVERSAL IGNITION LEAD SEPARATOR KITS

These are made from the same 6-6 Zytel Nylon material as the T-Clamps and utilise stainless steel hardware to attach components together. Simple to install, they work with virtually any engine and are Non-conductive which

PART NO.

MY50-156 7 & 8mm Leads - can easily drill to 10mm

MY50-210 10.5mm Sport Compact Kit

MY50-710

Tow

Hooks,

Decals, Batteries

Tow Hooks & Straps

CAMS STICKER KIT

Forget the blue electrical tape to make that triangle on race day! Get this complete MS CAM’s approved sticker kit and do it properly! Contains everything you will need apart from your race numbers.

Fullriver 12V High Cranking Batteries

Our HC (High Cranking) series is especially used for engine starting, which requires superior cranking performance at lower temperatures for a high current discharge. They use Absorbent Glass Mat (AGM) technology. Suited for repeated discharges such as running your vehicle with winches or other electrical accessories

• 12V battery VRLA

• Can be mounted in any orientation except inverted.

• Operation temperature: -15° to 50°C

• PHCA: 680A at 27°C for 5 secs

• PCCA: 230A at -18°C

• CCA: 310A at -18ºC

• HCA: 300A at 27ºC

• Reserve capacity: 28 minutes

• Short circuit current: 800A

• PHCA: 975A at 27°C for 5 secs

• CA/MCA: 525A at 0ºC

• HCA: 605A at 27ºC

• Reserve capacity: 50 minutes

• Short circuit current: 2000A

Battery Accessories

• Sealed Construction (Non-spillable Battery)

• Shipped fully charged - just install and go!

• PHCA: 950A at 27°C for 5 secs

• CA/MCA: 550A at 0ºC

• HCA: 635A at 27ºC

• Reserve capacity: 60 minutes

• Short circuit current: 1550A

The 2 pin battery isolation switch is a minimum requirement for most Australian racing events. Comes with key and ability to attach a remote pull cable if required.

• PHCA: 1100A at 27°C for 5 secs

• CCA: 500A at -18ºC

• CA/MCA: 600A at 0ºC

• HCA: 700A at 27ºC

• Reserve capacity: 70 minutes

• Short circuit current: 2182A

Air Filters

K&N Filters

various applications including diff breather, have listed just a small range kept on the shelf. If you don’t see what you looking for please call us with your part number or requirements.

Spanners

Aluminium Spanners

These are made from 6061 grade aluminium giving them strength, with a shorter handle that makes the spanner more usable in tight spaces and does not allow for over tightening of the

They have radiused edges for comfort and are available in hard anodised Red, Blue, Black, Clear, Purple, Green or Gold.

ASSEMBLY FACTS.

Alloy spanners should only to use for installation of hose ends to nipples. They should never be used in the assembly process.

We recommend only using high quality polished steel spanners for

Aluminium Adjustable Spanners

Machined from billet aluminium, black anodised and laser engraved. These

Not recommended for use when torque is required to tighten or loosen as it will stretch the aluminium and may damage the spanner.

Vice Jaws & Cutters

Vice Jaws

These aluminium vice jaws are made in Australia from 6061 grade aluminium with rare earth magnets pressed in to back.

Flat

• Sold as pairs.

Hose Cutters

200 Series

The 200 Series cutter is a hand sized cutter that is designed to cut through -3 & -4 hose. Measures 8.25” (210mm) long with plastic grips.

400 Series

This cutter is a ratcheting action that slices straight through any rubber hose and leaves a square end, perfect for 400 Series Hose Ends!

Heavy Duty Cutters

hose cutters. This new design has a larger cutting area, longer aluminium handles with rubber grips. They are 32” (810mm) long and make cutting braided hose a breeze. Does not leave residue in the hose as found when cutting with a cut off blade or hacksaw.

Rivnuts, Tools & Vibration Mounts

Flaring, Benders & Lock Wire

Tube Benders & Flaring Tools

Tube Bender 1/8” & 3/16”

Designed for tight radius bends. Excellent for use on brake lines, nitrous & fuel lines with 1/8’’ or 3/16’’ tubing.

Tube Bender 1/16” to 1/4”

Designed for 1/16”, 3/16” & 1/4” Tube. Two bending dies and multiple positions to adjust the radius of the bend.

• Aluminium construction.

• 200mm OAL

37° Flaring Tool

Suits 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”

It can be hand held or secured in a vice.

Brake Line Flaring Tool Kit

Lets you create three kinds of precision

• Create 45-degree single, double and steel, steel, and soft metal tubing

• Use for brake lines, transmission cooler lines and fuel lines

Includes Pro forming tool; 3/16”, 1/4”, 5/16”, 3/8” and 4.75mm tube-retaining dies; handle; instructions and case

Lock / Tie Wire & Bar Ends

Lock / Tie Wire Pliers

These top quality twisting lock pliers with automatic return are extremely durable. Features a sharp cutting edge and will twist up to .060” diameter safety wire. Simply attach the ends of your lockwire in the jaws of the pliers, lock in the handle and pull the twisting knob to produce tightly wound wire.

• Fast, easy, professional!

• Plier length: 6 inch

Lock / Tie Wire

Stainless steel wire is used for securing bolts and other fasteners in critical situations where hardware can not come loose. Lock wire is an important safety feature made from a soft yet durable wire that easily bends.

• Available in 1lb spools.

Aluminium Bar Ends

We sell round off cuts of 6061 grade aluminium in a variety of sizes and lengths.

Sold by the kilo, these pieces are great come to think of it - almost anything! Round Only

Tapes, Adhesives & Sealants

Speed Tape

Tears straight and easy every time

• Eight colors as well as the popular checkered.

• All rolls are 2” wide x 90 feet (27.4m) long except for the Chequered which is 40 feet (12.2m) long

DEI060101 Black

DEI060102 White

DEI060103 Red

DEI060104 Blue

DEI060105 Yellow

Quick Fix Tape

DEI060106 Purple

DEI060107 Green

DEI060108 Orange

DEI060202 Chequered

High performance Quick Fix Tape bonds to itself and is self-curing, forming a waterproof permanent seal. It’s ideal for emergency hose repair, non-slip grip surface for tools, electrical splices and connections, serves as a temporary leak sealer & does not leave a sticky residue after removal. It has insulating capabilities up to 8,000 volts and stretches to three times its length for a simple stretch-and-wrap application.

thicker than the edges) provides a smooth edge when over lapping tape.

• 1 in. wide x 12 ft. rolls

• Withstands temperatures from -54°C to 260°C

• Seal ends of hoses, wrap wires, weatherproof connections etc.

• Suits wet surfaces also air / liquid tight seal

• Resists solvents, oils, fuel, acids & chemical spills

PART NO.

COLOUR Black

Threebond High Temperature Black Silicone

Liquid gasket sealants create a more additional factor of a bond in conjunction with a seal and high chemical resistance. RTV silicone liquid gasket designed to be a diverse gasketing solution for engines and gearboxes.

• High resistance to temperature, oils ,fuel and coolants.

• Oxygen Sensor Safe • Non Corrosive • 320ºC

• LLC Resistance, Oil & Fluid Resistant.

• Applications: Exhaust manifolds, Flanges on turbo & manifold, Metal clad oil seals.

PART NO.

COLOUR / SIZE

TB1207B Black Silicone Tube - 100g

Speedflow Assembly Lube

formulated oil to lubricate aluminium and steel threads during the assembly of hose ends to performance hose.

• 125ml Bottle.

PART

SF-LUBE Assembly Lubricant

High Temperature Spray Adhesive

Provides a high strength adhesion and bonds a wide variety of materials including trims, foams, fabrics and more. A specially designed three-way adjustable valve allows the user to select the spray pattern that best suits the application. Dries quickly and clear

• Forms a water-resistant bond

• High temperature resistant up to 160°F (71°C)

• High bonding strength for many materials.

• Ideal for adhering DEI Heat Screen and various Boom Mat under carpet products.

Heat Resistant Sealant

For extreme-duty applications, Heat Resistant Sealand bonds to almost all surfaces and is an ideal method of encapsulating and protecting applications where parts must perform at high temperatures. Unlike other sealants, Heat Resistant Sealant will not sag or run on overhead or on sidewall applications. For use with

• Withstands continuous temps up to 260°C / 316°C intermittent.

• Peel strength of 20lbs.

• Comes in a 3oz tube with applicator nozzle.

Molytec Thread Sealant

Molytec 1110B is an anaerobic liquid gasket that is developed for use with metal surfaces. Penetrates into narrow gaps of metal structures and cures in the absence of air. Suitable for sealing screws and threads because it has moderate thixotropy and lubrication.

With our very own SPRINT CAR TEAM on the premises - we know what’s needed to keep you and your team up and running. We deal with the safety and maintenance issues on a day to day, week to week basis - just like you do!

So it’s safe to trust us with our experience and knowledge...

Seat Crash Pad 195 Wing Ram Kit 196 Brakes Lines 196 Firewall Quick Disconnect Kit 196 Power Steering Hose Kit 196 Safety Harnesses 137, 147. 195 INDEX

Sprint Car Safety Gear

Sprint Car Team. Our Ratchet Harnesses are USA made and come

Belts are available with either steel adjusters or black and come standard with Black webbing.

Not supplied with Ratchet handle.

OPTIONS:

• 2” shoulder

• 3” shoulder straps

• Non-ratchet side

• Ratchet

HARNESSES

Make sure you also check out our SAFETY SECTION on pages 138. We have all the parts needed to sort out your Sprint Car Harnessing system.

FIRE SUPPRESSION

And while your there dont forget to have Fire Systems on page 143. They are a must have for your Sprint car.

SCCA APPROVED...

support and rollcage interior protection. This padding can be cut to shape and layered to give the desired thickness simply by using attached to your seat base. your vehicle.

Colour:

curves

Brake Line & Hose Kits

Specialist Sprint Car Hose Kits

BMRS Soft Brake Lines

crimped on both ends ready to be installed in your sprint car. NOTE:

Sprint Car Brake Line Kit

Wing Ram Kit

Ram and Valve. The hose length has been set with the Valve positioned just above the steering bar mount.

you to suit.

to your chassis and bolt to your master cylinder.

Power Steering Hose Kit

BMRS Hose Kit to connect your SWEET

MSCN can custom make to your

Kit does not include Valve or Ram

Firewall Quick Disconnect Kit

Plate

Note: not supplied with hose or hose ends onto bulkhead.

hoses so we can splice in the hardware. We can also build

BMRS crimper please just “Pimped Sprint Car Fire Wall Kit” and we will send it to you.

Part Number Index

EveryEasyto find... part number we sell...

600-04-BLK 43, 166 600-06-BLK 43, 166

43, 166

43, 166

43, 166

601-***-61006-BLK 43, 166

601-***-61008-BLK 43, 166

601-***-61206-BLK 43, 166

601-***-61208-BLK 43, 166

601-***-M1206-BLK 43, 166

601-***-M1208-BLK 43, 166

601-***-M1210-BLK 43, 166

601-***-M1212-BLK 43, 166

601-***-M1806-BLK 43, 166

601-***-M1808-BLK 43, 166

601-***-M1810-BLK 43, 166

601-***-M1812-BLK 43, 166

601-010 45, 168

601-010-06-BLK 43, 166

601-010-08-BLK 43, 166

601-010-10-BLK 43, 166

601-010-12-BLK 43, 166

601-040 45, 168

601-040-06-BLK 43, 166

601-040-08-BLK 43, 166

601-040-10-BLK 43, 166

601-040-12-BLK 43, 166

601-065 45, 168

601-065-06-BLK 43, 166

601-065-08-BLK 43, 166

601-065-10-BLK 43, 166

601-065-12-BLK 43, 166

Part Number Index

53

BM-AC-06-R7-3-DS 55

BM-AC-06-S3-DS 55

BM-AC-06-ST-M14-3 62

BM-AC-06-ST-M16-3 62

BM-AC-08-0012-3 64

BM-AC-08-0015 64

BM-AC-08-0017-3 64

BM-AC-08-0027-3 64

BM-AC-08-0028 64

BM-AC-08-0030-00-V 63

BM-AC-08-0034-00 63, 65

BM-AC-08-0039 64

BM-AC-08-06-F3 52

BM-AC-08-06-G3-DS 54

BM-AC-08-06-H3-DS 54

BM-AC-08-06-M3-00 59

BM-AC-08-06-M3-90 60

BM-AC-08-10-M3-00 59

BM-AC-08-10-M3-45 59

BM-AC-08-10-M3-90 60

BM-AC-08-10-ST-WF 56

BM-AC-08-12-90-WF 57

BM-AC-08-120-WF 57

BM-AC-08-120-WFFD 57

BM-AC-08-30JIC-3 52

BM-AC-08-30JICDS-3 54

BM-AC-08-45-M18-3 62

BM-AC-08-45-WF 56

BM-AC-08-45-WF-DS 58

BM-AC-08-45-WFFD 56

BM-AC-08-60JIC-3 52

BM-AC-08-60JICDS-3

BM-AC-08-G3-DS 54

BM-AC-08-G7 52

BM-AC-08-G7-3 52

BM-AC-08-G7-3-DS 54

BM-AC-08-H3 52

BM-AC-08-H3-DS 54

BM-AC-08-H7 52

BM-AC-08-H7-3 52

BM-AC-08-H7-3-DS 54

BM-AC-08-J3 53

BM-AC-08-M3-00 59

BM-AC-08-M3-120

Part Number Index

BM-AC-12-10-M3-45 59

BM-AC-12-10-M3-60 59

BM-AC-12-10-M3-90 60

BM-AC-12-10-P3-DS 54

BM-AC-12-10-R3-DS 55

BM-AC-12-120-WF 57

BM-AC-12-120-WFFD 57

BM-AC-12-16-30-WF-DS 58

BM-AC-12-16-45-WFDS 58

BM-AC-12-16-90WFDS 58

BM-AC-12-16-M3-90 60

BM-AC-12-16-ST-WF 56

BM-AC-12-180-WF-DS 58

BM-AC-12-28-90-WF 57

BM-AC-12-30-WF 56

BM-AC-12-30-WFFD 56

BM-AC-12-30JIC-3 52

BM-AC-12-30JICDS-3 54

BM-AC-12-45-WF 56

BM-AC-12-45-WF-DS 58

BM-AC-12-45-WFFD 56

BM-AC-12-45-WFFDDS 58

BM-AC-12-60-WF 57

BM-AC-12-60-WFFD 57

BM-AC-12-60JIC-3 52

BM-AC-12-60JICDS-3 54

BM-AC-12-90-M30-3 62

BM-AC-12-90-WF 57

BM-AC-12-90-WF-DS 58

BM-AC-12-90-WFFD 57

BM-AC-12-90-WFFDDS 58

BM-AC-12-F3

BM-AC-16-30JICDS-3

BM-AC-16-45-WF

BM-AC-16-45-WF-DS

BM-AC-16-45-WFFD

BM-AC-16-45-WFFDDS

BM-AC-16-60-WF

BM-AC-16-60-WFFD

BM-AC-16-60JIC-3

BM-AC-16-60JICDS-3

BM-AC-16-90-WF

BM-AC-16-90-WF-DS

BM-AC-16-90-WFFD

BM-AC-16-90-WFFDDS

BM-AC-16-F3

BM-AC-16-G3

BM-AC-16-120-WFFD 57

BM-AC-16-20-45-WFDS 58

BM-AC-16-30-WF

BM-AC-16-30-WF-DS

BM-AC-16-30-WFFD

BM-AC-16-30-WFFDDS

BM-AC-16-30JIC-3 52

60

BMB-AC-10-08-M4-45 59

BMB-AC-10-08-M4-60 59

BMB-AC-10-08-M4-90 60

BMB-AC-10-12-F4 52

BMB-AC-10-12-M4-00 59

BMB-AC-10-12-M4-45 59

BMB-AC-10-12-M4-60 59

BMB-AC-10-12-M4-90 60

BMB-AC-10-120-WFFD-4

60

59

59

59

60

53

54

53 BMB-AC-10-R4-DS 55 BMB-AC-10-S4-DS 55

BMB-AC-10-ST-M22-4 62

BMB-AC-10-ST-WF-4 56

BMB-AC-10-ST-WFFD-4 56

BMB-AC-10-ST-WM-4 55

BMB-AC-12-0002-45-4 65

BMB-AC-12-0002-90-4 65

BMB-AC-12-0003-00-4 61

BMB-AC-12-0003-30-4 61

BMB-AC-12-0003-45-4 61

BMB-AC-12-0003-60-4

Part Number Index

186

DZUS-OH-6600 186

DZUS-OH-6650 186

DZUS-OH-6750 186

DZUS-OHA-5500 186, 187

DZUS-OHA-6500 186, 187

DZUS-OHA-6550 186

DZUS-OHA-6600 186, 187

DZUS-S-5325 186

DZUS-S-6425 186

DZUS-SE-5500 186, 187

DZUS-SE-5550 186

DZUS-SE-5600 186

DZUS-SE-5650 186

DZUS-SE-6550 186, 187

DZUS-SE-6650 186

Part Number Index

EP15-2160-4 86

EP15-2170-1 86

EP15-2170-2 86

EP15-2170-3 86

EP15-2170-4 86

EP15-2180-1 86

EP15-2180-2 86

EP15-2180-3 86

EP15-2180-4 86

EP15-2355-1 86

EP15-2355-2 86

EP15-2355-3 86

EP15-2355-4 86

EP15-2375-1 86

EP15-2375-2 86

EP15-2375-3 86

EP15-2375-4 86

EP15-2385-1 86

EP15-2385-2 86

EP15-2385-3 86

EP15-2385-4 86

EP15-9006-2 87

EP15-9008-2 87

EP15-9010-2 87

EP15-9012-2 87

EP20-1000-1 85

EP20-1000-2 85

EP20-1000-3 85

EP20-1000-4 85

EP20-1010-1 85

EP20-1010-2 85

EP20-1010-3 85

EP20-1010-4 85

EP20-1015-1 85

EP20-1015-2 85

EP20-1015-3 85

EP20-1015-4 85

EP20-1016-1 85

EP20-1016-2 85

EP20-1016-3 85

EP20-1016-4 85

EP20-1020-1 85

EP20-1020-2 85

EP20-1020-3 85

EP20-1020-4 85

EP20-1022-1 85

EP20-1022-2 85

EP20-1022-3 85

EP20-1022-4 85

EP20-1030-1 85

EP20-1030-2 85

EP20-1030-3 85

EP20-1030-4 85

EP20-1031-1 85

EP20-1031-2 85

EP20-1031-3 85

EP20-1031-4 85

Part Number Index

Part Number Index

Speedflow AN/JIC Fitting Identification Chart

Speedflow NPT & BSP Fitting Identification Chart

Return Style Carb Schematic

Coldfire - Fire Suppression Systems

ANDRA will allow manufacturers to appoint Australian agents vehicle faster than 8.00 seconds (1/4 mile), from 01 JAN

A,B & D Class Fires

divided as per manufacturer’s recommendation.
