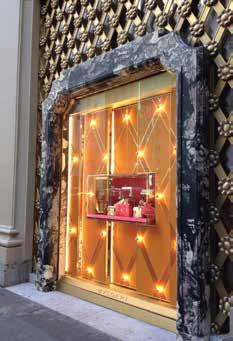

Figure 4 - Space behind florettes where custom LED fixtures are located (EOC, 2018) Figure 5 - Display window at marble portal (EOC, 2018)

programmed to create animated patterns of various colours on the store façade during special events.

In order to address the issues of glass replacement and differential thermal expansion between the bronze lattice and the façade behind, the lattice was subdivided into smaller diamonds of the same size as the glass panels behind. This allowed smaller thermal movements to be accommodated within each diamond which can be individually removed in the event that a glass panel needs to be replaced. It also offers the advantage of being able to preassemble and pre-wire each diamond segment in the shop, reducing the installation time on site.

At the base of each window opening, a large marble-clad steel portal cantilevered from the existing ground level slab accommodates either a display window or an entrance. The framing of the main entrance was kept as delicate as possible by creating a welded steel frame which was then clad with extruded bronze profiles which secure beveled glass panels into position.

NEW PUMA FLAGSHIP STORE, 5TH AVENUE, NEW YORK

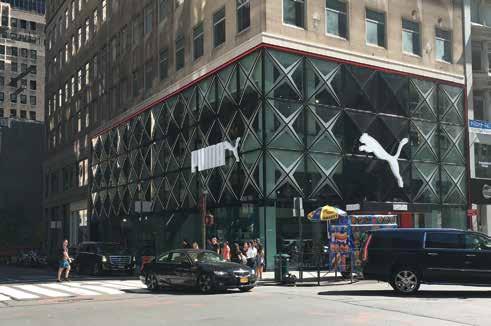

Contrasting to Bulgari, opening a flagship store on 5th Ave was for the German sportswear fashion brand Puma a first. Undoubtedly smaller than some of its competitors, it is growing at a steady pace and the new Manhattan store was therefore used as a means of increasing its visibility, status and market share (Figure 6).

The 1700 square-meter store span two floors. At the ground level, a 3.7 meter-tall frameless fully glazed façade with only structural silicone at the vertical joints between panels provides unobstructed views of the products on display.

However, Puma used the upper portion of the façade to express its brand identity where it is divided into approx. 2.6 meter x 2.6 meter squares further subdivided into four insulated glazing units replicating the star pattern printed on the soles of

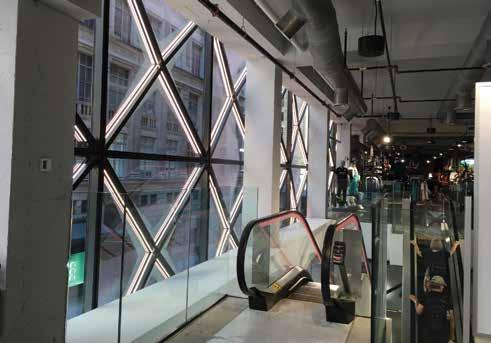

Figure 7 - Interior view of Puma façade (EOC, 2019)

Figure 8 – Painted steel façade frame with integrated LED strips (EOC, 2019)

its classic Puma Suede sneakers. The tri-dimensionality of the motif is achieved by pushing the central point of each star outward. Ceramic frit is silkscreened onto the edges of the triangular glass panels and backlit with LED light strips integrated into the support frames to accentuate the illusion of faceted stars.

Since there was a desire to have no framing in the façade at the ground level, the upper façade had to be hung from the 3rd-floor slab edge and the vertical building movements be accommodated in the horizontal joint between the two façade systems. The framing consists of one baywide x 3 bays-tall welded steel “ladders” hung side by side and restrained against wind loads at the 2nd floor level. For maximum installation efficiency, the glazing and light fixtures were inserted in each “ladder” in the factory and the assembly was lifted into place. Once this was completed, only the vertical joints between adjacent “ladders” needed to be sealed and the light fixtures are connected to the power supply. This approach saved time on site and allowed to take advantage of the better quality obtained with assembly under factory conditions. Here, contrarily to Bulgari, the owner wanted to have a clean, but slightly rugged appearance. The interior steel frame is therefore left exposed and simply painted.

Despite being very different from one another, the system and material selection as well as the detailing of the façades of the Bulgari and Puma stores contributed to the embodiment of their respective brand identities. Flagship retail store façade design presents an interesting challenge of integrating branding into technical solutions that commonly require long spans, high transparency and integrated lighting schemes. The Bulgari and Puma Stores presented to demonstrate successful implementation of these principles and are well placed in the historical legacy and evolution of this typology of façades in this niche sector of the industry.

KARINE CHARLEBOIS

PE, AIA, LEED AP BD+C Associate Eckersley O’Callaghan

ABOUT THE AUTHOR:

Karine Charlebois is an Associate at Eckersley O’Callaghan in New York where she leads commercial, retail, educational, cultural, hospitality and highend residential façade projects. She has designed custom curtain walls, structural glass façades, window walls, skylights, cable walls and rainscreen systems. Her experience combined with her educational background in mechanical and structural engineering as well as architecture allow her to find novel façade solutions which combine innovative use of materials, constructability, structural and thermal performance while taking into account the project sensitivities with regards to the architectural intent. Charlebois is a Registered Architect and Professional Engineer in the United States. She has also been a guest tutor at the Parsons School of Design and the University of Maryland.

“Architecture Should be in

AR. KARAN GROVER

Principal Architect & Founding Director, Karan Grover & Associates

Ar. Karan Grover, Founding Director of Karan Grover & Associates needs no introduction. He is the first architect in the world to receive a USGBC 2.0 LEED Platinum award. He has been passionately advocating the need to look at one's culture and heritage for clues as to the direction for contemporary architecture and sustainable development relevant to the Indian context today. Ar. Karan Grover almost single-handedly won India’s nominations for UNESCO’s World Heritage Site status for Champaner after a 22-year old campaign. The charismatic architect has been selected as the winner of the Green Globe Award for Architect, Infrastructure Category from Green Globe Foundation.

His son, Ar. Ishan Grover, Design Director and Senior Associate at Karan Grover & Associates (KGA), joined his fathers well-known firm after completing Bachelors in Arts (Concentration in Art & Architecture History along with Architectural Studio) from Franklin & Marshall College and Masters of Architecture from the University of Illinois Urbana Champaign. Over the past 5 years at KGA, as the Design Director, Ar. Ishan Grover has led numerous

Sync with Climate & Culture”

reputed projects. One of his first projects after returning from America was to restore and upgrade a 110 - year old factory shed into the ‘Alembic Museum at Alembic City Art District’. He is part of a team that is responsible for the design of a 200bed in Pune which is set to start construction. Today, he is leading a team of 20 members to design a 150 acre Police Training Campus in Gujarat which was awarded to KGA during a nation-wide competition held in 2020. Ar. Karan Grover, inarguably

AR. ISHAN GROVER

Design Director and Senior Associate, Karan Grover & Associates (KGA)

the most influential green architect, is an influencer among students and fellow architects in practising people-centric and ecofriendly designs, imparting knowledge on ecological and environmental concerns. The senior architect has won numerous awards and accolades in India and internationally. He is one of the most prominent voices spreading India's rich culture and heritage and is considered as the messiah of Green architecture.

Here is the excerpt from the interview with Ar. Ishan Grover and Ar. Karan Grover on their firm, accomplishments, and their mission and vision.

Monet Business Park, Baroda

Please tell us about your practice and its growth

in India over the years? Ar. Karan Grover (KG): Karan Grover and

Associates (KGA) was established in 1985 after dissolving a partnership with Ar. Manoj Patel, which started 10 years ago. KGA emerged into a multi-disciplinary organisation with the best associate consulting teams for all the services, which is seen as an integral part of architectural design activity.

In 2004, KGA was the first architectural firm in the world to win the USGBC “Platinum” award for the greenest building in the world - The “CII–Sohrabji Godrej

Green Business Centre”. Later, we also went on to win the second

Platinum Award for the interior of ABN AMRO Bank in Ahmedabad. Some more “Platinum” buildings are in the pipeline. KGA won the US GBC Gold Award for the Keendiam diamond factory at Navsari as the greenest factory in the world in 2008. Synthesis Business Park project at Kolkata has been awarded LEED CS Gold Certification by IGBC in October 2012. West Block 3 at L & T Knowledge City, Vadodara was awarded ‘LEED INDIA GOLD’ Rating by Indian Green Building Council in July 2013.

I consider myself so privileged to have been made the Permanent Honorary Fellow of the National Academy of Environment at the hands of former President Dr Abdul Kalam in Delhi. In my effort to bring the attention of youngsters in conservation, I had been nominated as a “social entrepreneur” Fellow of the Ashoka Foundation, Washington in 2004.

KGA got selected as the winner of the Green Globe Award for Architect, Infrastructure Category from the Green Globe Foundation. The “CII–Sohrabji Godrej Green Business Centre” the first LEED US Platinum Building in India has been selected as the 2009 winner of the “Aspen Institute Energy and Environment Awards”, under the NGO Category in 2011.

In August 2009, I was given the Keys of the City of Birmingham by the Mayor of Birmingham at the Inaugural Address of the International Green Congress of the Green Building Focus. The World Economic Forum at Davos

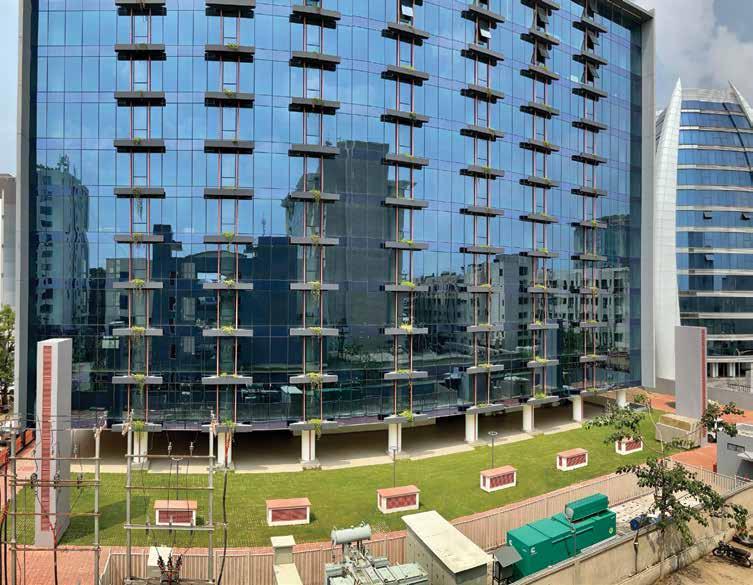

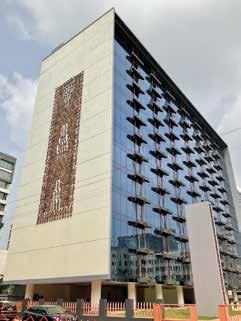

Monet Business Park is an office building in Baroda, spread across 12 storeys and 6,000 Sq ft per floor

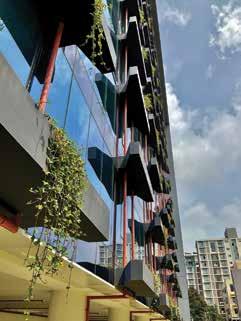

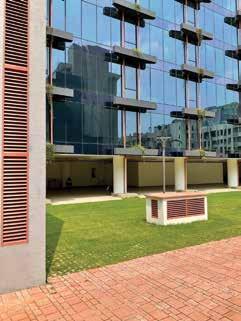

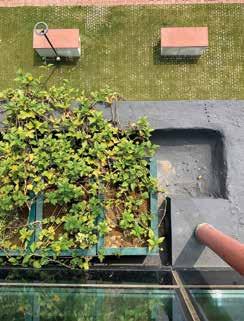

The scale of the south elevation has been divided by using 84 planter beds. Particular attention was given to the drainage (exposed terracotta pipes) of these beds
