SETTING THE TONE

WORDS: SAM DAVIES

The turn of the millennium brought about many changes. While our airplanes remained in the sky despite fears of the Y2K bug, advancements in technology would see the rise of the internet, and with it things like social media and mobile apps. Buying music would become a thing of the past, as would our tendency to read words like these in print publications. It also coincided with the launch of color 3D printing, meaning rapid prototypers would soon have an alternative to building parts layer-by-layer in monochrome.

Pioneering that particular movement was Z Corp. By the time the company had been acquired by 3D Systems 12 years later, its color 3D printing technology was enabling the likes of LAIKA to apply color during the build rather than painting parts postprint. But LAIKA’s Director of Rapid Prototyping Brian McLean would tell TCT in 2018 that, even by the time it was working on Paranorman (2012), they found color 3D printing to be inconsistent ‘from print to print.’ It wasn’t just the users who had reservations. RIZE CTO Eugene Giller worked as a Senior R&D Chemist at Z Corp between 2005-2010, and he too had been unsatisfied with the quality of the parts Z Corp’s color technology would output.

“I always thought it should be a technology that could provide a fully functional color part, not just form,” the RIZE founder told TCT. “For me, it was all about strength.”

Today, there are several suppliers of color 3D printers, including RIZE, Stratasys, HP and Mimaki. The latter launched the 3DUJ-553 platform with its capacity to print ‘more than 10 million colors’ in 2018. It boasts a build volume of 500 x 500 x 300 mm and uses a UV-curable inkjet process to print parts in full color. White and clear inks can also be mixed with colors to add transparency, while water-soluble materials enable post-processing in minutes.

Service provider Marketiger was among the first users of Mimaki’s color 3D printing technology. As of late 2019, the company was producing up to 20,000 custom figurines every year, though a second 3DUJ-553 was installed in early 2020. With the machine’s automatic cleaning sequence and queuing capabilities, Marketiger is able to print at up to 72 hours in a row without touching the printer, but generally sticks to overnight print jobs.

Because of the nature of its core business – custom figurines based on 3D scans of people – the company targets 100% yield. To ensure everyone who scans themselves gets a 3D printed full-color model, Marketiger only starts manufacturing models once it has confirmed the quality of the scans and models. But once the print button is hit, it barely stops.

“My company is built on this machine running 24/7,” Marketiger Director Maikel de Wit said at Formnext 2019. “It causes some issues because it’s a new technology, but we’re able to get above 80% utilization on a 24/7 basis.”

Evidently, much progress has been made in color 3D printing over the years. With the brittleness of early color 3D printed parts, building a business around the technology as Marketiger has with Mimaki’s tech was hardly possible. Yet, those bringing the tech to market know there is still more to be done.

Giller has always been of that mindset. He founded RIZE because, although he wasn’t happy with the quality of components coming off Z Corp machines, he has always had faith in color 3D printing's potential. With RIZE, Giller has aimed to deliver a printer that can operate in any environment to make functional parts in full color that require minimal post-processing. His answer is XRIZE, which uses the patented Augmented Material Deposition technology to build parts by jetting a formulated release agent between layers of extruded materials. While the extrusion process allows carbon composites to be printed, the jetting enables the voxel-level application of full-color graphics.

PACKAGING APPLICATION ENABLED BY STRATASYS COLOUR 3D PRINTING. CREDIT: KINETIC VISION

CNPC POWDER’s AMP Aluminium powder for Powder Bed Fusion (PBF) metal Additive Manufacturing signals an evolution in powder production. AMP Powder evolves the morphology and flowability of Aluminum providing you with critical advantages. AMP’s evolution in powder production is the result of our bottom-up redesign focusing on making the fittest powder. We have boosted efficiency, lowered production costs and increased output.

CNPC POWDER’s suite of Aluminium alloy powders provides its end users with a value proposition that is hard to refute. It has been designed to meet the stringent needs of large-volume additive manufacturing applications in industries like automotive and aerospace.

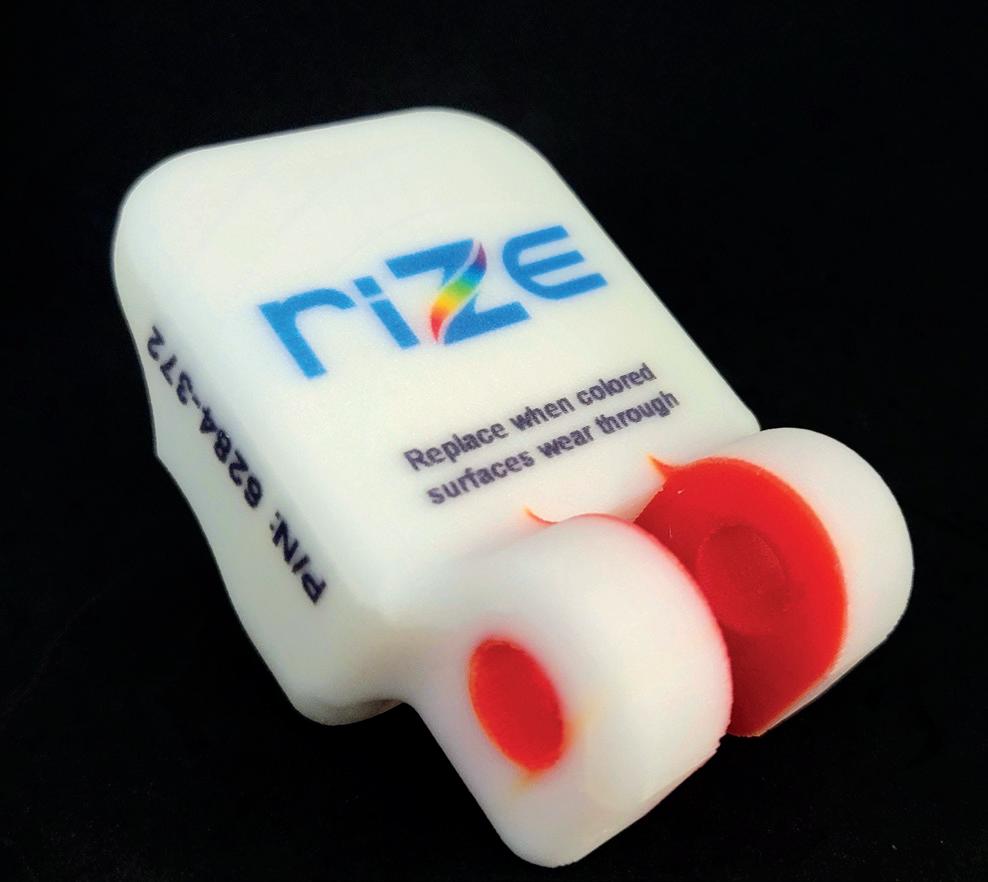

MANUFACTURING FIXTURE PRINTED WITH XRIZE

For RIZE, the potential applications go beyond prototyping and figurines. Multi-colored medical models is a key play for this technology, as are jigs and fixtures. With the latter, the use of high-performance polymers and composites ensure parts can withstand the factory floor, while color can be used to indicate when a part needs replacing, as with the part pictured above. These are just some of the ways RIZE’s customers are using its full-color technology, and they’re not shy of telling the Boston-based firm how they can still improve.

“They want new materials,” Giller says. “That’s why we are working hard to introduce a new set of materials. They’re really happy with [the current materials], but there are a subset of customers that want parts to go inside of vehicles where they are exposed to oil. They also ask for elastomeric materials.”

As a result, RIZE is working to add such products to the Rizium One, Rizium GF (Glass Filled), and Rizium Carbon materials it already offers. Unsurprisingly, the company is not alone in building out its color 3D printing portfolio to meet rising customer demand.

Stratasys now offers more than half a dozen full-color 3D printing systems in its J Series portfolio, with some designed specifically for the healthcare markets. In June, it introduced the J55 Prime, an office-friendly fullcolor system that operates as quietly as a refrigerator, alongside a range of new functional materials. The expansion of material products is seen as the primary way to nurture the company’s color printing offering.

In line with the J55 Prime, Stratasys rolled out the Elastico Clear and Black rubber-like materials, the Vero ContactClear translucent Biocompatible material for prolonged skin or bodily contact, Digital ABS Ivory for high-impact designs, and ultra-opaque colors enabled by the VeroUltra family. Other colour material options include the flexible VeroFlex and the versatile VeroVivid.

With advancements being made with the 3MF file format, the company is confident in its capacity to deliver the details and aesthetics that any designer could want, but like RIZE is continuing to push on the performance side through ongoing materials development.

“When it comes to mechanical properties, this is still in the works,” says Zehavit Reisin, Stratasys Vice President, Head of Materials Business and Design Segment, ROW. “When we discuss PolyJet materials, it’s about acrylicbased photopolymers and they behave differently versus, let’s say, thermoplastics. Their heat conditions or their dimensional stability is subject to change if you put the part under stress, under heat, under aggressive environmental conditions and that’s where durability is questionable. That’s where [there is a question mark around] manufacturing end use parts with PolyJet. But we are continuing to work very hard on improving the material properties of what you see today on the J Series, meaning the colors, the transparency, the mechanical and thermal properties are better to withstand the required environmental conditions.”

As color 3D printing establishes itself in the medical and prototyping sectors, there is now a glance towards other opportunities. For a surgeon or a designer, the benefits of color 3D printing are obvious, but in other markets the uptake is slower. That may not be a problem since there will always be medical procedures to carry out and parts to design and redesign, but in this industry, there is always an appetite to push the boundaries. And Giller remains optimistic about the impact full-color 3D printing can have.

“The way I think about it, we all have color TVs, and nobody wants to go back to black and white,” says Giller. “But I’m old enough, I did have a black and white TV and I remember some people saying, ‘I don’t need color, TV is an art’, and now, no one thinks this way. If we can get it to a [lower] price point, I think people would get used to printing in color. Right now, color is nice to have, but we want to make it must-have.”

PEEK | CARBON PEEK | CARBON PA | ULTEM™ AM9085F

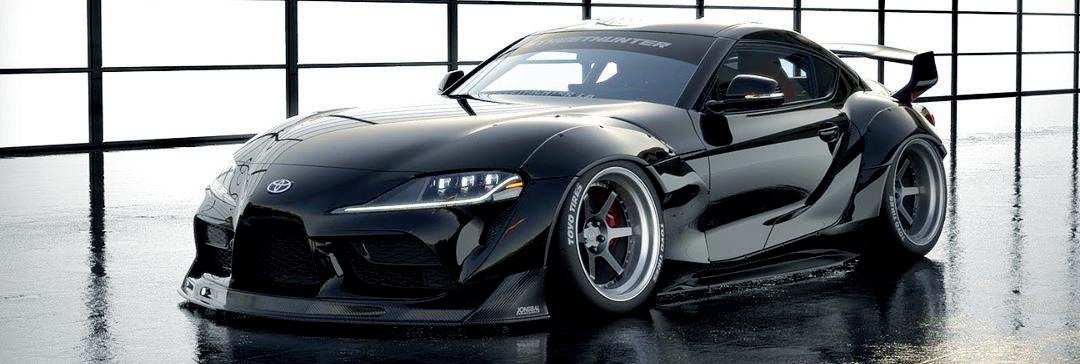

3D Printed Wide Body Kit by STREETHUNTER DESIGNS & BCT Entertainment
