IP44 COLLECTION
Élégance des formes, aux accents minimalistes et aux finitions soignées. Retrouvez l’esprit CVL dans une collection d’appliques esthétiques et fonctionnelles, spécifiquement conçues pour la salle de bain.
Elegant shapes, minimalist accents and immaculate finishes. Find the CVL spirit in a collection of aesthetic and functional wall lights, specifically designed for bathrooms.
2 IP44 COLLECTION Applique – Wall mounted lamp Émilie
2021
Cathelineau, POOL, Sylvain Willenz
Finitions Finishes
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Laiton poli Polished brass PB Graphite poli Polished graphite PG Nickel poli Polished nickel Cuivre poli Polished copper PC PN
Matériaux
Source Lamping
IP Backstage 4
Verre triplex opale soufflé bouche Opal triplex mouth-blown glass
LED intégrée 480 lm 3 000° K Integrated LED 480 lm 3 000° K
IP Backstage 6 LED intégrée 720 lm 3 000° K Integrated LED 720 lm 3 000° K
IP Backstage 8
LED intégrée 960 lm 3 000° K Integrated LED 960 lm 3 000° K
IP Backstage Corner 4 LED intégrée 480 lm 3 000° K Integrated LED 480 lm 3 000° K
IP Backstage Corner 6 LED intégrée 720 lm 3 000° K Integrated LED 720 lm 3 000° K
IP Backstage Corner 8 LED intégrée 960 lm 3 000° K Integrated LED 960 lm 3 000° K
IP44 IP44 Classe II Class II
Laiton massif Solid Brass Émilie Cathelineau
Alimentation 24 V intégrée Remote power supply 24 V incl.
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.

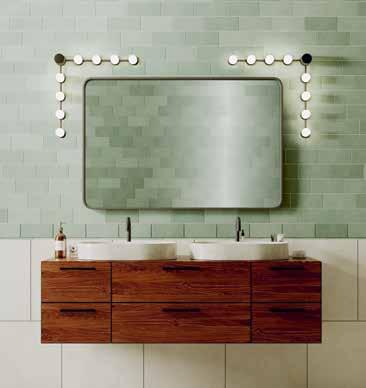

IP BACKSTAGE
Material Designer Norme Standard
IP44 4 IP BACKSTAGE Applique – Wall mounted lamp Émilie Cathelineau 2021
IP Backstage Linear L8
IP Backstage Corner C8
503 mm 19.8 ” 92 mm 3.6 ”
Ø 63 mm Ø 2.5”
IP Backstage Linear L6 IP Backstage Corner C6
92 mm 3.6 ”
Ø 943 mm – Ø 37.1 ” 92 mm 3.6 ”
Ø 50 mm Ø 1.97
Ø 50 mm Ø 1.97 Ø 50 mm Ø 1.97 Ø 63 mm Ø 2.5” Ø 50 mm Ø 1.97 ”
Ø 723 mm – Ø 28.5 ”
Ø 63 mm Ø 2.5”
IP Backstage Linear L4 IP Backstage Corner C4
Ø 503 mm – Ø 19.8 ”
Ø 63 mm Ø 2.5” Ø 50 mm Ø 1.97 ”
283 mm 11.5 ”
393 mm 15.5 ” 92 mm 3.6 ”
92 mm 3.6 ” 92 mm 3.6 ”
US Version fitted plate to cover outlet power box
Ø 63 mm Ø 2.5”
Ø 50 mm Ø 1.97 ”
Ø 50 mm Ø 1.97
5 IP BACKSTAGE
Applique – Wall mounted lamp Émilie Cathelineau 2021
7 IP BACKSTAGE Applique – Wall mounted lamp Émilie Cathelineau 2021
Linear
SB
Backstage Linear L6 PN
Backstage Linear L6 SG
SG
IP Backstage
L4
IP
IP
IP Backstage Corner C8
8
IP BACKSTAGE Applique – Wall mounted lamp Émilie Cathelineau 2021
IP Backstage Corner C8 PB
Finitions Finishes
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Laiton poli Polished brass PB Graphite poli Polished graphite PG Nickel poli Polished nickel Cuivre poli Polished copper PC PN
Laiton massif Solid Brass Matériaux Material
Source Lamping LED intégrée 700 lm 3 000° K Integrated LED 700 lm 3 000° K Alimentation 24 V intégrée Int. power supply 24 V included
IP44 Non variable en standard Standard version not dimable
Norme Standard
Diffuseur polycarbonate satiné Satin Polycarbonate diffuser
44 mm 1.7 ”
+ Les appliques Calé(e)s ne sont pas réglables. Ce sont 3 modèles différents. Calé(e) wall lights are not mobile. These are 3 different fixed models.
VH VV VF 132 mm 5.2 ”
44 mm 1.7 ” 44 mm 1.7 ” Ø 102 mm Ø 4 ”
130 mm 5.1 ” 200 mm 7.9 ”
450 mm 17.7 ” 450 mm 17.7 ” 450 mm 17.7 ”
Ø 102 mm Ø 4 ” Ø 102 mm Ø 4 ”
IP44 IP44 Classe II Class II Designer 10 IP CALÉ(E) Applique – Wall mounted lamp POOL 2021
IP
CALÉ(E)
POOL
11 IP CORNET Applique – Wall mounted lamp POOL 2021
Verre triplex opale soufflé bouche Opal triplex mouth-blown glass Laiton massif Solid Brass
* Les luminaires variables nécessitent l’utilisation d’ampoules compatibles avec la variation All dimmable light fixture require the use of compatible bulbs

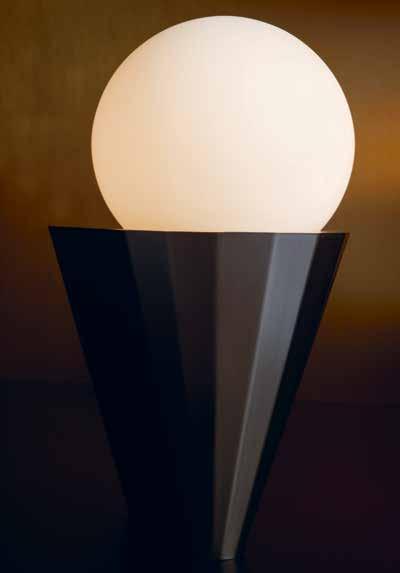

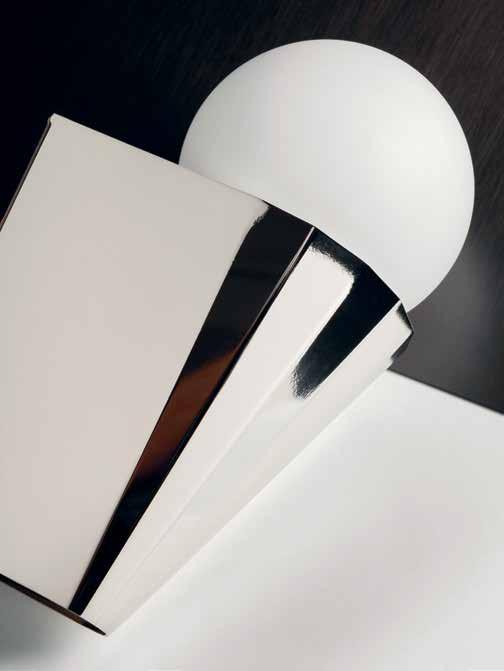

IP CORNET
Ø
12 IP CORNET Applique – Wall mounted lamp POOL 2021
Matériaux Material Finitions Finishes Laiton satiné Satin brass SB Graphite satiné Satin graphite SG Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN Laiton poli Polished brass PB Graphite poli Polished graphite PG Nickel poli Polished nickel Cuivre poli Polished copper PC PN Source Lamping G9 LED 5W max. non fournie G9 LED 5W max. not included
100 mm Ø 3.94” 212mm 8.35” 130mm 5.12 ” Ø 125 mm Ø 4.92” IP Cornet SC Variable Dimmable IP44 Émilie Cathelineau IP44 IP44 Classe II Class II Designer Norme Standard
13 IP CORNET
POOL 2021
IP Cornet SB
Applique – Wall mounted lamp
14 IP CORNET Applique – Wall mounted lamp POOL 2021
IP Cornet SG
GAMMA
Finitions Finishes
Matériaux Material
Source Lamping
Norme Standard
Designer
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Laiton poli Polished brass PB Graphite poli Polished graphite PG Nickel poli Polished nickel Cuivre poli Polished copper PC PN
IP44 IP44 IP44 Classe II Class II
Laiton massif Solid Brass Sylvain Willenz
Diffuseur polycarbonate blanc White Polycarbonate diffuser
Alimentation 24V intégrée Int. power supply 24V included LED 600 lm 3 000° K IP Gamma SB IP Gamma SN IP Gamma SG IP Gamma SC
IP44 Non variable en standard IP44 Standard version not dimmable
152 mm 6 ” Ø 50 mm Ø 2 ” 284 mm 11,18 ” IP
IP GAMMA
2021 16
Applique – Wall mounted lamp Sylvain Willenz
Finitions Finishes
Matériaux Material
Source Lamping
IP LINK
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Laiton poli Polished brass PB Graphite poli Polished graphite PG Nickel poli Polished nickel Cuivre poli Polished copper PC PN
Laiton massif Solid Brass
Diffuseur polycarbonate satiné Satin Polycarbonate diffuser
IP Link 410 (410 mm – 16.1“)
LED intégrée 150 lm 3 000° K Integrated LED 150 lm 3 000° K
IP Link 580 (580 mm –22.8“) LED intégrée 300 lm 3 000° K Integrated LED 300 lm 3 000° K
IP Link double 610 (610 mm – 24.1“) LED intégrée 300 lm 3 000° K Integrated LED 300 lm 3 000° K
IP Link double 960 (960 mm – 37.8“) LED intégrée 600 lm 3 000° K Integrated LED 600 lm 3 000° K
IP Link double 1300 (1300 mm – 51.2“) LED intégrée 800 lm 3 000° K Integrated LED 800 lm 3 000° K
Alimentation 24 V intégrée Remote power supply 24 V incl.
Ruban Led sans points visibles Led strip without visible dots
Non variable en standard Standard version not dim.
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
Non variable en standard Standard version not dim.
18 IP LINK Applique – Wall mounted lamp Émilie Cathelineau 2021
IP44 Émilie Cathelineau
Designer Norme Standard
IP44 IP44 Classe II Class II
14 mm 0.55 ” 410 mm 16.1 ” 180 mm 7.1 ” 45 mm 1.75 ”
Double 960 mm / 37.8 ”
180 mm / 7.1 ”
180 mm 7.1 ” 45 mm 1.75 ”
14 mm 0.55 ” 580 mm 22.8 ” 50 mm 1.97 ” 50 mm 1.97 ” 300 mm / 11.8 ” 1 300 mm / 51.2 ”
Double 50 mm 1.97 ” 50 mm 1.97 ”
Double 610 mm / 24.1 ”
Longueurs sur mesure possibles. Custom dimensions available upon request. 180 mm / 7.1 ”
45 mm 1.75 ” 45 mm 1.75 ”
19 IP LINK
Émilie

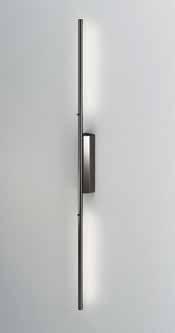

2021 IP Link
Applique – Wall mounted lamp
Cathelineau
20 IP LINK Applique – Wall mounted lamp Émilie Cathelineau 2021
410 SB IP Link Double 960 PG
IPLink
IP METROP
Matériaux Material
Source Lamping
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Laiton poli Polished brass PB Graphite poli Polished graphite PG Nickel poli Polished nickel Cuivre poli Polished copper PC PN
Laiton massif Solid Brass
Diffuseur polycarbonate satiné Satin Polycarbonate diffuser
IP Metrop 325
LED intégrée 300 lm 3000° K
Integrated LED 300 lm 3000° K
IP Metrop 525
LED intégrée 500 lm 3000° K Integrated LED 500 lm 3000° K
IP Metrop 780
LED intégrée 750 lm 3000° K Integrated LED 750 lm 3000° K
Alimentation 24 V intégrée Remote power supply 24 V incl.
Ruban Led sans points visibles Led strip without visible dots
IP44 Non variable en standard IP44 Standard version not dim.
Alimentation 24 V intégrée Int. power supply 24 V included
Alimentation 24 V intégrée Int. power supply 24 V included
IP44 Non variable en standard IP44 Standard version not dim.
IP44 Non variable en standard IP44 Standard version not dim.
Norme Standard
IP44 IP44 Classe II Class II Designer
Émilie Cathelineau
22 IP METROP Applique – Wall mounted lamp Émilie Cathelineau 2021
Finitions Finishes +
IP44 IP Metrop SG/PG
IP Metrop 325 mm 12.8” 525 mm 20.7” 780 mm 30.7”
50 mm 1.97 ” 50 mm 1.97 ” 50 mm 1.97 ”
45 mm 1.75 ” 45 mm 1.75 ” 45 mm 1.75 ”
Longueurs sur mesure possibles. Custom dimensions available upon request.
IP Metrop 325 PB
IP Metrop 325 SG IP Metrop 325 PC
US Version fitted plate to cover outlet power box
IP Metrop 325 SN/SG
23 IP METROP Applique – Wall mounted lamp Émilie Cathelineau 2021
IP Metrop 325 PN
24
IP METROP Applique – Wall mounted lamp Émilie Cathelineau 2021
IP Metrop SB/SG
Finitions Finishes
Matériaux Material
Source Lamping
Norme Standard
IP44
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG
Laiton poli Polished brass PB Graphite poli Polished graphite PG
Laiton massif Solid Brass
Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Nickel poli Polished nickel Cuivre poli Polished copper PC PN
Diffuseur polycarbonate blanc White Polycarbonate diffuser
Alimentation 24V intégrée Int. power supply 24V included LED 470 lm 3 000° K
IP44 IP44 Classe II Class II
Émilie Cathelineau
102 mm 4 ” 180 mm 7.1 ”
155 mm 6.1 ” 155 mm 6.1 ” Ø 50 mm Ø 2 ”
190 mm 7.5 ”
IP44 Non variable en standard IP44 Standard version not dimmable
Applique – Wall mounted lamp Émilie Cathelineau
IP Storm SB
IP STORM
IP STORM
Designer 2021 26
ABAT-JOURS – LAMPSHADES
Laiton satiné Satin brass SB Graphite satiné Satin graphite SG
Nickel satiné Satin nickel Cuivre satiné Satin copper SC SN
Laiton poli Polished brass PB Graphite poli Polished graphite PG
Nickel poli Polished nickel Cuivre poli Polished copper PC PN
LAITON – BRASS CÂBLES – CABLES
– FINISH OPTIONS
NUANCIER
noire Black
Chinette blanche White chinette Duke
Tissu or Gold textile Opale Opal Opale et écaille Opal and patterned Claire et écaille Clear and patterned
VERRERIE – GLASS Drop Paper® 100 Drop Paper® 101 Drop Paper® 103 Chinette
chinette
Duke Tissu noir Black textile
27 CERCLE ET TRAIT Suspension – Pendant light POOL 2019
