SPECIAL FEATURE
Artificial Intelligence Challenges the Industry By John Reardon, COTS Journal It is a truly exciting time to be a part of the defense technology business. As the consumer market drives the use of AI technologies for use in house hold products from vacuum cleaners to doorbells, the defense market is challenged by a global race to transfer these and others to the defense systems of tomorrow. For more than four decades, the defense market has drawn technology from the desktop market and the handheld market to be used in the most advanced systems possible. Using the economy of scale, we were able to draw from high volume processers and open architectures to create very advanced systems. Today although, we are still drawing from this consumer market, the concepts that are coming forth are no longer based on a single hardware structure tied to a uniquely independent software platform. Today the whole application is addressed in a way that ties application to composable system architecture. Today’s systems consist of a multi-dimension-
16
COTS Journal | December 2019
al configuration from the Cloud to the Fog and then out to the Edge. The Cloud affords the benefit seen in the consumer market by enabling the compute requirements to scale dynamically. Today’s Cloud based systems can dynamically scale to the needs. This composable feature not only is a cost saving, but also extends the performance to extreme compute needs.
detect IEDs – General Microsystems. It is a RADAR array detecting an incoming threat – CEMTROL. As we move forward to the front line of defense, the need for truly real-time response increases exponentially.
Fog Computing resembles a cashe of compute ability between the Cloud and the Edge. This might be on a platform such as an aircraft circling high above an area of hostilities or it might be in a command center managing a drone. As the defense market relies on real-time response with the lowest latencies possible, this cashe of compute is perfect for command and control center near the front. The Edge is the pointy end of the sword. It is the sensor on the front of the troop transport to
Image 1 - This is an example of an array of servers and systems that GMS offers for harsh environments
So as we move from the Cloud to the Fog and then on to the Edge, the environmental concerns increase in ways that were never considered by those who reside in the consumer market. It was from companies in our space that understand that designing a system for a defense application was a challenge. Challenges like fitting a system into the nose of an aircraft, that can withstand -40c to +70c, and can operate under significant power constraints was an example of what was needed. It was companies in our space that can take high resolution, real-time video from multiple sources and identify threats and react preemptively – One Stop Systems.
Image 3 - Xilinx has created a collaborative library of design and support tools that aid in the use of their FPGAs - VITIS
cation. Image 2 - One Stop Systems has delivered high performance storage arrays for airborne applications
high performance compute engines in a short amount of time. Xilinx expects to add to the library using a collaborative model to affirm that their FPGA’s are not hindered by re-creating the wheel with each appli-
Mercury Computer Systems, in a strong alliance with NVidia has incorporated GPU’s into their deployed systems. Although the
power demands and the space requirements place these systems more in the Fog, Mercury continues to drive to the Edge with compute intense solutions that are driven on the principal of SWAP – Space, Weight and Power. Mercury has a rich history with digital signal processing, but their recent move to build custom ASICs reflects the depth of IP this company posses. Another company that is putting high performance compute systems into the field is Aitech. This company has shown its talents for packaging advance GPUs into ATR Boxes. Their environmental understanding has allowed them to design systems that go from Rugged through Mil to Space. If extreme performance in a package to endure the harshest environments is needed, Aitech has an array of solutions.
This three dimensional chessboard of Cloud, Fog and Edge is made all the more interesting when you apply the Machine Learning and Artificial Intelligence. This application a multidirectional understanding that will increase an accuracy of a decision based on a compendium of knowledge. Until this point we have consumed information in a serial stream, much like we read a book from left to right. A software solution such as BERT - Bidirectional Encoder Representations from Transformers – from Google is reported to increase accuracy by twenty percent along with lower latencies. This is accomplished by a predictive algorithm, which reflects the beginning of something that will change computing forever. In a recent release from Xilinx, their VITIS software suite offers AI and Machine Learning tools to assist developers in the use of their FPGA’s. By offering these libraries to the market, Xilinx has reduced design times greatly, allowing applications to be addressed with
Image 4 - Mercury has taken a lead in developing advance systems from the ground up for the most demanding applications COTS Journal | December 2019
17
Image 5 - Aitech with the support of Nvidia has utilized the Jetson class GPU in ATR enclosures able to withstand the
From the images captured via a FLIR Thermal image camera or LIDAR in an autonomous vehicle, General Microsystems has proven that their solution is field-tested and meets vehicle standards such as VICTORY. GMS’s Titan Rack mounted server’s come in an array of configurations that use the latest Intel Xeon processors and offer numerous configurations of I/O and Storage. These are but a few of the companies that offer solutions that will form the foundation for tomorrow’s high performance AI compute
18
COTS Journal | December 2019
engines. And although we briefly touched on software, companies such as Lynx Image 6 - Lynx takes a new approach at MOSA compliant OS with their MOSAic Software Works with their Mosaic will also 2020 may not be exactly what the futurist contribute to this energy of bringing this three dimensional world to life by addressing predicted at the turn of the Century, but the the security demands of this highly complex promise of AI does ignite the imagination of networks with numerous areas of security what could be! concerns. And do this with an elegance that enables the certified reuse of code.
SYSTEM DEVELOPMENT
Performance from Nvidia continues to change the world. By John Reardon, Editor
TensorRT 7 – Accelerate End-to-end Conversational AI with New Compiler NVIDIA’s AI platform is the first to train one of the most advanced AI language models — BERT (Bidirectional Encoder Representations from Transformers) — in less than an hour and complete AI inference in just over 2 milliseconds. This groundbreaking level of performance makes it possible for developers to use state-of-the-art language understanding for large-scale applications they can make available to hundreds of millions of consumers worldwide. Early adopters of NVIDIA’s performance advances include Microsoft and some of the world’s most innovative startups, which are harnessing NVIDIA’s platform to develop highly intuitive, immediately responsive language-based services for their customers. Limited conversational AI services have existed for several years. But until this point, it has been extremely difficult for chatbots, in-
telligent personal assistants and search engines to operate with human-level comprehension due to the inability to deploy extremely large AI models in real time. NVIDIA has addressed this problem by adding key optimizations to its AI platform — achieving speed records in AI training and inference and building the largest language model of its kind to date. “Large language models are revolutionizing AI for natural language,” said Bryan Catanzaro, vice president of Applied Deep Learning Research at NVIDIA. “They are helping us solve exceptionally difficult language problems, bringing us closer to the goal of truly conversational AI. NVIDIA’s groundbreaking work accelerating these models allows organizations to create new, state-of-the-art services that can assist and delight their customers in ways never before imagined.”
How Bert Works
BERT uses Transformer that learns the contextual relationship between words in a text. Transformers include two separate mechanisms – an encoder that reads the text input and a decoder that produces a prediction for the task. In directional modes, which read text left-to-right, the Transformer encoders read the entire sequence of words at once. By reading the entire sequence at once it allows the model to learn the context of the words based on all of its surrounding (left and right of the word). Using two training strategies, BERT over comes the directional approach that limits context learning and creates a richer predictive model. 20
COTS Journal | December 2019
TensorRT-7 TensorRT™ is an SDK for high-performance deep learning inference. It includes a deep learning inference optimizer and runtime that delivers low latency and high-throughput for deep learning inference applications. TensorRT-based applications perform up to 40x faster than CPU-only platforms during inference. With TensorRT, you can optimize neural network models trained in all major frameworks, calibrate for lower precision with high accuracy, and finally deploy to hyperscale data centers, embedded, or automotive product platforms. TensorRT is built on CUDA, NVIDIA’s parallel programming model, and enables you to optimize inference for all deep learning frameworks leveraging libraries, development tools and technologies in CUDA-X for artificial intelligence, autonomous machines, high-performance computing, and graphics. TensorRT provides INT8 and FP16 optimizations for production deployments of deep learning inference applications such as video streaming, speech recognition, recommendation and natural lan-
guage processing. Reduced precision inference significantly reduces application latency, which is a requirement for many real-time services, auto and embedded applications. You can import trained models from every deep learning framework into TensorRT. After applying optimizations, TensorRT selects platform specific kernels to maximize performance on Tesla GPUs in the data center, Jetson embedded platforms, and NVIDIA DRIVE autonomous driving platforms.
TensorFlow 2.0 with Tighter TensorRT Integration To help developers build scalable ML-powered applications, Google released TensorFlow 2.0, one of the core open source libraries for training deep learning models. In this release, developers will see up to 3x faster training performance using mixed precision on NVIDIA Volta and Turing GPUs. TensorFlow 2.0 features tighter integration with TensorRT, NVIDIA’s high-performance deep learning inference optimizer, commonly
COTS Journal | December 2019
21
used in ResNet-50 and BERT-based applications. With TensorRT and TensorFlow 2.0, developers can achieve up to a 7x speedup on inference. This update also includes an improved API, making TensorFlow easier to use, along with higher performance during inference on NVIDIA T4 GPUs on Google Cloud. For use in multiple GPUs, developers can use the Distribution Strategy API to distribute training with minimal code changes with Keras’ Model.fit as well as custom training loops.
Using MATLAB and TensorRT on NVIDIA GPUs MathWorks released MATLAB R2018b which integrates with NVIDIA TensorRT through GPU Coder. With this integration, scientists and engineers can achieve faster inference performance on GPUs from within MATLAB. The high-level language and interactive environment MATLAB provides enables developers to easily create numerical computations and algorithms with various visualization and programming tools. A new technical blog by Bill Chou, product manager for code generation products including MATLAB Coder and GPU Coder at MatWorks, describes how you can use MATLAB’s new capabilities to compile MATLAB applications into CUDA and run on NVIDIA GPUs with TensorRT. The example workflow includes compiling deep learning networks and any pre- or post processing logic into CUDA, testing the algorithm in MATLAB, and integrating the CUDA code with external applications to run on any modern NVIDIA GPU. When using TensorRT with GPU Coder for a simple traffic sign detection recognition (TSDR) example written in MATLAB, the team noticed 3x higher inference performance with TensorRT running on Titan V GPUs compared with a CPU-only platform. 22
COTS Journal | December 2019
December 2019
COT’S PICKS Marvin Test Solutions Completes SmartCan™ Deliveries to Israeli Air Force Marvin Test Solutions, Inc. announced that it has successfully completed deliveries of all MTS-3060A SmartCan Universal O-Level Armament Test Sets to the Israeli Air Force (IAF). The rugged MTS-3060A SmartCan™ is the most advanced flightline hand-held test set available, capable of testing all Alternate Mission Equipment (AME) and Aircraft Armament Equipment (AAE) including pylons, launchers, bomb racks, and pods. Addressing an armament test gap that exists across legacy 4th and 5th generation aircraft equipped with Smart weapon technology (MIL-STD-1760), the MTS-3060A enables support for any aircraft and any Smart or legacy armament system. “The IAF has selected the SmartCan from Marvin Test Solutions as a universal flightline armament test set for F-16 and F-15 because of its robust test capabilities,” said Major Dror Hadar from the Israeli Air Force. “With the SmartCan, IAF can replace several obsolete test sets with a single test solution that is smaller, easier to use,
Pixus Develops New OpenVPX Chassis Manager Pixus Technologies, a provider of embed-
and still provides more test capabilities than all the obsolete test sets it replaces.” “We are pleased to support one of the U.S.’ closest allies with a proven universal flightline test solution that greatly improves warfighter effectiveness,” said Major General Stephen T. Sargeant, USAF (Ret.), CEO of Marvin Test Solutions. “Continuing to gain acceptance worldwide, the SmartCan reduces the time and number of maintainers required to perform all armament testing, including the critical MILSTD-1760 functionality test required to ensure successful Smart munitions employment, while reducing logistics and training needs. Furthermore, the SmartCan provides customers the most cybersecure, hand-held O-Level armament test set available.”
tions and armament, the MTS-3060A has the capacity to grow as new and more complex weapon systems are added to the inventory. The SmartCan is currently deployed in over 12 countries on multiple aircraft and utilized by the U.S. Air Force Test Pilot School as a Smart weapons simulator for JDAM and AMRAAM. Marvin Test Solutions, Inc. www.marvintest.com
Incorporating advanced measurement capabilities to support new and Smart muni-
ded computing and enclosure solutions, now offers a chassis management module for OpenVPX that is compliant to the VITA 46.11 specification for system management.

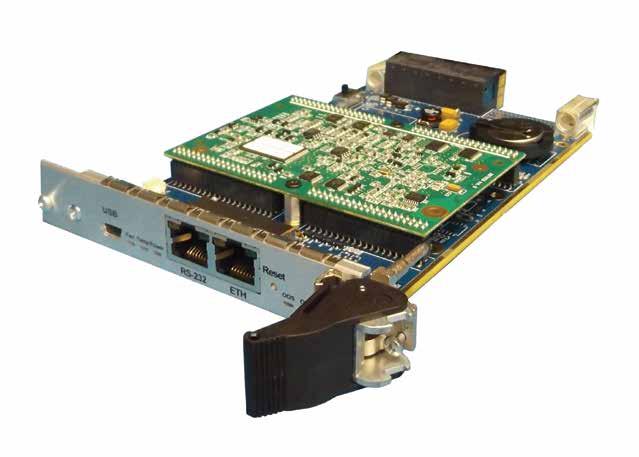

The SHM200 chassis manager for OpenVPX comes in 0.8” or 1.0” pitch sizes. The unit can plug into a standard 3U VPX backplane slot, with versions with just the P0 connector or the P0/ P1 connectors for access to extended I/O. A 6U panel can also be affixed to plug into a 6U slot. The standard panel interface has RS-232, RJ-45, USB and LEDs. Monitoring of at least 6 temperature sensors and 10 fans is available on the SHM200 with custom options available. There is fan PWM/ Tach control, along with 16 digital inputs and outputs. A Level-2 unmanaged 3- port Ethernet hub is also an option. The Pixus SHM200 solution also includes a Web interface to remotely query the system. The user can import images of their boards. By clicking on the image for each slot, the user can drill down to the monitored status of the module. Pixus Technologies pixustechnologies.com
