N ote: When specifying/ordering grates, refer to “Choosing the Proper Inlet Grate” on pages 117-118. For a complete listing of FREE OPEN AREAS and WEIR PERIMETERS of all NEENAH grates, refer to pages 306-311.

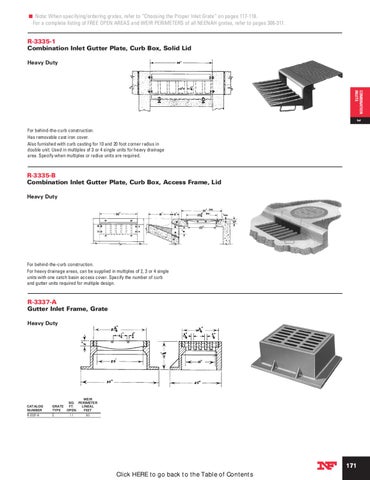

R-3335-1 Combination Inlet Gutter Plate, Curb Box, Solid Lid Heavy Duty
COMBINATION INLETS
3 2
For behind-the-curb construction. Has removable cast iron cover. Also furnished with curb casting for 10 and 20 foot corner radius in double unit. Used in multiples of 3 or 4 single units for heavy drainage area. Specify when multiples or radius units are required.
R-3335-B Combination Inlet Gutter Plate, Curb Box, Access Frame, Lid Heavy Duty
For behind-the-curb construction. For heavy drainage areas, can be supplied in multiples of 2, 3 or 4 single units with one catch basin access cover. Specify the number of curb and gutter units required for multiple design.
R-3337-A Gutter Inlet Frame, Grate Heavy Duty
WEIR
SQ. PERIMETER CATALOG GRATE FT. LINEAL NUMBER TYPE OPEN FEET R-3337-A C 1.1 6.0
