Editor’s Office and Advertiser Information:
Florida Water Resources Journal 1402 Emerald Lakes Drive Clermont, FL 34711 Phone: 352-241-6006 • Fax: 352-241-6007 Email: Editorial, editor@fwrj.com Display and Classified Advertising, ads@fwrj.com
Business Office: P.O. Box 745, Windermere, FL 34786-0745 Web: http://www.fwrj.com General Manager: Editor: Graphic Design Manager: Mailing Coordinator:
Michael Delaney Rick Harmon Patrick Delaney Buena Vista Publishing
Published by BUENA VISTA PUBLISHING for Florida Water Resources Journal, Inc. President: Richard Anderson (FSAWWA) Peace River/Manasota Regional Water Supply Authority Vice President: Greg Chomic (FWEA) Heyward Incorporated
News and Features 4 6 34 38 45 48 50 50 54 55
Treasurer: Rim Bishop (FWPCOA) Seacoast Utility Authority Secretary: Holly Hanson (At Large) ILEX Services Inc., Orlando
Moving? The Post Office will not forward your magazine. Do not count on getting the Journal unless you notify us directly of address changes by the 15th of the month preceding the month of issue. Please do not telephone address changes. Email changes to changes@fwrj.com, fax to 352-241-6007, or mail to Florida Water Resources Journal, 1402 Emerald Lakes Drive, Clermont, FL 34711
Membership Questions FSAWWA: Casey Cumiskey – 407-957-8447 or fsawwa.casey@gmail.com FWEA: Karen Wallace, Executive Manager – 407-574-3318 FWPCOA: Darin Bishop – 561-840-0340
Training Questions FSAWWA: Donna Metherall – 407-957-8443 or fsawwa.donna@gmail.com FWPCOA: Shirley Reaves – 321-383-9690
Technical Articles 16 24 40
8 23 27 31 37 43 48 49 51
Throughout this issue trademark names are used. Rather than place a trademark symbol in every occurrence of a trademarked name, we state we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement of the trademark. None of the material in this publication necessarily reflects the opinions of the sponsoring organizations. All correspondence received is the property of the Florida Water Resources Journal and is subject to editing. Names are withheld in published letters only for extraordinary reasons. Authors agree to indemnify, defend and hold harmless the Florida Water Resources Journal Inc. (FWRJ), its officers, affiliates, directors, advisors, members, representatives, and agents from any and all losses, expenses, third-party claims, liability, damages and costs (including, but not limited to, attorneys’ fees) arising from authors’ infringement of any intellectual property, copyright or trademark, or other right of any person, as applicable under the laws of the State of Florida.

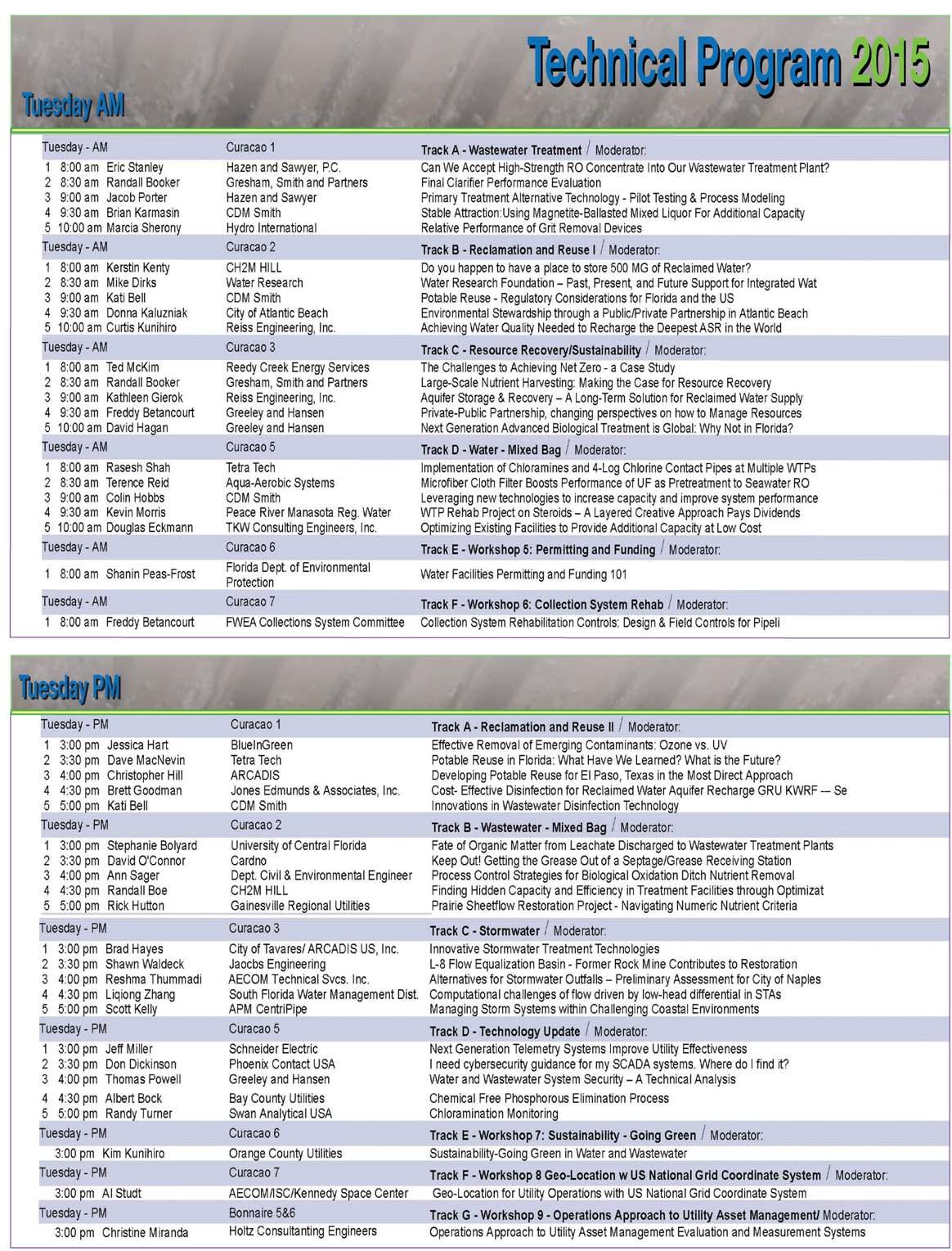

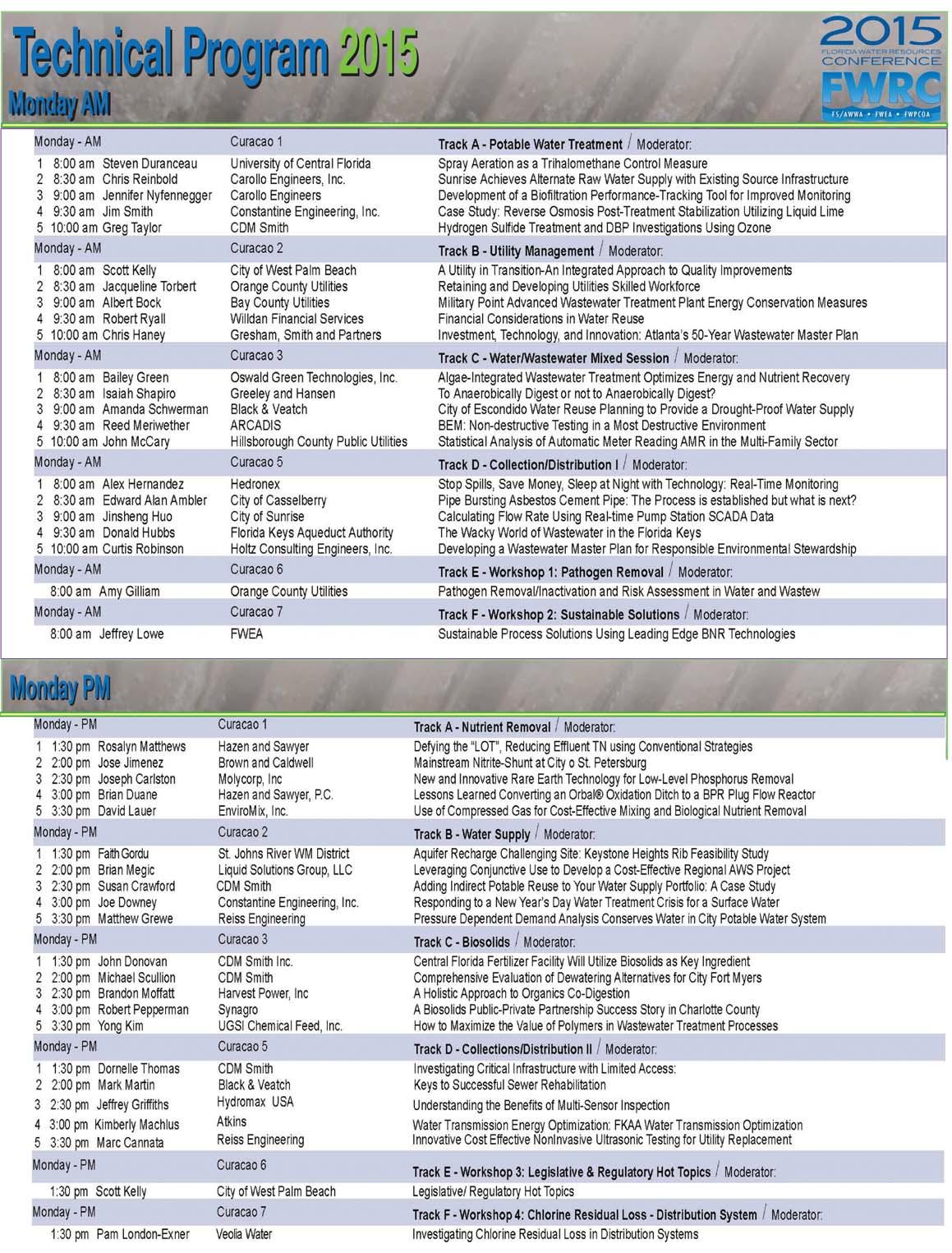

Florida Water Resources Conference FWPCOA Online Training Institute TREEO Center Training CEU Challenge FSAWWA Training FWPCOA State Short School ISA Water/Wastewater and Automatic Controls Symposium FIPA Voluntary Certification Training and Workshop FWPCOA Training Calendar
Columns 22 32 36 38 52
Websites Florida Water Resources Journal: www.fwrj.com FWPCOA: www.fwpcoa.org FSAWWA: www.fsawwa.org FWEA: www.fwea.org and www.fweauc.org Florida Water Resources Conference: www.fwrc.org
Is Water Conservation an Effective Alternative Water Supply Solution? – North Florida Case Study—Fatih Gordu, Brett Goodman, and Rick Hutton Reuse Water Reservoirs Help Meet Nitrogen Total Maximum Daily Load: Do Floating Wetland Islands Help?—Rafael Vázquez-Burney, Jeffrey Harris, James Bays, Kerstin Kenty, and Ryan Messer Estimating Districtwide Water Conservation: St. Johns River Water Management District’s Estimation Tool—Max A. Castaneda and Andrew Mason
Education and Training
For Other Information DEP Operator Certification: Ron McCulley – 850-245-7500 FSAWWA: Peggy Guingona – 407-957-8448 Florida Water Resources Conference: 888-328-8448 FWPCOA Operators Helping Operators: John Lang – 772-559-0722, e-mail – oho@fwpcoa.org FWEA: Karen Wallace, Executive Manager – 407-574-3318
Accepting the Value of Water Efficiency in Long-Term Supply Planning—Lisa Krentz Work Order/Computerized Maintenance Management System: An Effective, Modern Solution for Port St. Lucie WEF Members Tune Up for Jammin’4Water 2015 FSAWWA Roy Likins Scholarship FSAWWA ACE15 Lunch Local Utility Celebrates Water Conservation Month FSAWWA Call for Papers South Florida Water Management District Highlights Water Conservation With Expo and Vendor Fair News Beat FSAWWA Operator Awards
Certification Boulevard—Roy Pelletier FSAWWA Speaking Out—Mark Lehigh Process Page—Ron Trygar C Factor—Thomas King FWRJ Reader Profile—Jason Paul Parrillo
Departments 54 57 60 62
New Products Service Directories Classifieds Display Advertiser Index
Volume 67
ON THE COVER: Residental pumps for the 7.5-mgd reuse plant at the City of Pompano Beach. They pump through 33 miles of reuse purple pipe to a growing residential and commercial customer base, and to golf courses and parks throughout the city. (photo: Randy Brown)
April 2015
Number 4
Florida Water Resources Journal, USPS 069-770, ISSN 0896-1794, is published monthly by Florida Water Resources Journal, Inc., 1402 Emerald Lakes Drive, Clermont, FL 34711, on behalf of the Florida Water & Pollution Control Operator’s Association, Inc.; Florida Section, American Water Works Association; and the Florida Water Environment Association. Members of all three associations receive the publication as a service of their association; $6 of membership dues support the Journal. Subscriptions are otherwise available within the U.S. for $24 per year. Periodicals postage paid at Clermont, FL and additional offices.
POSTMASTER: send address changes to Florida Water Resources Journal, 1402 Emerald Lakes Drive, Clermont, FL 34711
Florida Water Resources Journal • April 2015
3

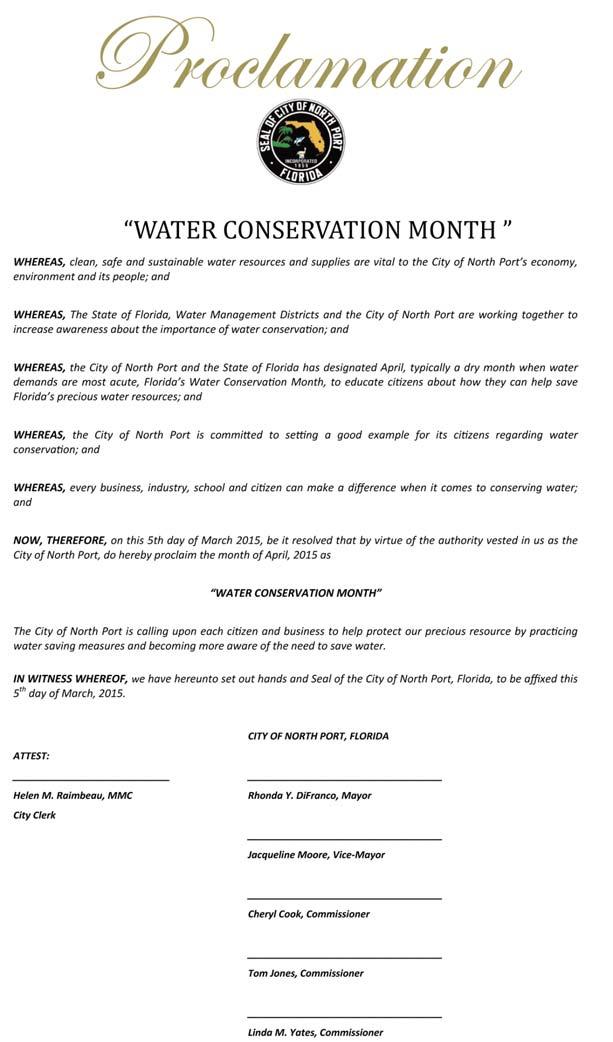

April is Water Conservation Month! Accepting the Value of Water Efficiency in Long-Term Supply Planning Lisa Krentz
Utilities have been implementing water conservation in Florida for more than 20 years. Over the last decade, as water demands have declined, many water utilities have experienced considerable declines in water sales, which has led to problems with revenue recovery and uncertainty about future investments in water supply infrastructure—and water efficiency. While increasing water use efficiency is a contributing factor, the declines in water demand have largely been unanticipated and exacerbated by the recent recession. However, as the economy recovers, rebounds in water demand and forecasted future supply needs are highly probable for many utilities. As the costs of new supplies and infrastructure continue to rise, avoided cost of water supply becomes a more critical element of the water supply planning process. The value of increased water use efficiency in managing future long-term supply needs is evident because it most often provides the least-cost supply alternative for utilities and their customers. As such, water efficiency can and should be compared to other supply alternatives being considered. An “avoided supply cost” analysis considers increments of conserved water versus the cost to operate existing water supply sources and the total cost (capital and operating costs) to develop new water supply. Consideration of cost savings and water supply benefits permits a consistent “apples to apples” comparison to other water supply alternatives. Through efficient use of available supplies and use of targeted implementation strategies,
4
April 2015 • Florida Water Resources Journal

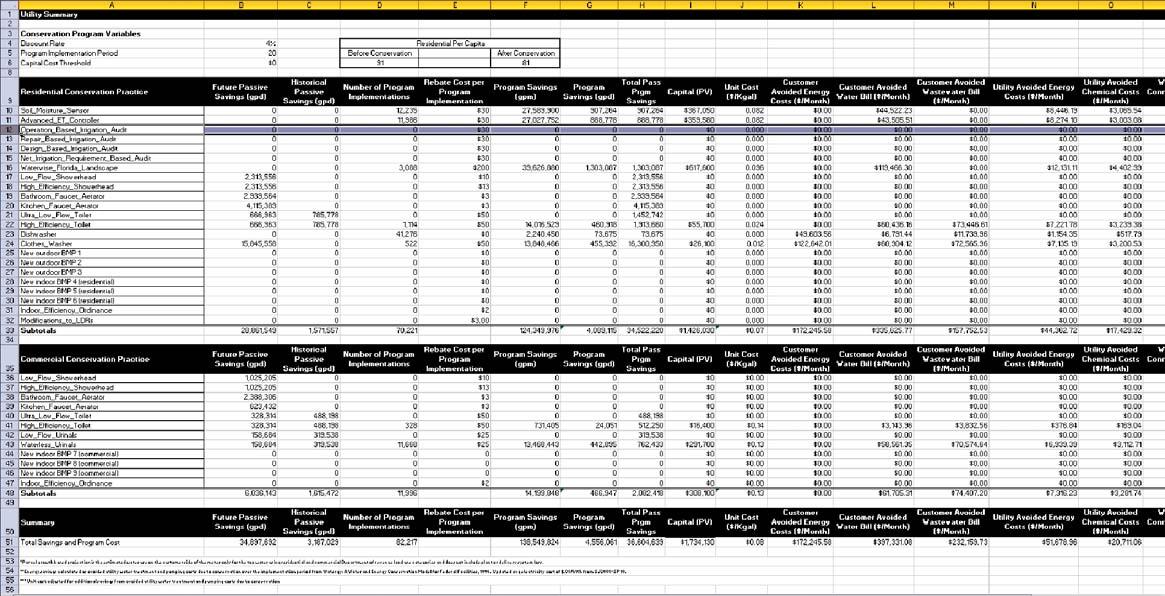

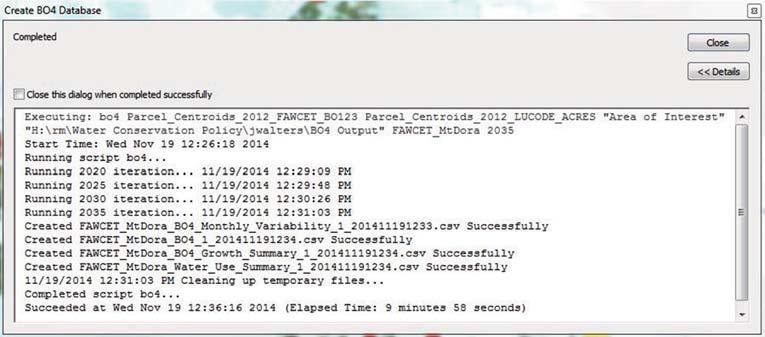

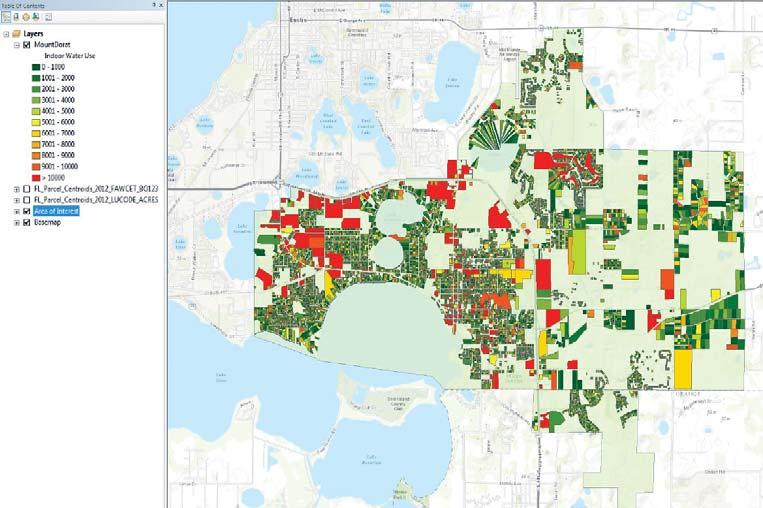

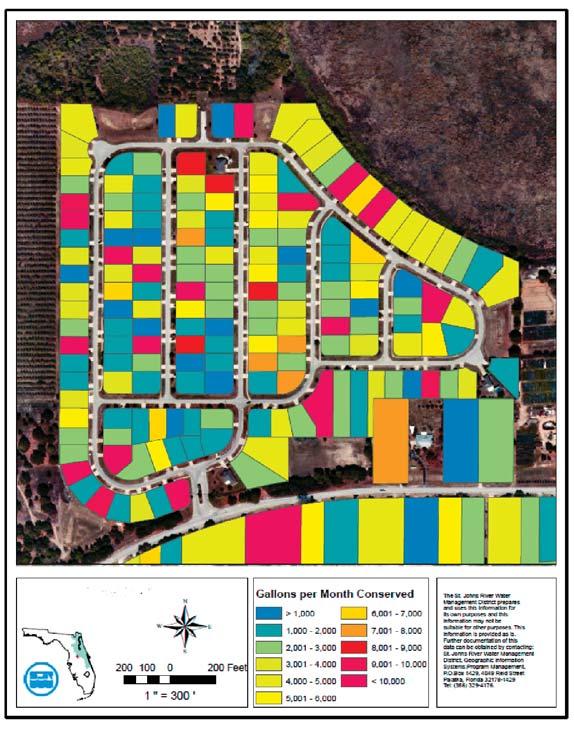

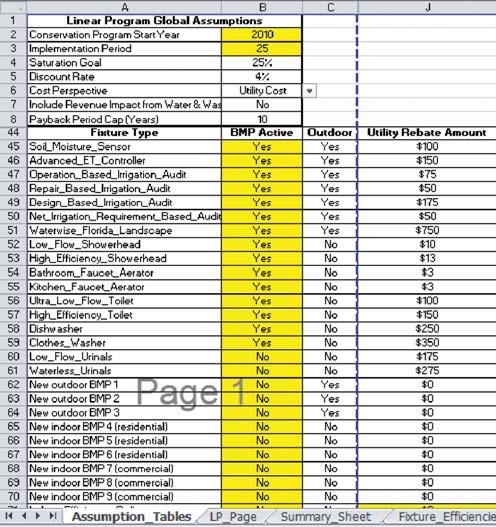

water use efficiency can help manage peak and average daily water demand in conjunction with reducing long-term future water supply requirements. Cost-effective alternatives to new supply development and other valuable benefits can be realized through demand side management, including: optimization of existing facilities, deferred capital investment costs, improved public perception, support of future supply projects, and environmental stewardship and protection. Water demands are impacted by a variety of factors, including economic factors, weather, price, and water efficiency, and these impacts should generally be expected to change overtime. However, water efficiency savings potential is often estimated from general information and assumptions found in published literature and is assumed to remain constant at some level over time. This is often where demand forecast and traditional financial models used in rate development also fall short, and thus can explain the unexpected occurrence of revenue shortfalls when changes in these factors occur. In addition to water savings associated with conservation programs implemented by utilities (active efficiency), passive water efficiency (process of replacing old fixtures with new, more efficient fixtures without financial incentives) is occurring as a result of national plumbing standards adopted in the 1992 Energy Policy Act (EPAct). Since then, manufacturers have introduced and marketed fixtures and appliances, which far exceed EPAct standards, leading to EPA’s WaterSense and Energy Star programs that certify and label products meeting consumer expectations while performing at rates lower than current national efficiency standards. These programs influence the market by encouraging consumers to purchase high-efficiency water products. As the market for water efficient fixtures/appliances increases and the composition

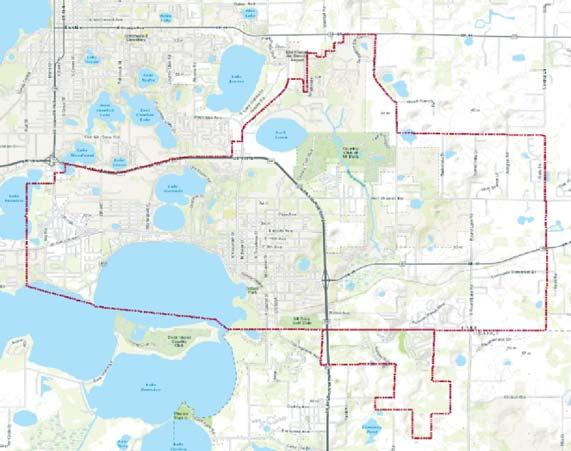

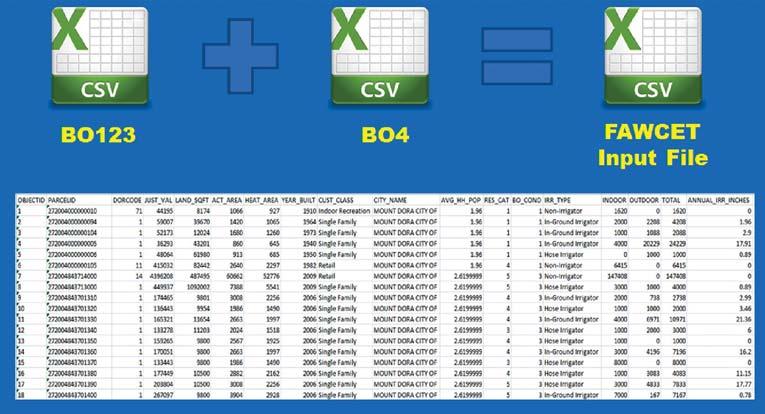

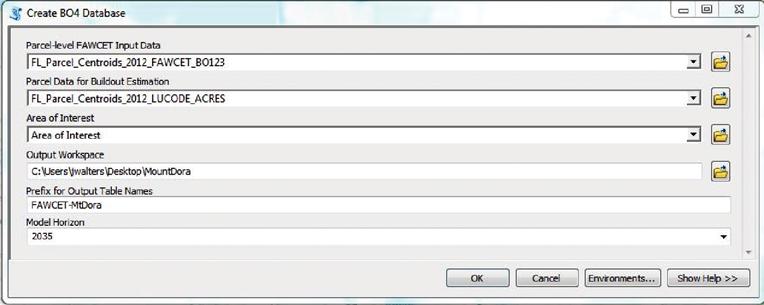

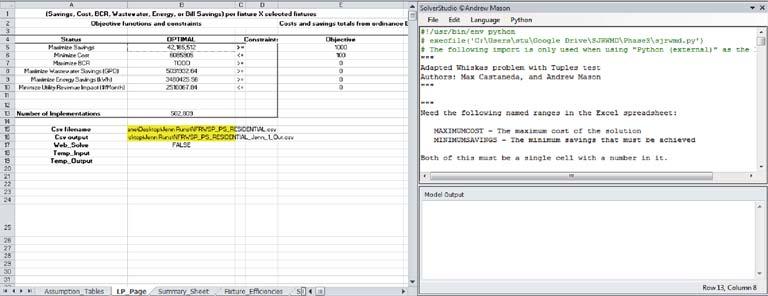

of customers within communities changes, the relative proportion of properties with automated landscape water use continues to rise and the opportunities for active efficiency programs, along with their savings rates and cost–benefits, will also change. While utilities lack control over passive-demand reductions occurring as a result of these national programs, they can attempt to quantify the benefits and better understand how a changing market may affect the continued viability of existing programs, their future need for water supply, and how to manage potential revenue changes. At the same time, utilities should continue to assess new opportunities in efficiency as new technologies are constantly being introduced to the market. While these technologies may be introduced to some degree through passive efficiency, opportunities to accelerate the introduction of water efficient products and financially benefit from avoided costs typically exist in any utility service area. Cost–benefit analysis measures the financial benefit (avoided cost) of delaying or eliminating future infrastructure and operational costs. With proper planning, water conservation can support a utility’s long-term financial and resource management goals by providing cost-effective, least-cost supply alternatives. In order to realize the financial benefits of conservation and avoid revenue shortfalls, demand forecast and financial models that utility rate structures are built upon must incorporate future expectations of water efficiency. By coordinating the timing of planned conservation activity with growth expectations and water rates, water efficiency can provide viable, financial solutions in a utility’s long-term supply plans. Lisa Krentz is an associate with Hazen and Sawyer, P.C., in Tampa and is chair of the FSAWWA Water Use Efficiency Division.

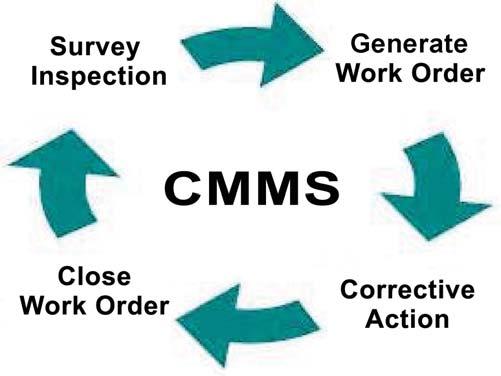

Work Order/Computerized Maintenance Management System: An Effective, Modern Solution for Port St. Lucie Brad Macek, assistant utilities director for the Port St. Lucie Utilities Department, recognized it was time to streamline a dated, paper-based work order system when their current system, built in the early 1990s, was showing its age. Macek and his colleagues began researching computerized maintenance management system (CMMS) options that might help them run their utility more efficiently. “The old system wasn’t able to support the amount of assets we currently have,” said Macek. “We kept expanding on it as we grew and eventually those expansions simply got too big for the system to handle.” There were a lot of limitations to the old system. “Our maintenance crews had paper and clipboards, so a lot of time at the end of the day was spent either inputting data or turning it over to a switchboard group to do it,” said Macek. Port St. Lucie employs just over 200 workers. The water treatment plants have capacities of 8 mil gal per day (mgd), 11.15 mgd, and 22.5 mgd, while the wastewater treatment plants operate at 6 and 12 mgd. It was a lot to manage with an out-of-date maintenance system that simply wasn’t efficient. Initially, Macek and his colleagues could not find a system that met their needs. “We looked at a number of different systems and even looked internally to see if we could reproduce something on our own,” he said. “But we couldn’t come up with a canned solution that worked for us, so we talked to our neighboring system, Indian River County Utilities, about what they were using.” The system Macek and his colleagues decided on provided a paperless work order program that allowed them to streamline their workflow process for asset management/CMMS. This was a big change over the old system, but it was a good one. The new system allowed for full automation of the entire asset/equipment maintenance schedules for all the system’s plants. “One of the biggest advantages of the new CMMS package was the ability to break up each plant’s information into its own system,” Macek explained. “Before, we had a long list of all assets and equipment that made it almost impossible to find anything. This new system made it simpler for all of the plants to find their information and then schedule the necessary work orders, or look up their previous history.” According to Macek, one of the biggest benefits of the system is that it is geared toward a “field mobile solution,” so now all field workers use mobile devices, such as tablets or smartphones. “Not being paper-based is
6
April 2015 • Florida Water Resources Journal
a huge benefit, because now the workers don’t have to double- or tripleenter their entries; it eliminates the paper trail. Our supervisors now can issue work orders and send them directly out to the field staff,” he noted. “There’s no more need to have the workers come back to the office or call them up on the radio. This freed up our paperwork at the end of the day, now that we have this instantaneous process.” The CMMS system was set up as a three-phased solution to simplify the implementation process. The first phase addressed correcting the work order system for the city’s water and wastewater treatment facilities, which included the plant and lift station mechanics, electricians, and instrumentation staff. The second phase addressed interfacing with the customer service work order system so that the distribution and collection crews can be implemented. The last phase involved organizing monthly operating report data for the plant operations. Another noteworthy aspect of this technology is evident in its calendaring system, which has the capability of registering all of the jobs a utility would need to track. “The jobs are color-coded so personnel can easily see the status of each component,” said Kurtis Warne, senior account manager with SEMS Technologies, the provider of the new system. “The costing aspect keeps track of the expenses associated with each job—from the labor hours of each worker to the parts needed for that job to the equipment required, or any purchases necessary, to facilitate its completion.” Warne explained that the system can keep track of all of the costs, so reports can be run that say how much money would be required to purchase or maintain a specific piece of equipment. “All of the line items in the calendaring system are user-definable, so each city can choose what type of jobs it wants to track and then run the reports. It’s a customizable system that allows the work to be specified and determine how much it costs.” Macek added that the system brings with it an ease of use that made the switchover a painless exercise for his employees. “It’s not a cumbersome system; it’s really easy to navigate, especially with our younger employees who grew up in the mobile-device age,” he said. “It’s that canned solution we were looking for; it came already put together and we didn’t have to build it from scratch. And, with all the assets in place, it’s been so much easier to transition them from our old work order system to the new CMMS package.” Macek was impressed with how quickly the system was in place. “We thought the system was going to take 12 to 18 months to complete the first phase,” he said, “but the system was up and running in six months. Of our approximately 200 employees, about half of them are on the new system now and the other half should be getting onto it within the next six weeks.” In addition, the system integrated a customizable component called “User-Definable Fields” to accommodate unforeseen developments in Port St. Lucie’s work order process as time goes on. These fields give the utility the ability to configure the system to meet its workflow process, rather than conforming to the software’s process. “It was built to be flexible, to work outside the box a little bit. Our plantside facilities were up and running with the new CMMS system within a few months,” Macek stated. “We’re currently getting ready to turn on phase two of the system, but we have to figure out some workflows on our end before that happens. In the third phase, we’ll be getting the treatment plant operators’ daily data gathering onto their iPads for our monthly operating reports, eliminating the double-data entry associated with our old system.”
Florida Water Resources Journal • April 2015
9
10
April 2015 • Florida Water Resources Journal
Florida Water Resources Journal • April 2015
11
12
April 2015 • Florida Water Resources Journal
Florida Water Resources Journal • April 2015
13
14
April 2015 • Florida Water Resources Journal
Florida Water Resources Journal • April 2015
15
F W R J
Is Water Conservation an Effective Alternative Water Supply Solution? – North Florida Case Study Fatih Gordu, Brett Goodman, and Rick Hutton ater supply deficits have been projected in many areas in Florida as a result of future population growth and increasing water demands. This has led water utilities to initiate water conservation measures over the past 15 years to protect Florida’s water resources and minimize the need for an expanded water supply. Aggressive water conservation efforts, such as tiered rate structures and increases in reclaimed water use, combined with the recent economic downturn and return to more normal rainfall amounts, significantly reduced water use per connection throughout the state. This new, unprecedented condition raises two critical questions: How much of the reduction in water use truly resulted from water conservation efforts, and more importantly, is this trend sustainable? To better understand the effectiveness of water conservation and evaluate its viability as an alternative water
W
supply solution, quantifying water conservation savings is more important than ever. What has been accomplished and the potential for continued improvement in efficiency needs to be analyzed so that water utilities can make smart financial decisions and water management districts can equitably distribute the available water supply among legal users. Water use data provided by the North Florida Utility Coordination Group (NFUCG) was used in the analysis. The NFUCG is composed of eight utilities: Jacksonville Electric Authority, Gainesville Regional Utilities (GRU), Clay County Utility, St. Johns County Utility, City of Atlantic Beach, City of Jacksonville Beach, City of Neptune Beach, and Town of Orange Park (Figure 1). St. Johns River Water Management District (SJRWMD) has been working with local utilities and communities, including NFUCG and other stakeholders in north Florida, for

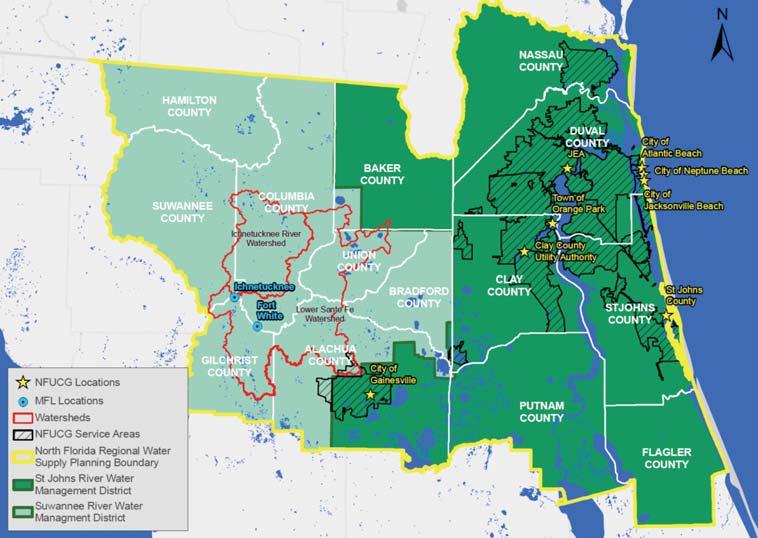

Figure 1. North Florida Regional Water Supply Partnership
16
April 2015 • Florida Water Resources Journal
Fatih Gordu, P.E., is senior hydrologist with St. Johns River Water Management District in Palatka and Brett Goodman, P.E., is water reclamation facilities director with Gainesville Regional Utilities (Gordu and Goodman were with Jones Edmunds & Associates Inc. during this study). Rick Hutton, P.E., is supervising engineer with Gainesville Regional Utilities.
effective, consistent, and equitable water resource and water supply planning and development. In partnership with the Suwannee River Water Management District and the Florida Department of Environmental Protection, the District initiated the North Florida Water Initiative (NFWI) in fall 2013, which includes the portion of the North Florida Regional Water Supply Partnership planning area that lies within the SJRWMD (Figure 1). As part of NFWI, the District has been working with stakeholders to develop a regional water supply plan, which includes development of alternative water supply options to meet existing and future water demands within the north Florida area, while protecting environmental resources. Understanding historical water use trends and the effect of water conservation efforts is very important as it directly impacts the magnitude of alternative water supply options needed to meet future demands and avoid unacceptable environmental impacts. This article analyzes the long-term water use trends of several water utilities in NFUCG and discusses the challenges in quantifying the water conservation efforts. The analysis introduces a methodology based on climate variables (rainfall and temperature) to help quantify water use reduction caused by factors other than climate so that potential water savings due to water conservation efforts can be estimated using a top-down approach.
Methodology A method was needed to better quantify how much water use reduction is attributable to climate and nonclimate factors. Previous studies (Rockaway, T.D., et al., 2011 and Dziegielewski and Kiefer, 2010) indicated that water use was highly correlated with temperature and rainfall. A multilinear regression model was developed by building a relationship between single-family water use and climate for calibration periods before implementation of any major conservation measures, including a tiered rate structure. These calibration periods were determined by analyzing historical water use trends and the changes in rate structure over time for each utility. The model utilizes the following variables: Monthly single-family residential water use per connection Monthly average rainfall Monthly average maximum temperature The regression equation was developed as follows: Wi = Per connection water use in Month i (gpd) Wa = Average daily water use per connection for Month i over calibration period (gpd) Ri = Rainfall in Month i (inches) Ra = Long-term average rainfall for Month i (inches) MaxTi = Maximum daily temperature in Month i (Fahrenheit) Max Ta = Long-term average maximum daily temperature for Month i (Fahrenheit) a = Regression coefficient b = Regression coefficient
were analyzed. The analysis was intended to help GRU better understand its customers’ water use behavior changes based on climate, water conservation efforts, reclaimed water use, etc. Figure 2 shows the GRU water service area.
Monthly single-family residential water use data and the number of residential connections from 1993 to 2012 were provided by GRU, and the rainfall and maximum temperature data (Figure 3) were obtained for the Continued on page 18

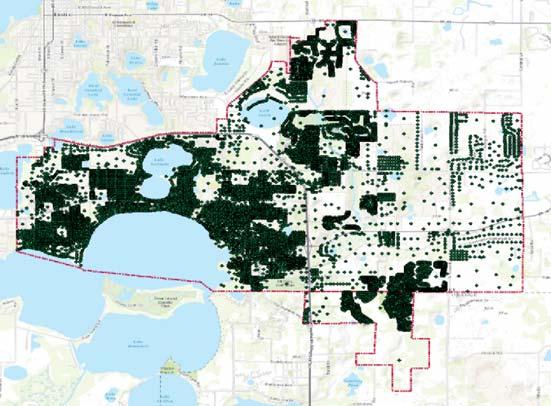

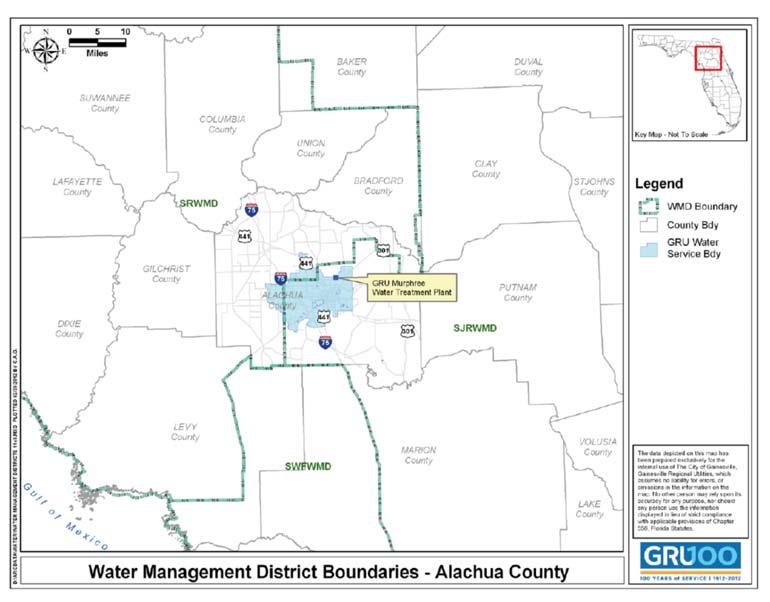

Figure 2. Gainesville Regional Utilities Water Service Area
Once the best correlation was achieved, the water use was predicted using the regression model for the subsequent years. Then, the predicted water use was compared with the actual water use for the analysis.
Gainesville Regional Utilities Example Water demands from GRU customers have decreased significantly over the past 10 years. During this time, GRU invested heavily in water conservation, but climate (specifically rainfall and temperature) also influenced water use. To better quantify how much water use reduction is attributable to climate and nonclimate factors, the climate data and GRU’s water use trends from 1993 to 2012

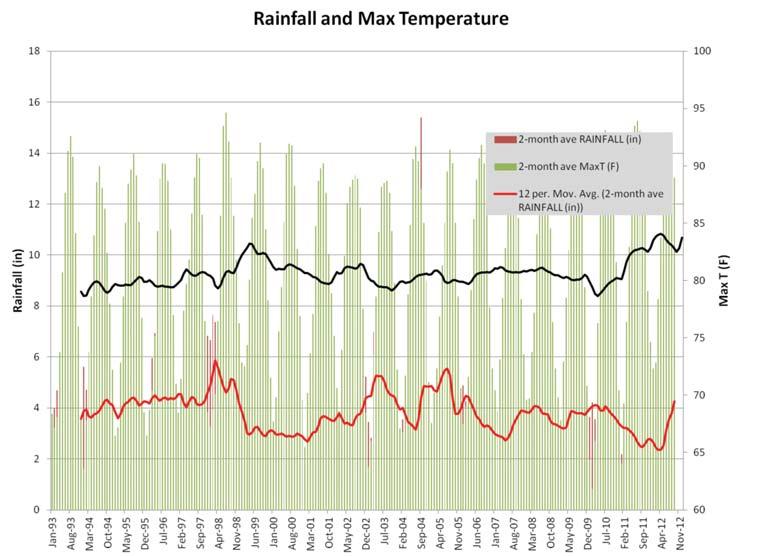

Figure 3. Rainfall and Maximum Temperature Data at Gainesville Regional Airport Florida Water Resources Journal • April 2015
17
Figure 4. Correlation Between Climate Variables and Two-Month Monthly Average Water Use Per Connection During 1993-1998 Calibration Period
18
April 2015 • Florida Water Resources Journal
Continued from page 17 Gainesville Regional Airport weather station from the National Oceanic Atmosphere Administration’s website. The data was analyzed using the multilinear regression described previously. After testing periods of varying durations, the best correlation between water use and climate variables was achieved using a two-month average water use per connection. The period from 1993 to 1998 was selected as the correlation period because of the review of historical water use trend and changes in GRU’s rate structure. It indicated that climate was the main driver for water use changes during this period. Figure 4 shows the correlation between climate variables and the twomonth monthly average water use per connection and Figure 5 shows the simulated and actual water use per connection for the correlation period. Once a good correlation was achieved between the water use per connection and climate variables, the model was run to predict water use per connection from 1999 to 2012 (Figures 6 and 7). The simulated water use per connection shows what the water use per con-

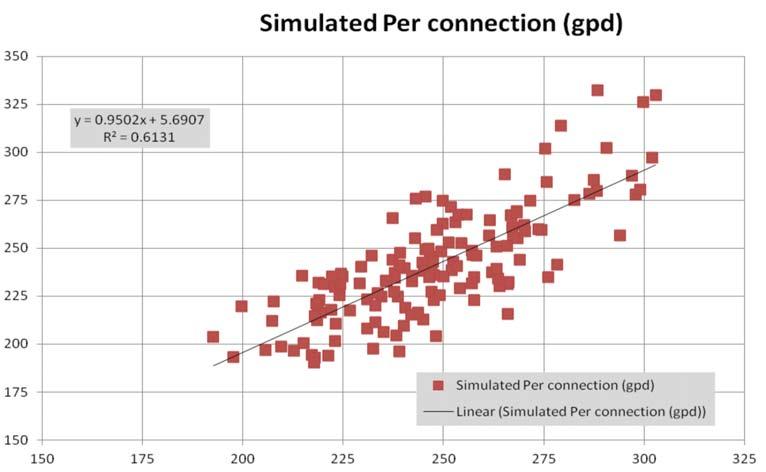

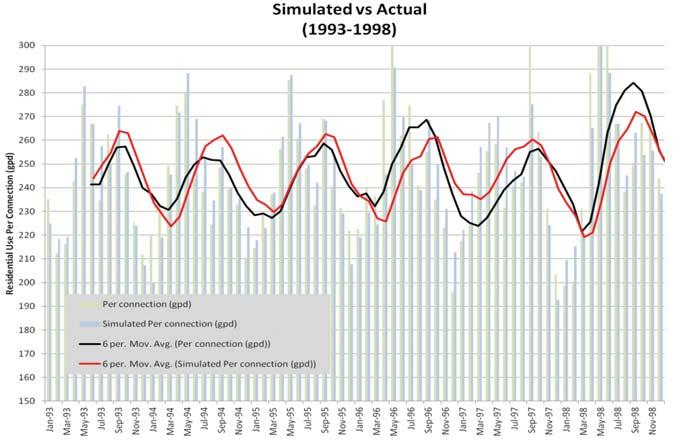

Figure 5. Simulated Versus Actual Water Use per Connection for Correlation Period
nection for GRU would be from 1999 to 2012 if nonclimatic factors (i.e., rate changes and water conservation efforts) were implemented. The simulated water use per connection follows GRU’s actual water use per connection until 2001, when it starts to deviate. In 2001, GRU began implementing an aggressive tiered water rate structure. Figure 8 shows GRU’s tiered residential water rates over time. Using the average of the 2011 and 2012 simulated and actual residential water use per connection, it was determined that GRU’s single-family residential customers’ water use was reduced by 28 percent due to factors other than climate change. In addition, there were three distinct water use behavior periods: Pre-2001 2001-2007 2008-2012 The decline in water use between 2001 and 2007 was most likely due to water conservation measures, including changes in rate structure, given that the simulated water use during this time period would have been significantly higher (Figure 7) if climate conditions were the only factor affecting water use. As shown in Figure 8, from 2008 through 2012 GRU dramatically increased its thirdtier water rate, which is likely the primary cause of the further reduction in water use during this period. In addition, there had been an increasing awareness among the public on the need for conservation as a result of conservation messaging by utilities, local government, and the water management districts, and the increasing public awareness regarding minimum flows and levels. The economic downturn likely contributed to some extent to this further reduction; however, due to the fact that much of Gainesville’s economy is based on the University of Florida and area hospitals, Gainesville was less hard hit than many other areas of the state.
North Florida Utility Coordination Group Water Conservation Estimate Similar to the GRU example, a best correlation was obtained for each utility analyzed in this study. As was the case with GRU, other utilities in the NFUCG implemented increas-

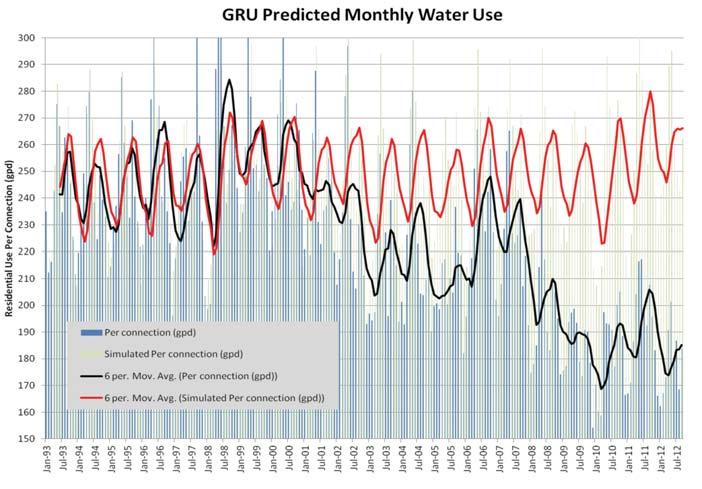

Figure 6. Gainesville Regional Utilities Predicted Monthly Single-Family Residential Water Use
ingly aggressive tiered rate structures, particularly over the 2007 through 2012 period. The results of the analysis indicated that the NFUCG has achieved water use reduction of more than 20 percent, or over 40 mil gal per day (mgd) over the past 10 years (Figure 9).
Conclusion This analysis introduces a methodology based on climate variables (rainfall and tem-
perature) to help quantify water use reduction caused by factors other than climate so that potential water savings due to water conservation efforts can be estimated using a topdown approach. The multilinear regression model indicates a significant reduction in water use among customers served by NFUCG. Water use reduction could be due to water conservation and the economic downturn; however, the analysis of GRU’s water use trend between Continued on page 20
Florida Water Resources Journal • April 2015
19

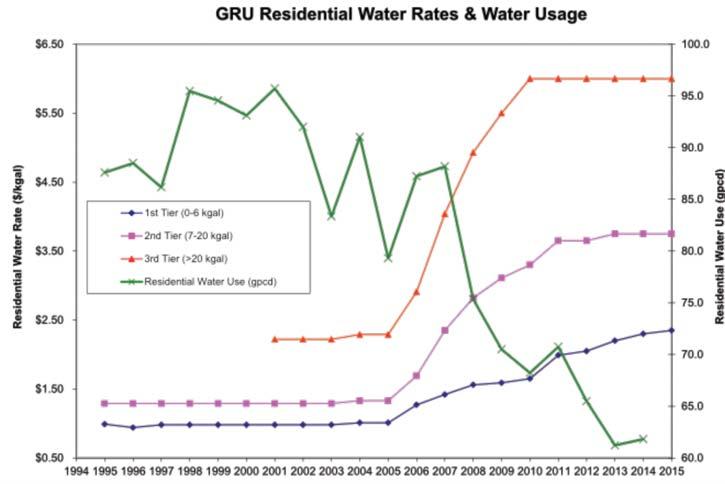

Figure 8. Gainesville Regional Utilities Tiered Residential Water Rates

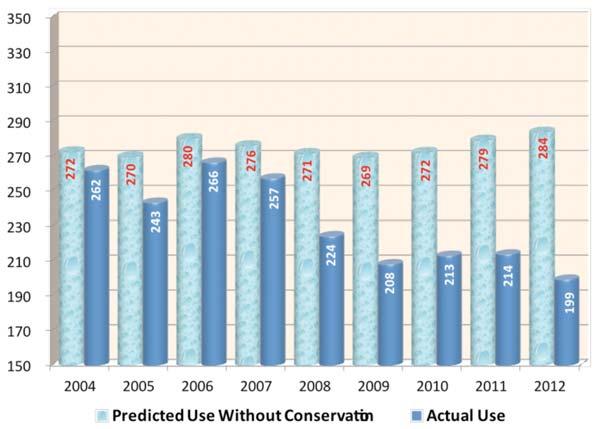

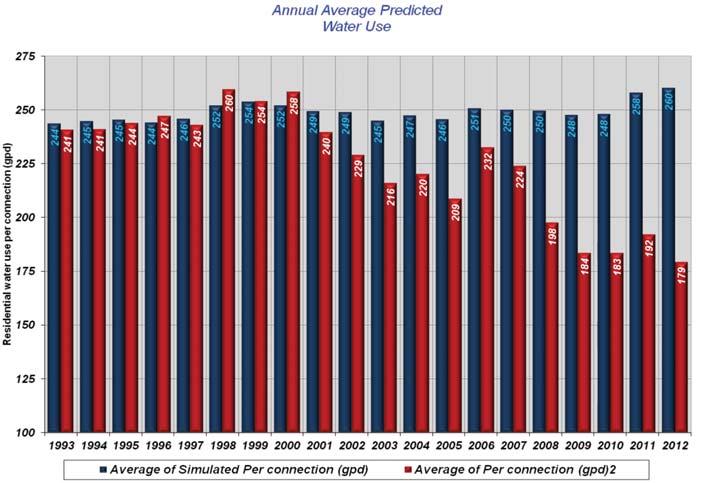

Figure 7. Gainesville Regional Utilities Predicted Annual Single-Family Residential Water Use
Continued from page 19 2001 and 2007 (before the economic downturn) indicated that a significant portion of the water use decline is due to water conservation measures, including changes in rate structure. Recent data also indicated that the current low level of water use could be sustainable even after the economy fully recovers because although the regression model predicted that water use should have increased in 2011 and 2012 because of low-rainfall and high-temperature conditions (Figure 9), water use declined during the same period. Additional analysis of water use trends as the economy recovers should be performed in order to verify them. The review of long-term trends of several north Florida utilities indicated that water conservation measures, especially changes in rate structures, have been very effective and provided the following benefits: Utilities will be able to serve an increasing population with less allocation than would have been required in the absence of conservation. The water conservation efforts helped GRU reduce the need for future water use and successfully renew its consumptive use permit without increasing the existing permitted allocation with a 20-year duration. Conservation will reduce and defer the need for costly recovery and prevention projects.
References • Dziegielewski, B. and Kiefer, J.C. Appropriate Design and Evaluation of Water Use and Conservation Metrics and Benchmarks. Journal AWWA, 2010. • Rockaway, et al. Residential Water Use Trends in North America. Journal AWWA, 2011. • http://www.northfloridawater.com/

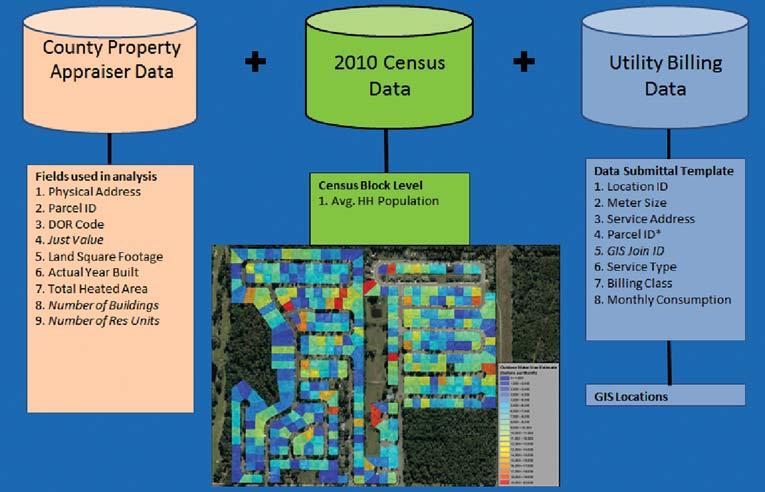

Figure 9. North Florida Utility Coordination Group Water Use Analysis
20
April 2015 • Florida Water Resources Journal
Certification Boulevard
Test Your Knowledge of Disinfection C. Liquid from the top valve and gas from the bottom valve. D. Gas from the top valve and liquid from the bottom valve.
Roy Pelletier 1. Given the following data, calculate the chlorine demand: • Total daily lb of chlorine used is 1,200 lb/day • The plant flow is 14.5 mgd • The effluent chlorine residual is 2.75 mg/L A. 1,200 lb/day C. 1,681 lb/day
A. B. C. D.
B. 867 lb/day D. 332 lb/day
2. What chemical is used to identify a chlorine leak? A. B. C. D.
6. Which component in the chlorination process is responsible for creating a vacuum condition, which draws the chlorine gas through the chlorinator and then mixes the gas into a solution?
Fumes from sulfur dioxide Sodium hydroxide Fumes from ammonia Sulfuric acid
7. Leaking chlorine gas will tend to collect near the ceiling of a closed room. A. True B. False
8. What is the relationship of chlorine liquid to water? A. Chlorine liquid is one and a half times lighter than water. B. Chlorine liquid is the same weight as water. C. Chlorine liquid is one and a half times heavier than water. D. Chlorine liquid is two and a half times heavier than water.
3. Given the following data, calculate the volume of this chlorine contact chamber in cu ft and gal: • Length is 120 ft • Width is 45 ft • Depth is 11.25 ft A. B. C. D.
750 cu ft / 1.0 mil gal 65,650 cu ft / 100,250 gal 256,145 cu ft / 545,750 gal 60,750 cu ft / 454,410 gal
9. What is the formula that defines chlorine residual? A. B. C. D.
4. What does this formula best represent? Tank volume, ft3 (flow, mgd x 92.84 cfm/mgd) A. B. C. D.
Chlorine residual Detention time in minutes Detention time in hours Tank volume in gal
Demand - supply = residual Supply - demand = residual Supply x demand = residual None of the above.
10. In which position should you rotate a ton container if a leak develops?
5. What form of chlorine comes in 1-ton containers? A. Gas from both valves. B. Liquid from both valves.
22
Pressure regulator Vacuum regulator Gas rotometer Gas injector
April 2015 • Florida Water Resources Journal
A. B. C. D.
With the leak at the bottom. With the leak at the top. With the leak on the side. It does not matter. Answers on page 62
LOOKING FOR ANSWERS?
Check the Archives Are you new to the water and wastewater field? Want to boost your knowledge about topics youʼll face each day as a water/wastewater professional? All past editions of Certification Boulevard through 2000 are available on the Florida Water Environment Associationʼs website at www.fwea.org. Click the “Site Map” button on the home page, then scroll down to the Certification Boulevard Archives, located below the Operations Research Committee.
SEND US YOUR QUESTIONS Readers are welcome to submit questions or exercises on water or wastewater treatment plant operations for publication in Certification Boulevard. Send your question (with the answer) or your exercise (with the solution) by email to: roy.pelletier@cityoforlando.net, or by mail to: Roy Pelletier Wastewater Project Consultant City of Orlando Public Works Department Environmental Services Wastewater Division 5100 L.B. McLeod Road Orlando, FL 32811 407-716-2971
F W R J
Reuse Water Reservoirs Help Meet Nitrogen Total Maximum Daily Load: Do Floating Wetland Islands Help? Rafael Vázquez-Burney, Jeffrey Harris, James Bays, Kerstin Kenty, and Ryan Messer he methods, data analysis, and results of a performance assessment of floating wetland islands (FWIs) for nitrogen management of reclaimed waters in total maximum daily load (TMDL)-limited watersheds were studied to determine if FWIs could passively provide nitrogen reduction while reclaimed water is being stored in reclaimed water reservoirs before it is applied in the form of irrigation in TMDL-limited watersheds. The Pasco County Master Reuse System (PCMRS) is a regional reclaimed water transmission and distribution system providing the sole wastewater effluent management mechanism for the Pasco County Utilities Services Branch with a service area that is partially within a TMDL-limited watershed. The Tampa Bay Nitrogen Management Consortium (TBNMC) developed total nitrogen (TN) load allocations for the TMDL for Tampa Bay. The allocated load for the PCMRS for the area contributing to Tampa Bay is 5.8 tons per year. Since the load was determined based on prior-year loading (2008), the County is already discharging its entire allocation to this basin during normal operations. To approximate the efficacy of FWIs to reduce TN in the PCMRS, FWIs were constructed, operated, and monitored in a test cell receiving reclaimed water from the PCMRS subject to coverage by the FWIs. Reclaimed water was applied at rates consistent with practical reservoir residence time. Water quality performance was assessed during the establishment period (first six months of grow-in), performance period (eight months immediately following grow-in), and the control period (three months after the FWIs were removed). The results indicate that FWIs installed in reclaimed water reservoirs affects the removal of TN. The test cell alone removed nitrogen and phosphorus, but the FWIs were found to enhance that removal capacity by decreasing suspended algal growth and increasing denitrification. The combined effect of the FWIs on the test cell has been a decrease in organic nitrogen and oxidized nitrogen in the test cell outflow. By evaluating the difference between the performance and control periods, an incremen-
T
24
tal rate at which the FWIs removed TN from the test cell was calculated to be 0.9 pounds per sq ft (lb/ft2) of island per year. The test cell included a total of 1,600 sq ft of FWIs, so the total rate of TN removal that can be attributed to FWIs is approximately 1,440 lb of TN per year. This estimated rate of removal may be applicable for systems receiving reclaimed water of similar characteristics and at similar rates. The implementation of FWIs is a relatively new application of natural treatment system technology. Just as time has allowed for integrative studies on treatment wetlands to confirm expectations of performance, FWIs application to ponds will require more analyses such as those conducted during this study to develop readily applied sizing criteria and removal rate constants. Because ponds differ in depth, size, and loads, each system needs to be assessed separately to fully understand the capacity for these FWIs to remove TN. The purpose of this project is to quantify performance characteristics of FWIs for management of nitrogen, thereby expanding reclaimed water application opportunities in watersheds facing stringent nitrogen loading constraints. The PCMRS is a regional reclaimed water distribution system providing the sole wastewater effluent management mechanism for Pasco County. This total reuse strategy is accomplished by the beneficial reuse of effluent from all wastewater treatment facilities (WWTF) in Pasco County via a combination of irrigation customers and rapid-rate infiltration basin systems. In addition, the PCMRS contains a 62-mil-gal (MG) storage pond (Lake Rita), an existing 100MG reservoir at the Land O’ Lakes WWTF, and is constructing an additional 500-MG reservoir. The PCMRS discharges indirectly via irrigation infiltration to Hillsborough Bay, one of four segments that comprise the Tampa Bay Estuary. The 2012 Tampa Bay Reasonable Assurance Submittal, referred to as the RA Document (Tampa Bay Estuary Program, 2012), has been developed and accepted and includes a TN load limit for PCMRS discharges to the Hillsborough Bay Basin. Approximately 30 percent of the reclaimed water produced by Pasco County is reused in the
April 2015 • Florida Water Resources Journal
Rafael Vázquez-Burney is project technologist, James Bays is technology fellow, Kerstin Kenty is project manager 2, and Ryan Messer is project engineer with CH2M HILL in Tampa. Jeffrey Harris is an environmental biologist with Pasco County Utilities Engineering in New Port Richey.
Hillsborough Bay drainage basin. This basin also represents the area where most of the future growth in reclaimed water customers is projected. Therefore, the County is interested in decreasing overall nitrogen in the PCMRS to satiate the irrigation demand associated with that growth, while keeping the nitrogen load within their allocation. The nitrogen in the PCMRS flow is predominantly in the form of nitrate, which is amenable to biological treatment. The FWIs offer a technology for improvement of surface water quality in existing or constructed water bodies where the water is being stored and conveyed. The FWIs utilize emergent wetland species growing on a floating mat (Headley and Tanner, 2006). Because the County is investing in significant surface water storage infrastructure, passive reduction of nitrogen by FWIs in reclaimed water reservoirs could increase the capacity of a reclaimed water system by allowing for increased use of reclaimed water in areas where TN may be limited without the additional infrastructure investment. Sizing methods to determine the feasibility of FWIs to accomplish this objective are not wellestablished. A pilot experiment using FWIs was conducted in Hungary with additions of 5 mg/l of oxidized nitrogen; results indicated that the system removed 85 percent of the TN (Headley and Tanner, 2006). Another study that investigated the removal performance of nitrogen by FWIs (Borne et al., 2013) in nitrate-rich stormwater reported increased denitrification. The TN losses due to low dissolved oxygen and increased organic carbon availability in the root zone below the FWIs were compared to a control pond that did not include FWIs. To approximate the efficacy of FWIs to reduce TN in the PCMRS, FWIs were constructed,
operated, and monitored in a test cell receiving reclaimed water from the PCMRS for a period of 18 months. Reclaimed water was applied at rates designed to create relatively short hydraulic residence times (HRT) consistent with actual reservoir residence time. The methods, results, and data analysis to assess whether FWIs could provide further nitrogen reduction in the PCMRS are discussed.

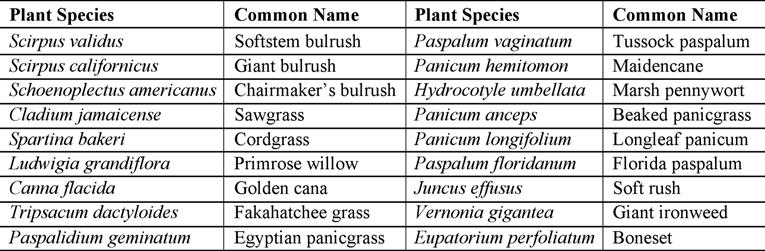

Table 1. Floating Wetland Island Planted Species
Project Implementation To study the performance capabilities of FWIs, this project was implemented in a 4-acrelined test cell at the Wesley Center Wastewater Treatment Facility (WWTF). This system included a temporary pipe that delivered reclaimed water flow from the PCMRS and an outflow spillway pipe that spilled to the WWTF’s reject pond and returned water back to its headworks.
Installation A total of 20 mats were purchased; each mat measured 8 ft by 10 ft. Total FWI surface area on the 4-acre test cell was 1,600 sq ft. The FWIs were interconnected with stainless steel cables and hardware to create the desired configuration. Because the test cell was lined, anchors could not be driven into the ground. Instead, weighted anchors were provided to rest on the bottom of the test cell to avoid liner damage during installation and operation.
Wetland Plant Species Selection A variety of plants were selected for this study to assess growth rates and evaluate the ability of each species to adapt to the reclaimed water quality. Wetland plants were obtained mostly as potted plants and bare root to enhance planting success and accelerate growth. A seed mix was also obtained and used on two islands to compare with the 18 planted islands. Table 1 provides a listing of plant species installed on the floating mats. Species were selected based on previous experience on FWIs applications and root/shoot growth characteristics.
Test Cell Operation Operation of the test cell was an important aspect of the study because hydraulic characteristics could potentially affect nutrient concentrations and performance of the FWIs in terms of nutrient uptake. Reclaimed water was applied at rates designed to create an HRT consistent with the Land O’ Lakes Storage Reservoir residence time. Average HRT in the test cell was approximately 20 days; the operational volume in the test
cell was approximately 5 MG. A temporary 4-in. line with a flow meter was installed on the west side of the test cell berm near the southwest berm corner to provide the test cell with continuous flow. Meter readings were recorded daily by WWTF operators. Reclaimed water flowed through the test cell and exited by spilling out via gravity through a pipe in the southeast corner that hydraulically connects the test cell to a twin pond. This pipe provided an adequate control elevation and eliminated the need to monitor the test cell stage.
pling event, at least one sample was collected from all islands. The plant species for tissue sampling were selected randomly. Plant tissue samples collected quarterly were analyzed for dry weight and percent TN. Quarterly samples were collected during September 2012, November 2012, April 2013, and August 2013. Root length, shoot length, and media depth (island matrix) were measured upon collection. Plant samples were packaged in coolers and shipped to the University of Florida Wetland Biogeochemistry Laboratory for analysis.
Water Quality Sampling
Lithium Chloride Tracer Study
Water quality monitoring was conducted biweekly from the beginning of the study with the intent of capturing the effect of plant establishment on the water column nitrogen concentrations, particularly as temperatures increased during the summer. This data supported the determination of removal rate constants, nitrogen species conversion, and temperature adjustment factors. Ammonia nitrogen, oxidized nitrogen (nitrate plus nitrite), organic nitrogen (ON), and TN were monitored biweekly for the three distinct project phases: the grow-in period (July 2012 through December 2012), the performance period (January 2013 through August 2013), and the control period after the islands were removed (September 2013 through November 2013).
Understanding the hydraulics of the FWIs test cell is important to the successful operation and nutrient removal. It has been established that there is a distribution of HRT in treatment wetlands (Kadlec and Wallace 2009). To characterize wetland hydraulics, tracer studies were conducted using conservative inorganic compounds such as lithium or bromine, or fluorescent dyes, to track and quantify the rate of movement of individual water parcels through specific cells. After 11 months of island establishment, a tracer study was performed involving a one-time slug application of lithium chloride (LiCl) at the test cell influent pipe. Lithium ion (Li) was monitored at the test cell outfall in order to determine the time and concentrations of the exiting tracer. Detection of Li well above the background Li concentration at the test cell outfall aided in determining important flow behaviors such as HRT, average flow-weighted velocity, and the presence of significant flow path short circuiting.
Tissue Sample Collection Tissue analysis of the planted vegetation was performed to quantify plant nutrient uptake during the study period. The fraction of plant nutrient uptake compared to the inflow and outflow concentrations was important to understand for the overall balance of nutrient concentrations within the test cell. Plants were harvested and assessed as whole plant biomass. During FWIs installation, two random sampling sites (slotted well screens) were installed in each of the three planting zones on each FWI for a total of six tissue sampling sites per FWI. During each sam-
Floating Wetland Islands Removal and Relocation The FWIs were removed from the test cell at the Wesley Center WWTF on Aug. 27 and 28, 2013. The FWIs were fully grown and saturated with water at the completion of the study. The FWIs were relocated and permanently installed at the Lake Rita reclaimed water storage facility. Continued on page 26
Florida Water Resources Journal • April 2015
25
Continued from page 25
Hydrologic Evaluation of the Test Cell To assess treatment performance, the test cell hydrology was evaluated. Recorded flows and test cell stage-storage relationships were used to complete a daily water balance of the test cell. In addition, a tracer study was performed to determine the hydraulic characteristics of the system. These analyses were used to establish the basis for evaluation of treatment performance.
Water Balance The purpose of the water balance is to determine the HRT for the test cell. Measured flow to the test cell, precipitation records, and evaporation were used to calculate daily test cell outflow. The average HRT was determined to be 25 days. The daily nominal HRT varied between 5.6 days and 158 days due to extreme rain events and periods when the flow to the test cell was turned off for reasons outside of the control of this study. To determine hydraulic characteristics of the test cell, the tracer response curve was analyzed for common hydraulic parameters, including the number of tanks in series, dimensionless variance, wetland dispersion number, Peclet number (Pe), and volumetric efficiency. A gamma distribution was used to solve for the number of tanks, N, and the mean HRT by minimizing the sum of squared differences between the residence-time distribution (RTD) and the field data in a modeling analysis. The value N represents the degree of mixing and the dimensionless variance characterizes the spread of the tracer response curve about the mean of the distribution. The variance occurs by mixing of water or by the velocity distribution during passage. It is important to note that although gamma distri-
butions describe tanks-in-series (TIS) mixing, they do not imply the existence of turbulent flow (Kadlec and Wallace, 2009), since a gamma distribution may be observed in unmixed systems with several travel paths and different velocities. As N becomes very large, the gamma distribution might indicate a plug-flow reactor (PFR)-type system. An N of 1.0 in theory indicates a completely mixed flow reactor (CMFR)-type system. For the test cell, N was determined to be 1.0, representing a realistic application of a CMFR. The wetland dispersion number calculated for this system was 8.0, which is atypical of normal treatment wetland systems; typical values for the wetland dispersion range from 0.07 to 0.33. An average daily inflow rate and an estimated water volume were used to estimate the nominal HRT of the system of 25 days. The mean HRT for the test cell, calculated using a first-order gamma distribution analysis, as recommended in Kadlec and Wallace (2009), is 15.7 days. The nominal HRT calculated based on the volume of the test cell and the field-estimated mean HRT varies by 25 percent. The early response and the long-descending limb of the tracer response curve indicate the presence of both short circuits and the existence of areas with reduced hydraulic connection. The Pe describes the dispersion as a dimensionless parameter, where Pe = 0 represents a CSTR-type flow, and Pe = ∞ represents a PFRtype flow. For free surface wetlands, reported values range from Pe = 5 to 20 (Kadlec and Knight, 1996). The Pe for the test cell was 0.13, which indicates significant short-circuiting of flow through the system. Finally, the volumetric efficiency was calculated by dividing the actual HRT by the nominal HRT. For the test cell, this ratio was less than 1, which means that the actual HRT was shorter than expected. This also indicates shortcircuiting.

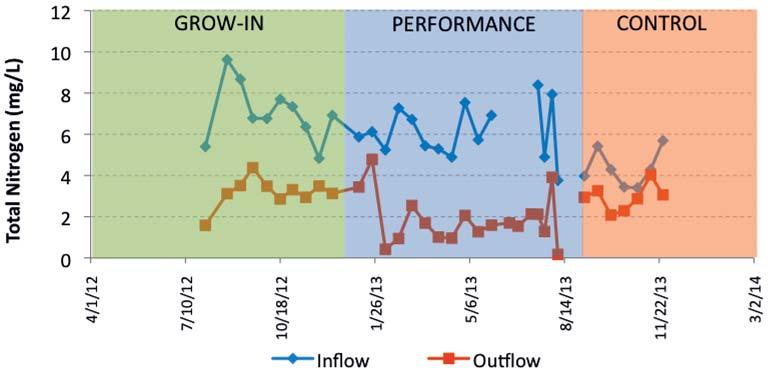

Figure 1. Total Nitrogen Concentrations
26
April 2015 • Florida Water Resources Journal
Monitoring Results Nitrogen Water Quality Monitoring Results To determine the performance of the FWIs in the test cell, water quality parameters were monitored biweekly through the duration of the study. Water samples were collected at the test cell inflow and outflow and analyzed for TN, oxidized nitrogen, ammonia nitrogen, and ON to assess total nitrogen treatment performance for each period and to understand the nitrogen conversion dynamics within the test cell. Figure 1 presents TN concentrations for the test cell inflow and outflow over the duration of the study. During the study, inflow TN concentrations averaged 6.1 mg/L and ranged from 3.4 to 9.6 mg/L. Based on inflow and outflow TN concentrations, TN was reduced by 54 percent on average during the grow-in period, 70 percent on average during the performance period, and 30 percent during the control period when the FWIs were not present. These data show a clear difference in performance between the performance period and the control period, suggesting that the FWIs had an effect in the treatment performance of the test cell. Nitrogen species conversion and nitrogen dynamics can be explored by comparing inflow and outflow concentrations of each nitrogen species. Figure 2 presents oxidized nitrogen concentrations for the test cell inflow and outflow over the duration of the study. During the study, inflow oxidized nitrogen concentrations averaged 5.3 mg/L and ranged from 2.8 to 7.8 mg/L. This represents approximately 87 percent of the TN entering the test cell. In general, the outflow concentrations were less than 1.5 mg/L, with most concentrations below the detection limit during all the monitoring periods. These results for oxidized nitrogen together with TN performance suggest that during the performance period, oxidized nitrogen was being removed from the system more readily than during the control period, whereas during the control period, oxidized nitrogen was just being converted to other forms of nitrogen. The other nitrogen species were assessed to understand the conversion of nitrogen species within the test cell. Ammonia concentrations were not observed at significant levels in the inflow nor in the outflow of the test cell. In general, ammonia concentrations were found to be either below the detection limits of the analytical method or between the detection limit and the practical quantitative limit. Based on the water quality results for ammonia, nitrogen species conversions involving ammonia were considered negligible in the test cell. Continued on page 28
Florida Water Resources Journal • April 2015
27
Continued from page 26 Figure 3 presents organic nitrogen concentrations for the test cell inflow and outflow over the duration of the study. During the study, inflow organic nitrogen concentrations averaged 0.6 mg/L and ranged from nondetect to 1.8 mg/L. This parameter represents approximately 10 percent of the TN entering the test cell. In general, the outflow concentrations were significantly above the inflow concentrations, with average organic nitrogen concentrations of 2.2 mg/L that ranged from 0.4 to 4.0 mg/L. Inflow organic nitrogen less than outflow of organic nitrogen demonstrates the conversion of inorganic nitro-
gen to organic nitrogen. The dominant inflow nitrogen form throughout the study was oxidized nitrogen, while the dominant outflow nitrogen form was organic nitrogen. Average outflow organic nitrogen concentrations for the grow-in period, performance period, and control periods were 3.0 mg/L, 1.4 mg/L, and 2.8 mg/L, respectively. The data suggest that the FWIs affected the rate of conversion of oxidized nitrogen to organic nitrogen after the grow-in period. The FWIs increased processes that resulted in removal of total nitrogen and did not just convert nitrogen to other forms.

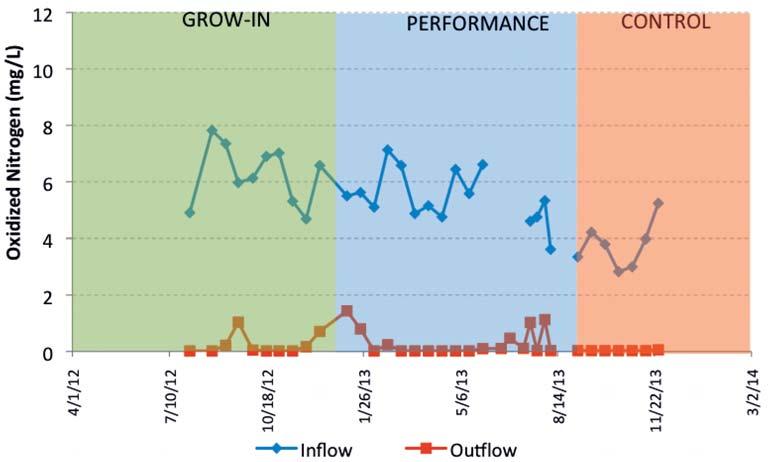

Figure 2. Oxidized Nitrogen Concentrations
Tissue Sampling Results Tissue samples were collected quarterly and analyzed for total dry weight and TN. Total estimated mass per island was calculated by averaging the plant samples collected from each zone, multiplying the average for each zone by the number of plugs they contain, and then summing the totals for each zone together. Average TN sample concentration was used to estimate the mass of TN removed that can be attributed to plant uptake. Based on these estimates it is estimated that approximately 2.2 kg of TN was bound up in plant tissue mass, which accounts for only 0.2 percent of the TN removed. Algal Productivity and Deposits Throughout the study, algae flourished on the test cell, leaving deposits that are known as “calcified cyanobacteria.� Cyanobacteria calcify when water conditions favor calcium carbonate precipitation and when photosynthesis is able to occur on the algae (Riding, 2011). The lack of photosynthesis in deeper waters of the test cell explains why the calcification only occurred in the shallower parts of the test cell. The highest line of calcification was a reliable high-water-level indicator for this study. Calcified deposits on the test cell liner were sampled at the end of this study. Ten samples with a surface area of 4 sq ft were taken. Groups of two samples were taken at increments of 30 ft inward of the west berm. Within these groups, the first sample was taken between 75 to 100 ft north of the first sample in the previous sample group. The second sample was taken at varying distances north or south of the first sample. Samples were analyzed for wet weight and TN. The total estimated amount of TN accumulated in the calcified deposits was 96 kg.
Nitrogen Mass Balance and Transformations

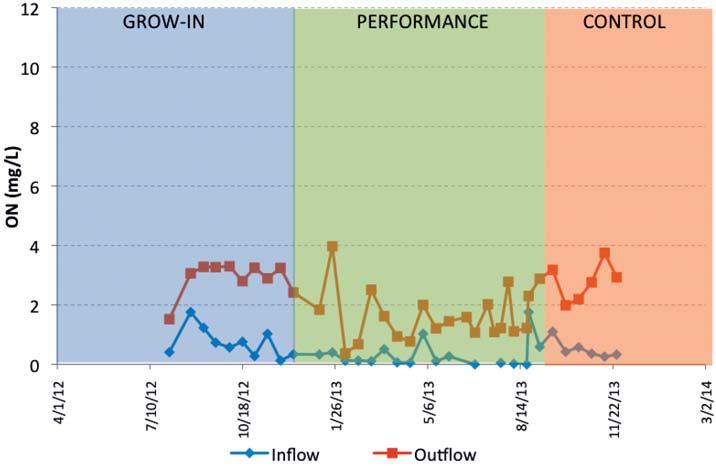

Figure 3. Organic Nitrogen Concentrations
28
April 2015 • Florida Water Resources Journal
The test cell nitrogen cycle, performance of each nitrogen species, and the potential for FWIs to reduce TN concentrations within reclaimed water storage facilities were assessed. Figure 4 shows the principal components of the nitrogen cycle in the test cell with the FWIs. The various forms of nitrogen in aquatic systems are continually involved in a process of transformation from inorganic to organic compounds and back from organic to inorganic (Kadlec and Wallace 2009). Some of these processes are microbially mediated, requiring energy (typically derived from an organic carbon source), and others release energy, which is used by organisms for growth and survival. Most of the chemical changes are controlled through the
production of enzymes and catalysts by the living organisms they benefit. Principal processes transform nitrogen from one form to another. The processes assessed include ammonification, nitrification, denitrification, plan uptake, algal assimilation, and burial. A detailed understanding of these nitrogen transfer and transformation processes is important for understanding treatment performance of storage facilities with and without FWIs. A nitrogen mass balance was estimated for the performance and control periods. The nitrogen mass balance consists of quantification of the fate of nitrogen within the test cell, the nitrogen fluxes and nitrogen species conversions based on the water balance, and water quality monitoring done during the study. Figure 5 presents the nitrogen mass balance during the performance period. During this period, the percent mass removal is estimated to be 61 percent, with 56 percent estimated as loss in the form of elemental nitrogen to the atmosphere (denitrification). Approximately 87 percent of the test cell inflow nitrogen is composed of oxidized nitrogen. Based on the tissue samples gathered and the liner biofilm samples, it is estimated that approximately 4.3 g N/m2/yr is lost to system storage. This corresponds to 4.2 g N/m2/yr bound in the calcified cyanobacteria and 0.1 g N/m2/yr bound in the plant tissue. During the establishment period, system storage corresponds to 5 percent of TN lost. Plant uptake during this period is attributed to only 0.2 percent of the TN removed. Figure 6 presents the nitrogen mass balance during the control period. During this period, the percent mass removal is estimated to be 32 percent, with 24 percent estimated as loss of nitrogen gas to the atmosphere (gasification or denitrification). At a greater rate than in the previous periods, algal uptake (algal biomass) was responsible for converting the nitrate to organic nitrogen, which is then exported in the test cell outflow. Approximately 96 percent of the nitrogen in the test cell outflow was composed of organic nitrogen. During the control period, a significantly greater loss of approximately 24 percent less nitrogen to the atmosphere was estimated when compared to the performance period. By removing the FWIs, the mass balance suggests that the ability of the system to denitrify and convert oxidized nitrogen to organic nitrogen is greatly reduced, and the majority of the nitrogen is exported in the outflow stream. Based on the liner cyanobacteria samples, approximately 4.2 g N/m2/yr is lost to system storage. Because the islands were removed during this period, plant uptake is removed from this mass balance. During the establishment period, system storage corresponds to 7 percent of TN lost.

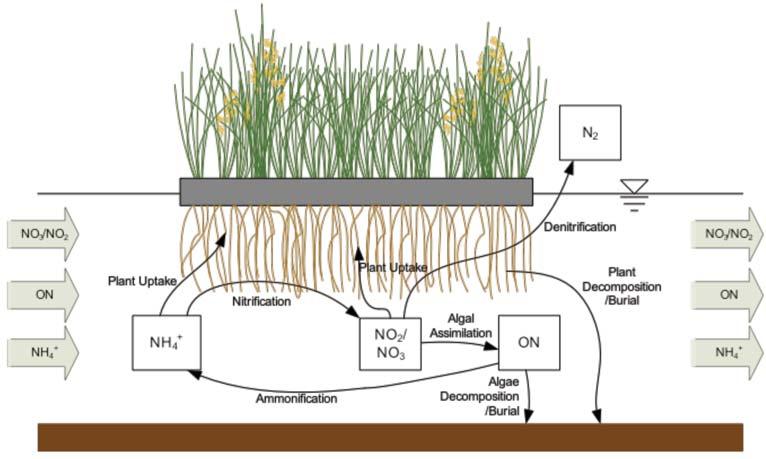

Figure 4. Simplified Nitrogen Cycle for the Floating Wetland Islands Test Cell

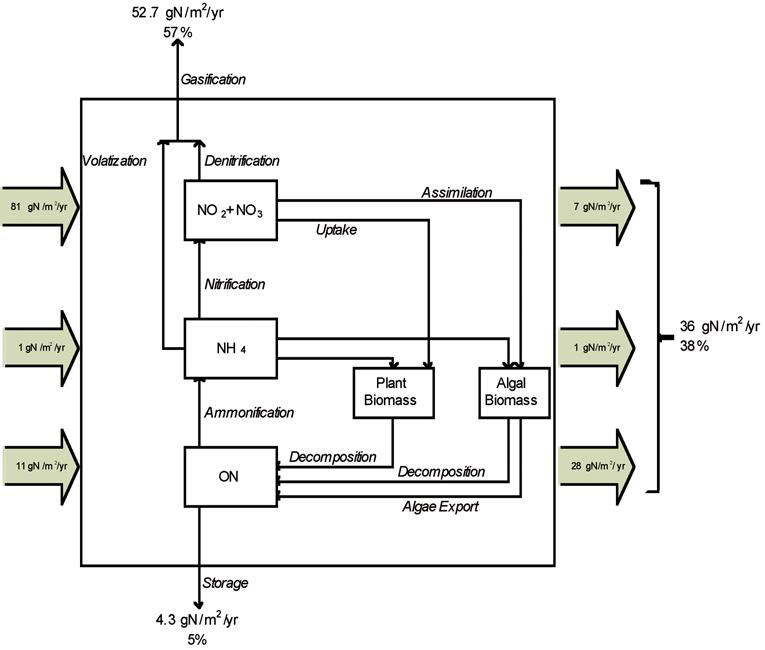

Figure 5. Performance Period Nitrogen Mass Balance
When comparing the mass reduction of the two periods, the mass removal that can be attributed to the FWIs can be estimated. A unit rate of denitrification of the performance period was estimated to compare to the control period. By comparing the denitrification rates of the control period with the performance period, a total mass of 630 kgN/yr can be attributed to the FWIs. This corresponds to a mass removal rate of approxi-
mately 0.4 kgN/yr (0.9 lb/yr) per sq ft of floating island. Plant uptake contributed to approximately 0.2 percent of this removal rate.
Treatment Model Calibration and Performance Assessment Nitrogen removal in the test cell can occur Continued on page 30
Florida Water Resources Journal • April 2015
29
Continued from page 29 through three main processes: denitrification, plant uptake, and burial. The P-k-C* model (Kadlec and Wallace, 2009) was used to evaluate the monthly treatment of the nitrogen species in the test cell (Table 2). First-order removal rates were fitted to the measured species concentrations in the inflow and outflow of the test cell for each period. Calculated treatment rate constants for nitrate are higher during the control period than during the performance period, indicating that the effect of the FWIs may be a decrease in nitrate removal rates. The water quality results suggest that each period has a different background concentration for organic nitrogen. For the establishment, performance, and control periods, background concentrations for organic nitrogen of 3.3, 1.4, and 3.6 mg/L, respectively, were fitted based on
the achievable outflow concentrations for each period. The increased background concentrations for organic nitrogen during the establishment and control periods, when FWIs were not established or not present, suggests that algal activity is increased. The data suggest that the FWIs had a significant effect on algal activity within the test cell. Based on TN observations in the inflow and outflow of the test cell and calibration of rate constants and background concentrations, it appears that the FWIs had an effect on TN removal. Rate constants calculated during the performance period are within the range of typical treatment wetland performance. Removal of the FWIs and observations during the control period indicated that treatment performance for TN was reduced. During the performance period, a TN treatment efficiency of 61 percent was observed, compared to 30 percent treatment
efficiency during the control period. When accounting for the effects of temperature, approximately 63 percent of the TN treatment observed during the study can be attributed to the presence of FWIs.
Conclusions The results from this study indicate that FWIs installed in reclaimed water reservoirs may aid in the removal of total nitrogen within the system. These systems may be capable of enhancing TN removal capacity by limiting suspended algae activity and enhancing denitrification. The result is robust removal of oxidized nitrogen and decreased levels of organic nitrogen in the test cell outflow, which lead to decreased levels of TN. Increased performance was observed during the performance period when compared to the control period. The test cell achieved 61 percent mass removal efficiency of TN during the performance period while the FWIs were established, and only 30 percent mass removal efficiency of TN during the control period while there were no FWIs in the test cell. The rate at which the FWIs were found to remove TN from the test cell was 0.9 lb/ft2 of island per year. The test cell included a total of 1,600 sq ft of FWI, so the total rate of removal of TN that can be attributed to FWIs is approximately 1,440 lb (almost 0.75 ton) of TN per year. This rate of removal may be applicable for systems receiving reclaimed water of similar characteristics and at similar rates. However, because ponds can differ in depth, size, and loads, each system must be assessed to understand the capacity for FWIs to remove TN.
References
Figure 6. Control Period Nitrogen Mass Balance

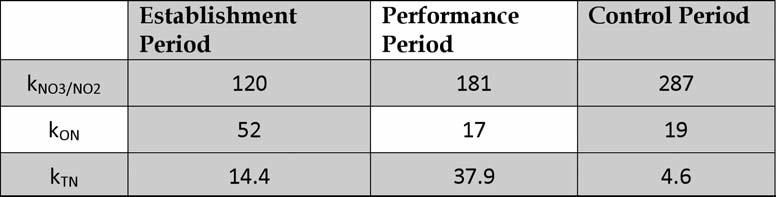

Table 2. Summary of Nitrogen Species Areal Rate Constants (m/yr)
30
April 2015 • Florida Water Resources Journal
• Borne, K.E. et al., 2013. Stormwater Nitrogen Removal Performance of a Floating Treatment Wetland. Water Science and Technology. 68 7: 1657-1667. • Headley, T.R., and Tanner, C.C., 2006. “Application of Floating Wetlands for Enhanced Stormwater Treatment: A Review.” Prepared for Auckland Regional Council, New Zealand. • Kadlec, R.H., and Wallace, S., 2009. Treatment Wetlands. CRC Press, Boca Raton, Fla. • Riding, R. 2011. Calcified cyanobacteria. In J. Reitner and V. Thiel (eds), Encyclopedia of Geobiology. Encyclopedia of Earth Science Series, Springer, Heidelberg, pp. 211-223. • Tampa Bay Estuary Program, 2012. 2012 Tampa Bay Reasonable Assurance Submittal. Accessed via the internet at: http://www.tbeptech.org/index.php?option=co m_content&view=category&id=29&Itemid=5 4&limitstart=10.
Operators: Take the CEU Challenge! Members of the Florida Water & Pollution Control Association (FWPCOA) may earn continuing education units through the CEU Challenge! Answer the questions published on this page, based on the technical articles in this month’s issue. Circle the letter of each correct answer. There is only one correct answer to each question! Answer 80 percent of the questions on any article correctly to earn 0.1 CEU for your license. Retests are available.
This month’s editorial theme is Conservation and Reuse. Look above each set of questions to see if it is for water operators (DW), distribution system operators (DS), or wastewater operators (WW). Mail the completed page (or a photocopy) to: Florida Environmental Professionals Training, P.O. Box 33119, Palm Beach Gardens, FL 33420-3119. Enclose $15 for each set of questions you choose to answer (make checks payable to FWPCOA). You MUST be an FWPCOA member before you can submit your answers!
Reuse Water Reservoirs Help Meet Nitrogen Total Maximum Daily Load: Do Floating Wetland Islands Help? Rafael Vazquez-Burney, Jeffrey Harris, James Bays, Kerstin Kenty, and Ryan Messer (Article 1: CEU = 0.1 WW) 1. Based on plant tissue sampling, it is estimated that 2.2 kg of ________ was bound up in island plant tissue. a. b. c. d.
nitrate nitrite organic nitrogen total nitrogen
2. The highest percentage total nitrogen removal in the test cell was achieved in the ___________ period. a. b. c. d.
dormant grow-in performance control
3. The study concluded that the floating wetland islands removed _________ of total nitrogen in the test cell. a. b. c. d.
0.9 lb/sq/day 1600 lb/year 1440 lb/year 30 percent
4. Oxidized nitrogen consists of
___________________________________________ SUBSCRIBER NAME (please print)
Article 1 ________________________________________
a. b. c. d.
nitrite plus nitrate. Total Kjeldahl nitrogen. ammonia nitrogen. organic nitrogen.
5. The observed change in dominant nitrogen form from inflow to outflow suggests
LICENSE NUMBER for Which CEUs Should Be Awarded
If paying by credit card, fax to (561) 625-4858 providing the following information:
a. b. c. d.
high inflow ammonia nitrogen concentrations. the conversion of inorganic to organic nitrogen. nitrification. denitrification.
___________________________________________ (Credit Card Number)
Earn CEUs by answering questions from previous Journal issues!
___________________________________________
Contact FWPCOA at membership@fwpcoa.org or at 561-840-0340. Articles from past issues can be viewed on the Journal website, www.fwrj.com.
(Expiration Date)
Florida Water Resources Journal • April 2015
31
FSAWWA SPEAKING OUT
FSAWWA Legislative Update and the “Year of Water” Mark Lehigh Chair, FSAWWA he latest annual legislative session is in full swing, and with Governor Rick Scott in his second term and new leadership in the Florida Senate and House, water issues are expected to be a hot topic. In fact, it’s said that this is to be the “year of water.” On February 17, a delegation from FSAWWA, led by Utility Council Chair Rob Teegarden, descended on Florida’s capitol for the 2015 Legislative Day in Tallahassee. This year’s events provided an in-depth discussion with legislators on water policy solutions to establish water funding priorities. Water expert Edgar Fernandez led things off with introductions, while Teegarden gave an overview of the day. A strong contingent of more than 40 FSAWWA member volunteers were in attendance to voice concerns about water issues. Assigned to six different teams and arranged by geographic locations around the state, Utility Council members briefed the teams on topics to be discussed and introduced them to their team leaders. Armed with information and led by knowledgeable, passionate, and motivated team leaders, it was then time to sit down and discuss water topics face-to-face with 49 of Florida’s legislators.
T
The prevailing theme throughout the day was that water issues must be comprehensive and statewide, with the long-term health of Florida’s ecosystem in mind. Policies must be flexible, with both long- and short-term strategies that include strategic investments in water projects that will improve our overall supply and quality. No issue is more important to maintaining the quality of life of the citizens of Florida than an abundant and clean supply of water. Adequate investment in water infrastructure ensures safe and reliable water systems to attract and retain industry, business, and qualified workers, which are essential to economic vitality and growth. Conservative estimates for maintaining and protecting this vital resource over the next 20 years total a staggering $43 billion. One of the key points for teams as they met with legislators was Amendment 1, which was approved last November by 75 percent of the voters and is sure to get a lot of attention. Many believe that the amendment allows for a portion of the funds to be used for water and water infrastructure needs if those expenditures protect or conserve water resources or natural systems. This is what the teams focused on and the message that was delivered at each meeting. Funding for water projects can and should come from Amendment 1 dollars as long as they protect or conserve water resources or natural systems as the amendment reads. Other topics included continuing services contract limits, line relocation study, water in-
Above: One of the many discussions that took place at the meeting. At right: Participants in Legislative Day included Flip Mellinger, Marion County (seated), and (standing, left to right): Bill Young, St. Johns County Utility; Rep. Dennis Baxley, Ocala; Blake Bennett, American Cast Iron Pipe; Suzanne Goss, JEA; and Justin Sobol, Abengoa.
32
April 2015 • Florida Water Resources Journal
frastructure funding, water policy legislation, and utility employee safety. All of these issues were received well by legislators throughout the day. We were all treated to a meeting with Adam Putnam, Florida’s commissioner for agriculture, who expressed his passion and commitment to protecting the quantity and quality of the state’s water supply. He pointed out that creative solutions are necessary for water policy and that he would like to see an “overarching regional framework” in which all parts of Florida help one another. Commissioner Putnam said that “the biggest challenge to Florida’s long-term growth was getting water policy right.” It was refreshing to see his energy and enthusiasm concerning water policy. At the end of the day it looks like water policy is getting the needed attention it deserves. The Utility Council has been working with legislators for years on the importance of water to this state. Every single legislator that we talked to was acutely aware of, and engaged in, water policy. Hard work does pay off. The FSAWWA Utility Council does a fantastic job of organizing this every year. Kudos to all the volunteers for a job well done. The value of becoming a Utility Council member is clearly evident by the accumulation of work throughout the year that is presented in one day at the state’s capitol. Come join us next year—I guarantee you will be impressed and informed. I know I was.
WEF Members Tune Up for Jammin’4Water 2015 A California jam session evolves into a WEFTEC tradition of music, fellowship, and good doings Musicians inevitably find other like-minds and talents with which to play. In today’s world, apps and websites more frequently bring musicians together—and so does the Water Environment Federation. Members of WEF networking about water quality expanded their focus in 2012 to include a side helping of musical fellowship and charity fundraising. That first year, two dozen attendees at the Water Environment Federation Technical Exhibition and Conference (WEFTEC) gathered to play at Diego Rosso’s studio in Los Angeles. That early session got lots of attention and became the popular and fast growing water industry-related musical collaboration and charity event Jammin’4Water, also known as J4W. Following the 2012 gathering, a core of the
musicians and supporters noted the interest on both the performing and spectator side of the stage and agreed it should be expanded into a more organized event. Chandler Johnson (hard rocker) and Matt Livingston (mandolin) approached Dave Kinnear (guitar) and offered to step up monetarily if they could take it to a higher level. They decided to secure an appropriate venue for the next year to hold the event to raise money for water-related charities. A few phone calls and emails later, Kinnear was able to secure the sponsorships. The WEF Students and Young Professionals Committee (SYPC) was identified as the original recipient, with proceeds benefitting its Chicago Service Project. The Saturday night before 2013 WEFTEC in Chicago, the first official event occurred. Mu-
sicians, friends, family, sponsors, attendees, and members of SYPC filled the room to the 120person capacity. Musicians also donated to the charity to secure a stage spot and the rights to perform and produce their bucket-list music before an enthusiastic audience. Some songs were solo; others were truly a jam session with a full stage. “In addition to supporting water charities, the garage band sensation in the room excited both young and old WEF professionals alike. It was ‘WEF meets Woodstock’ in a very positive groove,” said Kinnear. In 2014 the core group incorporated, assembled a formal board of directors, and obtained federal 501(c)3 nonprofit status. “Water Charities Fundraising” was now organized to host an annual charity event on the Saturday prior to WEFTEC that consisted of an open-microphone format with eclectic live performances by WEFTEC attendees. That year, J4W raised $17,000, which was donated to the following groups: SYPC Water For People Winetowater Global H2O Water.org The House of Blues in the New Orleans French Quarter hosted the event, with Tom Kunetz and Mary Knosby serving as the masters of ceremonies. Over 30 musicians entertained almost 300 attendees. Performances ranged from traditional Irish and bluegrass to rock and roll, with standards like “House of the Rising Sun” by The Animals, the Jethro Tull standby, “Cross-Eyed Mary,” and “Sweet Child of Mine” by Guns N’ Roses. Many companies went beyond sponsorships and bought tickets for clients, manufacturer’s representatives, and young professionals. “Initially, we signed up to support our musical friend and representative, Max Foster of Premier Water. We couldn’t be happier that the event has evolved beyond great music and a diverse audience to a water charity fundraiser. We are very proud to be a part of this special event,” said Dave Caspersen, president of Custom Conveyor Corporation, which is also an event sponsor. Other sponsoring organizations included: World Water Works
34
April 2015 • Florida Water Resources Journal
Novozymes PC Construction Cambi Huber USA HDR Engineering Garney Construction VeloDyne CH2M HILL Indigo Water Group MWH Brown and Caldwell Premier Water
AECOM inCTRL The Third Annual Jammin’4Water 2015 will be held in Chicago on Saturday, September 26, at 6:00 p.m. at Redmoon Events Venue (www.redmoon.org). More than 70 artists have expressed an interest in performing. What started out with a few people jamming one weekend has turned into something special. Look for Jammin’4Water to continue on a high note.
If you would like to participate as a musician, sponsor, or attendee, email Dave Kinnear at dkinnear@hdrinc.com or please find details at: • Website: www.jammin4water.org • Facebook: https://www.facebook.com/jammin4water • YouTube: https://www.youtube.com/channel/UCGzj-KILvCNK0qpQzq_45WQ YouTube contains all of the 2014 performances.
Florida Water Resources Journal • April 2015
35
PROCESS PAGE Greetings from the FWEA Wastewater Process Committee! This month’s column highlights the Van Dyke Water Reclamation Facility. This facility took the runner-up Earle B. Phelps Award in the category of secondary treatment in 2014.
Award-Winning Van Dyke Water Reclamation Facility Meets Many Challenges Ron Trygar he Van Dyke Water Reclamation Facility is one of seven wastewater treatment plants operated by the Hillsborough County Public Utilities Department. Although the average daily flow to the plant is the lowest among the County’s treatment facilities, the Van Dyke treatment plant has not been without its operational challenges.
T
Many Upgrades Over the Years The original Van Dyke Wastewater Treatment Plant was built in 1986 to serve the residents of the Lake Carlton Arms apartment complex and was operated by a contract operations firm for the developer of the property. In October 1988, Hillsborough County took over operation and maintenance of the facility and made plans for retrofitting much of the existing equipment on the plant site. Between 1995 and 1997, modifications to the plant included the addition of a tetra effluent filtration system (four filters, one mudwell, and one clearwell), an additional chlorine contact chamber, a sludge holding tank, conversion of the existing traveling bridge filters into a filter lift station, and a flow-paced chlorine feed system. These modifications gave the facility Class I reliability, and al-
lowed the expansion of the reclaimed water system to full capacity. In March 1999, the permitted capacity was increased from 1.5 mil gal per day (mgd) to 1.7 mgd through a Florida Department of Environmental Protection permit modification, and in that same year, a biofilter odor control system was added to the headworks. A ground storage tank for reclaimed water storage was added in 2006 and improvements to the facility were completed in 2010. During this effort, the existing brush rotors were rehabilitated and larger horsepower motors were installed to improve oxygen transfer to the extended aeration plant’s mixed liquor suspended solids. Clarifier rehabilitation, along with new return and waste sludge pumps, were installed to improve operation flexibility. Upgrades to the plant headworks preliminary treatment system were completed in 2012 and involved replacement of the influent barscreens, grit removal equipment, sluice gates, and other associated equipment. Replacement of the valves that control flow into each oxidation ditch in 2013 inadvertently led to the discovery of severely corroded underground 16-in. ductile iron piping that feeds the two oxidation ditches, requiring complete pipe and valve replacement (see photo). Plant operators and county maintenance personnel went above and beyond the

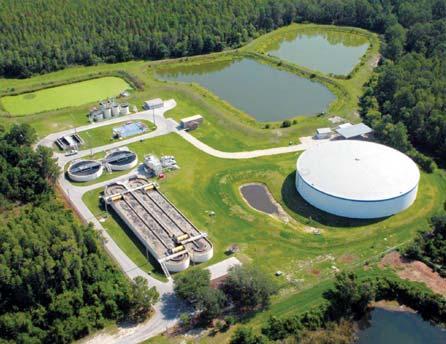

Aerial view of the Van Dyke Wastewater Treatment Facility, June 2007.
36
April 2015 • Florida Water Resources Journal

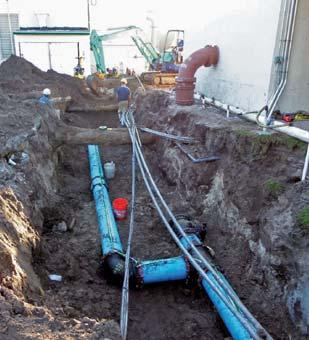

Pipe and valve replacement at the facility, September 2013.
call of duty to quickly implement an emergency pump and pipeline diversion to continue the flow of influent wastewater to the oxidation ditches while repairs were made to the original underground piping. This bypass flow around the broken feed pipes from the headworks to the ditches was in place for the two-week time period it took to make repairs. Through all these modifications, construction, and unusual events, the plant continued to provide high-quality reclaimed water to its customers.
The Plant Today The plant services several large communities, including Cheval Country Club East and West, Calusa Trace, Van Dyke Farms, Lake Carlton Arms, and St. Joseph’s Hospital, which are all located in the northwest corner of Hillsborough County. Monthly average flow through the facility is 1.17 mgd, roughly 70 percent of its permitted capacity. Through the efforts of a dedicated staff of three (LaTisha Staley, Mack Luton, and Ryan Alexander) the Van Dyke Advanced Secondary Wastewater Treatment Facility continues to be a winner every day! Ron Trygar, CET, is a wastewater process control specialist with Hillsborough County Public Utilities Department in Tampa.
