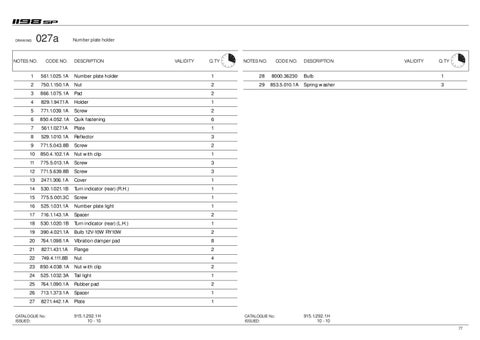

DRAWING
027a
NOTES NO.
CODE NO.
Number plate holder
DESCRIPTION
VALIDITY
Q.TY
NOTES NO.
CODE NO.
DESCRIPTION
VALIDITY
Q.TY
1
561.1.025.1A
Number plate holder
1
28
8000.36230
Bulb
1
2
750.1.150.1A
Nut
2
29
853.5.010.1A
Spring washer
3
3
866.1.075.1A
Pad
2
4
829.1.947.1A
Holder
1
5
771.1.039.1A
Screw
2
6
850.4.052.1A
Quik fastening
6
7
561.1.027.1A
Plate
1
8
529.1.010.1A
Reflector
3
9
771.5.043.8B
Screw
2
10
850.4.102.1A
Nut with clip
1
11
775.5.013.1A
Screw
3
12
771.5.639.8B
Screw
3
13
247.1.306.1A
Cover
1
14
530.1.021.1B
Turn indicator (rear) (R.H.)
1
15
775.5.001.3C
Screw
1
16
525.1.031.1A
Number plate light
1
17
716.1.143.1A
Spacer
2
18
530.1.020.1B
Turn indicator (rear) (L.H.)
1
19
390.4.021.1A
Bulb 12V-10W RY10W
2
20
764.1.098.1A
Vibration damper pad
8
21
827.1.431.1A
Flange
2
22
749.4.111.8B
Nut
4
23
850.4.038.1A
Nut with clip
2
24
525.1.032.3A
Tail light
1
25
764.1.090.1A
Rubber pad
2
26
713.1.373.1A
Spacer
1
27
827.1.442.1A
Plate
1
CATALOGUE No: ISSUED:
915.1.292.1H 10 - 10
CATALOGUE No: ISSUED:
915.1.292.1H 10 - 10 77
