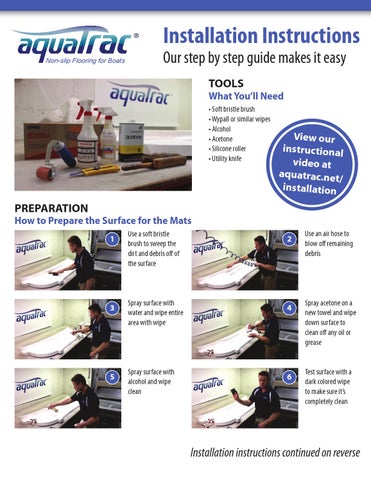

Aquatrac Installation Guide

Installation Instructions Non-slip Flooring for Boats

Our step by step guide makes it easy TOOLS

What You’ll Need • Soft bristle brush • Wypall or similar wipes • Alcohol • Acetone • Silicone roller • Utility knife

View our instructional video at aquatrac.net/ installation

PREPARATION

How to Prepare the Surface for the Mats 1

3

5

Use a soft bristle brush to sweep the dirt and debris off of the surface

Spray surface with water and wipe entire area with wipe

Spray surface with alcohol and wipe clean

2

4

6

Use an air hose to blow off remaining debris

Spray acetone on a new towel and wipe down surface to clean off any oil or grease Test surface with a dark colored wipe to make sure it’s completely clean

Installation instructions continued on reverse

Installation Instructions Continued INSTALLATION

Step by Step Installation Instructions 1

3

5

7

9

Pads should be staged on a clean table, turn pads over so paper release liner side is facing up In the middle of the pad, lightly slit the release liner with a utility knife

Place pad on the platform with the paper liner facing down and adjust the pad into the desired position Once the pad is secure, lift up one side and begin to remove the release liner by carefully pulling on the folded tab Slowly stick the pad into the position and use a roller to smooth out the pad, pay extra attention to the perimeter of the pad

2

4

6

8

10

Vacuum off dust and debris, then wipe off liner with a clean dry towel

Fold back release liner about 1.5" to 2" from the slit, then crease the fold and repeat process on other side of the slit Without moving the pad press down on the surface over the folded area to lock the pad in place Remove the liner on the other side

Repeat this entire process on the remaining pads
