ROAD VEHICLE LIGHTING

ROAD VEHICLE LIGHTING Our extensive range of LED road vehicle lighting is fully homologated and designed with quality in mind to ensure the safety of all users on the road.

> Marker Lights......................................................................................12 > Number Plate Lights.......................................................................23 > Front Lights....................................................................................... 26 > Front Position Lights / Indicators .......................................... 29 > Indicators..............................................................................................31 > Rear Lights..........................................................................................33 > Reflectors...........................................................................................44

www.venta.global

// 11

Marker Lights ROAD VEHICLE LIGHTING

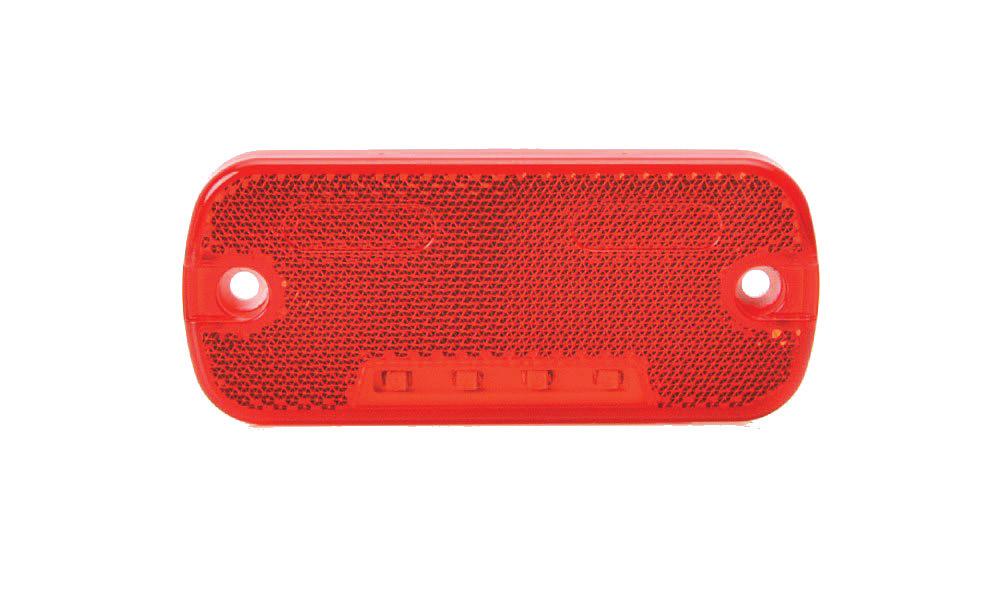

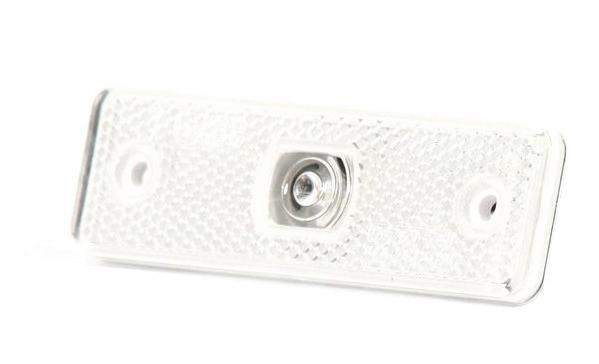

RL198 Series Dotless LED Marker Light with Reflector >M odern, dotless marker light with an integrated reflector. >A pproved for vertical and horizontal mounting. > Durable and waterproof. >A DR-approved version available.

>S upplied pre-terminated with a Superseal connector as standard for fast and simple installation. >S crews go through the back plate only and not the light, maintaining the integrity of the seal. >E CE R3, R6, R7, R10, R91.

PART NUMBER

RL1980 RL198001

RL198002

DESCRIPTION Dotless LED Side Marker Light with Reflector, Superseal Connector and Bracket Dotless LED Side Marker Light with Reflector and Direction Indicator, Superseal Connector and Bracket Dotless LED Side Marker Light with Reflector and Direction Indicator, Female Superseal Connector and Bracket

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

12/24

0.058A @ 12V 0.063A @ 24V

IP68

250

124x49x20

0.110

12/24

0.058A @ 12V 0.063A @ 24V

IP68

250

124x49x20

0.103

12/24

0.058A @ 12V 0.063A @ 24V

IP68

250

124x49x20

0.112

RL198003

Dotless LED Rear Marker Light with Reflector and Superseal Connector

12/24

0.058A @ 12V 0.063A @ 24V

IP68

250

124x49x20

0.097

RL198004

Dotless LED Front Marker Light with Reflector and Superseal Connector

12/24

0.058A @ 12V 0.063A @ 24V

IP68

250

124x49x20

0.097

Branded LED Marker Light with Vehicle Side Illumination >C ustomisable centre illuminates branding of your choice. >E mits light on the ground, outlining your vehicle on the road. >R etroreflector increases the safety of parked vehicles.

>S uitable for horizontal or vertical mounting. >S upplied pre-terminated with a Superseal connector as standard for fast and simple installation. > ECE R3, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL876201

Branded LED Side Marker Light with Vehicle Side Illumination and Superseal Connector

12/24

0.183A @ 12V 0.183A @ 24V

IP69K

250

134x52x25

0.150

Available for next business day delivery with our FastLane promise.

// 12

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

SM97 Series Compact LED Marker Light > Surface mount. >A pproved for vertical and horizontal mounting. >E CE R7, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM9701

Compact LED Side Marker Light

12/24

0.025A @ 12V 0.029A @ 24V

IP68

220

84x24x10.4

0.028

SM9702

Compact LED Rear Marker Light

12/24

0.025A @ 12V 0.029A @ 24V

IP68

220

84x24x10.4

0.028

SM9702S

Compact LED Rear Marker Light with Superseal Connector

12/24

0.025A @ 12V 0.029A @ 24V

IP68

270

84x24x10.4

0.032

12/24

0.025A @ 12V 0.029A @ 24V

IP68

270

84x24x10.4

0.028

SM9704

Compact LED Front Marker Light

> Did you know?

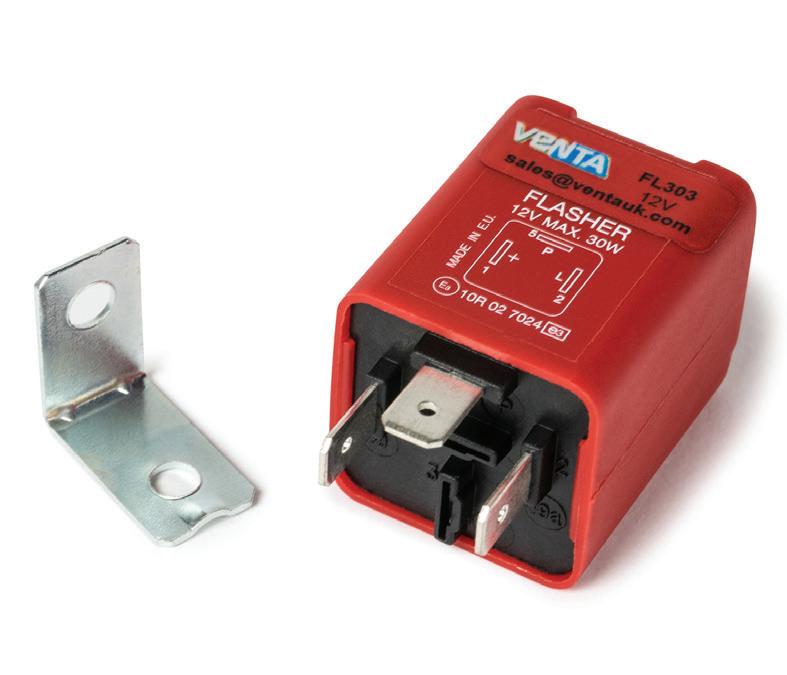

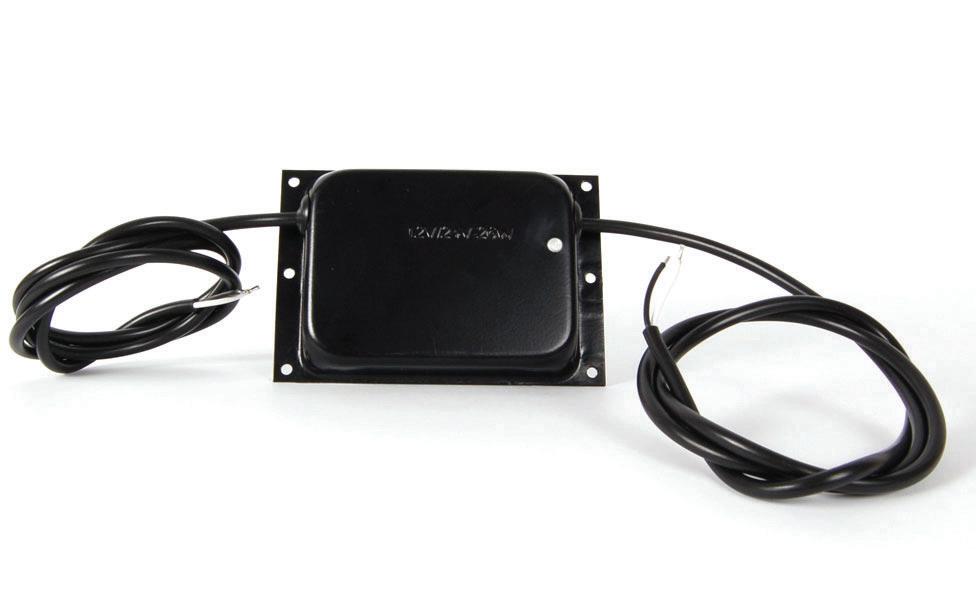

We have a side marker flasher unit available to help you meet the updated Regulation 48 legislation.

The flasher unit allows you to flash your side markers to act as indicators, providing a cheaper alternative to fitting side markers with direction indicators.

See further details on page 109

www.venta.global

// 13

ROAD VEHICLE LIGHTING

SM189 Series LED Marker Light > Homogeneous light output. >A vailable with waterproof connectors. >D ual voltage. >L ow profile at just 13mm deep. >E CE R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM18902

LED Rear Marker Light

12/24

0.042A @ 12V 0.042A @ 24V

IP68

540

110x31x13

0.045

SM18904

LED Front Marker Light

12/24

0.042A @ 12V 0.042A @ 24V

IP68

540

110x31x13

0.045

SM19001 Series LED Marker Light with Reflector > Homogeneous light output. >A vailable with waterproof connectors. >D ual voltage. >A DR-approved version available. >E CE R3, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM19001

LED Side Marker Light with Reflector

12/24

0.058A @ 12V 0.075A @ 24V

IP68

520

117x55x20

0.117

// 14

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

SM128 Series Slimline, Surface Mount LED Marker Light with Retroreflector >S limline surface mount design. >F ully homologated for vertical and horizontal mounting. > ECE R3, R7, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM12801

Slimline, Surface Mount LED Side Marker Light with Retroreflector

12/24

0.033A @ 12V 0.029A @ 24V

IP68

220

105x45x12

0.055

12/24

0.033A @ 12V 0.029A @ 24V

IP68

265

105x45x12

0.062

12/24

0.033A @ 12V 0.029A @ 24V

IP68

250

105x45x12

0.064

12/24

0.033A @ 12V 0.029A @ 24V

IP68

220

105x45x12

0.055

12/24

0.033A @ 12V 0.029A @ 24V

IP68

250

105x45x12

0.064

12/24

0.033A @ 12V 0.029A @ 24V

IP68

220

105x45x12

0.055

12/24

0.033A @ 12V 0.029A @ 24V

IP68

265

105x45x12

0.062

SM12801DC SM12801S SM12802 SM12802S SM12804 SM12804DC

Slimline, Surface Mount LED Side Marker Light with Retroreflector with Deutsch Connector Slimline, Surface Mount LED Side Marker Light with Retroreflector with Superseal Connector Slimline, Surface Mount LED Rear Marker Light with Retroreflector Slimline, Surface Mount LED Rear Marker Light with Retroreflector with Superseal Connector Slimline, Surface Mount LED Front Marker Light with Retroreflector Slimline, Surface Mount LED Front Marker Light with Retroreflector with Deutsch Connector

> Did you know?

We sell vehicle wiring systems!

For a modular solution, our own Rappid® plug and play system of cables and connectors provides a simple, quick and cost-effective alternative to hard wiring.

We also provide bespoke harness systems for high volume vehicle production.

See page 98 for more details or visit our website.

// 15

ROAD VEHICLE LIGHTING

SM44 Series LED Marker Light >D ual polarity for foolproof installation.

>A vailable with Superseal connectors.

> Compact design.

>A DR-approved version available.

>A pproved for mounting both vertically and horizontally.

> ECE R3, R7, R10, R91.

> Depth of marker light: 25mm. Once mounted, protrudes just 8mm.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM4401

LED Side Marker Light

12/24

0.033A @ 12V 0.033A @ 24V

IP68

220

98x32x8

0.027

SM4401H

LED Side Marker Light with Bracket

12/24

0.033A @ 12V 0.033A @ 24V

IP68

220

98x62x8

0.036

SM4401HL

LED Side Marker Light with Long Bracket

12/24

0.033A @ 12V 0.033A @ 24V

IP68

430

98x105x8

0.053

LED Side Marker Light with Long Bracket and Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

450

98x105x8

0.061

SM4401HLS-620

LED Side Marker Light with Long Bracket with Holes and Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

655

98x105x8

0.070

SM4401HS

LED Side Marker Light with Bracket and Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

250

98x62x8

0.043

SM4401HSF

LED Side Marker Light with Bracket and Female Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

240

98x32x8

0.041

SM4401S

LED Side Marker Light with Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

290

98x32x8

0.042

SM4401S-240

LED Side Marker Light with Superseal Connector, 240mm Cable

12/24

0.033A @ 12V 0.033A @ 24V

IP68

240

98x32x8

0.037

SM4402

LED Rear Marker Light

12/24

0.033A @ 12V 0.033A @ 24V

IP68

220

98x32x8

0.029

SM4402H

LED Rear Marker Light with Bracket

12/24

0.033A @ 12V 0.033A @ 24V

IP68

220

98x65x8

0.036

SM4402HS

LED Rear Marker Light with Bracket and Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

290

98x65x8

0.046

SM4402S

LED Rear Marker Light with Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

290

98x32x8

0.043

SM4404

LED Front Marker Light

12/24

0.033A @ 12V 0.033A @ 24V

IP68

220

98x32x8

0.028

SM4404S

LED Front Marker Light with Superseal Connector

12/24

0.033A @ 12V 0.033A @ 24V

IP68

290

98x32x8

0.036

SM4401HLS

Available for next business day delivery with our FastLane promise.

// 16

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

SM65 Series Oval LED Marker Light >S urface mount, no cutout required.

>D epth of marker light: 12mm.

Depth including bracket: 34mm.

>D ual polarity for foolproof installation.

>A vailable with Superseal connectors.

>A vailable with horizontal mounting bracket.

> ECE R3, R7, R10, R91.

> Aesthetic design.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM6501H

Oval LED Side Marker Light with Bracket

12/24

0.04A @ 12V 0.04A @ 24V

IP68

220

102x68x34

0.045

SM6501HS

Oval LED Side Marker Light with Bracket and Superseal Connector

12/24

0.04A @ 12V 0.04A @ 24V

IP68

250

102x68x34

0.053

SM6501S

Oval LED Side Marker Light with Superseal Connector

12/24

0.04A @ 12V 0.04A @ 24V

IP68

250

102x46x12

0.042

SM6501-SMT

Oval LED Side Marker Light

12/24

0.04A @ 12V 0.04A @ 24V

IP68

220

102x46x12

0.033

SM6502

Oval LED Rear Marker Light

12/24

0.04A @ 12V 0.04A @ 24V

IP68

220

102x46x12

0.033

SM6502H

Oval LED Rear Marker Light with Bracket

12/24

0.04A @ 12V 0.04A @ 24V

IP68

220

102x68x34

0.045

SM6502S

Oval LED Rear Marker Light with Superseal Connector

12/24

0.04A @ 12V 0.04A @ 24V

IP68

250

102x46x12

0.042

SM6504

Oval LED Front Marker Light

12/24

0.04A @ 12V 0.04A @ 24V

IP68

220

102x46x12

0.032

SM6504H

Oval LED Front Marker Light with Bracket

12/24

0.04A @ 12V 0.04A @ 24V

IP68

220

102x68x34

0.045

SM6504S

Oval LED Front Marker Light with Superseal Connector

12/24

0.04A @ 12V 0.04A @ 24V

IP68

250

102x46x34

0.042

www.venta.global

// 17

ROAD VEHICLE LIGHTING

LED Outline Marker Light - Front / Rear with Reflector > Robust flexible housing. >D ual polarity for foolproof installation. > Integrated reflector.

>S hort stalk option with side marker available. > 2.2m cable. > ECE R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM604L/22

LED Outline Marker Light - Front / Rear with Reflector - Left Side

12/24

0.042A @ 12V 0.042A @ 24V

IP68

2200

161x180x37

0.309

12/24

0.042A @ 12V 0.042A @ 24V

IP68

2200

161x180x37

0.309

12/24

0.042A @ 12V 0.042A @ 24V

IP68

2200

130x131x37

0.266

12/24

0.042A @ 12V 0.042A @ 24V

IP68

2200

130x131x37

0.266

SLM604R/22 SLM605L/22 SLM605R/22

LED Outline Marker Light - Front / Rear with Reflector - Right Side LED Short Stalk Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side LED Short Stalk Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side

60° LED Outline Marker Light > Robust flexible housing. >A vailable with waterproof connectors.

>S hort stalk option with integrated reflector available.

> Dual voltage.

>E CE R3, R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM646L

60° LED Outline Marker Light Front Left Side

12/24

0.140A @ 12V 0.140A @ 24V

IP68

220

180x131x37

0.190

SLM646R

60° LED Outline Marker Light Front Right Side

12/24

0.140A @ 12V 0.140A @ 24V

IP68

220

180x131x37

0.190

SLM647L

60° Short Stalk LED Outline Marker Light Front / Rear with Reflector - Left Side

12/24

0.03A @ 12V 0.03A @ 24V

IP68

270

130x131x37

0.160

12/24

0.03A @ 12V 0.03A @ 24V

IP68

300

130x131x37

0.187

12/24

0.03A @ 12V 0.03A @ 24V

IP68

270

130x131x37

0.160

12/24

0.03A @ 12V 0.03A @ 24V

IP68

300

130x131x37

0.187

SLM647LS SLM647R SLM647RS

// 18

60° Short Stalk LED Outline Marker Light Front / Rear with Reflector - Left Side with Superseal Connector 60° Short Stalk LED Outline Marker Light Front / Rear with Reflector - Right Side 60° Short Stalk LED Outline Marker Light Front / Rear with Reflector - Right Side with Superseal Connector

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector > Integral side marker. > Integrated reflector.

> Available with Superseal connectors.

> Robust flexible housing.

> Short stalk option available.

> Dual polarity for foolproof installation.

>E CE R3, R7, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM642L

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector Left Side

12/24

0.04A @ 12V 0.04A @ 12V

IP68

220

180x131x37

0.208

SLM642L/1

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector Left Side, 1m Cable

12/24

0.04A @ 12V 0.04A @ 12V

IP68

1000

180x131x37

0.242

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector Left Side with Superseal Connector

12/24

0.04A @ 12V 0.04A @ 12V

IP68

260

180x131x37

0.224

SLM642R

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector Right Side

12/24

0.04A @ 12V 0.04A @ 12V

IP68

220

180x131x37

0.208

SLM642R/1

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector Right Side, 1m Cable

12/24

0.04A @ 12V 0.04A @ 12V

IP68

1000

180x131x37

0.242

60° LED Outline Marker Light - Front / Rear with Side Marker and Reflector Right Side with Superseal Connector

12/24

0.04A @ 12V 0.04A @ 12V

IP68

260

180x131x37

0.224

60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side

12/24

0.140A @ 12V 0.140A @ 24V

IP68

220

130x131x37

0.170

12/24

0.140A @ 12V 0.140A @ 24V

IP68

270

130x131x37

0.174

12/24

0.140A @ 12V 0.140A @ 24V

IP68

305

130x131x37

0.174

SLM642LS

SLM642RS

SLM643L

SLM643LS

SLM643LSF

60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side with Superseal Connector 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side with Female Superseal Connector

SLM643R

60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side

12/24

0.140A @ 12V 0.140A @ 24V

IP68

220

130x131x37

0.170

SLM643RS

60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side with Superseal Connector

12/24

0.140A @ 12V 0.140A @ 24V

IP68

270

130x131x37

0.174

SLM643RSF

60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side with Female Superseal Connector

12/24

0.140A @ 12V 0.140A @ 24V

IP68

305

130x131x37

0.174

Available for next business day delivery with our FastLane promise.

www.venta.global

// 19

ROAD VEHICLE LIGHTING

90° LED Outline Marker Light - Front / Rear > Robust flexible housing. >D ual polarity for foolproof installation. >A vailable with Superseal connectors. >E CE R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM297L

90° LED Outline Marker Light - Front / Rear - Left Side

12/24

0.120A @ 12V 0.120A @ 24V

IP68

220

182x158x49

0.246

SLM297L.DC

90° LED Outline Marker Light - Front / Rear - Left Side with Deutsch Connector

12/24

0.120A @ 12V 0.120A @ 24V

IP68

265

182x158x49

0.252

SLM297LS/1.2

90° LED Outline Marker Light - Front / Rear - Left Side with Superseal Connector, 1.2m Cable

12/24

0.120A @ 12V 0.120A @ 24V

IP68

1240

182x158x49

0.294

SLM297R

90° LED Outline Marker Light - Front / Rear - Right Side

12/24

0.120A @ 12V 0.120A @ 24V

IP68

220

182x158x49

0.246

12/24

0.120A @ 12V 0.120A @ 24V

IP68

265

182x158x49

0.252

12/24

0.120A @ 12V 0.120A @ 24V

IP68

1440

182x158x49

0.319

SLM297R.DC SLM297RS/1.4

90° LED Outline Marker Light - Front / Rear - Right Side with Deutsch Connector 90° LED Outline Marker Light - Front / Rear - Right Side with Superseal Connector, 1.4m Cable

LED Outline Marker Light Front / Rear > Compact design. > Robust flexible housing. >D ual polarity for foolproof installation. >A vailable with Superseal connectors. >E CE R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM275

LED Outline Marker Light - Front / Rear

12/24

0.033A @ 12V 0.033A @ 24V

IP68

360

60x50x52

0.053

// 20

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

LED Outline Marker Light Front / Rear with Reflector > Robust flexible housing. >D ual polarity for foolproof installation. > ECE R3, R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM634

LED Outline Marker Light Front / Rear with Reflector

12/24

0.120A @ 12V 0.120A @ 24V

IP68

330

97x78x48

0.148

SLM634SF

LED Outline Marker Light Front / Rear with Reflector and Female Superseal Connector

12/24

0.120A @ 12V 0.120A @ 24V

IP68

350

97x78x48

0.163

SM25 Series LED Marker Light > Compact design. > Surface mount. > Robust flexible housing. > Totally sealed unit. > ECE R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM2502RS

LED Rear Marker Light with Superseal Connector

12/24

0.022A @ 12V 0.023A @ 24V

IP68

250

78x42x48

0.49

SM2504

LED Front Marker Light

12/24

0.022A @ 12V 0.023A @ 24V

IP68

220

75x42x48

0.40

www.venta.global

// 21

ROAD VEHICLE LIGHTING

SLM817 Series LED Outline Marker Light - Front / Rear with Side Marker > Surface mount. > Dual voltage. > ECE R7, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SLM817

LED Outline Marker Light - Front / Rear with Side Marker

12/24

0.05A @ 12V 0.05A @ 24V

IP68

380

120x40x46

0.019

SLM817S

LED Outline Marker Light - Front / Rear with Side Marker with Superseal Connector

12/24

0.05A @ 12V 0.05A @ 24V

IP68

420

120x40x46

0.029

SLM817S/2

LED Outline Marker Light - Front / Rear with Side Marker with Superseal Connector, 2m Cable

12/24

0.05A @ 12V 0.05A @ 24V

IP68

2000

120x40x46

0.104

SM66 Series Push-Fit Recessed LED Marker Light > Only 29mm diameter.

> Dual voltage.

>R equires 21mm mounting hole.

> Robust construction.

>V ery quick and easy to install.

> ECE R3, R7, R10, R91.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SM6601

Push-fit Recessed LED Side Marker Light

12/24

0.02A @ 12V 0.04A @ 24V

IP68

220

29x27

0.016

SM6601/5

Push-fit Recessed LED Side Marker Light, 5m Cable

12/24

0.02A @ 12V 0.04A @ 24V

IP68

5000

29x27

0.224

SM6602

Push-fit Recessed LED Rear Marker Light

12/24

0.02A @ 12V 0.04A @ 24V

IP68

220

29x27

0.016

SM6602/5

Push-fit Recessed LED Rear Marker Light, 5m Cable

12/24

0.02A @ 12V 0.04A @ 24V

IP68

5000

29x27

0.224

Push-fit Recessed LED Rear Marker Light with Superseal Connector

12/24

0.02A @ 12V 0.04A @ 24V

IP68

250

29x27

0.027

SM6602S/5

Push-fit Recessed LED Rear Marker Light with Superseal Connector, 5m Cable

12/24

0.02A @ 12V 0.04A @ 24V

IP68

5040

29x27

0.228

SM6604

Push-fit Recessed LED Front Marker Light

12/24

0.02A @ 12V 0.04A @ 24V

IP68

220

29x27

0.016

SM6604/5

Push-fit Recessed LED Front Marker Light, 5m Cable

12/24

0.02A @ 12V 0.04A @ 24V

IP68

5000

29x27

0.224

12/24

0.02A @ 12V 0.04A @ 24V

IP68

250

29x27

0.027

12/24

0.02A @ 12V 0.04A @ 24V

IP68

5040

29x27

0.228

12/24

0.02A @ 12V 0.04A @ 24V

IP68

220

29x27

0.016

SM6602S

SM6604S SM6604S/5 SM6605

// 22

Push-fit Recessed LED Front Marker Light with Superseal Connector Push-fit Recessed LED Front Marker Light with Superseal Connector, 5m Cable Push-fit Recessed LED Green Marker Light

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

ROAD VEHICLE LIGHTING

Number Plate Lights NP100 Series Surface Mount LED Number Plate Light >T otally surface mount design. >S uitable for rectangular or square number plates. > Sealed unit. > Dual voltage. > ECE R4, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

NP100

Surface Mount LED Number Plate Light

12/24

0.08A @ 12V 0.04A @ 24V

IP67

250

72x41x50

0.037

NP100/1.4M

Surface Mount LED Number Plate Light, 1.4m Cable

12/24

0.08A @ 12V 0.04A @ 24V

IP67

1400

72x41x50

0.096

NP100/3M

Surface Mount LED Number Plate Light, 3m Cable

12/24

0.08A @ 12V 0.04A @ 24V

IP67

3000

72x41x50

0.016

NP100S

Surface Mount LED Number Plate Light with Superseal Connector

12/24

0.08A @ 12V 0.04A @ 24V

IP67

290

72x41x50

0.043

NP100SF

Surface Mount LED Number Plate Light with Female Superseal Connector

12/24

0.08A @ 12V 0.04A @ 24V

IP67

290

72x41x50

0.062

NP244 Series Compact LED Number Plate Light > Totally sealed unit. > Mounting: 2 x M6 studs. >D ual polarity for foolproof installation. >A DR-approved version available. >E CE R4, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

NP244

Compact LED Number Plate Light

12/24

0.033A @ 12V 0.029A @ 24V

IP68

200

83x39x31

0.054

NP244/1.5

Compact LED Number Plate Light, 1.5m Cable

12/24

0.033A @ 12V 0.029A @ 24V

IP68

1500

83x39x31

0.136

Compact LED Number Plate Light with Superseal Connector

12/24

0.033A @ 12V 0.029A @ 24V

IP68

250

83x39x31

0.059

NP244S

Available for next business day delivery with our FastLane promise.

www.venta.global

// 23

ROAD VEHICLE LIGHTING

NP408 Series LED Number Plate Light >T wo lights are required for full illumination of standard rectangular number plate. >A DR-approved version available. >E CE R4, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

NP408/04

LED Number Plate Light, 0.4m Cable

12/24

0.042A @ 12V 0.042A @ 24V

IP68

400

100x60x60

0.104

NP730 Series LED Number Plate Light >S ingle light approved for full illumination of standard rectangular number plate. >A DR-approved version available. > ECE R4, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

NP730

LED Number Plate Light

12/24

0.067A @ 12V 0.071A @ 24V

IP68

220

101x85x59

0.127

NP730S

LED Number Plate Light with Superseal Connector

12/24

0.067A @ 12V 0.071A @ 24V

IP68

280

101x85x59

0.149

// 24

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

NP982 Series Recessed LED Number Plate Light >R ecessed mount design for minimal protrusion. > Protrudes just 10mm. > ECE R4, R10, R148.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

NP982

Recessed LED Number Plate Light

12/24

0.058A @ 12V 0.054A @ 24V

IP68

220

80x30x24

0.035

NP982/1.5M

Recessed LED Number Plate Light, 1.5m Cable

12/24

0.058A @ 12V 0.054A @ 24V

IP68

1500

80x30x24

0.103

> Want more information?

You can read further information and download technical specifications and drawings of all our products on our website at www.venta.global/products

www.venta.global

// 25

103.4mm

ROAD VEHICLE LIGHTING

Front Lights RL.G90 Series 90mm LED Headlight > Angel-eye DRL / position / indicator feature with light-guide technology. > Integrated Deutsch connector. > Projector technology with ultimate light spread. > ECE R6, R7, R10, R87, R112, SAE DOT.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP69K

290

90x92

0.538

IP69K

290

90x92

0.538

High Beam: 1.4A @ 13.5V 0.7A @ 28V RL.G90.KI.M

90mm LED Headlight with High Beam / Indicator / Position

12/24

Indicator: 0.6A @ 13.5V 0.3A @ 28V Position: 0.04A @ 13.5V 0.04A @ 28V Dipped Beam: 1.55A @ 13.5V 0.77A @ 28V

RL.G90.LWT.M

90mm LED Headlight with Dipped Beam / DRL / Position

12/24

DRL: 0.7A @ 13.5V 0.35A @ 28V Position: 0.03A @ 13.5V 0.028A @ 28V

RL.90 Series 90mm LED Headlight > Die cast aluminium housing. > Surge and reverse-polarity protected. > ECE R10, R112, SAE DOT.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL.90.KLV

90mm LED Headlight - Combined High Beam / Low Beam - Left Hand Drive

12/24

High Beam: 3.02A @ 13.2V 1.12A @ 28V

IP67

410

90x105

0.765

RL.90.KLV.U

90mm LED Headlight - Combined High Beam / Low Beam - Right Hand Drive

12/24

Low Beam: 2.79A @ 13.2V 1.03A @ 28V

IP67

410

90x105

0.765

// 26

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

Blade Angled LED Headlight >M odern alternative to traditional round headlights. >O utstanding light output and spread. >T oughened outer lens prevents damage. >V enting patch on the back allows air to expand and contract to avoid damage to the sealing of the product. > ECE R10, R112, SAE DOT.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL6374

3 LED Angled Low Beam Headlight Right Hand Drive - Left Side

12/24

1.7A @ 13.5V 0.8A @ 28V

IP68

250

160x40x136

0.585

RL637401

3 LED Angled Low Beam Headlight Right Hand Drive - Right Side

12/24

1.7A @ 13.5V 0.8A @ 28V

IP68

250

160x40x136

0.585

RL6375

2 LED Angled High Beam Headlight Right Hand Drive - Left Side

12/24

1.31A @ 12V 0.65A @ 24V

IP68

250

120x40x132

0.473

RL637501

2 LED Angled High Beam Headlight Right Hand Drive - Right Side

12/24

1.31A @ 12V 0.65A @ 24V

IP68

250

120x40x132

0.473

RL15 Series Single Bolt Mount LED Headlight >H igh beam / dipped beam / dotless position / indicator. >A djustable bolt position for mounting at the base or the rear of the lamp. >A dvanced thermal design reduces the temperature on the LEDs, increasing the longevity of the product. >P re-terminated with a Deutsch connector. >E CE R6, R7, R10, R112 or SAE DOT.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL8016

Single Bolt Mount LED Headlight - Left Hand Drive - Left Side, ECE Approval

12/24

High Beam: 1.44A @ 12V 0.72A @ 24V

IP67

500

260x165x101

1.638

RL801601

Single Bolt Mount LED Headlight - Left Hand Drive - Right Side, ECE Approval

12/24

IP67

500

260x165x101

1.638

RL1432

Single Bolt Mount LED Headlight - Right Hand Drive - Left Side, ECE Approval

12/24

IP67

500

260x165x101

1.638

RL143201

Single Bolt Mount LED Headlight - Right Hand Drive - Right Side, ECE Approval

12/24

Position: 0.31A @ 12V 0.15A @ 24V

IP67

500

260x165x101

1.638

Single Bolt Mount LED Headlight - Left Hand Drive - Left Side, SAE Approval

12/24

Indicator (ECE): 0.50A @ 12V 0.25A @ 24V

IP67

500

260x165x101

1.648

IP67

500

260x165x101

1.648

RL1435 RL143501

Single Bolt Mount LED Headlight - Left Hand Drive - Right Side, SAE Approval

www.venta.global

12/24

Low Beam: 1.41A @ 12V 0.67A @ 24V

Indicator (SAE): 0.91A @ 12V 0.46A @ 24V

// 27

ROAD VEHICLE LIGHTING

RL.RGV Series Halogen Headlight >H igh beam / dipped beam / position / direction indicator. > Integral rear facing indicator. > I ntegrated Deustch connector. >E CE R6.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

RL.RGV2.KLI.12V

Halogen Headlight - High Beam / Low Beam / Indicator - Left Side

12

RL.RGV1.KLI.12V

Halogen Headlight - High Beam / Low Beam / Indicator - Right Side

12

CURRENT DRAW High Beam: 5A @ 12V Low Beam: 4.6A @ 12V Indicator: 1.75A @ 12V Parking Light: 0.45A @ 12V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP66

0

225x150x137

1.25

IP66

0

225x150x137

1.25

LED Front Light - DRL > Integral front position light. > Slimline design. > Surface mount. > Totally sealed unit. > Ideal for broadcast vehicles. > ECE R7, R10, R87.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

DR271

LED Front Light - DRL

12/24

0.75A @ 12V 0.375A @ 24V

IP68

2500

237x20.5x22

0.194

// 28

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

ROAD VEHICLE LIGHTING

Front Position Lights / Indicators RL145 Series LED Front Position Light / Indicator >U nique homogeneous front position light giving identity. >L ED direction indicator function.

> No visible fixings. >S top / tail / indicator option available in the same series. >E CE R6, R7, R10.

> Dual voltage.

PART NUMBER

RL145AW

DESCRIPTION

LED Front Light - Position / Indicator

VOLTAGE DC (V)

12/24

CURRENT DRAW Position: 0.09A @ 12V 0.004A @ 24V Indicator: 0.32A @ 12V 0.155A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP68

2000

108x102x38

0.313

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP67

240

95x36

0.119

IP67

240

95x36

0.118

N/A

N/A

100x36

0.060

RL95 Series LED Front Position Light / Indicator > Recessed mount design. >S urface mount bezel available. > Materials: PMMA and ABS. > I ndicator, fog / reverse and stop / tail / indicator options available in the same series. >E CE R6, R7, R10, R87.

PART NUMBER

RL95AW

DESCRIPTION

95mm LED Front Light - Front Position / Indicator - Clear Lens

VOLTAGE DC (V)

12/24

CURRENT DRAW Position: 0.042A@ 12V 0.021A @ 24V Indicator: 0.167A @ 12V 0.083A @ 24V DRL: 0.042A @ 12V 0.021A @ 24V

RL95DAWC

95mm LED Front Light - DRL / Position / Indicator

12/24

Position: 0.042A @ 12V 0.021A @ 24V Indicator: 0.167A @ 12V 0.083A @ 24V

RL95B

RL95 Series Surface Mount Bezel

www.venta.global

N/A

N/A

// 29

ROAD VEHICLE LIGHTING

RL122 Series LED Front Position Light / Indicator > Surface mount design. > Dual voltage. >S top / tail / indicator and fog / reverse options available in the same series. > ECE R6, R7, R10.

PART NUMBER

RL122AW

DESCRIPTION

122mm LED Front Light - Position / Indicator

VOLTAGE DC (V)

12/24

CURRENT DRAW Position: 0.01A @12V 0.005A @ 24V Indicator: 0.15A @12V 0.075A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP67

230

122x43

0.224

> Case Studies To see some examples of how we have worked with and helped our customers, just visit our website www.venta.global/case-studies

// 30

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

ROAD VEHICLE LIGHTING

Indicators Category 5 LED Side Direction Indicator > Compact design. >A dhesive mount - 3M VHB gasket. > Push-fit. > ECE R6.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL.5.IE.12

Category 5 LED Side Direction Indicator

12

0.04A @ 12V

IP67

270

30x30

0.018

Category 6 LED Side Direction Indicator > Surface mount. >S limline. >H igh efficiency optical design using a second reflector and only one LED. >N o visible fixings. >E CE R10, R148.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

VV001

Category 6 LED Side Direction Indicator

10-36

0.157A @ 13.5V

IP69K

205

152x30x31

0.065

www.venta.global

// 31

ROAD VEHICLE LIGHTING

RL95 Series LED Indicator > Recessed mount design. >S urface mount bezel available. >F ront position / fog / reverse and stop / tail / indicator and options available in the same series. > ECE R6, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL95A

95mm LED Indicator - Amber Lens

12/24

0.167A @ 12V 0.083A @ 24V

IP67

240

95x36

0.123

RL95B

RL95 Series Surface Mount Bezel

N/A

N/A

N/A

N/A

100x36

0.060

> News & Insights We regularly post insights on our website, including issues affecting the industry, useful advice on how to reduce the impact of these issues and jargon buster guides to help understand lighting specifications. We also post news about Venta including our latest product launches.

You can read these insights on our website at www.venta.global/insights

// 32

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

ROAD VEHICLE LIGHTING

Rear Lights RL1619 Series LED Rear Triangular Combination Light Ideally suited where space is limited, particularly useful on tipper trailers and car transporters.

All rear light functions in one unit - stop, tail, indicator, fog, reverse and in-built reflector.

Dust tight.

Signature dotless tail and indicator lights are highly visible to improve safety.

Available with or without pre-terminated connectors.

Clean design.

No visible fixing holes.

ECE R4, R10, R148, R150 approvals.

Sleek, modern look for your vehicle.

Removes the cost of having separate units.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP69K

2000

163x143x53.5

0.582

Stop: 0.58A @ 12V 0.29A @ 24V Tail: 0.5A @ 12V 0.29A @ 24V RL1619

LED Rear Triangular Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector

12/24

Indicator: 1.83A @ 12V 0.92A @ 24V Fog: 0.54A @ 12V 0.27A @ 24V Reverse: 0.5A @ 12V 0.25A @ 24V

www.venta.global

// 33

ROAD VEHICLE LIGHTING

RL762 Series Branded LED Rear Combination Light

Customisable area behind the reflector illuminates branding of your choice providing additional brand exposure.

Three and five function options available.

Stop, tail, indicator, fog, reverse with integrated reflector.

Dynamic and static indicator options available.

ECE R4, R10, R148, R150 approvals.

Available with or without marker light feed.

Integrated connector.

// 34

+44 (0)1962 88 44 44

hello@venta.global

RL7625 Branded LED Trailer 5-Function Rear Light PART NUMBER

RL7625

RL762501

RL762502

RL762503

DESCRIPTION Branded LED Trailer Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Left Hand Branded LED Trailer Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand Branded LED Trailer Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector Left Hand Branded LED Trailer Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand

VOLTAGE DC (V)

12/24

12/24

12/24

12/24

CURRENT DRAW Stop: 0.42A@ 12V 0.21A @ 24V Tail: 0.45A @ 12V 0.23A @ 24V Indicator: 1.75A @ 12V 0.88A @ 24V Fog: 0.42A @ 12V 0.21A @ 24V Reverse: 0.5A @ 12V 0.25A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP69K

0

302x131x58

1.08

IP69K

0

302x131x58

1.08

IP69K

0

302x131x58

1.08

IP69K

0

302x131x58

1.08

RL7626 Branded LED Rigid Vehicle 5-Function Rear Light PART NUMBER

RL7626

RL762601

RL762602

RL762603

DESCRIPTION Branded LED Rigid Vehicle Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Left Hand Branded LED Rigid Vehicle Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand Branded LED Rigid Vehicle Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector Left Hand Branded LED Rigid Vehicle Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand

VOLTAGE DC (V)

12/24

12/24

12/24

12/24

CURRENT DRAW Stop: 0.42A@ 12V 0.21A @ 24V Tail: 0.45A @ 12V 0.23A @ 24V Indicator: 1.75A @ 12V 0.88A @ 24V Fog: 0.42A @ 12V 0.21A @ 24V Reverse: 0.5A @ 12V 0.25A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP69K

0

302x131x58

1.17

IP69K

0

302x131x58

1.17

IP69K

0

302x131x58

1.17

IP69K

0

302x131x58

1.17

RL7627 Branded LED Trailer 3-Function Rear Light PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL7627

Branded LED Trailer Rear Light - Stop / Tail / Dynamic Indicator / Reflector with 5-Pin Connector - Left Hand

12/24

Stop: 0.42A@ 12V 0.21A @ 24V

IP69K

0

302x131x58

1.21

RL762701

Branded LED Trailer Rear Light - Stop / Tail / Dynamic Indicator / Reflector with 5-Pin Connector - Right Hand

12/24

Tail: 0.45A @ 12V 0.23A @ 24V

IP69K

0

302x131x58

1.21

RL762702

Branded LED Trailer Rear Light - Stop / Tail / Static Indicator / Reflector with 5-Pin Connector

12/24

Indicator: 1.75A @ 12V 0.88A @ 24V

IP69K

0

302x131x58

1.21

www.venta.global

// 35

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

ROAD VEHICLE LIGHTING

RL.150 Series LED Rear Combination Light > Progressive indicator. >M ust be mounted horizontally. >C rash resistant polycarbonate lens. > 50,000hr LED lifetime. > ECE R3, R4, R6, R7, R10, R23, R38.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP68

2000

230x104x40

0.667

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP68

2000

230x104x40

0.667

Stop: 0.24A @ 12V 0.12A @ 24V Tail: 0.12A @ 12V 0.06A @ 24V RL.150.BTIFR.M

LED Rear Combination Light - Stop / Tail / Progressive Indicator / Fog / Reverse / Reflector

12/24

Indicator: 0.36A @ 12V 0.18A @ 24V Fog: 0.11A @ 12V 0.05A @ 24V Reverse: 0.36A @ 12V 0.18A @ 24V

RL.151 Series LED Rear Combination Light >C an be mounted horizontally or vertically. >C rash resistant polycarbonate lens. > 50,000hr LED lifetime. >A DR-approved version available. > ECE R3, R4, R6, R7, R10, R23, R38.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW Stop: 0.24A @ 12V 0.12A @ 24V Tail: 0.12A @ 12V 0.06A @ 24V

RL.151.BTIFR.M

LED Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector

12/24

Indicator: 0.36A @ 12V 0.18A @ 24V Fog: 0.11A @ 12V 0.05A @ 24V Reverse: 0.36A @ 12V 0.18A @ 24V

// 36

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

ROAD VEHICLE LIGHTING

RL.185 Series LED Rear Combination Light > Hidden LEDs. > Scratch resistant housing. >A DR-approved version available. > ECE R3, R4, R6, R7, R10, R23, R38, R91.

PART NUMBER

RL.185.BTIFR.M

DESCRIPTION

LED Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP68

0

306x133x61

1.03

IP68

0

306x133x61

1.03

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP67

250

150x80x22

0.211

Stop: 0.104A @ 12V 0.052A @ 24V 12/24

Tail: 0.108A @ 12V 0.104A @ 24V Indicator: 0.9A @ 12V 0.45A @ 24V

RL.185DD.BTIFR.M

LED Rear Combination Light - Stop / Tail / Progressive Indicator / Fog / Reverse / Reflector and Tyco Connector

12/24

Fog: 0.133A @ 12V 0.066A @ 24V Reverse: 0.375A @ 12V 0.187A @ 24V

RL160 Series LED Rear Combination Light > Incorporates rear reflector. > Dual voltage. > Bolt mount. >M aterials: ABS housing with PMMA lens. > ECE R3, R6, R7, R10.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW Stop: 0.21A @ 12V 0.0175A @ 24V

RL160STI

LED Rear Combination Light - Stop / Tail / Indicator / Reflector

12/24

Tail: 0.158A @ 12V 0.079A @ 24V Indicator: 0.092A @ 12V 0.046A @ 24V

Available for next business day delivery with our FastLane promise.

www.venta.global

// 37

ROAD VEHICLE LIGHTING

RL573 Series LED Rear Combination Light >S top / tail / indicator with in-built triangular reflector in one unit. >A n ideal cost effective solution for the agriculture sector.

>L eft hand and right hand versions available. >C omes with a 6-way Superseal connector as standard. > ECE R10.

> Homogeneous light output.

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LED Rear Combination Light - Stop / Tail / Indicator / Reflector with Superseal Connector - Left Side

12/24

Stop: 0.092A @ 12V 0.092A @ 24V

IP69K

2000

282x132x35

0.511

LED Rear Combination Light - Stop / Tail / Indicator / Reflector with Superseal Connector - Right Side

12/24

IP69K

2000

282x132x35

0.511

PART NUMBER

DESCRIPTION

RL5736

RL5737

Tail: 0.065A @ 12V 0.010A @ 24V Indicator: 0.142A @ 12V 0.142A @ 24V

RL95 Series LED Rear Light >R ecessed mount design. >S urface mount bezel available. >R ed and clear lens versions available.

>F ront DRL / position / indicator options available in the same series. >E CE R6, R7, R23, R38.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL95F

95mm LED Rear Light - Fog - Red Lens

12/24

0.167A @ 12V 0.083A @ 24V

IP67

240

95x36

0.118

RL95FS

95mm LED Rear Light - Fog - Red Lens with Superseal Connector

12/24

0.167A @ 12V 0.083A @ 24V

IP67

280

95x36

0.130

IP67

240

95x36

0.118

IP67

240

95x36

0.118

IP67

240

95x36

0.118

Fog: 0.02A @ 12V 0.014A @ 24V Reverse: 0.167A @ 12V 0.083A @ 24V Stop: 0.167A @ 12V 0.083A @ 24V Tail: 0.042A @ 12V 0.021A @ 24V Stop: 0.167A @ 12V 0.083A @ 24V Tail: 0.042A @ 12V 0.021A @ 24V Indicator: 0.167A @ 12V 0.083A @ 24V

RL95FWC

95mm LED Rear Light - Fog / Reverse Clear Lens

12/24

RL95ST

95mm LED Rear Light - Stop / Tail - Red Lens

12/24

RL95STIC

95mm LED Rear Light - Stop / Tail / Indicator - Clear Lens

12/24

RL95W

95mm LED Rear Light - Reverse

12/24

0.167A @ 12V 0.083A @ 24V

IP67

240

95x36

0.118

RL95B

RL95 Series Surface Mount Bezel

N/A

N/A

N/A

N/A

100x36

0.060

// 38

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

RL122 Series LED Rear Light > Surface mount design. > Dual voltage. >R ed and clear lens versions available. >F ront position / indicator options available in the same series. > ECE R6, R7, R10, R23, R38.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL122FW

122mm LED Rear Light - Fog / Reverse

12/24

Fog: 0.18A @ 12V 0.09A @ 24V

IP67

230

122x43

0.224

RL122FWC

122mm LED Rear Light - Fog / Reverse - Clear Lens

12/24

Reverse: 0.15A @ 12V 0.075A @ 24V

IP67

230

122x43

0.224

RL122STI

122mm LED Rear Light - Stop / Tail / Indicator - Red Lens

12/24

IP67

230

122x43

0.224

RL122STIS/LH

122mm LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 0.2m Cable - Left Side

12/24

IP67

240

122x43

0.249

RL122STIS/RH

122mm LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 0.2m Cable - Right Side

12/24

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 1.8m Cable

RL122STIC18S

RL122STIC195S

RL122STIC21S

RL122STIC22

RL122STIDCL

IP67

240

122x43

0.249

12/24

Stop: 0.14A @ 12V 0.07A @24V

IP67

1800

122x43

0.406

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 1.95m Cable

12/24

Tail: 0.01A @12V 0.005A @ 24V

IP67

1950

122x43

0.421

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 2.1m Cable

12/24

Indicator: 0.15A @12V 0.075A @ 24V

IP67

2100

122x43

0.435

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens, 2.2m Cable

12/24

IP67

2200

122x43

0.430

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Deutsch Connector, 2m Cable

12/24

IP67

245

122x43

0.422

Available for next business day delivery with our FastLane promise.

www.venta.global

// 39

ROAD VEHICLE LIGHTING

RL51 Series LED Combination Rear Light >S top / tail / indicator and 3rd brake light available in the same series.

> Amber light output through a single red lens provides a sleek and unique look.

> No visible fixings.

> ECE R10, R148 or SAE DOT

> Compact size.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP67

756

87x43

0.119

IP67

586

87x43

0.110

IP67

756

87x43

0.110

Stop: 0.303A @ 12V RL5101

LED Combination Rear Light - Stop / Tail / Indicator - ECE Approval

12

Tail: 0.021A @ 12V Indicator: 0.401A @ 12V

RL5102

LED 3rd Brake Light

12

0.140A @ 12V Stop: 0.577A @ 12V

RL5103

LED Combination Rear Light - Stop / Tail / Indicator - DOT Approval

12

Tail: 0.034A @ 12V Indicator: 0.581A @ 12V

RL83 Series LED Rear Light > Extremely compact. >A pproved for mounting vertically and horizontally. > Dual voltage. > Surface mounted. > ECE R6, R7, R10, R23.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL83F

LED Rear Light - Fog

12/24

0.142A @ 12V 0.1375A @ 24V

IP68

380

108x47x23

0.094

RL83STI

LED Rear Light - Stop / Tail / Indicator

12/24

IP68

380

108x47x23

0.113

RL83STI/0.5

LED Rear Light - Stop / Tail / Indicator, 0.5m Cable

12/24

IP68

500

108x47x23

0.121

RL83STIR

LED Rear Light - Stop / Tail / Indicator with Delphi Connector

12/24

IP68

550

108x47x23

0.131

RL83STIS

LED Rear Light - Stop / Tail / Indicator with Superseal Connector

12/24

IP68

540

108x47x23

0.134

RL83W

LED Rear Light - Reverse

12/24

IP68

380

108x47x23

0.089

// 40

0.191A @ 12V 0.189A @ 24V

0.142A @ 12V 0.1375A @ 24V

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

RL100 Series Square LED Rear Light >U nique homogeneous tail design.

> Slimline profile.

> Surface mount.

> ECE R6, R7, R10, R23, R38.

PART NUMBER

> Dual voltage.

VOLTAGE DC (V)

DESCRIPTION

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP67

240

100x100x28

0.160

IP67

250

100x100x28

0.159

IP67

250

100x100x28

0.149

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (G)

IP68

2040

108x102x38

0.228

Stop: 0.192A @ 12V 0.095A @ 24V RL100STI

RL100TF

RL100TW

100mm Square LED Rear Light - Stop / Tail / Indicator

100mm Square LED Rear Light - Tail / Fog

100mm Square LED Rear Light - Tail / Reverse

10-30

10-30

10-30

Tail: 0.23A @ 12V 0.115A @ 24V Indicator: 0.067A @ 12V 0.033A @ 24V Tail: 0.23A @ 12V 0.115A @ 24V Fog: 0.275A @ 12V 0.1375A @24V Tail: 0.23A @ 12V 0.115A @ 24V Reverse: 0.2A @ 12V 0.1A @ 24V

RL145 Series LED Rear Light >U nique homogeneous tail function giving identity. >F ull LED package with tail/brake and direction indicator.

>A DR-approved version available. >F ront position / indicator option available in the same series. >E CE R4, R6, R7, R10.

> Dual voltage. > No visible fixings.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW Stop: 0.08A @ 12V 0.04A @ 24V

RL145STI

LED Rear Light - Stop / Tail / Indicator

12/24

Tail: 0.15A @ 12V 0.075A @ 24V Indicator: 0.175A @ 12V 0.0875A @ 24V

www.venta.global

// 41

ROAD VEHICLE LIGHTING

RL410 Series Ultra Slim LED Rear Light > Stop / tail / indicator. > Ultra slim, sleek design. > Surface mount. > Low profile option available. > ECE R6, R7, R10.

DESCRIPTION

VOLTAGE DC (V)

Ultra Slim LED Rear Light - Stop / Tail / Indicator

12/24

RL410/4.7M

Ultra Slim LED Rear Light - Stop / Tail / Indicator, 4.7m Cable

12/24

RL410JST

Ultra Slim LED Rear Light - Stop / Tail / Indicator with JST Connector

12/24

RL410SL/4

Ultra Slim LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 4m Cable - Left Side

12/24

RL410SR/4

Ultra Slim LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 4m Cable - Right Side

12/24

PART NUMBER

RL410

CURRENT DRAW

Stop: 0.04A @ 12V 0.02A @ 24V Tail: 0.01A @ 12V 0.005A @ 24V Indicator: 0.07A @ 12V 0.035A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP68

2000

237x22x21

0.165

IP68

4700

237x22x21

0.287

IP68

2035

237x22x21

0.217

IP68

4040

237x22x21

0.287

IP68

4040

237x22x21

0.287

IP69K

250

238x21x10

0.083

Stop: 0.325A @ 12V 0.1625A @ 24V RL410/LP

Ultra Slim Low Profile LED Rear Light Stop / Tail / Indicator

12/24

Tail: 0.041A @ 12V 0.020A @ 24V Indicator: 0.291A @ 12V 0.291A @ 24V

RL556 Series Slimline LED Rear Light > Fog / reverse.

> Dual voltage.

>S limline surface mount design.

> ECE R10, R23, R38.

> Robust construction.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL556

Slimline LED Rear Light - Fog / Reverse

12/24

IP68

2500

237x21x22

0.165

RL556S

Slimline LED Rear Light - Fog / Reverse with Superseal Connector

12/24

Fog: 0.3A @ 12V 0.3A @ 24V

IP68

2540

237x21x22

0.169

RL556JST

Slimline LED Rear Light - Fog / Reverse with JST Connector

12/24

IP68

2535

237x21x22

0.217

Reverse: 0.125A @ 12V 0.125A @ 24V

Available for next business day delivery with our FastLane promise.

// 42

+44 (0)1962 88 44 44

hello@venta.global

ROAD VEHICLE LIGHTING

INNOVATE. CREATE. ILLUMINATE.

RL682 Series Slimline LED 3rd Brake Light >S limline surface mount design.

>R ed and clear lens versions available.

> Robust construction.

>L ow profile option available.

> Dual voltage.

> ECE R7, R10.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RL682

Slimline LED 3rd Brake Light - Red Lens

12/24

0.108A @ 12V 0.108A @ 24V

IP68

390

237x20.5x22

0.071

RL682/05

Slimline LED 3rd Brake Light - Red Lens, 0.5m Cable

12/24

0.108A @ 12V 0.108A @ 24V

IP68

500

237x20.5x22

0.087

RL682/3

Slimline LED 3rd Brake Light - Red Lens, 3m Cable

12/24

0.108A @ 12V 0.108A @ 24V

IP68

3000

237x20.5x22

0.200

RL682/11

Slimline LED 3rd Brake Light - Red Lens, 11m Cable

12/24

0.108A @ 12V 0.108A @ 24V

IP68

11000

237x20.5x22

0.542

RL682S

Slimline LED 3rd Brake Light - Red Lens with Superseal Connector

12/24

0.108A @ 12V 0.108A @ 24V

IP68

550

237x20.5x22

0.096

RL682S/5

Slimline LED 3rd Brake Light - Red Lens with Superseal Connector, 5m Cable

12/24

0.108A @ 12V 0.108A @ 24V

IP68

5040

237x20.5x22

0.298

RL682C

Slimline LED 3rd Brake Light - Clear Lens

12/24

0.108A @ 12V 0.108A @ 24V

IP68

390

237x20.5x22

0.073

12/24

0.108A @ 12V 0.108A @ 24V

IP68

7000

237x20.5x22

0.396

12/24

0.108A @ 12V 0.108A @ 24V

IP68

7040

237x20.5x22

0.411

12/24

0.058A @ 12V 0.058A @ 24V

IP68

390

238x21x10

0.031

PART NUMBER

RL682C/7 RL682CS/7 RL682/LP

Slimline LED 3rd Brake Light - Clear Lens, 7m Cable Slimline LED 3rd Brake Light - Clear Lens with Superseal Connector, 7m Cable Slimline Low Profile LED 3rd Brake Light - Red Lens

Looking for something a little more compact?

Our ECE R148 approved AU.20 Series High Power LED Lights measure just 72mm in length, making them ideal for a variety of space limited applications including as a reverse light or even a manoeuvring light!

See further details on page 86 // 43

ROAD VEHICLE LIGHTING

Reflectors Rectangular Reflector > Self adhesive backing. > Slimline design. > ECE R3.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RXR01

Rectangular Side Reflector - Amber

N/A

N/A

IP68

N/A

108x51x7

0.027

RXR02

Rectangular Rear Reflector - Red

N/A

N/A

IP68

N/A

108x51x7

0.027

RXR04

Rectangular Front Reflector - White

N/A

N/A

IP68

N/A

108x51x7

0.027

61mm Round Rear Reflector > Compact design. > ECE R3.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RX60

61mm Round Rear Reflector - Single point Screw Mounting

N/A

N/A

IP68

N/A

61x6

0.014

RXR55

61mm Round Rear Reflector - SelfAdhesive Backing

N/A

N/A

IP68

N/A

61x6

0.016

Triangular Trailer Reflector > Two bolt mount. > ECE R3.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RXT52

Triangular Trailer Reflector

N/A

N/A

IP68

N/A

158x140x8

0.084

// 44

+44 (0)1962 88 44 44

hello@venta.global

WARNING LIGHTING

WARNING LIGHTING Our LED warning lighting range offers robust and high-quality solutions which can be relied upon 24/7.

> Lightbars............................................................................................. 46 > Minibars................................................................................................47 > Lightheads......................................................................................... 49 > Dashlights........................................................................................... 54 > Number Plate Warning Lights....................................................55 > Tail Lift Warning Lights................................................................. 56 > Beacons............................................................................................... 58 > Safety Lamps....................................................................................60 > Message Boards.............................................................................. 62

www.venta.global

// 45

Lightbars WARNING LIGHTING

V100 Series R65 LED Lightbar >E CE R10, R65 Class 2, SAE Class 1, CAP168.

> Available in four lengths.

>C omes in amber as standard. Can be supplied in other colours including blue, red and white.

>A ngled adjustable bracket to match the roof angle, ensuring the lightbar is positioned horizontally when on angled surfaces.

>L ayouts are customisable. >A vailable with options including alley lights, stop / tail / indicator modules, illuminated centre. >S ingle colour flashing, pattern changing, dimming, cruise light (steady-on).

>C an be supplied with waterproof connectors, including Superseal. >P olycarbonate lens and base, aluminium housing.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WS2146

R65 LED Lightbar - Amber, 719mm

10-30

4.8A @ 12V 2.4A @ 24V

IP65

5000

719x125x304

6.84

WS214601

R65 LED Lightbar - Amber, 1235mm

10-30

7.2A @ 12V 3.6A @ 24V

IP65

5000

1235x125x304

10.87

WS214602

R65 LED Lightbar - Amber, 1493mm

10-30

9.6A @ 12V 4.8A @ 24V

IP65

5000

1493x125x304

13.37

WS214603

R65 LED Lightbar - Amber, 1751mm

10-30

9.6A @ 12V 4.8A @ 24V

IP65

5000

1751x125x304

15.05

WS214604

R65 LED Lightbar - Amber with STI, 1235mm

10-30

IP65

5000

1235x125x304

11.20

WS214605

R65 LED Lightbar - Amber with STI, 1493mm

10-30

IP65

5000

1493x125x304

13.70

WS214606

R65 LED Lightbar - Amber with STI, 1751mm

10-30

IP65

5000

1751x125x304

15.38

WS2147

R65 LED Lightbar – Blue with Rear Reds, 1040mm

10-30

5A @ 12V 2.5A @ 24V

IP65

5000

1040x125x304

11.00

WS214701

R65 LED Lightbar – Blue with Rear Reds and Front Whites, 1235mm

10-30

8A @ 12V 4A @ 24V

IP65

5000

1235x125x304

13.00

// 46

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

WARNING LIGHTING

Minibars V80 Series R65 LED Minibar Available in amber and blue.

Unique optical design for optimum light output and ultimate light spread.

Polycarbonate lens and base.

ECE R65 approved.

Ultra low profile design.

Lightweight design.

Different mounting options available.

ECE R10, R65 Class 2, SAE Class 1.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

R65 LED Minibar - Amber - Permanent Mount

12/24

5A @ 12V 1.45A @ 24V

IP65

2500

284x65x172

0.900

WS179501

R65 LED Minibar - Amber - Magnetic Mount

12/24

5A @ 12V 1.45A @ 24V

IP65

2500

284x65x172

0.900

WS1796

R65 LED Minibar - Blue - Permanent Mount

12/24

5A @ 12V 1.45A @ 24V

IP65

2500

284x65x172

0.900

WS179601

R65 LED Minibar - Blue - Magnetic Mount

12/24

5A @ 12V 1.45A @ 24V

IP65

2500

284x65x172

0.900

WS1797

R65 LED Minibar - Mounting Brackets

N/A

N/A

N/A

N/A

PART NUMBER

WS1795

Available for next business day delivery with our FastLane promise.

www.venta.global

// 47

WARNING LIGHTING

V60 Series R65 LED Minibar >C ompact and robust. >P olycarbonate lens and base. >D ifferent mounting options available.

>M agnetic mount version comes with a 12/24V plug with integrated switch.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

V60M

R65 LED Minibar - Amber - Magnetic Mount

12/24

Steady Burn: 3.58A @ 12V 1.57A @ 24V

IP67

2450

251x55x170

1.08

V60P

R65 LED Minibar - Amber - Single Bolt Mount

12/24

Steady Burn: 3.58A @ 12V 1.57A @ 24V

IP67

500

251x55x170

0.998

V60P2

R65 LED Minibar - Amber - Single Bolt Mount with R65 Double Flash Pattern

12/24

Steady Burn: 3.58A @ 12V 1.57A @ 24V

IP67

500

251x55x170

0.998

V90 Series R65 LED Minibar > Robust polycarbonate lens.

> Low profile design.

>D ifferent mounting options available.

> Intense warning signal. > Clear lens.

> Selectable flash patterns. > Dual voltage.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

V90M

R65 LED Minibar - Amber - Magnetic Mount

12/24

4.2A @ 12V 2A @ 24V

IP67

2500

388x70x220

2.21

R65 LED Minibar - Amber - Permanent Mount

12/24

4.2A @ 12V 2A @ 24V

IP67

500

388x70x220

1.70

V90PS

R65 LED Minibar - Amber - Permanent Mount with Superseal Connector

12/24

4.2A @ 12V 2A @ 24V

IP67

540

388x70x220

1.74

V90S

R65 LED Minibar - Amber - Suction Mount

12/24

4.2A @ 12V 2A @ 24V

IP67

2500

575x102x220

2.91

V90P

// 48

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

WARNING LIGHTING

Lightheads V50 Series R65 LED Corner Lighthead

Very compact size.

Four units can be combined for a full 360° coverage.

Multi unit synchronisation.

Fully adjustable mounting bracket.

180° wide angle light spread with a single unit.

Robust and waterproof.

PART NUMBER

WS1650

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

R65 LED Corner Lighthead with Clear Lens - Amber

12/24

0.250A @ 12V 0.125A @ 24V

IP67

400

90x35x35

0.100

Available for next business day delivery with our FastLane promise.

www.venta.global

// 49

WARNING LIGHTING

V70 Series Horizontal R65 LED Lighthead > Available in amber. >A vailable pre-terminated with a JST or Superseal connector and pre-set to an R65 flash pattern for super-fast fitment. > Multiple flash patterns.

PART NUMBER

WS0001

>S yncs with other directional units. >H orizontal and vertical options available in the same series. >S leek design and low profile to blend in to your vehicle.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

Horizontal R65 LED Lighthead - Amber

10-30

0.125A @ 12V 0.076A @ 24V

IP67

200

118x11.4x29

0.059

Options for Pre-Set Flash Patterns - Simultaneous Flash DESCRIPTION

PART NUMBER

Pre-Set Double-flash pattern with JST Connector

WS000101

Pre-Set Double-flash pattern with 3-Way Superseal Connector

WS000103

Pre-Set Double-flash pattern with 3-Way Deutsch Connector

WS000109

Pre-Set Double-flash pattern with no Connector

WS000107

Options for Pre-Set Flash Patterns - Alternating Flash Left/Right DESCRIPTION

LEFT LIGHTHEAD PART NUMBER

RIGHT LIGHTHEAD PART NUMBER

Pre-Set Double-flash pattern with JST Connector

WS000101

WS000102

Pre-Set Double-flash pattern with 3-Way Super-seal Connector

WS000103

WS000104

Available for next business day delivery with our FastLane promise.

// 50

+44 (0)1962 88 44 44

hello@venta.global

WARNING LIGHTING

INNOVATE. CREATE. ILLUMINATE.

V70 Series Vertical R65 LED Lighthead > Available in amber. >A vailable pre-terminated with a JST or Superseal connector and pre-set to an R65 flash pattern for super-fast fitment. > Multiple flash patterns.

>S yncs with other directional units. >H orizontal and vertical options available in the same series. >S leek design and low profile to blend in to your vehicle.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WS0002

Vertical R65 LED Lighthead - Amber

10-30

0.125A @ 12V 0.076A @ 24V

IP67

200

118x11.4x29

0.059

Options for Pre-Set Flash Patterns - Simultaneous Flash DESCRIPTION

PART NUMBER

Pre-Set Double-flash pattern with JST Connector

WS000201

Pre-Set Double-flash pattern with 3-Way Superseal Connector

WS000203

Options for Pre-Set Flash Patterns - Alternating Flash Left/Right DESCRIPTION

LEFT LIGHTHEAD PART NUMBER

RIGHT LIGHTHEAD PART NUMBER

Pre-Set Double-flash pattern with JST Connector

WS000201

WS000202

Pre-Set Double-flash pattern with 3-Way Super-seal Connector

WS000203

WS000204

www.venta.global

// 51

WARNING LIGHTING

FlexLED Series Slimline LED Lighthead >U ltra low profile at just 6mm deep. >S emi-flexible construction for ease of installation. >3 M super adhesive backing for easy mounting. > Can be synchronised.

>P erfect for fend-off, tailgate, mirror and covert applications. >U nique and compact design ensures endless opportunities for mounting.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

VFL001

Slimline LED Lighthead - Amber

12

0.3A @ 12V

IP68

190

60x20x6

0.009

VFL003

Slimline LED Lighthead - Blue

12

0.3A @ 12V

IP68

190

60x20x6

0.009

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

R65 3-LED Lighthead with Clear Lens - Amber

10-30

0.6A @ 12V 0.35A @ 24V

IP67

200

82x25x18

0.685

WS4827

R65 3-LED Lighthead with Clear Lens - Red

10-30

0.6A @ 12V 0.35A @ 24V

IP67

200

82x25x18

0.685

WS4828

R65 3-LED Lighthead with Clear Lens - Blue

10-30

0.6A @ 12V 0.35A @ 24V

IP67

200

82x25x18

0.685

WS4829

R65 3-LED Lighthead with Clear Lens - Green

10-30

0.6A @ 12V 0.35A @ 24V

IP67

200

82x25x18

0.685

V20 Series R65 3-LED Lighthead >R ugged aluminium housing with robust polycarbonate lens. >S ynchronisable up to 8 lights. > Available in amber, red, blue and green, all with a clear lens. >E CE R10, R65 Class 1, SAE.

PART NUMBER

WS4826

Available for next business day delivery with our FastLane promise.

// 52

+44 (0)1962 88 44 44

hello@venta.global

WARNING LIGHTING

INNOVATE. CREATE. ILLUMINATE.

VPR Series Round, Push-Fit R65 LED Warning Light >F lush push-fit mounting only protrudes 3mm once mounted. > Dual voltage. > Hole cutout is 35mm. > Lens face 40mm.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

VPR001

Round, Push-Fit R65 LED Warning Light - Amber

12/24

0.354A @ 12V 0.281A @ 24V

IP67

190

48x25

0.041

VPR0011M

Round, Push-Fit R65 LED Warning Light - Amber, 1m Cable

12/24

0.354A @ 12V 0.281A @ 24V

IP67

1000

48x25

0.056

VPR001S

Round, Push-Fit R65 LED Warning Light - Amber with Superseal Connector

12/24

0.354A @ 12V 0.281A @ 24V

IP67

1040

48x25

0.062

VPR003

Round, Push-Fit R65 LED Warning Light - Blue

12/24

0.354A @ 12V 0.281A @ 24V

IP67

190

48x25

0.041

VPRWM

VPR Series Rubber Mount - White

N/A

N/A

N/A

N/A

45x15

0.008

> Did you know?

We offer a 3-year warranty as standard on all of our products!

www.venta.global

3

YEAR

WARRANTY

// 53

WARNING LIGHTING

Dashlights WSVPR Series Compact High Power LED Dashlight >E asy to fit to windscreen - self-adhesive bonding gasket around perimeter. >A djustable light angle to suit the windscreen. > Dual voltage. > Covert. >A vailable in amber, blue and white.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WSVPR1AM

Compact High Power LED Dashlight Amber

12/24

0.75A @ 12V 0.375A @ 24V

IP67

140

140x70x73

0.125

WSVPR3AM

Compact High Power LED Dashlight Blue

12/24

0.75A @ 12V 0.375A @ 24V

IP67

140

140x70x73

0.125

> Want more information?

You can read further information and download technical specifications and drawings of all our products on our website at www.venta.global/products

// 54

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

WARNING LIGHTING

Number Plate Warning Lights SideBlazer LED Number Plate Warning Light > Slimline number plate warning light. > Recessed fixing holes. > Cable tidy. > Surface mounts to vehicle. > Waterproof. >A vailable in amber and blue. > Curved version available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SB001

LED Number Plate Warning Light Amber

12/24

3A @ 12V 1.5A @ 24V

IP67

2350

530x112x22

0.481

SB003

LED Number Plate Warning Light - Blue

12/24

3A @ 12V 1.5A @ 24V

IP67

2350

530x112x22

0.481

SideBlazer LED Number Plate Warning Light - Curved > Slimline number plate warning light. > Recessed fixing holes. > Cable tidy. > Surface mounts to vehicle. > Waterproof. > Straight version available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SBC003

LED Number Plate Warning Light - Blue - Curved

12/24

3A @ 12V 1.5A @ 24V

IP67

2350

530x112x22

481

www.venta.global

// 55

WARNING LIGHTING

Tail Lift Warning Lights Slimline Tail Lift LED Warning Light with Integral Flasher (Pair) > Aluminium housing. > Integral flasher. > Surface mount.

> Ideal for tail lifts, crane outriggers, plant bodies, beavertails, etc.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RTL85K

Slimline Tail Lift LED Warning Light with Integral Flasher (Pair)

12/24

0.25A @ 12V 0.13A @ 24V

IP69K

2870

85x85x12

0.074

> Case Studies To see some examples of how we have worked with and helped our customers, just visit our website www.venta.global/case-studies

// 56

+44 (0)1962 88 44 44

hello@venta.global

WARNING LIGHTING

INNOVATE. CREATE. ILLUMINATE.

> News & Insights We regularly post insights on our website, including issues affecting the industry, useful advice on how to reduce the impact of these issues and jargon buster guides to help understand lighting specifications. We also post news about Venta including our latest product launches.

You can read these insights on our website at www.venta.global/insights

LED Tail Lift Directional Flashers (Pair) > Cast aluminium housing. > Integral flasher.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RTL86K

LED Tail Lift Directional Flashers - 12V (Pair)

12

0.12A @ 12V

IP69K

200

115x17x71

1.29

RTL86KD

LED Tail Lift Directional Flashers - 24V (Pair)

24

0.06A @ 24V

IP69K

200

100x13x74.5

1.29

www.venta.global

// 57

WARNING LIGHTING

Beacons Low Profile R65 LED Beacon > ECE R65 approved. > Amber and blue variants. >S ingle bolt and magnetic mounting options available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

WS2794

R65 LED Beacon - Amber - Single Bolt Mount

12/24

WS279404

R65 LED Beacon - Amber - Magnetic Mount

12/24

WS2795

R65 LED Beacon - Blue - Magnetic Mount

12/24

CURRENT DRAW

Max 1.66A @ 12V 0.83A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP69K

300

132x84

0.600

IP69K

300

132x84

1.02

IP69K

300

132x93

1.02

> Want to talk to us?

If you’d like to discuss your requirements or can’t find exactly what you’re looking for, call us on +44 (0)1962 88 44 44 and we’d be happy to see how we can help you.

// 58

+44 (0)1962 88 44 44

hello@venta.global

WARNING LIGHTING

INNOVATE. CREATE. ILLUMINATE.

LEC Series Compact LED Beacon with Multiple Flash Patterns > 3-bolt mount. > Low profile design. > Multiple flash patterns. > Ideal for forklifts.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

LEC112

Compact LED Beacon with Multiple Flash Patterns - Amber

12/24

LEC502

Compact LED Beacon with Multiple Flash Patterns - Green - Clear Lens

12/24

CURRENT DRAW Steady Burn: 0.065A @ 12V 0.035A @ 24V Steady Burn: 0.068A @ 12V 0.034A @ 24V

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IP67

470

130x52

0.207

IP67

460

130x52

0.204

BEL Series High Power LED Beacon - Amber >A vailable in single bolt and Flexi-DIN mounting. > Dual voltage.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

BEL1

High Power LED Beacon - Amber Single Bolt Mount

12/24

0.6A @ 12V 0.3A @ 24V

IP65

290

150x125

0.440

BEL5

High Power LED Beacon - Amber Flexi-DIN Mount

12/24

0.6A @ 12V 0.3A @ 24V

IP65

290

150x180

0.460

www.venta.global

// 59

WARNING LIGHTING

Safety Lamps AU.BL Series LED Safety Lamp Blue - Linear >D isplays clear blue line to demark safe or danger zones.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.BL.3.M

LED Safety Lamp Blue - Linear

10-80

0.4A @ 12V 0.2A @ 24V

IP67

500

62x80x67

0.260

> Did you know?

We sell vehicle wiring systems!

For a modular solution, our own Rappid® plug and play system of cables and connectors provides a simple, quick and cost-effective alternative to hard wiring.

We also provide bespoke harness systems for high volume vehicle production.

See page 98 for more details or visit our website.

// 60

+44 (0)1962 88 44 44

hello@venta.global

WARNING LIGHTING

INNOVATE. CREATE. ILLUMINATE.

3

> Did you know?

YEAR

We offer a 3-year warranty as standard on all of our products!

WARRANTY

WLE004 Series Oval High Power LED Safety Lamp - Spot >P erfect for defining safety exclusion zones. > Available in red and blue. >P owder coated robust aluminium housing. >S tainless steel mounting bracket.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WLE004BS

Oval High Power LED Safety Lamp Spot - Blue

10-48

0.928A @ 12V 0.454A @ 24V

IP67

400

143x122x65

0.690

WLE004RS

Oval High Power LED Safety Lamp Spot - Red

10-48

0.928A @ 12V 0.454A @ 24V

IP67

430

143x122x65

0.690

www.venta.global

// 61

WARNING LIGHTING

Message Boards ActivSign 20” Message Matrix System with Controller - Amber > Stores up to 80 userprogrammable messages.

> Variety of message formats static, scrolling, flashing etc.

> Built-in traffic director and warning flash mode.

>C ompact controller 95mm x 57mm x 25mm.

> Night time dimmer function.

>F lip up and flip down options available.

> LED backlit controller with 2 line display.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AS20A

20” Message Matrix System with Controller - Amber

12/24

0.4A @ 12V 0.2A @ 24V

None

610

508x102x64

3.63

AS20AM

20” Message Matrix System with Controller - Amber - Flip Up

12

Message display: 0.4A @ 12V Motorised function: 1.78A @ 12V

None

610

1016x102x64

5.44

12

Message display: 0.4A @ 12V Motorised function: 1.78A @ 12V

None

610

1016x102x64

5.44

AS20AMI

20” Message Matrix System with Controller - Amber - Flip Down

> Case Studies To see some examples of how we have worked with and helped our customers, just visit our website www.venta.global/case-studies

// 62

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INTERIOR LIGHTING Our range of LED interior lighting is designed to perfectly illuminate the inside of your vehicle whilst creating the ideal environment for you.

> Downlights......................................................................................... 64 > General Interior Lighting.............................................................. 66 > Step Lights..........................................................................................72 > Strip Lighting - Rigid......................................................................73 > Strip Lighting - Flexible.................................................................78 > Extrusion.............................................................................................80 > Reading Lights..................................................................................82

www.venta.global

// 63

Downlights INTERIOR LIGHTING

Helayna Compact Recessed LED Downlight >A versatile lamp which could be used as a task light, to illuminate a cupboard, accent an interior surface or light up a footwell.

>F rosted lens provides a homogeneous light output.

>C ompact size with a diameter of just 30mm.

>A vailable in cool and warm white options.

> Push-fit design enables quick installation with no screws required.

>A vailable with chrome or black bezel.

>R ecessed light source with matt black shroud reduces glare.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.07.4C.12

Compact Recessed LED Downlight Cool White - Chrome Bezel

12

0.1A @ 12V

IP50

200

30x18

0.012

AU.07.4WC.12

Compact Recessed LED Downlight Warm White - Chrome Bezel

12

0.1A @ 12V

IP50

200

30x18

0.012

AU.07.403C.12

Compact Recessed LED Downlight Cool White - Black Bezel

12

0.1A @ 12V

IP50

200

30x18

0.012

AU.07.403WC.12

Compact Recessed LED Downlight Warm White - Black Bezel

12

0.1A @ 12V

IP50

200

30x18

0.012

PART NUMBER

Round LED Downlight with Touch Switch > Only 18mm deep. > Easy fitment.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILX1020SCM

Round LED Downlight with Touch Switch - Grey Bezel

12

0.204A @ 12V

IP40

200

70x18

0.028

Available for next business day delivery with our FastLane promise.

// 64

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

Isabella Recessed LED Downlight > Frosted lens provides a dotless light output. > Matt black shroud reduces glare.

> When illuminated the line of white light around the bezel gives a premium look and feel.

> Recessed mount protrudes just 3.5mm when mounted.

> Push-fit with optional screw fitting.

> Fits where vertical space is limited, only 19.5mm in depth.

> Comes with Spade connectors as standard. > Warm white and cool white versions available.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

Recessed LED Downlight - Cool White White Bezel

12

0.26A @ 12V

IP50

200

70x19.5

0.041

AU.13.4WC.12

Recessed LED Downlight - Warm White - White Bezel

12

0.26A @ 12V

IP50

200

70x19.5

0.041

AU.13.403C.12

Recessed LED Downlight - Cool White Black Bezel

12

0.26A @ 12V

IP50

200

70x19.5

0.041

AU.13.403WC.12

Recessed LED Downlight - Warm White - Black Bezel

12

0.26A @ 12V

IP50

200

70x19.5

0.041

PART NUMBER

AU.13.4C.12

Luciana Premium Recessed LED Downlight >S imple to install with push-fit mounting.

> Robust stainless-steel housing.

> Protrudes from the surface by just 4.5mm.

> Available with a black or grey light well.

> Narrow 40° beam angle.

> Dual voltage.

> Anti-glare.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

MA.01.4C.M

Premium Recessed LED Downlight Black Light Well

12/24

0.05A @ 12V 0.1A @ 24V

None

275

79x32.5

0.12

MA.01.4C.M.G

Premium Recessed LED Downlight Grey Light Well

12/24

0.05A @ 12V 0.1A @ 24V

None

275

79x32.5

0.12

www.venta.global

// 65

INTERIOR LIGHTING

General Interior Lighting Cassandra LED Halo Interior Light >C an be ceiling or wall mounted. >M akes a great LED interior feature light. >D iffused white lens provides a homogeneous warm white look for a comfortable environment. >U nique halo shape, chrome effect housing and no visible fixings all give Cassandra a sleek modern look. >L ightweight and cost effective. > Easy to fit surface mounting.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.05.4.12

LED Halo Interior Light

12

0.9A @ 12V

IP20

700

200x17

0.200

AU.05.4S.12

LED Halo Interior Light - Switched

12

0.9A @ 12V

IP20

700

200x17

0.200

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.06 Series LED Interior Light >U ltra slim, surface mount, protudes just 10mm. > I deal for a range of commercial vehicles. >D aylight colour temperature for better visibility and safer working environments. >E xcellent dotless light output with no glare. > Polycarbonate lens. > Red/white version available for improved night vision.

DESCRIPTION

VOLTAGE DC (V)

LED Interior Light - Grey Bezel

12/24

IP20

200

135x70x10

0.058

AU.06.4S.M

LED Interior Light - Grey Bezel Switched

12/24

IP20

200

135x70x10

0.058

AU.06.4DS.M

LED Interior Light - Grey Bezel Switched and Door Switch Wire

12/24

IP20

200

135x70x10

0.065

AU.06.402.M

LED Interior Light - White Bezel

12/24

IP20

200

135x70x10

0.058

AU.06.402S.M

LED Interior Light - White Bezel Switched

12/24

IP20

200

135x70x10

0.058

AU.06.402DS.M

LED Interior Light - White Bezel Switched and Door Switch Wire

12/24

IP20

200

135x70x10

0.065

AU.06.4R.M

LED Red/White Interior Light - Grey Bezel

12/24

White: 0.39A @ 12V 0.21A @ 24V

IP20

200

135x70x10

0.058

AU.06.4RDS.M

LED Red/White Interior Light - Grey Bezel - Switched and Door Switch Wire

12/24

Red: 0.16A @ 12V 0.09A @ 24V

IP20

200

135x70x10

0.065

PART NUMBER

AU.06.4.M

CURRENT DRAW

0.3A @ 12V 0.15A @ 24V

Available for next business day delivery with our FastLane promise.

// 66

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

IL170 Series LED PIR Interior Light >C ompact light fits well onto roof sticks. > Integral PIR sensor. > Diffused lens reduces glare. >V ery wide light spread of 120°. > Waterproof. >R obust housing with aluminium extrusion.

PART NUMBER

IL170GPIR IL170GPIRS

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LED PIR Interior Light - Grey Housing

12/24

0.9A @ 12V 0.45A @ 24V

IP67

190

172x15x57

0.142

LED PIR Interior Light - Grey Housing with Superseal Connector

12/24

0.9A @ 12V 0.45A @ 24V

IP67

230

172x15x57

0.146

> News & Insights We regularly post insights on our website, including issues affecting the industry, useful advice on how to reduce the impact of these issues and jargon buster guides to help understand lighting specifications. We also post news about Venta including our latest product launches.

You can read these insights on our website at www.venta.global/insights

www.venta.global

// 67

INTERIOR LIGHTING

AU.20 Series High Power LED Light

Robust cast aluminium housing protects against knocks and scrapes.

Available with rubber mount and angled rubber mount.

Compact.

High power.

Available with black or white housing.

Sleek, curved design blends in with your vehicle.

Available with white or red LEDs.

Wide light spread.

Intense light output.

Daylight colour temperature ensures maximum visibility and safety.

Helps provide an effective working environment.

ECE R148 approved for use as a reverse light or as a manoeuvring light.

Ideal for internal or external use.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

High Power LED Light - Black Housing

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

500

72x39x13

0.086

AU.20.4.MS

High Power LED Light - Black Housing with Superseal Connector

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

540

72x39x13

0.090

AU.20.402.M

High Power LED Light - White Housing

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

500

72x39x13

0.086

AU.20.402.MS

High Power LED Light - White Housing with Superseal Connector

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

540

72x39x13

0.090

AU.20.R.M

High Power LED Red Light - Black Housing

10-32

0.27A @ 12V 0.14A @ 24V

IP69K

535

72x39x13

0.086

AU.20.P

AU.20 Series Rubber Mount

N/A

N/A

N/A

N/A

77x44x10

0.019

AN.15.AB

AU.20 Series 45° Angled Rubber Mount

N/A

N/A

N/A

N/A

75x45x35

0.044

PART NUMBER

AU.20.4.M

Available for next business day delivery with our FastLane promise.

// 68

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

> Want to talk to us?

If you’d like to discuss your requirements or can’t find exactly what you’re looking for, call us on +44 (0)1962 88 44 44 and we’d be happy to see how we can help you.

High Power Surface Mount LED Light >S lim, tapered design makes it perfect for installation in vehicles that use moving bulkheads. >P ressure-washer proof design. > Dual voltage. >R obust, cast aluminium housing. >E xcellent light output and spread.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IL15WWT

High Power Surface Mount LED Light

12/24

0.38A @ 12V 0.19A @ 24V

IP69K

2000

102x94x13

0.168

www.venta.global

// 69

INTERIOR LIGHTING

AU.25 Series Round Dual Voltage LED Interior Light >P rovides a powerful, consistent and comfortable light output for a range of interior applications. >F rosted lens gives an effective, homogeneous output. >F ully waterproof making it ideal for refrigerated vehicles or anywhere it could get wet.

>W ide and even light spread means fewer units are needed to achieve the same effect, saving time and money.

>A vailable with a PIR sensor to save current draw on your vehicle. >S urface mount and recessed options available.

>S trong polycarbonate lens and low profile design protects it from knocks and scrapes.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.25.4.M.R

Round Dual Voltage LED Interior Light Surface Mount

12/24

2.1A @ 12V 1A @ 24V

IP67

200

130x18.5

0.239

AU.25.4P.M.R

Round Dual Voltage LED Interior Light Surface Mount with PIR

12/24

2.1A @ 12V 1A @ 24V

IP67

200

130x18.5

0.239

AU.25.4P.M.RS

Round Dual Voltage LED Interior Light Surface Mount with PIR with Superseal Connector

12/24

2.1A @ 12V 1A @ 24V

IP67

240

130x18.5

0.243

AU.25.4PT.M

Round Dual Voltage LED Interior Light Surface Mount with PIR with Superseal Connector and Convoluted Tube

12/24

2.1A @ 12V 1A @ 24V

IP67

240

130x18.5

0.247

AU.25.4.M.VG

Round Dual Voltage LED Interior Light Recessed Mount

12/24

0.8A @ 12V 0.4A @ 24V

IP67

200

150x18.5

0.226

AU.25.4P.M.VG

Round Dual Voltage LED Interior Light Recessed Mount with PIR

12/24

0.8A @ 12V 0.4A @ 24V

IP42

200

150x18.5

0.226

AU.25.4P.M.VG.S

Round Dual Voltage LED Interior Light - Recessed Mount with PIR with Superseal Connector

12/24

0.8A @ 12V 0.4A @ 24V

IP42

240

150x18.5

0.230

// 70

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

Davina Recessed Push-Fit LED Console Mood Light RGBW >R GBW chip so you can create a light colour of your choice. >R ecessed design reduces glare. >P ush-fit mounting, no screws required. > Compact size.

PART NUMBER

AU.08.RGBW.12

DESCRIPTION

Recessed Push-Fit LED Console Mood Light RGBW

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

12

Red: 0.01A @ 12V Green: 0.01A @ 12V Blue: 0.01A @ 12V White: 0.02A @ 12V

IP20

100

20x16

0.004

Branded LED Door Lights (Pair) >R ecess mounts into driver and front passenger doors to illuminate logo onto the ground when the door is opened. > I lluminated image is fully customisable.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN.V05.4.M

Branded LED Door Lights (Pair)

12/24

0.26A @ 12V 0.12A @ 24V

IP54

1600

27x48

0.22

www.venta.global

// 71

INTERIOR LIGHTING

Step Lights ILM Series LED Step Light > Surface mount. > Only 6.4mm deep. > Available in 12V or 24V. > Available in red or white.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILM9602

LED Step Light - Red 12V

12

0.01A @ 12V

IP67

190

96x6.4x20

0.012

ILM9602D

LED Step Light - Red 24V

24

0.005A @ 24V

IP67

190

96x6.4x20

0.012

ILM9604

LED Step Light - White 12V

12

0.01A @ 12V

IP67

190

96x6.4x20

0.012

ILM9604D

LED Step Light - White 24V

24

0.005A @ 24V

IP67

190

96x6.4x20

0.012

Aluminium Step Edge Profile with Lens > Robust design. > Available in 2m or cut to length. > Supplied fully assembled with our LED flexible strip lighting. For more details see pages 78 and 79.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ANSE000003

Aluminium Step Edge Profile with Lens and Black Anti-slip Tape, 2m

N/A

N/A

N/A

N/A

2000x37.5x52

2.50

ANSE000004

Aluminium Step Edge Profile with Lens and Yellow Anti-slip Tape, 2m

N/A

N/A

N/A

N/A

2000x37.5x52

2.50

// 72

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

INTERIOR LIGHTING

Strip Lighting - Rigid ILW Series LED Strip Light with Night Illumination >B espoke or standard stock lengths available. >E xcellent light output and spread. >S urface mount design for easy fitment. > Rugged polycarbonate lens. > Night illumination options available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILO86144

LED Strip Light - White, 860mm

10-30

1A @ 12V 0.5A @ 24V

IP52

190

860x110x18

0.804

ILOB86144

LED Strip Light - White / Blue Night Illumination, 860mm

10-30

1A @ 12V 0.5A @ 24V

IP52

290

860x110x18

0.856

ILWR05

LED Strip Light - White / Red Night Illumination, 445mm

10-30

White: 0.56A @ 12V 0.28A @ 24V Red: 0.01A @ 12V 0.005A @ 24V

IP52

250

445x110x18

0.450

10-30

White: 0.566A @ 12V 0.333A @ 24V Night light: 0.049A @ 12V 0.053A @ 24V

IP52

250

445x110x18

0.450

12/24

White: 1.65A @ 12V 0.87A @ 24V Blue: 0.17A @ 12V 0.17A @ 24V

IP52

400

1250x108x15

1.38

12/24

White: 3.5A @ 12V 1.76A @ 24V Blue: 2.78A @ 12V 0.306A @ 24V

IP52

250

2500x108x15

2.61

ILWW05

LED Strip Light - White / White Night Illumination, 445mm

ILWB125WE

LED Strip Light Extension with White LED Joiner - White / Blue Night Illumination, 1.25m

ILWB250W

LED Strip Light with White LED Joiner White / Blue Night Illumination, 2.5m

www.venta.global

// 73

INTERIOR LIGHTING

Surface Mount LED Strip Light with Switch > Easy to install. >E xcellent light output and spread. > Dual voltage. > I ntegral blue night light option available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILS35260H

Surface Mount LED Strip Light with Switch, 352mm

12/24

0.4A @ 12V 0.2A @ 24V

IP52

300

352x100x18

0.326

ILSB35260

Surface Mount LED Strip Light with Switch, 352mm with Blue Light Illumination

12/24

0.4A @ 12V 0.2A @ 24V

IP52

300

352x100x18

0.313

> Did you know?

We offer a 3-year warranty as standard on all of our products!

// 74

3

YEAR

WARRANTY

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

VersaLED Series High Power LED Strip Light >R ounded profiles for optimum passenger safety. >G rey endcaps for OEM-fit appearance. >R ed/white dual colour version available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IL2536

High Power LED Strip Light - 250mm, 12V

12

0.19A @ 12V

IP52

270

260x38x15

0.118

IL3654

High Power LED Strip Light - 380mm, 12V

12

0.28A @ 12V

IP52

270

380x38x15

0.162

IL6190

High Power LED Strip Light - 610mm, 12V

12

0.47A @ 12V

IP52

270

620x38x15

0.263

ILR3654

High Power LED Strip Light - 380mm, 12V Red / White

12

0.28A @ 12V

IP52

270

380x38x15

0.161

ILR6190

High Power LED Strip Light - 610mm, 12V Red / White

12

0.47A @ 12V

IP52

270

620x38x15

0.267

IL10 Series Waterproof LED Strip Light > High power light output. > Excellent light spread. > Totally waterproof. > Slimline design - 12mm deep. > PIR option available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

IL10

Waterproof LED Strip Light - 12V

12

0.25A @ 12V

IP68

390

237x21x12

0.074

IL10PIR

Waterproof LED Strip Light - 12V - with Integral PIR

12

0.25A @ 12V

IP67

390

237x21x12

0.074

IL10PIRS

Waterproof LED Strip Light - 12V - with Integral PIR with Superseal Connector

12

0.25A @ 12V

IP67

430

237x21x12

0.078

IL10D

Waterproof LED Strip Light - 24V

24

0.2A @ 24V

IP68

390

237x21x12

0.074

IL10DPIR

Waterproof LED Strip Light - 24V - with Integral PIR

24

0.2A @ 24V

IP56

390

237x21x12

0.074

IL10DPIRS

Waterproof LED Strip Light - 24V - with Integral PIR with Superseal Connector

24

0.2A @ 24V

IP56

430

237x21x12

0.078

www.venta.global

// 75

INTERIOR LIGHTING

ILT Series LED Strip Light > Dual voltage. >S upplied with straight and angled mounting clips. >A luminium base and polycarbonate lens. > ECE R10 approved.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU8194

LED Strip Light, 289mm

12/24

0.24A @ 12V 0.12A @ 24V

IP67

510

289x22x10.5

0.90

AU819401

LED Strip Light, 541mm

12/24

0.52A @ 12V 0.26A @ 24V

IP67

510

541x22x10.5

0.150

AU819402

LED Strip Light, 1045mm

12/24

1.04A @ 12V 0.52A @ 24V

IP67

510

1045x22x10.5

0.300

ILC Series LED Strip Light with Switch > Dotless light output. > Dimmable PCB. > High power. >U ltra slim profile at just 17mm wide and 8mm deep. >C omes with 3M VHB tape for mounting or spring clips. > Switched and non-switched options available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILC400SS

LED Strip Light with Switch, 400mm

12

0.5A @ 12V

IP44

405

400x17x8

0.060

ILC700SS

LED Strip Light with Switch, 700mm

12

0.85A @ 12V

IP44

200

700x17x8

0.102

ILC1000S

LED Strip Light, 1000mmm

12

1.15A @ 12V

IP44

800

1000x17x8

0.152

ILC1000SS

LED Strip Light with Switch, 1000mm

12

1.15A @ 12V

IP44

200

1000x17x8

0.152

// 76

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

ILV Series High Power LED Strip Light > Slimline design.

> Available in 12V or 24V.

> Surface mount.

>P IR and non-PIR versions available.

>A vailable in a range of lengths.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILV150M

High Power LED Strip Light - 212mm, 12V with PIR

12

0.2A @ 12V

IP20

1000

210x15.5x25

0.042

ILV200

High Power LED Strip Light - 262mm, 12V

12

0.2A @ 12V

IP20

1000

260x9x25

0.068

ILV200D

High Power LED Strip Light - 262mm, 24V

24

0.12A @ 24V

IP20

1000

260x9x25

0.068

ILV200DS

High Power LED Strip Light - 262mm, 24V with Superseal Connector

24

0.12A @ 24V

IP20

1040

260x9x25

0.072

ILV250M

High Power LED Strip Light - 312mm, 12V with PIR

12

0.2A @ 12V

IP20

1000

310x15.5x25

0.074

ILV250MD

High Power LED Strip Light - 312mm, 24V with PIR

24

0.15A @ 24V

IP20

1000

310x15.5x25

0.074

ILV250RGB

High Power LED Strip Light - 312mm, 12V RGB

12

0.3A @ 12V

IP20

1000

310x15.5x25

0.074

ILV250S

High Power LED Strip Light - 310mm, 12V Switched

12

0.11A @ 12V

IP20

1000

310x9x25

0.078

ILV250SS

High Power LED Strip Light - 310mm, 12V Switched with Superseal Connector

12

0.11A @ 12V

IP20

1040

310x15.5x25

0.082

High Power LED Strip Light - 362mm, 12V

12

0.18A @ 12V

IP20

1000

360x9x25

0.095

High Power LED Strip Light - 362mm, 12V with Superseal Connector, 120mm Cable

12

0.18A @ 12V

IP20

120

360x9x25

0.072

High Power LED Strip Light - 412mm, 12V with PIR

12

0.280A @ 12V

IP20

1000

410x15.5x25

0.097

ILV350MS

High Power LED Strip Light - 412mm, 12V with PIR and Superseal Connector

12

0.280A @ 12V

IP20

1040

410x15.5x25

0.101

ILV400

High Power LED Strip Light - 462mm, 12V

12

0.454A @ 12V

IP20

1000

460x9x25

0.118

ILV400D

High Power LED Strip Light - 462mm, 24V

24

0.242A @ 24V

IP20

1000

460x9x25

0.118

ILV450M

High Power LED Strip Light - 512mm, 12V with PIR

12

0.360A @ 12V

IP20

1000

510x15.5x25

0.125

ILV450MD

High Power LED Strip Light - 512mm, 24V with PIR

24

0.180A @ 24V

IP20

1000

510x15.5x25

0.125

ILV450SW

High Power LED Strip Light - 512mm, 12V Switched - Warm White

12

0.414A @ 12V

IP20

1000

510x9x25

0.130

ILV600

High Power LED Strip Light - 662mm, 12V

12

0.685A @ 12V

IP20

1000

660x9x25

0.160

ILV600D

High Power LED Strip Light - 662mm, 24V

24

0.37A @ 24V

IP20

1000

660x9x25

0.160

ILV600S

High Power LED Strip Light - 662mm, 12V with Superseal Connector

12

0.685A @ 12V

IP20

1040

660x9x25

0.164

ILV650M

High Power LED Strip Light - 712mm, 12V with PIR

12

0.6A @ 12V

IP20

1000

710x15.5x25

0.181

ILV650MD

High Power LED Strip Light - 712mm, 24V with PIR

24

0.260A @ 24V

IP20

1000

710x15.5x25

0.181

ILV650MS

High Power LED Strip Light - 712mm, 12V with PIR and Superseal Connector

12

0.6A @ 12V

IP20

1040

710x15.5x25

0.185

ILVH1200

High Power LED Strip Light - 1262mm, 12V IP65, 6000K

12

2.4A @ 12V

IP65

150

1262x9x25

0.245

ILVH1200N

High Power LED Strip Light - 1262mm, 12V IP65, 4000K

12

2.4A @ 12V

IP65

150

1262x9x25

0.245

PART NUMBER

ILV300 ILV300TS ILV350M

Available for next business day delivery with our FastLane promise.

www.venta.global

// 77

INTERIOR LIGHTING

Strip Lighting - Flexible COB Series LED Flexible Strip Light >F lexible cuttable strip light. > Homogeneous light output. > Clean and even light spread. >D ifferent colour temperatures available 3000K, 4000K, 6000K. > Available in 12V. > IP20 rated.

>E asy to bend for simple installation. >S urface mount with 3M VHB tape applied. >C uttable to a length of your choice. >D imensions: 8mm (W) x 1.4mm (H).

ILDS Series Dotless LED Flexible Strip Light > Flexible cuttable strip light. > Homogeneous light output. > Clean and even light spread. >D ifferent colour temperatures available 3000K, 4000K, 6000K.

>S urface mount with tape applied. >C uttable to a length of your choice. >D imensions: 6mm (W) x 12mm (H).

> Available in 12V and 24V.

// 78

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

ILG Series LED Flexible Strip Light > Flexible cuttable strip light. > Available in white and RGB. > Available in 12V and 24V. >S urface mount with tape applied.

>C uttable to a length of your choice. >D imensions: 12mm (W) x 4mm (H).

ILF Series LED Flexible Strip Light > Flexible cuttable strip light. >A vailable in white, blue, red, RGB, RGBW. > Available in 12V and 24V. > I P20 and IP65 options available.

>S urface mount with tape applied. >C uttable to a length of your choice. >D imensions: 10mm (W) x 3mm (H).

ILQ Series LED Side-Emitting Flexible Strip Light > Flexible cuttable strip light. >A vailable in white and red. > Available in 12V and 24V. > I P20 and IP65 options available.

www.venta.global

>S urface mount with tape applied. >C uttable to a length of your choice. >D imensions: 8mm (W) x 0.8-3mm (H).

// 79

INTERIOR LIGHTING

Extrusion Opaque Recessed Extrusion For Side Emitting LEDs >L ow profile extrusion. > Can be used a feature light. >S upplied fully assembled with our ILQ Series LED side-emitting flexible strip light. For more details see page 79.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN.10.01

Opaque Recessed Extrusion For Side Emitting LEDs, 2m

N/A

N/A

N/A

N/A

2000x5x17

0.086

Surface Mount Single Extrusion with Diffused Lens >L ow profile extrusion. >S upplied fully assembled with our LED flexible strip lighting.

For more details see pages 78 and 79.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

EX.001.2000

Surface Mount Single Extrusion with Diffused Lens, 2m

N/A

N/A

N/A

N/A

2000x8.5x23

0.352

// 80

+44 (0)1962 88 44 44

hello@venta.global

INTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

ILSS Surface Mount LED Profile >L ow profile extrusion. >S upplied fully assembled with our LED flexible strip lighting.

For more details see pages 78 and 79.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILSS

Surface Mount LED Profile with Opaque Cover and End Caps, 2m

N/A

N/A

N/A

N/A

2000x10x30

0.329

LP Recessed Mount Aluminium Extrusion >L ow profile extrusion. > Recessed mount. > End caps available. >S upplied fully assembled with our LED flexible strip lighting.

For more details see pages 78 and 79.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LPF01

Recessed Mount Aluminium Extrusion, 2m

N/A

N/A

N/A

N/A

2000x22x6

0.180

LPC01

Recessed Mount Aluminium Extrusion - Cover Profile

N/A

N/A

N/A

N/A

2000x4x7

0.029

LPE01

Recessed Mount Aluminium Extrusion - End Cap

N/A

N/A

N/A

N/A

4x13x2

0.000.6

www.venta.global

// 81

INTERIOR LIGHTING

Reading Lights Dual Colour LED Map Light - Red / White > Red/white illumination.

> Dimming capability.

> 460mm stalk.

>P erfect for military/special forces applications.

> Integral switch. >F lexible gooseneck tube provides a stable light source in moving vehicles.

>B lackout version available, see page 96.

> 270° rotation.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

MPL218

Dual Colour LED Map Light - Red / White

12

0.082A @ 12V

IP54

270

457x30x25

0.159

MPL218/1M

Dual Colour LED Map Light - Red / White, 1m Cable

12

0.082A @ 12V

IP54

1000

457x30x25

0.186

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

120

45x537x41.5

0.220

LED Map / Reading Light > 400mm flexible stalk. > Superb light output. > Dual voltage. > Integral switch.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

MPLE40

LED Map / Reading Light

9-36

0.12A @ 12V 0.06A @ 24V

// 82

+44 (0)1962 88 44 44

hello@venta.global

EXTERIOR LIGHTING

EXTERIOR LIGHTING Our LED exterior lighting range is ideal for both on and off-road applications. It offers powerful, waterproof and robust solutions to improve comfort, safety and productivity.

> Scene Lights...................................................................................... 84 > General Exterior Lighting............................................................ 86 > Service Lights ...................................................................................87 > Awning Lights.................................................................................. 88 > Worklamps......................................................................................... 89 > Search Lights.................................................................................... 92

www.venta.global

// 83

EXTERIOR LIGHTING

Scene Lights Ezio High Power LED Scene Light Robust aluminium housing.

Protruding lip reduces glare and protects the lens.

Powder coated cover provides colour matching options.

Available with an angled plinth.

Hidden heat sink.

Compact unit.

Glue sealed with a breathable valve.

Potted cable exit providing an IP69K rating.

Waterproof.

Daylight colour temperature for maximum visibility.

Sleek curved design.

Ultra-wide light spread.

Available in any colour.

Blends into the vehicle.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

High Power LED Scene Light - White Housing

10-32

1.6A @ 12V 0.82A @ 24V

IP69K

490

224x58x51

0.280

AU.09.4.MS

High Power LED Scene Light - White Housing with Superseal Connector

10-32

1.6A @ 12V 0.82A @ 24V

IP69K

530

224x58x51

0.288

AU.09.403.M

High Power LED Scene Light - Black Housing

10-32

1.6A @ 12V 0.82A @ 24V

IP69K

490

224x58x51

0.280

AU.09.403.MS

High Power LED Scene Light - Black Housing with Superseal Connector

10-32

1.6A @ 12V 0.82A @ 24V

IP69K

530

224x58x51

0.288

AU.09.404.M

High Power LED Scene Light Ambulance Yellow Housing

10-32

1.6A @ 12V 0.82A @ 24V

IP69K

490

224x58x51

0.280

AU.09.P

High Power LED Scene Light - Plinth

N/A

N/A

N/A

N/A

273x108x30.5

0.091

PART NUMBER

AU.09.4.M

Available for next business day delivery with our FastLane promise.

// 84

+44 (0)1962 88 44 44

hello@venta.global

EXTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

Mylo Compact LED Scene Light

Wide light spread.

Pressure washer proof with an IP69K rating.

Compact unit.

Daylight colour temperature for maximum visibility.

Slimline design.

Ideal where space is limited.

Robust polycarbonate housing and lens.

Recessed lens protects the light from breakages.

PART NUMBER

AU3791 AU379102

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

Compact LED Scene Light - Black Housing

12/24

0.69A @ 12V 0.27A @ 24V

IP69K

545

136x46x30

0.109

Compact LED Scene Light - Black Housing with Superseal Connector

12/24

0.69A @ 12V 0.27A @ 24V

IP69K

585

136x46x30

0.117

www.venta.global

// 85

EXTERIOR LIGHTING

General Exterior Lighting AU.20 Series High Power LED Light

Robust cast aluminium housing protects against knocks and scrapes.

Available with rubber mount and angled rubber mount.

Compact.

High power.

Available with black or white housing.

Sleek, curved design blends in with your vehicle.

Available with white or red LEDs.

Wide light spread.

Intense light output.

Daylight colour temperature ensures maximum visibility and safety.

Helps provide an effective working environment.

ECE R148 approved for use as a reverse light or as a manoeuvring light.

Ideal for internal or external use.

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

High Power LED Light - Black Housing

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

500

72x39x13

0.086

AU.20.4.MS

High Power LED Light - Black Housing with Superseal Connector

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

540

72x39x13

0.090

AU.20.402.M

High Power LED Light - White Housing

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

500

72x39x13

0.086

AU.20.402.MS

High Power LED Light - White Housing with Superseal Connector

10-32

0.4A @ 12V 0.2A @ 24V

IP69K

540

72x39x13

0.090

AU.20.R.M

High Power LED Red Light - Black Housing

10-32

0.27A @ 12V 0.14A @ 24V

IP69K

535

72x39x13

0.086

AU.20.P

AU.20 Series Rubber Mount

N/A

N/A

N/A

N/A

77x44x10

0.019

AN.15.AB

AU.20 Series 45° Angled Rubber Mount

N/A

N/A

N/A

N/A

75x45x35

0.044

PART NUMBER

AU.20.4.M

Available for next business day delivery with our FastLane promise.

// 86

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

EXTERIOR LIGHTING

Service Lights AU.02 Series LED Service Light > I deal for illuminating the area around motorhomes or caravans. >S limline, curved design allows the light to flow nicely into the bodywork. >R ecessed channel at the rear allows for varying cable exits.

>S urface mounted with a large landing area for bonding adhesive, making it easy to install. >C ool and warm white versions available. >A vailable with a connector of your choice.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.02.4.12

LED Service Light - White

12

0.3A @ 12V

IP68

675

290x41x26

1.14

AU.02.W4.12.SC

LED Service Light - Warm White with Spade Connectors

12

0.3A @ 12V

IP68

700

290x41x26

1.14

> Want more information?

You can read further information and download technical specifications and drawings of all our products on our website at www.venta.global/products

www.venta.global

// 87

EXTERIOR LIGHTING

Awning Lights AU.01 Series LED Awning Light >E xcellent light output of 115 lux at 1 metre. > Indirect light prevents glare. >C urved design to divert rainwater away from the door and the vehicle. >R ecessed channel on the rear allows for a varying cable exit.

>S ecure and easy to install surface mounted design with 5 screw holes, plus a large landing area for the bonding adhesive. >A vailable with white or grey housing.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AU.01.4.12

LED Awning Light - White Housing

12

0.5A @ 12V

IP68

600

600x100x35

0.369

AU.01.4.12.G

LED Awning Light - Grey Housing

12

0.5A @ 12V

IP68

600

600x100x35

0.369

> Want to talk to us?

If you’d like to discuss your requirements or can’t find exactly what you’re looking for, call us on +44 (0)1962 88 44 44 and we’d be happy to see how we can help you.

// 88

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

EXTERIOR LIGHTING

Worklamps AU.22 Series High Power LED Worklamp with Integrated Superseal Connector 10-80V >H igh power light output at 1,350 lumens. > I ntegrated Superseal connector providing fast and easy plug and play installation. >D aylight colour temperature ensures maximum visibility and safety. >R obust aluminium housing protects against knocks and scrapes. >3 mm strong steel bracket provides strength and stability to the worklamp.

PART NUMBER

AU.22.4.SHV AU.22.4.SHV.SM

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

High Power LED Worklamp with Integrated Superseal Connector 10-80V

10-80

1.641A @ 12V 0.839A @ 24V

IP67

0

112x144x51

0.605

High Power LED Worklamp with Integrated Superseal Connector 10-80V - Suction Mount

10-80

1.641A @ 12V 0.839A @ 24V

IP67

0

112x176x51

0.932

Available for next business day delivery with our FastLane promise.

www.venta.global

// 89

EXTERIOR LIGHTING

WL1084 Series High Power LED Worklamp with Integrated Superseal Connector > I ntegrated 2-pin SuperSeal connector.

> Robust housing.

>M att black front cover and matching powder coated heatsink.

> Surface mount bracket.

> Versatile adjustment.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WL1084

High Power LED Worklamp with Integrated Superseal Connector

12/24

2.8A @ 12V 1.5A @ 24V

IP67

2540

102x152x78

0.148

WLW819 Series High Power LED Worklamp with Reverse Function >F ully homologated reverse function to ECE R23. > Totally waterproof. > Dual voltage.

> Polarity protected. >R obust, durable ABS housing which is cool to the touch.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WLW819

High Power LED Worklamp with Reverse Function

12/24

1.2A @ 12V 0.6A @ 24V

IP68

2500

101x148x78

0.600

WLW819S

High Power LED Worklamp with Reverse Function and Superseal Connector

12/24

1.2A @ 12V 0.6A @ 24V

IP68

2540

101x148x78

0.604

// 90

+44 (0)1962 88 44 44

hello@venta.global

EXTERIOR LIGHTING

INNOVATE. CREATE. ILLUMINATE.

WLE004 Series Compact Round High Power LED Worklamp >P owder coated cast aluminium housing.

> Stainless steel bracket.

>P ower consumption less than 1/4 of a halogen worklamp.

>A vailable with Superseal connectors and 360° swivel bearing.

> Compact design.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WLE004S

Compact Round High Power LED Worklamp with Superseal Connector

10-30

0.655A @ 12V 0.326@24V

IP67

1000

83x122x65

0.433

WLE004K

Compact Round High Power LED Worklamp with 360° Bearing

10-30

0.655A @ 12V 0.326@24V

IP67

1040

83x122x65

0.441

WLE008 Series Oval High Power LED Worklamp > Very cost effective. > Extremely low current draw. > Robust aluminium housing. > Stainless steel bracket. > Superb light output.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

WLE008

Oval High Power LED Worklamp

9-33

1.35A @ 12V 0.684A @ 24V

IP67

1000

143x121x65

0.677

WLE008S

Oval High Power LED Worklamp with Superseal Connector

9-33

1.35A @ 12V 0.684A @ 24V

IP67

1040

143x121x65

0.681

www.venta.global

// 91

EXTERIOR LIGHTING

Search Lights SGXL Series High Power LED Search Light > 50,000 hour life expectancy. > Low current draw. > 1 20° tilt x 360° continuous rotation.

>U V stabilised and salt water resistant. >C omes with wired control or wireless remote control.

> 848m light beam.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

SGXL210

High Power LED Search Light with Wireless Remote Control

12

3.33A @ 12V

IP68

485

185x180x169

3.31

SGXL210D

High Power LED Search Light with Wired Remote Control

24

1.67A @ 24V

IP68

485

185x180x169

3.31

> Case Studies To see some examples of how we have worked with and helped our customers, just visit our website www.venta.global/case-studies

// 92

+44 (0)1962 88 44 44

hello@venta.global

MILITARY LIGHTING

MILITARY LIGHTING Designed specifically for military vehicles, our range of military LED lighting uses covert blackout features or infra-red to give you visibility whilst keeping you hidden during operations.

> Infra-Red Driving Lights............................................................... 94 > Map Lights......................................................................................... 96

www.venta.global

// 93

MILITARY LIGHTING

Infra-Red Driving Lights Predator Series Military Infra-Red Driving Light

Designed to meet MIL-STD-461F and DEFSTAN 59-411.

Ideal for military vehicles during covert operations.

Designed to cope in the toughest military environments.

Milled aluminium housing with an anodised finish.

Recessed mounting.

Two mounting points.

Military spec gasket.

Recessed lens reduces the chance of the light being hit.

20° angular light distribution.

Rib down the centre gives the lens extra protection from any impact.

800nm infra-red light, visible through night-vision goggles.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

MI.02.0.12

Military Infra-Red Driving Light

12

0.4A @ 12V

IP68

350

90x38x20

0.127

// 94

+44 (0)1962 88 44 44

hello@venta.global

MILITARY LIGHTING

INNOVATE. CREATE. ILLUMINATE.

Predator Series Military Infra-Red Rear Light >D esigned to cope in the toughest military environments.

>8 80nm infra-red light, visible through night-vision goggles.

>A ttaches to the back of military vehicles for driving in convoy during covert operations.

>M illed aluminium housing with an anodised finish. >D esigned to meet MIL-STD461F and DEFSTAN 59-411.

>T ail function helps those behind follow. >B rake function warns those behind that the vehicle is stopping.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

MI.03.0BT.M

Military Infra-Red Rear Light

10/30

0.3A @ 12V 0.15A @ 24V

IP68

350

50x22x18

0.049

www.venta.global

// 95

MILITARY LIGHTING

Map Lights Dual Colour LED Military Map Light with Blackout Function >P erfect for military/special forces applications.

> 46cm stalk.

> Red/white illumination.

> Dimming capability.

> Blackout function.

> Integral switch.

> 270° rotation.

>F lexible gooseneck tube provides a stable light source in moving vehicles.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

MPL218SB

Dual Colour LED Military Map Light with Blackout Function

12/24

0.041A @ 12V 0.079A @ 24V

IP54

270

457x30x25

0.159

> News & Insights We regularly post insights on our website, including issues affecting the industry, useful advice on how to reduce the impact of these issues and jargon buster guides to help understand lighting specifications. We also post news about Venta including our latest product launches.

You can read these insights on our website at www.venta.global/insights

// 96

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

WIRING & ACCESSORIES In addition to our LED lighting range, we also offer a range of electrical wiring and accessories to provide you with everything you need.

> Rappid®................................................................................................ 98 > Harnesses..........................................................................................102 > LED Controllers & Dimmers......................................................103 > Load Modules & Flashers.......................................................... 106 > Switching............................................................................................110 > Reversing Alarms & Camera Systems.................................... 112

www.venta.global

// 97

WIRING & ACCESSORIES

Key Benefits Rappid® offers a fully waterproof modular vehicle wiring system which is a simple, quick and cost-effective alternative to hard wiring. In fact, each connection takes just over 2 seconds - that’s over 12,000 connections in a single eight hour shift!

1

S AVE TIME AND MONEY

> Simple to fit with no hard wiring or specialists needed. > Readily available stocked parts. > Reduces production bottlenecks. > Low replacement costs and shorter lead times. > Reduced vehicle downtime for your customer.

2

M ODULAR SOLUTION

> Replace only the parts you need, not the entire system. > A range of cable lengths available. > Unique Venta T-Piece connectors. > Industry standard cable connectors. > Connectors and cables are available in 2, 3 or 6-way options. > Compatible with any lighting product.

3

HIGH QUALITY & WATERPROOF

> IP67 rated making it totally protected against the elements. > Superseal connectors. > 3 year warranty.

// 98

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

Rappid® Components

2

3

4

1

1

T-Piece Connector

3

Spur Off

2

Cabling

4

Chassis Connector

T-Piece Connectors Unique to Venta, our Rappid® T-piece connectors provide a totally waterproof three direction junction which allows you to connect additional cable runs.

Available in 2-way, 3-way and 6-way variants to suit different functions.

PART NUMBER

DESCRIPTION

CHASSIS

SSMFT

Rappid® 2-Way T-Piece Connector

All types

SSMFT3

Rappid® 3-Way T-Piece Connector

All types

SSMFT6

Rappid® 6-Way T-Piece Connector

All types

Available for next business day delivery with our FastLane promise.

www.venta.global

// 99

WIRING & ACCESSORIES

Cabling We have a range of multi-core cables with industry standard, pre-terminated Superseal connectors at each end to ensure water-tight electrical connections around your vehicle.

Available in different lengths and cores to ensure the perfect fit for your application.

2-CORE 2-core products typically include: > Front, side and rear marker lights

PART NUMBER

DESCRIPTION

CHASSIS

SSC0.5MF

Rappid® 0.5m Male to Female 2-Core Cable

All types

> Number plate lights

SSC1.5MF

Rappid® 1.5m Male to Female 2-Core Cable

All types

> Interior lights

SSC3MF

Rappid® 3m Male to Female 2-Core Cable

All types

SSC5MF

Rappid® 5m Male to Female 2-Core Cable

All types

PART NUMBER

DESCRIPTION

CHASSIS

R3.MF.1500

Rappid® 1.5m Male to Female 3-Core Cable

All types

R3.MF.3000

Rappid® 3m Male to Female 3-Core Cable

All types

R3.MF.4000

Rappid® 4m Male to Female 3-Core Cable

All types

R3.MF.5000

Rappid® 5m Male to Female 3-Core Cable

All types

> Worklamps > Scene lighting

3-CORE 3-core products typically include: > Side marker indicators > Lightheads

Spur Offs Spur offs are adaptors which allow you to connect components with different core values for a continuation of Rappid® throughout your vehicle.

PART NUMBER

DESCRIPTION

CHASSIS

LH6-2T

6-2 Way Adaptor - Tail Function

All types

LH6-2W

6-2 Way Adaptor - Reverse Function

All types

LH6-2S

6-2 Way Adaptor - Stop Function

All types

LH6-3

6-3 Way Adaptor - Side Marker / Indicator Function

All types

LH6-4

6-4 Way Adaptor - Stop / Tail / Indicator Function

All types

LH3-2

3-2 Way Adaptor Only

All types

PBLE-01

Spur Off with Marker and Brake Outputs

All types

PBLE-02

Spur Off with 3rd Brake Light Output

All types

PBLE-03

Spur Off with Marker Light Output

All types

Available for next business day delivery with our FastLane promise.

// 100

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

Chassis Connectors Add a chassis connector to connect the Rappid® system to your vehicle’s existing loom system.

REAR LIGHT CLUSTER ADAPTOR Use a rear light cluster adaptor to connect the Rappid® system to your vehicle’s existing loom system.

MARKER LIGHT PICK UP CONNECTORS Add a marker light pick up connector to connect the Rappid® system to your vehicle’s existing loom system.

PART NO

DESCRIPTION

CHASSIS

AN0050

Rear Light Cluster Adaptor to Plug into Loom

DAF (Square)

AN0051

Rear Light Cluster Adaptor to Plug into Rear Light

DAF (Square)

AN0053

Rear Light Cluster Adaptor to Plug into Loom

DAF (Round), Iveco Eurocargo, Volvo FL

AN0054

Rear Light Cluster Adaptor to Plug into Rear Light

DAF (Round), Iveco Eurocargo, Volvo FL

AN0055

Rear Light Cluster Adaptor to Plug into Loom

MERCEDES Actros

AN0056

Rear Light Cluster Adaptor to Plug into Rear Light

MERCEDES Actros

AN0057

Rear Light Cluster Adaptor to Plug into Loom

VOLVO FE

AN0058

Rear Light Cluster Adaptor to Plug into Rear Light

VOLVO FE

PART NO

DESCRIPTION

CHASSIS

LHKID1

Rappid® 200mm Iveco Daily Marker Chassis Connector

Iveco Daily

LHKFT1

Rappid® 200mm Ford Transit Marker Chassis Connector

Ford

LHKIC1

Rappid® 200mm Isuzu Marker Chassis Connector

Isuzu

LHKFCC1

Rappid® 200mm Fuso Canter Marker Chassis Connector

Fuso Canter

Extension Looms We offer 1 metre, waterproof extension looms suitable for a range of different chassis, so you can extend your rear lighting loom if required.

PART NO

DESCRIPTION

CHASSIS

AN0003

Rear Light Cluster Extension Square HDSCS Connector 1m

DAF (Square)

PBLE-1000

Rear Light Cluster Extension Round AMP Connector 1m

DAF (Round), Iveco Eurocargo, Volvo FE, Scania

LHMRLE-1000

Rear Light Cluster Extension Square Mercedes Connector 1m

MERCEDES Actros

www.venta.global

// 101

WIRING & ACCESSORIES

Harnesses > Did you know?

We also provide bespoke harnesses.

Where Rappid® isn’t an option, we also design and produce bespoke harnesses, enabling you to install a wiring system that is designed specifically for the vehicle. This is useful when you’re producing high volumes of the same vehicle.

// 102

+44 (0)1962 88 44 44

hello@venta.global

INNOVATE. CREATE. ILLUMINATE.

WIRING & ACCESSORIES

LED Controllers & Dimmers RGB Amplifier >F or use with RGB strip light on lengths over 5m.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILMAMP

RGB Amplifier

12/24

12A

IP20

0

107x25x65

0.099

RGB Controller >R emote controlled RGB strip light controller. > 12V strip light only.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILMCON

RGB Controller

12

2A

IP20

260

63x22x35

0.023

www.venta.global

// 103

WIRING & ACCESSORIES

RGB Controller >R emote: Lithium battery CR2025. > Output: Max 6A* 3 channels. >C onnection mode: Common anode.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILMCON1

RGB Controller

12/24

18A

IP20

0

130x65x25

0.111

Wireless High Power RGB LED Controller >C onnection mode: Common anode. >T ransmission frequency: 2.4Ghz. >H andset requires 3 x AAA batteries.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ILMCON2

Wireless High Power RGB LED Controller

12/24

8A

IP20

0

120x62x27

0.214

// 104

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

LED PWM Dimmer Master >L ight intensity can be varied from 10% to 100%. > Flickerless dimming of LEDs. >F ully protected and ruggedised. > See page 111 for details on our momentary switch.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LEDDIM2

LED PWM Dimmer Master

9-32

10A

IP20

0

52x52x31

0.138

10A Rated PWM LED Dimmer Module, Preset Fixed % > 1 0A rated PWM LED dimmer module. >U nit dims to preset, programmable level. >P WM switching frequency: 240 Hz ±3%; 0 %-100% duty cycle. > See page 111 for details on our momentary switch.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LEDDIM13

10A Rated PWM LED Dimmer Module, Preset Fixed %

12/24

10A

IP20

0

52x52x31

0.140

www.venta.global

// 105

WIRING & ACCESSORIES

Load Modules & Flashers Load Module >S imulates the current draw for a standard halogen direction indicator. > No intelligence in loading. >P re-plugged load module to create plug and play solution.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LM

Load Module 12V, 50W, 6 ohm

12

4.167A @ 12V

IP51

100

50x15.5x29

0.027

LML

Load Module - Left Hand

12

4.167A @ 12V

IP51

140

50x15.5x29

0.042

LMR

Load Module - Right Hand

12

4.167A @ 12V

IP51

140

50x15.5x29

0.042

ILS Intelligent Load Module >S imulates the current draw for a standard halogen direction indicator. > I SO1320701:2012 compliance. > Fixes fast indicator flashing. > Fully waterproof. >O ne unit required per indicator. > I ntelligently adjusts to the current draw of the indicator. >D oesn’t get hot so can be mounted anywhere. >U sed in conjunction with our ILS 4-Pin LED Flasher Unit. See page 108 for more details.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN.LMILS.M

ILS Intelligent Load Module

12/24

N/A

IP66

200

23x32x10

0.015

// 106

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

Intelligent Load Module >S imulates the current draw for a standard halogen direction indicator. >M onitors the state of the LED light. > Available in 12V or 24V. > Compact design.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LMI10

Intelligent Load Module 12V

12

N/A

IP65

270

87x72x29

0.205

LMI10D

Intelligent Load Module 24V

24

N/A

IP65

270

87x72x29

0.205

Intelligent Load Module >S imulates the current draw for a standard halogen direction indicator. >M onitors the state of the LED light. > Robust construction. >F ully sealed against water ingress. >S ingle and double channel versions available.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

LMI1

Intelligent Load Module - Single Channel, 1m Cable

12/24

2.16A @ 12V 1.08A @ 24V

IP67

1000

130x90x20

0.328

LMI2

Intelligent Load Module - Double Channel, 2m Cable

12/24

2.16A @ 12V 1.08A @ 24V

IP67

2000

130x90x20

0.600

www.venta.global

// 107

WIRING & ACCESSORIES

ILS LED 4-Pin Flasher Unit >4 -pin flasher unit for direction indicators, hazard warning lights and failure detection. > Max 140W. >U sed in conjunction with our ILS Intelligent Load Module. See page 106 for more details.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN.FL1404.M

ILS LED 4-Pin Flasher Unit

12

Max 11.667A @ 12V

IP66

0

30x40x30

0.030

LED 3-Pin Flasher Unit > 3-pin flasher unit for direction indicators. > 30W capacity.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

FL303

LED 3-Pin Flasher Unit - 30W

12

Max 2.5A @ 12V

None

0

28x38x28

0.020

// 108

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

Side Marker Flasher Unit >C ontrols the flashing of the vehicle’s side marker illumination system simultaneously to tail light direction indicator flashes.

> Tyco chassis connectors. >T wo-way Superseal connector on the marker light feed.

>A cost effective alternative to side marker indicators to meet updated Regulation 48 legislation.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN1141

Side Marker Flasher Unit - Single Channel

12/24

2A @ 12V 1A @ 24V

IP67

1000

129x20x90

0.620

> Did you know?

We offer a 3-year warranty as standard on all of our products!

www.venta.global

3

YEAR

WARRANTY

// 109

WIRING & ACCESSORIES

Switching Activvate 4-Way Switch Pack

Relay box: 124x74x30mm

Waterproof.

Compact.

Plug and play option available.

Available with adjustable arm mount or motorcycle handlebar clamp.

Dual voltage.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN5976

4-Way Switch Pack with Adjustable Arm Mount and Relay Box

10-30

0.5A @ 12V 0.5A @ 24V

IP65

2000

38x76x24

0.380

AN8489

Motorcycle Handlebar Clamp

N/A

N/A

N/A

N/A

43x82x62

0.08

// 110

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

Surface Mount Waterproof PIR Motion Sensor Switch > Fully waterproof. > Dual voltage. > Compact design. > Surface mount.

> 1 minute timer - if no detection it will flash the lights connected 3 times before switching off in the next 30 seconds.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

PIRW

Surface Mount Waterproof PIR Motion Sensor Switch

12/24

0.017A @ 12V 0.008A @ 24V

IP69K

130

69x69x18

0.043

Black Momentary Switch > 4.8mm blade terminals. > Snap-fit into 20mm hole. > Dual voltage.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

ES690

Black Momentary Switch

12/24

20A @ 12V 10A @ 24V

IP65

0

24x33x33

0.58

www.venta.global

// 111

WIRING & ACCESSORIES

Reversing Alarms & Camera Systems Multi-Frequency Reverse Alarm > White noise alarm. > Output: 102dB±3dB at 4ft. >D uty cycle: 0.68S± 10% (-50% ON 50% OFF).

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN.MFRA.DV

Multi-Frequency Reverse Alarm

12/24

0.184A @ 12V 0.356 @ 24V

IP68

220

103.5x71x40.5

0.334

AN.MFRA.DV.DC

Multi-Frequency Reverse Alarm with Deutsch Connector

12/24

0.184A @ 12V 0.356 @ 24V

IP68

265

103.5x71x40.5

0.340

Double Engage Night Silent Multi-Frequency Alarm > Output: 92dB at 4ft. > Night silent.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

AN.MFRADE.DV

Double Engage Night Silent Multi-Frequency Alarm

12/24

0.36A @ 12V 0.444A @ 24V

IP68

200

82x128x79

0.283

// 112

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

RA007 Series Reverse Alarm > Fully waterproof. > 107dB output.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RA007

Reverse Alarm 10-80V 107dB

10-80

0.4A @ 80V

IP67

0

102x70x41

0.309

RA007S

Reverse Alarm 10-80V 107dB with Superseal Connector

10-80

0.4A @ 80V

IP67

0

102x70x41

0.317

Compact Reverse Alarm > Robust. > Output: 94dB. >O ption for reduced night time volume.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RA34

Compact Reverse Alarm

12/24

0.011A @ 12V 0.035A @ 24V

IP67

120

55x60x52

0.091

www.venta.global

// 113

WIRING & ACCESSORIES

RAC7 Series 7” Reverse Camera Kit >R obust camera system with night vision.

>H orizontal resolution of 330 TV lines.

> 7” colour monitor.

> IR wavelength: 850mm.

> 120° field of view.

> I ntegral speaker, contrast 250:1.

>P icture resolution of 512x582 pixels.

> 1/3” CCD image sensor.

> Double video input.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RAC7

7” Reverse Camera Kit

12/24

0.9A @ 12V 0.45A @ 24V

IP68

20000

N/A

1.85

> Want more information?

You can read further information and download technical specifications and drawings of all our products on our website at www.venta.global/products

// 114

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

RAC7 Series 7” Touchscreen Mirror Monitor > Resolution: 480x234 RGB.

> Luminance: 200cd/m2.

> Screen ratio: 16:9.

> Double video input.

>C ompatible system: PAL/NTSC (Automatic).

> OSD menu. > Remote control.

> 4P or RVC connector. > Effective pixels: 510x492.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RAC7TMM

7” Touchscreen Mirror Monitor

12/24

0.216A @ 12V 0.108A @ 24V

IP67

320

250x107x47

0.456

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

12/24

Monitor: 0.216A @ 12V 0.108A @ 24V

Monitor: 320

Monitor: 250x107x47

Camera: 450

Camera: 86.5x77x75

Monitor: 320

Monitor: 250x107x47

Camera: 15000

Camera: 100x82x60

RAC7 Series 7” Touch Screen Reverse Camera Kit >R obust camera with night vision. >7 ” touchscreen mirror monitor. > Mirror clip system. > Double video input.

PART NUMBER

RAC7T

DESCRIPTION

7” Touch Screen Reverse Camera Kit

IP67

Camera: 0.25A @ 12V

RAC7TDV2

7” Touch Screen Reverse Camera Kit White Twin Night Vision Camera

www.venta.global

12/24

Monitor: 0.216A @ 12V 0.108A @ 24V Camera: 0.25A @ 12V

IP67

0.814

1.45

// 115

WIRING & ACCESSORIES

> Case Studies To see some examples of how we have worked with and helped our customers, just visit our website www.venta.global/case-studies

Reverse Camera Cable >A vailable in 5m, 10m, 15m or 20m lengths.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC5M

Reverse Camera Cable, 5m

12/24

N/A

IP68

5000

N/A

0.191

RSC10M

Reverse Camera Cable, 10m

12/24

N/A

IP68

10000

N/A

0.358

RSC15M

Reverse Camera Cable, 15m

12/24

N/A

IP68

15000

N/A

0.517

RSC20M

Reverse Camera Cable, 20m

12/24

N/A

IP68

20000

N/A

0.659

// 116

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

Night Vision Reverse Camera >C amera with night vision LEDs. > 120° viewing angle. > Robust aluminium shell.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC10

Night Vision Reverse Camera

12

0.25A @ 12V

IP68

450

86.5x77x75

0.300

> Want to talk to us?

If you’d like to discuss your requirements or can’t find exactly what you’re looking for, call us on +44 (0)1962 88 44 44 and we’d be happy to see how we can help you.

www.venta.global

// 117

WIRING & ACCESSORIES

LED Dual Camera with Night Vision - Black Housing > Night vision LEDs. > Materials: Aluminium. > 120° viewing angle. >A vailable in white or black housing.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC13

LED Dual Camera with Night Vision Black Housing

12

0.25A @ 12V

IP67

450

100x82x60

0.480

> Did you know?

We offer a 3-year warranty as standard on all of our products!

// 118

3

YEAR

WARRANTY

+44 (0)1962 88 44 44

hello@venta.global

WIRING & ACCESSORIES

INNOVATE. CREATE. ILLUMINATE.

LED Dual Camera with Night Vision - White Housing > Night vision LEDs. > Materials: Aluminium. > 120° viewing angle. >A vailable in white or black housing.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC13W

LED Dual Camera with Night Vision White Housing

12

0.25A @ 12V

IP67

450

100x82x60

0.480

LED Side Camera with Night Vision > 120° viewing angle. > Materials: Aluminium/ABS.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC12

LED Side Camera with Night Vision

12/24

0.25A @ 12V 0.125A @ 24V

IP67

450

47x50x65

0.088

www.venta.global

// 119

WIRING & ACCESSORIES

Compact Push Fit Camera >P ush fit design for easy installation. > Fully waterproof.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC16CO

Compact Push Fit Camera

12

0.0375A @ 12V

IP69K

730

20.5x23

0.050

Universal LED 3rd Brake light with Reverse Camera > I nfra-red light reversing camera.

>O ption with step light available.

> Fully waterproof.

> Step light: 360 lumens.

> Vibration rate: 10g.

PART NUMBER

DESCRIPTION

VOLTAGE DC (V)

CURRENT DRAW

IP RATING

CABLE LENGTH (MM)

DIMENSIONS (MM)

WEIGHT (KG)

RSC21

Universal LED 3rd Brake light with Reverse Camera

12

2.4A @ 12V

IP69K

450

200x60x95

0.450

12

Reverse camera/3rd brake light: 2.4A @ 12V

IP69K

500

200x28x102

0.536

RSC21/SL

Universal LED 3rd Brake light with Reverse Camera and Step Light

Step light: 0.4A @ 12V

// 120

+44 (0)1962 88 44 44

hello@venta.global

UNDERSTANDING LIGHTING SPECIFICATIONS

UNDERSTANDING LIGHTING SPECIFICATIONS

www.venta.global

// 121

UNDERSTANDING LIGHTING SPECIFICATIONS

Understanding Measurements of Light Here we explain the difference between the different ways of measuring the brightness of light.

> LUMINOUS FLUX & LUMENS The amount of visible light that the human eye can see in all directions is known as the luminous flux. Luminous flux quantifies the overall perceived brightness of a product. This is useful for products like worklamps where overall light output is important.

Luminous flux is measured in lumens (lm). The higher the lumen rating the brighter the light will be, and the lower the lumen rating the dimmer the light will be. > RAW LUMENS & EFFECTIVE LUMENS Raw lumens - a theoretical rating that doesn’t take factors such as product housing into consideration. It’s only a measure of the LEDs themselves, not an assembled light.

Raw lumens = lumen rating per LED x number of LEDs in the light.

Effective lumens - takes into consideration any energy lost from heat, product housing and the stabilisation of light. This is the most accurate reflection of the luminous flux.

>L UMINOUS INTENSITY & CANDELAS Luminous intensity describes how much light is emitted from a light source in a particular direction, to help us understand the light output at a specific angle.

Luminous intensity is measured using candelas (cd), a particularly important measurement for testing road lighting for legal requirements.

The candela rating will be the same at all distances from the light source, at a specific point or angle.

> ILLUMINANCE & LUX Illuminance, measured using lux, describes the amount of visible light (luminous flux) on a surface area. This is helpful in determining the intensity of light in a particular area.

One lux is equivalent to one lumen per square meter of a surface area.

The lux value changes depending on the distance of the light source from a surface, which is useful in ensuring work areas are sufficiently illuminated, or for interior lighting designs where a consistent light level is desired. > FOOTCANDLES Footcandles is an imperial measurement meaning the illuminance has been measured by square feet instead of square metres.

// 122

+44 (0)1962 88 44 44

hello@venta.global

A Helpful Guide to IP Ratings IP stands for Ingress Protection, although sometimes it’s referred to as “International Protection”. IP ratings are used to define levels of sealing effectiveness of electrical enclosures (like lights) against intrusion from foreign bodies (tools, dirt and other things).

These ratings are made up of the prefix ‘IP’ and then 2 digits, for example ‘IP68’. Here’s what it means…

SOLIDS 1

2

3

4

5

6 Rating Example

IP 6 7 “Ingress Protection” Protected against a solid object greater than 50mm such as a hand.

Protected against a solid object greater than 12mm such as a finger.

Protected against a solid object greater than 2.5mm such as a screwdriver.

Protected against a solid object greater than 1mm such as a wire.

Dust protected.

Limited ingress of dust permitted. Will not interfere with operation of equipment.

Dust tight.

No ingress of dust. Complete protection against contact.

1

2

3

4

5

6

7

8

9K

Protected against vertically falling drops of water.

Protected against vertically falling drops of water when enclosure is tilted up to 15o from normal position.

Protected against sprays of water from any angle up to 60o from vertical.

Protected against water splashed from all directions.

Protected against jets of water by a nozzle.

Protected against powerful water jets by a nozzle.

Protected against immersion in up to 1m of water for 30 mins.

Protected against immersion in over 1m of water under pressure.

Protected against steamjet cleaning.

WATER

> OUR MOST COMMON RATINGS PUT SIMPLY: IP RATING

FIRST DIGIT - SOLIDS

SECOND DIGIT - LIQUIDS

IP22

Protected from touch by fingers and objects > 12mm

Protected from water spray less than 15° from vertical

IP35

Protected from tools & wires > 2.5mm

Protected from low pressure water jets from any direction

IP65

Protected from total dust ingress

Protected from low pressure water jets from any direction

IP66

Protected from total dust ingress

Protected from low pressure water jets from any direction

IP67

Protected from total dust ingress

Protected from immersion between 15cm to 1m in depth

IP68

Protected from total dust ingress

Protected from long term immersion in up to 1m in depth

IP69K

Protected from total dust ingress

Protected from steam-jet cleaning

www.venta.global

// 123

UNDERSTANDING LIGHTING SPECIFICATIONS

INNOVATE. CREATE. ILLUMINATE.

UNDERSTANDING LIGHTING SPECIFICATIONS

What is Kelvin Colour Temperature?

When you’re looking at a white light, sometimes it looks warm and sometimes it looks cooler. This level of warmth and coolness is measured on a scale which is called the Kelvin Scale (K).

COLOUR TEMPERATURE IS MEASURED IN KELVINS (K)

The scale is from 1,000K to 10,000K, and simply the higher the number, the cooler the light. So the warmer a light is the redder the colour, and the cooler it is, the more blue it is in colour.

In the automotive industry, lighting typically falls somewhere on a scale from 2000K to 6500K. This table briefly outlines the main range of Kelvin colours:

Colour Temperature (Kelvin)

2000K - 3000K

3100K - 4500K

4600K - 6500K

Light Appearance

Warm White

Cool White

Daylight

Ambience

Cosy, Calm

Bright, Vibrant

Crisp, Fresh

IN SUMMARY: > Less than 2000K gives off a dim glow of light, similar to what you might find from candlelight. > 2000K-3000K gives off a soft white glow, often yellow in appearance. > 3100K-4500K gives off a bright amount of white light. > 4600K-6500K gives off a bright amount of blue-white light. > 6500K and up gives off a bright bluish hue of light.

// 124

+44 (0)1962 88 44 44

hello@venta.global

INDEX

INDEX

www.venta.global

// 125

INDEX

Index Awning Lights............................................................ 88

Marker Lights................................................................12

Beacons......................................................................... 58

Message Boards........................................................ 62

Dashlights..................................................................... 54

Minibars......................................................................... 47

Downlights...................................................................64

Number Plate Lights................................................ 23

Controllers.................................................................. 103

Number Plate Warning Lights............................. 55

Dimmers...................................................................... 105

Rappid®.......................................................................... 98

Exterior Lighting - General................................... 86

Reading Lights........................................................... 82

Extrusion.......................................................................80

Rear Lights................................................................... 33

Flashers........................................................................108

Reflectors.....................................................................44

Front Lights................................................................. 26

Reversing Alarms & Camera Systems ............ 112

Front Position Lights/Indicators.........................29

Safety Lamps..............................................................60

Headlights.....................................................................26

Scene Lights................................................................84

Harnesses.....................................................................102

Search Lights.............................................................. 92

Indicators....................................................................... 31

Service Lights............................................................. 87

Infra-Red Driving Lights.........................................94

Step Lights....................................................................72

Interior Lighting - General.................................... 66

Strip Lighting - Flexible.......................................... 78

Lightbars.......................................................................46

Strip Lighting - Rigid................................................73

Lightheads...................................................................49

Switching......................................................................110

Load Modules........................................................... 106

Tail Lift Warning Lights.......................................... 56

Map Lights ..................................................................96

Worklamps................................................................... 89

// 126

+44 (0)1962 88 44 44

hello@venta.global

INDEX

INNOVATE. CREATE. ILLUMINATE.

www.venta.global

// 127

> OUR CERTIFICATIONS

IATF 16949

ISO 9001

ISO 14001

CoP

CONFORMITY OF PRODUCTION

INNOVATE. CREATE. ILLUMINATE.

> WANT TO TALK TO A HUMAN? Call us: Email us:

+44 (0)1962 88 44 44 hello@venta.global

This literature is intended for illustrative purposes and does not form part of any contract.

We reserve the right to change or remove products from our range. © Venta Global Ltd (2024)

www.venta.global
