Vélfag – Fish Processing Machines

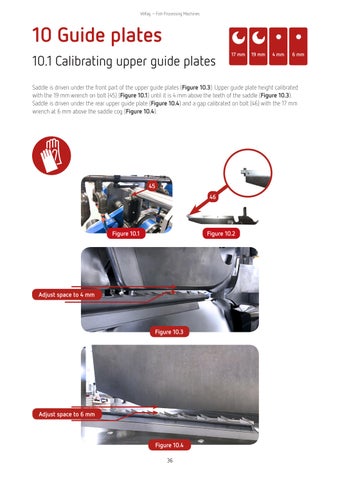

10 Guide plates 10.1 Calibrating upper guide plates
17 mm
19 mm
4 mm
6 mm
Saddle is driven under the front part of the upper guide plates (Figure 10.3). Upper guide plate height calibrated with the 19 mm wrench on bolt (45) (Figure 10.1) until it is 4 mm above the teeth of the saddle (Figure 10.3). Saddle is driven under the rear upper guide plate (Figure 10.4) and a gap calibrated on bolt (46) with the 17 mm wrench at 6 mm above the saddle cog (Figure 10.4).
45 46
Figure 10.1
Figure 10.2
Adjust space to 4 mm
Figure 10.3
Adjust space to 6 mm
Figure 10.4 36
