Vélfag – Fish Processing Machines

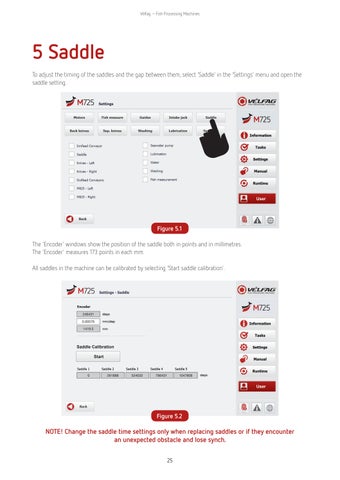

5 Saddle To adjust the timing of the saddles and the gap between them, select ‘Saddle’ in the ‘Settings’ menu and open the saddle setting.
User User
Figure 5.1 The ‘Encoder’ windows show the position of the saddle both in points and in millimetres. The ‘Encoder’ measures 173 points in each mm. All saddles in the machine can be calibrated by selecting ‘Start saddle calibration’.
246431 0.00576 1419.5
Saddle Calibration Start
0
261888
524032
786431
1047808
User User
Figure 5.2
NOTE! Change the saddle time settings only when replacing saddles or if they encounter an unexpected obstacle and lose synch. 25
