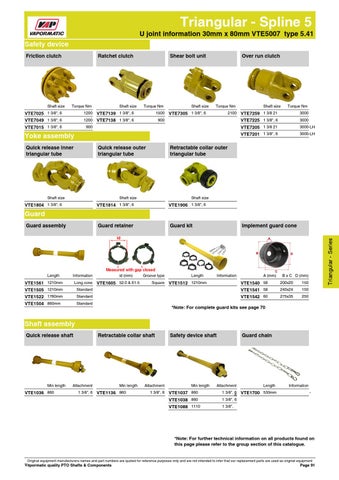

Triangular - Spline 5 U joint information 30mm x 80mm VTE5007 type 5.41 Safety device Friction clutch
Shaft size
Ratchet clutch
Torque Nm
Shaft size
Shear bolt unit
Torque Nm
VTE7025 1 3/8", 6
1200
VTE7139 1 3/8", 6
1500
VTE7049 1 3/8", 6
1200
VTE7138 1 3/8", 6
900
VTE7015 1 3/8", 6
900
Shaft size
Over run clutch
Torque Nm
VTE7305 1 3/8", 6
2100
Yoke assembly Quick release inner triangular tube
Quick release outer triangular tube
Shaft size
Torque Nm 3000
VTE7225 1 3/8", 6
3000
VTE7205 1 3/8 21
3000-LH
VTE7201 1 3/8", 6
3000-LH
Retractable collar outer triangular tube
Shaft size
Shaft size
VTE1804 1 3/8", 6
Shaft size
VTE7259 1 3/8 21
VTE1814 1 3/8", 6
VTE1906 1 3/8", 6
Guard retainer
Guard kit
Guard
Length
Information
VTE1561 1210mm
Long cone
VTE1505 1210mm
id (mm)
VTE1605 52.0 & 61.5
Groove type Square
Implement guard cone
Length
Information
VTE1512 1210mm
A (mm)
Triangular - Series
Guard assembly
B x C D (mm)
VTE1540 58
200x20
150
Standard
VTE1541 58
240x24
150
VTE1522 1760mm
Standard
VTE1542 60
275x35
250
VTE1504 860mm
Standard
*Note: For complete guard k its see page 7 0
Shaft assembly Quick release shaft
Min length
VTE1036 860
Retractable collar shaft
Attachment 1 3/8", 6
Min length
VTE1136 860
Attachment 1 3/8", 6
Guard chain
Safety device shaft
Attachment
Length
VTE1700 530mm
VTE1038 860
1 3/8", 6 6 1 3/8", 6
VTE1088 1110
1 3/8",
Min length
VTE1037 860
Information -
*Note: For further technical information on all products found on this page please refer to the group section of this catalogue.
Original equipment manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
