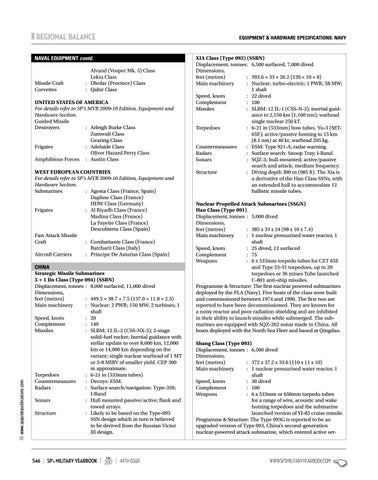

regional Balance NAVAL EQUIPMENT contd. Missile Craft : Corvettes :
Alvand (Vosper Mk. 5) Class Lekiu Class Dhofar (Province) Class Qahir Class
UNITED STATES OF AMERICA For details refer to SP’s MYB 2009-10 Edition, Equipment and Hardware Section. Guided Missile Destroyers : Arleigh Burke Class Zumwalt Class Gearing Class Frigates : Adelaide Class Oliver Hazard Perry Class Amphibious Forces : Austin Class
www.spguidepublications.com
WEST EUROPEAN COUNTRIES For details refer to SP’s MYB 2009-10 Edition, Equipment and Hardware Section. Submarines : Agosta Class (France, Spain) Daphne Class (France) HDW Class (Germany) Frigates : Al Riyadh Class (France) Madina Class (France) La Fayette Class (France) Descubierta Class (Spain) Fast Attack Missile Craft : Combattante Class (France) Ratcharit Class (Italy) Aircraft Carriers : Principe De Asturias Class (Spain) CHINA Strategic Missile Submarines 5 + 1 Jin Class (Type 094) (SSBN) Displacement, tonnes : 8,000 surfaced, 11,000 dived Dimensions, feet (metres) : 449.5 × 38.7 × 7.5 (137.0 × 11.8 × 2.3) Main machinery : Nuclear: 2 PWR; 150 MW; 2 turbines; 1 shaft Speed, knots : 20 Complement : 140 Missiles : SLBM; 12 JL-2 (CSS-NX-5); 2-stage solid-fuel rocket; Inertial guidance with stellar update to over 8,600 km, 12,000 km or 14,000 km depending on the variant; single nuclear warhead of 1 MT or 3-8 MIRV of smaller yield. CEP 300 m approximate. Torpedoes : 6-21 in (533mm tubes) Countermeasures : Decoys: ESM. Radars : Surface search/navigation: Type-359; I-Band Sonars : Hull mounted passive/active; flank and towed arrays. Structure : Likely to be based on the Type-093 SSN design which in turn is believed to be derived from the Russian Victor III design.
2016546 | SP's Military Yearbook | 2017 | 44th Issue
equipment & hardware specifications: navy
XIA Class (Type 092) (SSBN) Displacement, tonnes : 6,500 surfaced, 7,000 dived Dimensions, feet (metres) : 393.6 × 33 × 26.2 (120 × 10 × 8) Main machinery : Nuclear; turbo-electric; 1 PWR; 58 MW; 1 shaft Speed, knots : 22 dived Complement : 100 Missiles : SLBM: 12 JL-1 (CSS-N-3); inertial guidance to 2,150 km (1,160 nm); warhead single nuclear 250 kT. Torpedoes : 6-21 in (533mm) bow tubes. Yu-3 (SET65E); active/passive homing to 15 km (8.1 nm) at 40 kt; warhead 205 kg. Countermeasures : ESM: Type 921-A; radar warning. Radars : Surface search: Snoop Tray; I-Band. Sonars : SQZ-3; hull-mounted; active/passive search and attack; medium frequency. Structure : Diving depth 300 m (985 ft). The Xia is a derivative of the Han Class SSNs, with an extended hull to accommodate 12 ballistic missile tubes. Nuclear Propelled Attack Submarines (SSGN) Han Class (Type 091) Displacement, tonnes : 5,000 dived Dimensions, feet (metres) : 385 x 33 x 24 (98 x 10 x 7.4) Main machinery : 1 nuclear pressurised water reactor, 1 shaft Speed, knots : 25 dived, 12 surfaced Complement : 75 Weapons : 6 x 533mm torpedo tubes for CET 65E and Type 53-51 torpedoes, up to 20 torpedoes or 36 mines Tube launched C-801 anti-ship missiles. Programme & Structure: The first nuclear powered submarines deployed by the PLA (Navy). Five boats of the class were built and commissioned between 1974 and 1990. The first two are reported to have been decommissioned. They are known for a noisy reactor and poor radiation shielding and are inhibited in their ability to launch missiles while submerged. The submarines are equipped with SQZ-262 sonar made in China. All boats deployed with the North Sea Fleet and based at Qingdao. Shang Class (Type 093) Displacement, tonnes : 6,500 dived Dimensions, feet (metres) : 372 x 37.2 x 33.6 (110 x 11 x 10) Main machinery : 1 nuclear pressurised water reactor, 1 shaft Speed, knots : 30 dived Complement : 100 Weapons : 6 x 533mm or 650mm torpedo tubes for a range of wire, acoustic and wake homing torpedoes and the submarine launched version of YJ-83 cruise missile. Programme & Structure: The Type 093G is reported to be an upgraded version of Type 093, China’s second-generation nuclear-powered attack submarine, which entered active ser-
