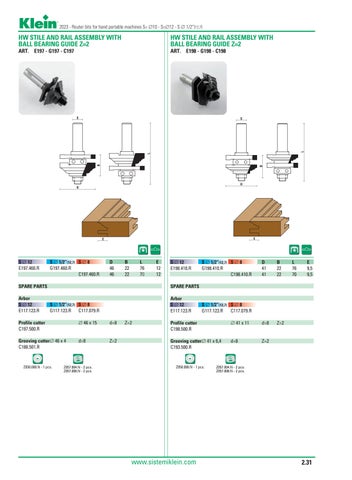

2023 - Router bits for hand portable machines S= ∅10 - S=∅12 - S ∅ 1/2”(12,7)
HW STILE AND RAIL ASSEMBLY WITH BALL BEARING GUIDE Z=2
HW STILE AND RAIL ASSEMBLY WITH BALL BEARING GUIDE Z=2
ART. E197 - G197 - C197
ART. E198 - G198 - C198
S ∅ 12 E197.460.R
S ∅ 1/2”(12,7) S ∅ 8 G197.460.R C197.460.R
D 46 46
B 22 22
L 76 70
SPARE PARTS Arbor S ∅ 12 E117.123.R
E 12 12
S ∅ 12 E198.410.R
S ∅ 1/2”(12,7) S ∅ 8 G198.410.R C198.410.R
D 41 41
B 22 22
Z=2
L 76 70
E 9,5 9,5
SPARE PARTS Arbor S ∅ 12 E117.123.R
S ∅ 1/2”(12,7) S ∅ 8 G117.123.R C117.079.R
Profile cutter C197.500.R
∅ 46 x 15
d=8
Grooving cutter∅ 46 x 4 C188.501.R
d=8
Z=2
Z050.008.N - 1 pcs.
Z057.004.N - 2 pcs. Z057.008.N - 2 pcs.
Z=2
S ∅ 1/2”(12,7) S ∅ 8 G117.123.R C117.079.R
Profile cutter C198.500.R
∅ 41 x 11
d=8
Grooving cutter∅ 41 x 6,4 C193.500.R
d=8
Z=2
Z050.008.N - 1 pcs.
www.sistemiklein.com
Z057.004.N - 2 pcs. Z057.008.N - 2 pcs.
2.31
