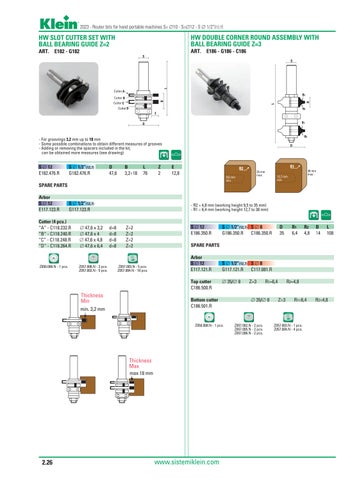

2023 - Router bits for hand portable machines S= ∅10 - S=∅12 - S ∅ 1/2”(12,7)
HW SLOT CUTTER SET WITH BALL BEARING GUIDE Z=2
HW DOUBLE CORNER ROUND ASSEMBLY WITH BALL BEARING GUIDE Z=3
ART. E182 - G182
ART. E186 - G186 - C186
- For groovings 3,2 mm up to 18 mm - Some possible combinations to obtain different measures of grooves - Adding or removing the spacers included in the kit, can be obtained more measures (see drawing)
S ∅ 12 E182.476.R
S ∅ 1/2”(12,7) G182.476.R
D 47,6
B 3,2÷18
L 76
Z 2
E 12,8
SPARE PARTS Arbor S ∅ 12 E117.123.R
S ∅ 1/2”(12,7) G117.123.R
Cutter (4 pcs.) “A“ - C118.232.R “B“ - C118.240.R “C“ - C118.248.R “D“ - C118.264.R
Z050.008.N - 1 pcs.
∅ 47,6 x 3,2 ∅ 47,6 x 4 ∅ 47,6 x 4,8 ∅ 47,6 x 6,4
Z057.006.N - 3 pcs. Z057.002.N - 5 pcs.
- R2 = 4,8 mm (working height 9,5 to 35 mm) - R1 = 6,4 mm (working height 12,7 to 38 mm)
d=8 d=8 d=8 d=8
Z=2 Z=2 Z=2 Z=2
Z057.003.N - 5 pcs. Z057.004.N - 10 pcs.
S ∅ 12 E186.350.R
Arbor S ∅ 12 E117.121.R
R1 6,4
R2 4,8
B 14
L 108
S ∅ 1/2”(12,7) S ∅ 8 G117.121.R C117.081.R ∅ 35/∅ 8
Bottom cutter C186.501.R
Z050.008.N - 1 pcs.
Thickness Max
2.26
D 35
SPARE PARTS
Top cutter C186.500.R
Thickness Min
S ∅ 1/2”(12,7) S ∅ 8 G186.350.R C186.350.R
www.sistemiklein.com
Z=3
R1=6,4
∅ 35/∅ 8
Z057.002.N - 2 pcs. Z057.005.N - 2 pcs. Z057.006.N - 2 pcs.
R2=4,8
Z=3
R1=6,4
Z057.003.N - 1 pcs. Z057.004.N - 4 pcs.
R2=4,8
