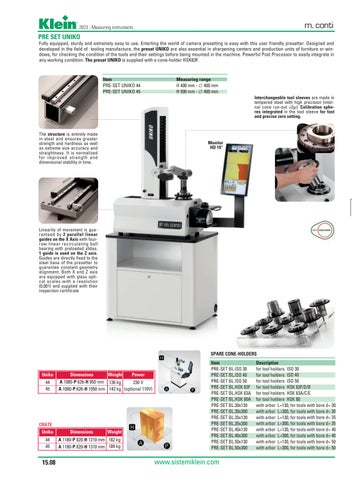

PRE SET UNIKO Fully equipped, sturdy and extremely easy to use. Enterting the world of camera presetting is easy with this user friendly presetter. Designed and developed in the field of tooling manufacture, the preset UNIKO are also essential in sharpening centers and production units of furniture or windows, for checking the condition of the tools and their settings before being mounted in the machine. Powerful Post Processor to easily integrate in any working condition. The preset UNIKO is supplied with a cone-holder HSK63F.
Item PRE-SET UNIKO 44 PRE-SET UNIKO 45
Measuring range H 400 mm - ∆ 400 mm H 500 mm - ∆ 400 mm Interchangeable tool sleeves are made in tempered steel with high precision (internal cone run-out ±2μ). Calibration spheres integrated in the tool sleeve for fast and precise zero setting.
The structure is entirely made in steel and ensures greater strength and hardness as well as extreme size accuracy and straightness. It is normalized for improved strength and dimensional stability in time.
Monitor HD 19”
Linearity of movement is guaranteed by 2 parallel linear guides on the X Axis with fourrow linear recirculating ball bearing with preloaded slides. 1 guide is used on the Z axis. Guides are directly fixed to the steel base of the presetter to guarantee constant geometry alignment. Both X and Z axis are equipped with glass optical scales with a resolution (0,001) and supplied with their inspection certificate
SPARE CONE-HOLDERS
Uniko 44 45
CRATE Uniko 44 45
15.08
Weight Power Dimensions A 1080-P 626-H 950 mm 136 kg 230 V A 1080-P 626-H 1050 mm 142 kg (optional 110V)
Dimensions
Weight
A 1180-P 820-H 1210 mm 182 kg A 1180-P 820-H 1310 mm 189 kg
Item PRE-SET BL.ISO 30 PRE-SET BL.ISO 40 PRE-SET BL.ISO 50 PRE-SET BL.HSK 63F PRE-SET BL.HSK 63A PRE-SET BL.HSK 80A PRE-SET BL.30x130 PRE-SET BL.30x300 PRE-SET BL.35x130 PRE-SET BL.35x300 PRE-SET BL.40x130 PRE-SET BL.40x300 PRE-SET BL.50x130 PRE-SET BL.50x300
