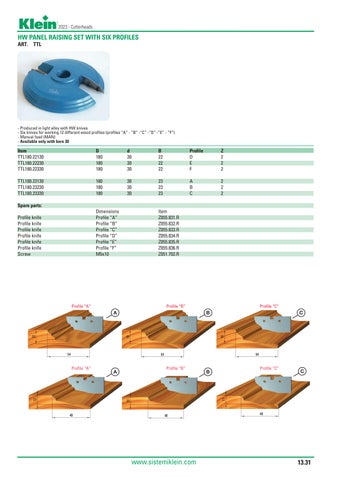

HW PANEL RAISING SET WITH SIX PROFILES ART. TTL
- Produced in light alloy with HW knives - Six knives for working 12 different wood profiles (profiles “A” - “B” -“C” -“D” -“E” - “F”) - Manual feed (MAN) - Available only with bore 30
Item TTL180.22130 TTL180.22230 TTL180.22330
D 180 180 180
d 30 30 30
B 22 22 22
Profile D E F
Z 2 2 2
TTL180.23130 TTL180.23230 TTL180.23330
180 180 180
30 30 30
23 23 23
A B C
2 2 2
Spare parts: Dimensions Profile “A” Profile “B” Profile “C” Profile “D” Profile “E” Profile “F” M5x10
Profile knife Profile knife Profile knife Profile knife Profile knife Profile knife Screw
Item Z055.831.R Z055.832.R Z055.833.R Z055.834.R Z055.835.R Z055.836.R Z051.702.R
Profile Profilo “A”
Profile Profilo “B”
Profile Profilo “C”
Profile “A”
Profile “B”
Profile “C”
