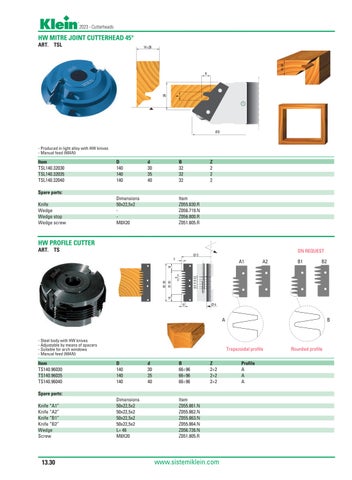

2023 - Cutterheads
HW MITRE JOINT CUTTERHEAD 45° ART. TSL
14÷26
14÷26
9
29
9
1
ØD
- Produced in light alloy with HW knives - Manual feed (MAN)
Item TSL140.32030 TSL140.32035 TSL140.32040
D 140 140 140
d 30 35 40
B 32 32 32
Z 2 2 2
Spare parts: Knife Wedge Wedge stop Wedge screw
Dimensions 50x22,5x2 M8X20
Item Z055.830.R Z056.719.N Z056.800.R Z051.805.R
HW PROFILE CUTTER ART. TS
ON REQUEST
ØD
5
A2
B1
B2
18
66 - 96
30 60
66 96
6
6 6 6 6 62
18
A1
10
Ød
A
- Steel body with HW knives - Adjustable by means of spacers - Suitable for arch windows - Manual feed (MAN)
Item TS140.96030 TS140.96035 TS140.96040
Trapezoidal profile D 140 140 140
d 30 35 40
B 66÷96 66÷96 66÷96
Z 2+2 2+2 2+2
Spare parts: Knife “A1” Knife “A2” Knife “B1” Knife “B2” Wedge Screw
13.30
B
Dimensions 50x22,5x2 50x22,5x2 50x22,5x2 50x22,5x2 L= 46 M8X20
Item Z055.861.N Z055.862.N Z055.863.N Z055.864.N Z056.726.N Z051.805.R
www.sistemiklein.com
Profile A A A
Rounded profile
