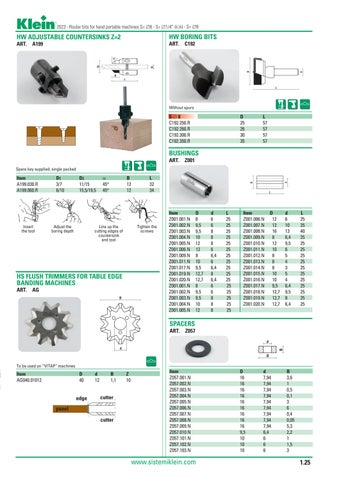

2023 - Router bits for hand portable machines S= ∆6 - S= ∆1/4” (6,35) - S= ∆8
HW ADJUSTABLE COUNTERSINKS Z=2
HW BORING BITS
ART. A199
ART. C192
D1
D2
α
B L
Without spurs
S∆8 C192.250.R C192.260.R C192.300.R C192.350.R
D 25 26 30 35
L 57 57 57 57
BUSHINGS ART. Z001 Spare key supplied; single packed
Item A199.030.R A199.060.R
Insert the tool
D1 3/7 6/10
D2 11/15 15,5/19,5
Adjust the boring depth
B 12 12
α 45° 45°
Line up the cutting edges of countersink and tool
L 32 34
Tighten the screws
HS FLUSH TRIMMERS FOR TABLE EDGE BANDING MACHINES ART. AG
Item Z001.001.N Z001.002.N Z001.003.N Z001.004.N Z001.005.N Z001.006.N Z001.009.N Z001.011.N Z001.017.N Z001.019.N Z001.020.N Z001.001.N Z001.002.N Z001.003.N Z001.004.N Z001.005.N
D 8 9,5 9,5 10 12 12 8 10 9,5 12,7 12,7 8 9,5 9,5 10 12
d 6 6 8 8 8 6 6,4 6 6,4 8 6,4 6 6 8 8 8
L 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Item Z001.006.N Z001.007.N Z001.008.N Z001.009.N Z001.010.N Z001.011.N Z001.012.N Z001.013.N Z001.014.N Z001.015.N Z001.016.N Z001.017.N Z001.018.N Z001.019.N Z001.020.N
D 12 12 16 8 12 10 8 8 8 10 10 9,5 12,7 12,7 12,7
d 6 10 13 6,4 9,5 6 5 4 3 5 4 6,4 9,5 8 6,4
L 25 25 40 25 25 25 25 25 25 25 25 25 25 25 25
SPACERS ART. Z057
To be used on “VITAP“ machines
Item AG040.01012
D 40
d 12
B 1,1
Z 10
Item Z057.001.N Z057.002.N Z057.003.N Z057.004.N Z057.005.N Z057.006.N Z057.007.N Z057.008.N Z057.009.N Z057.010.N Z057.101.N Z057.102.N Z057.103.N
www.sistemiklein.com
D 16 16 16 16 16 16 16 16 16 9,5 10 10 10
d 7,94 7,94 7,94 7,94 7,94 7,94 7,94 7,94 7,94 6,4 6 6 6
B 3,6 1 0,5 0,1 3 6 0,4 0,05 5,3 2,2 1 1,5 3
1.25
