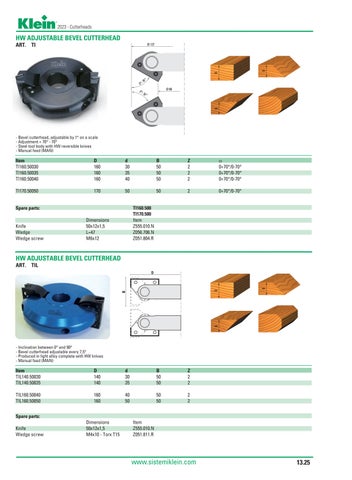

HW ADJUSTABLE BEVEL CUTTERHEAD ART. TI
- Bevel cutterhead, adjustable by 1° on a scale - Adjustment + 70° - 70° - Steel tool body with HW reversible knives - Manual feed (MAN)
Item TI160.50030 TI160.50035 TI160.50040
D 160 160 160
d 30 35 40
B 50 50 50
Z 2 2 2
a 0+70°/0-70° 0+70°/0-70° 0+70°/0-70°
TI170.50050
170
50
50
2
0+70°/0-70°
Spare parts:
Knife Wedge Wedge screw
TI160.500 TI170.500 Item Z555.010.N Z056.706.N Z051.804.R
Dimensions 50x12x1,5 L=47 M6x12
HW ADJUSTABLE BEVEL CUTTERHEAD ART. TIL
- Inclination between 0° and 90° - Bevel cutterhead adjustable every 7,5° - Produced in light alloy complete with HW knives - Manual feed (MAN)
Item TIL140.50030 TIL140.50035
D 140 140
d 30 35
B 50 50
Z 2 2
TIL160.50040 TIL160.50050
160 160
40 50
50 50
2 2
Spare parts: Knife Wedge screw
Dimensions 50x12x1,5 M4x10 - Torx T15
Item Z555.010.N Z051.811.R
