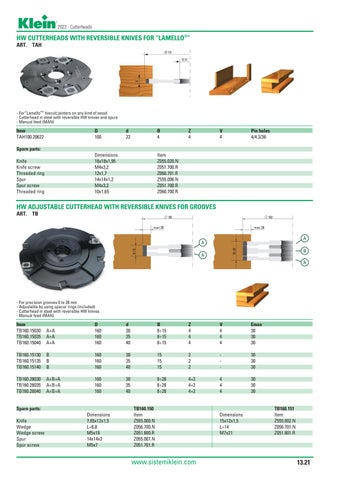

2023 - Cutterheads
HW CUTTERHEADS WITH REVERSIBLE KNIVES FOR “LAMELLO®” ART. TAH Ø 100
B
Ø 22
- For“Lamello®” biscuit jointers on any kind of wood - Cutterhead in steel with reversible HW knives and spurs - Manual feed (MAN)
Item TAH100.20622
D 100
d 22
B 4
Z 4
V 4
Pin holes 4/4.3/36
Spare parts: Dimensions 18x18x1,95 M4x3,2 12x1,7 14x14x1,2 M4x3,2 10x1,65
Knife Knife screw Threaded ring Spur Spur screw Threaded ring
Item Z055.020.N Z051.700.R Z060.701.R Z555.006.N Z051.700.R Z060.700.R
HW ADJUSTABLE CUTTERHEAD WITH REVERSIBLE KNIVES FOR GROOVES ART. TB
- For precision grooves 8 to 28 mm - Adjustable by using spacer rings (included) - Cutterhead in steel with reversible HW knives - Manual feed (MAN)
Item TB160.15030 TB160.15035 TB160.15040
A+A A+A A+A
D 160 160 160
d 30 35 40
B 8÷15 8÷15 8÷15
Z 4 4 4
V 4 4 4
Emax 30 30 30
TB160.15130 TB160.15135 TB160.15140
B B B
160 160 160
30 35 40
15 15 15
2 2 2
-
30 30 30
TB160.28030 TB160.28035 TB160.28040
A+B+A A+B+A A+B+A
160 160 160
30 35 40
8÷28 8÷28 8÷28
4+2 4+2 4+2
4 4 4
30 30 30
Spare parts: Knife Wedge Wedge screw Spur Spur screw
Dimensions 7,65x12x1,5 L=6,8 M5x18 14x14x2 M5x7
TB160.150 Item Z555.000.N Z056.700.N Z051.800.R Z055.007.N Z051.701.R
www.sistemiklein.com
Dimensions 15x12x1,5 L=14 M7x21
TB160.151 Item Z555.002.N Z056.701.N Z051.801.R
13.21
