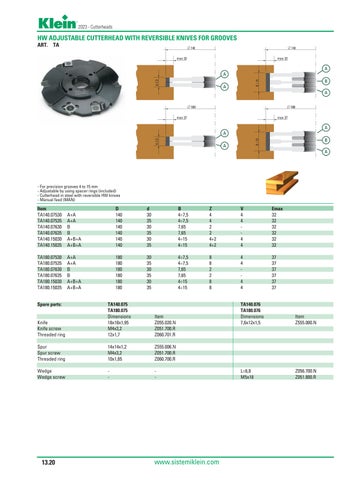

HW ADJUSTABLE CUTTERHEAD WITH REVERSIBLE KNIVES FOR GROOVES ART. TA max 32
max 32
180
180
max 37
max 37
- For precision grooves 4 to 15 mm - Adjustable by using spacer rings (included) - Cutterhead in steel with reversible HW knives - Manual feed (MAN)
Item TA140.07530 TA140.07535 TA140.07630 TA140.07635 TA140.15030 TA140.15035
A+A A+A B B A+B+A A+B+A
D 140 140 140 140 140 140
d 30 35 30 35 30 35
B 4÷7,5 4÷7,5 7,65 7,65 4÷15 4÷15
Z 4 4 2 2 4+2 4+2
V 4 4 4 4
Emax 32 32 32 32 32 32
TA180.07530 TA180.07535 TA180.07630 TA180.07635 TA180.15030 TA180.15035
A+A A+A B B A+B+A A+B+A
180 180 180 180 180 180
30 35 30 35 30 35
4÷7,5 4÷7,5 7,65 7,65 4÷15 4÷15
8 8 2 2 8 8
4 4 4 4
37 37 37 37 37 37
Spare parts:
Knife Knife screw Threaded ring
TA140.075 TA180.075 Dimensions 18x18x1,95 M4x3,2 12x1,7
Item Z055.020.N Z051.700.R Z060.701.R
Spur Spur screw Threaded ring
14x14x1,2 M4x3,2 10x1,65
Z555.006.N Z051.700.R Z060.700.R
Wedge Wedge screw
-
-
13.20
