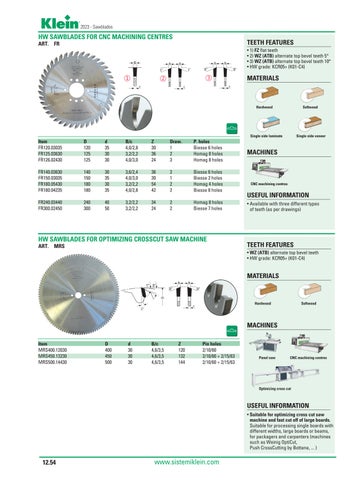

2023 - Sawblades
HW SAWBLADES FOR CNC MACHINING CENTRES
TEETH FEATURES
ART. FR
①
③
②
10°
Item FR120.03035 FR125.03630 FR126.02430
D 120 125 125
d 35 30 30
B/c 4,0/2,8 3,2/2,2 4,0/3,0
Z 30 36 24
Draw. 1 2 3
P. holes Biesse 6 holes Homag 8 holes Homag 8 holes
FR140.03630 FR150.03035 FR180.05430 FR180.04235
140 150 180 180
30 35 30 35
3,6/2,4 4,0/3,0 3,2/2,2 4,0/2,8
36 30 54 42
2 1 2 2
Biesse 6 holes Biesse 2 holes Homag 4 holes Biesse 8 holes
FR240.03440 FR300.02450
240 300
40 50
3,2/2,2 3,2/2,2
34 24
2 2
Homag 8 holes Biesse 7 holes
10°
HW SAWBLADES FOR OPTIMIZING CROSSCUT SAW MACHINE ART. MRS
• 1) FZ flat teeth • 2) WZ (ATB) alternate top bevel teeth 5° • 3) WZ (ATB) alternate top bevel teeth 10° • HW grade: KCR05+ (K01-C4)
MATERIALS
Hardwood
Softwood
Single side laminate
Single side veneer
MACHINES
CNC machining centres
USEFUL INFORMATION • Available with three different types of teeth (as per drawings)
TEETH FEATURES • WZ (ATB) alternate top bevel teeth • HW grade: KCR05+ (K01-C4)
MATERIALS 20°
20°
Hardwood
Softwood
5°
MACHINES Item MRS400.12030 MRS450.13230 MRS500.14430
D 400 450 500
d 30 30 30
B/c 4,6/3,5 4,6/3,5 4,6/3,5
Z 120 132 144
Pin holes 2/10/60 2/10/60 + 2/15/63 2/10/60 + 2/15/63
Panel saw
CNC machining centres
Optimizing cross cut
USEFUL INFORMATION • Suitable for optimizing cross cut saw machine and fast cut off of large boards. Suitable for processing single boards with different widths, large boards or beams, for packagers and carpenters (machines such as Weinig OptiCut, Push CrossCutting by Bottene, ... )
12.54
