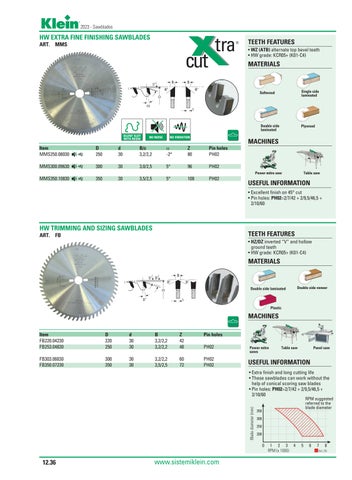

2023 - Sawblades
HW EXTRA FINE FINISHING SAWBLADES
TEETH FEATURES
ART. MMS
• WZ (ATB) alternate top bevel teeth • HW grade: KCR05+ (K01-C4)
MATERIALS
40°
40° Softwood
Single side laminated
Double side laminated
Plywood
α
SILENT SLOT WITH RESIN
NO NOISE
NO VIBRATION
MACHINES
Item MMS250.08030
D 250
d 30
B/c 3,2/2,2
a -2°
Z 80
Pin holes PH02
MMS300.09630
300
30
3,0/2,5
5°
96
PH02
MMS350.10830
350
30
3,5/2,5
5°
108
PH02
Power mitre saw
Table saw
USEFUL INFORMATION • Excellent finish on 45° cut • Pin holes: PH02=2/7/42 + 2/9,5/46,5 + 2/10/60
HW TRIMMING AND SIZING SAWBLADES
TEETH FEATURES
ART. FB
• HZ/DZ inverted “V” and hollow ground teeth • HW grade: KCR05+ (K01-C4)
MATERIALS
Double side laminated
Double side veneer
Plastic
MACHINES Item FB220.04230 FB253.04830
D 220 250
d 30 30
B 3,2/2,2 3,2/2,2
Z 42 48
Pin holes PH02
FB303.06030 FB350.07230
300 350
30 30
3,2/2,2 3,5/2,5
60 72
PH02 PH02
Power mitre saws
Table saw
Panel saw
USEFUL INFORMATION • Extra finish and long cutting life • These sawblades can work without the help of conical scoring saw blades • Pin holes: PH02=2/7/42 + 2/9,5/46,5 + 2/10/60
RPM suggested referred to the blade diameter
12.36
