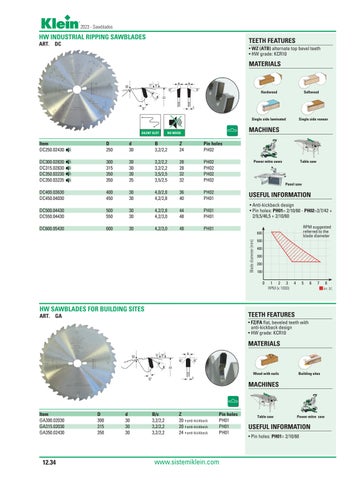

2023 - Sawblades
HW INDUSTRIAL RIPPING SAWBLADES
TEETH FEATURES
ART. DC
• WZ (ATB) alternate top bevel teeth • HW grade: KCR10
MATERIALS
SILENT SLOT
Hardwood
Softwood
Single side laminated
Single side veneer
MACHINES
NO NOISE
Item DC250.02430
D 250
d 30
B 3,2/2,2
Z 24
Pin holes PH02
DC300.02830 DC315.02830 DC350.03230 DC350.03235
300 315 350 350
30 30 30 35
3,2/2,2 3,2/2,2 3,5/2,5 3,5/2,5
28 28 32 32
PH02 PH02 PH02 PH02
DC400.03630 DC450.04030
400 450
30 30
4,0/2,8 4,2/2,8
36 40
PH02 PH01
DC500.04430 DC550.04430
500 550
30 30
4,2/2,8 4,2/3,0
44 48
PH01 PH01
DC600.05430
600
30
4,2/3,0
48
PH01
Power mitre saws
Table saw
Panel saw
USEFUL INFORMATION • Anti-kickback design • Pin holes: PH01= 2/10/60 - PH02=2/7/42 + 2/9,5/46,5 + 2/10/60 RPM suggested referred to the blade diameter
HW SAWBLADES FOR BUILDING SITES
TEETH FEATURES
ART. GA
• FZ/FA flat, beveled teeth with anti-kickback design • HW grade: KCR10
MATERIALS
Wood with nails
Building sites
MACHINES
Item GA300.02030 GA315.02030 GA350.02430
12.34
D 300 315 350
d 30 30 30
B/c 3,2/2,2 3,2/2,2 3,2/2,2
Z 20 +anti-kickback 20 +anti-kickback 24 +anti-kickback
Pin holes PH01 PH01 PH01
www.sistemiklein.com
Table saw
Power mitre saw
USEFUL INFORMATION • Pin holes: PH01= 2/10/60
