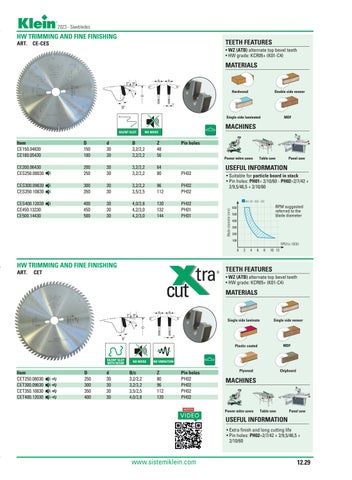

2023 - Sawblades
HW TRIMMING AND FINE FINISHING
TEETH FEATURES
ART. CE-CES
• WZ (ATB) alternate top bevel teeth • HW grade: KCR05+ (K01-C4)
MATERIALS
Hardwood
Double side veneer
10° MDF
Single side laminated
MACHINES SILENT SLOT
NO NOISE
Item CE150.04830 CE180.05430
D 150 180
d 30 30
B 3,2/2,2 3,2/2,2
Z 48 56
Pin holes
CE200.06430 CES250.08030
200 250
30 30
3,2/2,2 3,2/2,2
64 80
PH02
CES300.09630 CES350.10830
300 350
30 30
3,2/2,2 3,5/2,5
96 112
PH02 PH02
CES400.12030 CE450.13230 CE500.14430
400 450 500
30 30 30
4,0/2,8 4,2/3,0 4,2/3,0
120 132 144
PH02 PH01 PH01
Power mitre saws
Panel saw
USEFUL INFORMATION
HW TRIMMING AND FINE FINISHING ART.
Table saw
• Suitable for particle board in stack • Pin holes: PH01= 2/10/60 - PH02=2/7/42 + 2/9,5/46,5 + 2/10/60 Art. CE - CES - CET
RPM suggested referred to the blade diameter
TEETH FEATURES
CET
• WZ (ATB) alternate top bevel teeth • HW grade: KCR05+ (K01-C4)
MATERIALS
SILENT SLOT WITH RESIN
Item CET250.08030 CET300.09630 CET350.10830 CET400.12030
D 250 300 350 400
d 30 30 30 30
NO NOISE
B/c 3,2/2,2 3,2/2,2 3,5/2,5 4,0/2,8
Single side laminate
Single side veneer
Plastic coated
MDF
Plywood
Chipboard
NO VIBRATION
Z 80 96 112 120
Pin holes PH02 PH02 PH02 PH02
MACHINES
Power mitre saws
Table saw
Panel saw
USEFUL INFORMATION • Extra finish and long cutting life • Pin holes: PH02=2/7/42 + 2/9,5/46,5 + 2/10/60
www.sistemiklein.com
12.29
