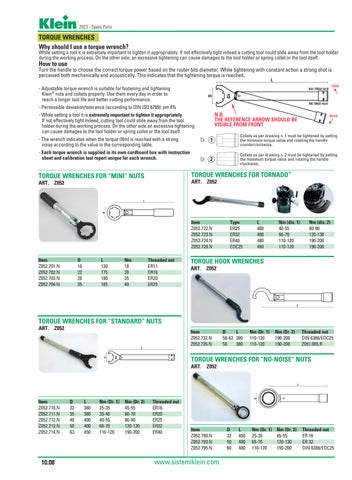

2023 - Spare Parts
TORQUE WRENCHES Why should I use a torque wrench? While setting a tool it is extremely important to tighten it appropriately. If not effectively tight indeed a cutting tool could slide away from the tool holder during the working process. On the other side, an excessive tightening can cause damages to the tool holder or spring collet or the tool itself.
How to use Turn the handle to choose the correct torque power based on the router bits diameter. While tightening with constant action a strong shot is perceived both mechanically and acoustically. This indicates that the tightening torque is reached. - Adjustable torque wrench is suitable for fastening and tightening Klein® nuts and collets properly. Use them every day in order to reach a longer tool life and better cutting performance. - Permissible deviation/tolerance (according to DIN ISO 6789): pm 4% - While setting a tool it is extremely important to tighten it appropriately. If not effectively tight indeed, cutting tool could slide away from the tool holder during the working process. On the other side an excessive tightening can cause damages to the tool holder or spring collet or the tool itself. - The wrench indicates when the torque (Nm) is reached with a strong noise according to the value in the corresponding table. - Each torque wrench is supplied in its own cardboard box with instruction sheet and calibration test report unique for each wrench.
MAX. TORQUE VALUE
MIN. TORQUE VALUE
N.B. THE REFERENCE ARROW SHOULD BE VISIBLE FROM FRONT Dr. 1
Collets as per drawing n. 1 must be tightened by setting the minimum torque value and rotating the handle counterclockwise.
Dr. 2
Collets as per drawing n. 2 must be tightened by setting the maximum torque value and rotating the handle clockwise.
TORQUE WRENCHES FOR “MINI” NUTS
TORQUE WRENCHES FOR TORNADO®
ART. Z052
ART. Z052
Item Z052.722.N Z052.723.N Z052.724.N Z052.728.N Item Z052.701.N Z052.702.N Z052.703.N Z052.704.N
D 16 22 28 35
L 120 175 180 185
Nm 18 28 35 40
Threaded nut ER11 ER16 ER20 ER25
LOOSEN
Type ER25 ER32 ER40 EOC25
L 480 480 480 480
Nm (dis. 1) 40-55 66-70 110-120 110-120
Nm (dis. 2) 80-90 120-130 190-200 190-200
TORQUE HOOK WRENCHES ART. Z052
TORQUE WRENCHES FOR “STANDARD” NUTS ART. Z052
Item Z052.732.N Z052.735.N
D L 58-62 380 50 380
Nm (Dr. 1) 110-120 110-120
Nm (Dr. 2) 190-200 190-200
Threaded nut DIN 6388/EOC25 Z091.005.R
TORQUE WRENCHES FOR “NO-NOISE” NUTS ART. Z052
Item Z052.710.N Z052.711.N Z052.712.N Z052.713.N Z052.714.N
10.08
D 32 35 40 50 63
L 380 380 400 400 450
Nm (Dr. 1) 25-35 30-40 40-55 66-70 110-120
Nm (Dr. 2) 45-55 60-70 80-90 120-130 190-200
Threaded nut ER16 ER20 ER25 ER32 ER40
Item Z052.790.N Z052.793.N Z052.795.N
www.sistemiklein.com
D 32 50 60
L 400 400 400
Nm (Dr. 1) 25-35 65-70 110-120
Nm (Dr. 2) 45-55 120-130 190-200
Threaded nut ER 16 ER 32 DIN 6388/EOC25
