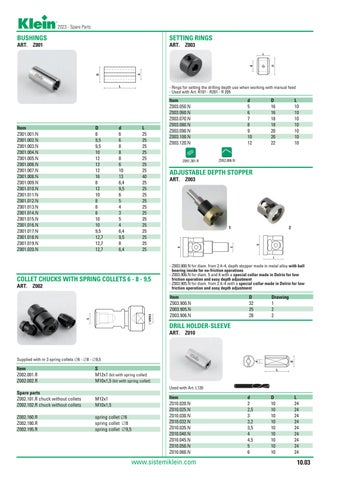

2023 - Spare Parts
BUSHINGS
SETTING RINGS
ART. Z001
ART. Z003
- Rings for setting the drilling depth use when working with manual feed - Used with Art. R101 - R201 - R 205
Item Z001.001.N Z001.002.N Z001.003.N Z001.004.N Z001.005.N Z001.006.N Z001.007.N Z001.008.N Z001.009.N Z001.010.N Z001.011.N Z001.012.N Z001.013.N Z001.014.N Z001.015.N Z001.016.N Z001.017.N Z001.018.N Z001.019.N Z001.020.N
D 8 9,5 9,5 10 12 12 12 16 8 12 10 8 8 8 10 10 9,5 12,7 12,7 12,7
d 6 6 8 8 8 6 10 13 6,4 9,5 6 5 4 3 5 4 6,4 9,5 8 6,4
L 25 25 25 25 25 25 25 40 25 25 25 25 25 25 25 25 25 25 25 25
COLLET CHUCKS WITH SPRING COLLETS 6 - 8 - 9,5 ART. Z002
Item Z003.050.N Z003.060.N Z003.070.N Z003.080.N Z003.090.N Z003.100.N Z003.120.N
Z051.301.R
d 5 6 7 8 9 10 12
D 16 16 18 18 20 20 22
L 10 10 10 10 10 10 10
Z052.006.N
ADJUSTABLE DEPTH STOPPER ART. Z003
1
2
- Z003.900.N for diam. from 2.4÷4, depth stopper made in metal alloy with ball bearing inside for no-friction operations - Z003.906.N for diam. 5 and 6 with a special collar made in Delrin for low friction operation and easy depth adjustment - Z003.905.N for diam. from 2.4÷4 with a special collar made in Delrin for low friction operation and easy depth adjustment
Item Z003.900.N Z003.905.N Z003.906.N
D 32 25 28
Drawing 1 2 2
d 2 2,5 3 3,2 3,5 4 4,5 5 6
D 10 10 10 10 10 10 10 10 10
DRILL HOLDER-SLEEVE ART. Z010
Supplied with nr 3 spring collets ∅6 - ∅8 - ∅9,5
Item Z002.001.R Z002.002.R
S M12x1 (kit with spring collet) M10x1,5 (kit with spring collet) Used with Art. L120
Spare parts Z002.101.R chuck without collets Z002.102.R chuck without collets
M12x1 M10x1,5
Z002.160.R Z002.180.R Z002.195.R
spring collet ∅6 spring collet ∅8 spring collet ∅9,5
Item Z010.020.N Z010.025.N Z010.030.N Z010.032.N Z010.035.N Z010.040.N Z010.045.N Z010.050.N Z010.060.N
www.sistemiklein.com
L 24 24 24 24 24 24 24 24 24
10.03
