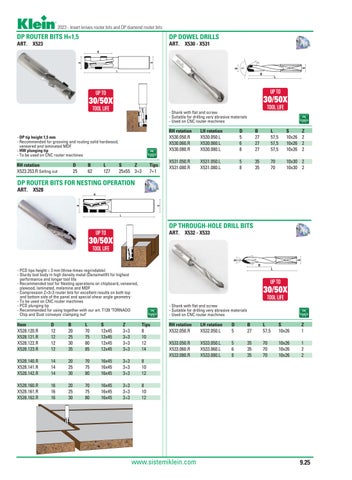

2023 - Insert knives router bits and DP diamond router bits
DP ROUTER BITS H=1,5
DP DOWEL DRILLS
ART. X523
ART. X530 - X531
UP TO
UP TO
30/50X
30/50X
TOOL LIFE
TOOL LIFE
- Shank with flat and screw - Suitable for drilling very abrasive materials - Used on CNC router machines
- DP tip height 1,5 mm - Recommended for grooving and routing solid hardwood, veneered and laminated MDF - HW plunging tip - To be used on CNC router machines
RH rotation X523.253.R Selling out
D 25
B 62
L 127
CNC
S Z 25x55 3+3
Tips 7+1
CNC
RH rotation X530.050.R X530.060.R X530.080.R
LH rotation X530.050.L X530.060.L X530.080.L
D 5 6 8
B 27 27 27
L 57,5 57,5 57,5
S 10x26 10x26 10x26
Z 2 2 2
X531.050.R X531.080.R
X531.050.L X531.080.L
5 8
35 35
70 70
10x30 2 10x30 2
DP ROUTER BITS FOR NESTING OPERATION ART. X528
DP THROUGH-HOLE DRILL BITS UP TO
ART. X532 - X533
30/50X TOOL LIFE
- PCD tips height = 3 mm (three-times regrindable) - Sturdy tool body in high density metal (Densimet®) for highest performance and longer tool life - Recommended tool for Nesting operations on chipboard, veneered, plywood, laminated, melamine and MDF - Compression Z=3+3 router bits for excellent results on both top and bottom side of the panel and special shear angle geometry - To be used on CNC router machines - PCD plunging tip - Recommended for using together with our art. T139 "TORNADO Chip and Dust conveyor clamping nut"
UP TO
30/50X TOOL LIFE CNC
Item X528.120.R X528.121.R X528.122.R X528.123.R
D 12 12 12 12
B 20 25 30 35
L 70 75 80 85
S 12x45 12x45 12x45 12x45
Z 3+3 3+3 3+3 3+3
Tips 8 10 12 14
X528.140.R X528.141.R X528.142.R
14 14 14
20 25 30
70 75 80
16x45 16x45 16x45
3+3 3+3 3+3
8 10 12
X528.160.R X528.161.R X528.162.R
16 16 16
20 25 30
70 75 80
16x45 16x45 16x45
3+3 3+3 3+3
8 10 12
- Shank with flat and screw - Suitable for drilling very abrasive materials - Used on CNC router machines
CNC
RH rotation X532.050.R
LH rotation X532.050.L
D 5
B 27
L 57,5
S 10x26
Z 1
X533.050.R X533.060.R X533.080.R
X533.050.L X533.060.L X533.080.L
5 6 8
35 35 35
70 70 70
10x26 10x26 10x26
1 2 2
www.sistemiklein.com
9.25
