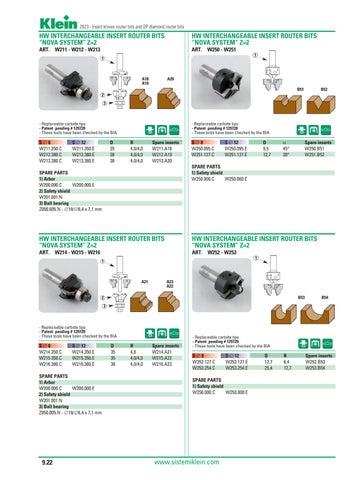

2023 - Insert knives router bits and DP diamond router bits
HW INTERCHANGEABLE INSERT ROUTER BITS “NOVA SYSTEM” Z=2
HW INTERCHANGEABLE INSERT ROUTER BITS “NOVA SYSTEM” Z=2
ART. W211 - W212 - W213
ART. W250 - W251 1
1
A18 A19
A20 B51
B52
2 3
- Replaceable carbide tips - Patent pending # 129720 - These tools have been checked by the BIA
- Replaceable carbide tips - Patent pending # 129720 - These tools have been checked by the BIA
S∅8 W211.350.C W212.380.C W213.380.C
S ∅ 12 W211.350.E W212.380.E W213.380.E
D 35 38 38
R 4,0/4,0 4,0/4,0 4,0/4,0
Spare inserts W211.A18 W212.A19 W213.A20
S∅8 W250.095.C W251.127.C
S ∅ 12 W250.095.E W251.127.E
D 9,5 12,7
Spare inserts W250.B51 W251.B52
a 45° 30°
SPARE PARTS 1) Safety shield W250.000.C W250.000.E
SPARE PARTS 1) Arbor W200.000.C W200.000.E 2) Safety shield W201.001.N 3) Ball bearing Z050.005.N - ∅19/∅6,4 x 7,1 mm
HW INTERCHANGEABLE INSERT ROUTER BITS “NOVA SYSTEM” Z=2
HW INTERCHANGEABLE INSERT ROUTER BITS “NOVA SYSTEM” Z=2
ART. W214 - W215 - W216
ART. W252 - W253 1
1
A21
A23 A22 B53
2
B54
3
- Replaceable carbide tips - Patent pending # 129720 - These tools have been checked by the BIA
S∅8 W214.350.C W215.350.C W216.380.C
S ∅ 12 W214.350.E W215.350.E W216.380.E
SPARE PARTS 1) Arbor W200.000.C W200.000.E 2) Safety shield W201.001.N 3) Ball bearing Z050.005.N - ∅19/∅6,4 x 7,1 mm
9.22
D 35 35 38
R 4,8 4,0/4,0 4,0/4,0
Spare inserts W214.A21 W215.A22 W216.A23
- Replaceable carbide tips - Patent pending # 129720 - These tools have been checked by the BIA
S∅8 W252.127.C W253.254.C
S ∅ 12 W252.127.E W253.254.E
SPARE PARTS 1) Safety shield W250.000.C W250.000.E
www.sistemiklein.com
D 12,7 25,4
R 6,4 12,7
Spare inserts W252.B53 W253.B54
