2023 - Insert knives router bits and DP diamond router bits

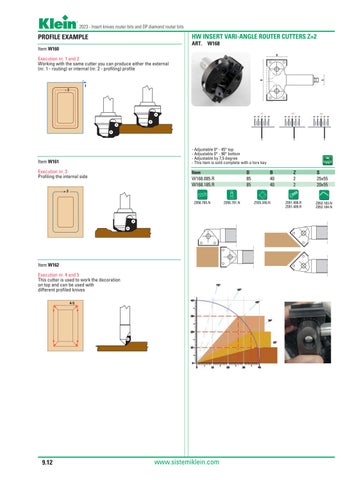

HW INSERT VARI-ANGLE ROUTER CUTTERS Z=2
PROFILE EXAMPLE
ART. W168 Item W160 Execution nr. 1 and 2 Working with the same cutter you can produce either the external (nr. 1 - routing) or internal (nr. 2 - profiling) profile
1 2
- Adjustable 0° - 45° top - Adjustable 0° - 90° bottom - Adjustable by 7,5 degree - This item is sold complete with a torx key
Item W161 Execution nr. 3 Profiling the internal side
Item W168.085.R W168.185.R
D 85 85
CNC
B 40 40
Z 2 2
S 25x55 20x55
Z051.408.R Z051.409.R
Z052.103.N Z052.104.N
3 Z056.765.N
Item W162 Execution nr. 4 and 5 This cutter is used to work the decoration on top and can be used with different profiled knives 4-5
9.12
www.sistemiklein.com
Z056.791.N
Z555.340.N
