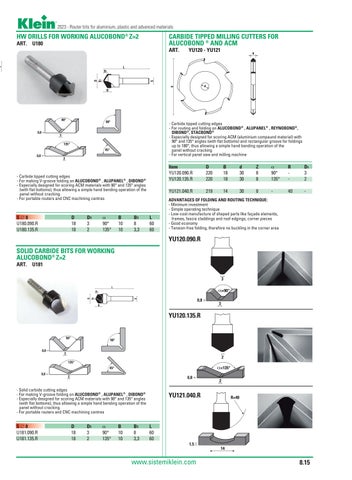

2023 - Router bits for aluminium, plastic and advanced materials
HW DRILLS FOR WORKING ALUCOBOND® Z=2
YU120 - YU121
d
B
S
ART.
D
CARBIDE TIPPED MILLING CUTTERS FOR ALUCOBOND ® AND ACM
ART. U180
- Carbide tipped cutting edges - For routing and folding on ALUCOBOND® , ALUPANEL® , REYNOBOND®, DIBOND®, STACBOND® - Especially designed for scoring ACM (aluminium compaund material) with 90° and 135° angles (with flat bottoms) and rectangular groove for foldings up to 180°, thus allowing a simple hand bending operation of the panel without cracking - For vertical panel saw and milling machine
- Carbide tipped cutting edges - For making V-groove folding on ALUCOBOND® , ALUPANEL® , DIBOND® - Especially designed for scoring ACM materials with 90° and 135° angles (with flat bottoms), thus allowing a simple hand bending operation of the panel without cracking. - For portable routers and CNC machining centres
S∅8 U180.090.R U180.135.R
D 18 18
D1 3 2
α 90° 135°
B 10 10
B1 8 3,3
L 60 60
Item YU120.090.R YU120.135.R
D 220 220
B 18 18
d 30 30
Z 8 8
α 90° 135°
R -
D1 3 2
YU121.040.R
219
14
30
8
-
40
-
ADVANTAGES OF FOLDING AND ROUTING TECHNIQUE: - Minimum investment - Simple operating technique - Low-cost manufacture of shaped parts like façade elements, frames, fascia claddings and roof edgings, corner pieces - Good economy - Tension-free folding, therefore no buckling in the corner area
YU120.090.R SOLID CARBIDE BITS FOR WORKING ALUCOBOND® Z=2 ART. U181
α=90°
YU120.135.R
α=135°
- Solid carbide cutting edges - For making V-groove folding on ALUCOBOND® , ALUPANEL® , DIBOND® - Especially designed for scoring ACM materials with 90° and 135° angles (with flat bottoms), thus allowing a simple hand bending operation of the panel without cracking. - For portable routers and CNC machining centres
S∅8 U181.090.R U181.135.R
D 18 18
D1 3 2
α 90° 135°
B 10 10
B1 8 3,3
YU121.040.R
R=40
L 60 60 1,5 14
