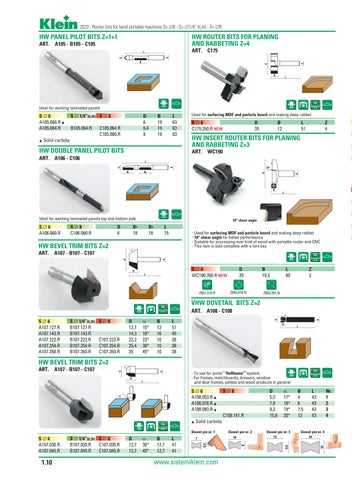

2023 - Router bits for hand portable machines S= ∆6 - S= ∆1/4” (6,35) - S= ∆8
HW PANEL PILOT BITS Z=1+1
HW ROUTER BITS FOR PLANING AND RABBETING Z=4
ART. A105 - B105 - C105
ART. C175
CNC
Ideal for working laminated panels
S∆6 A105.060.R A105.064.R
S ∆ 1/4”(6,35) S ∆ 8 B105.064.R
D 6 6,4 8
C105.064.R C105.080.R
B 19 19 19
L 63 63 63
Used for surfacing MDF and particle board and making deep rabbet
S∆8 C175.350.R NEW
D 35
B 12
L 51
Solid carbide
HW INSERT ROUTER BITS FOR PLANING AND RABBETING Z=3
HW DOUBLE PANEL PILOT BITS
ART. WC190
Z 4
ART. A106 - C106 10°
B
Ideal for working laminated panels top and bottom side
S∆6 A106.060.R
S∆8 C106.060.R
D 6
B1 18
10° shear angle
B2 18
L 75
- Used for surfacing MDF and particle board and making deep rabbet - 10° shear angle for better performance - Suitable for processing ever kind of wood with portable router and CNC - This item is sold complete with a torx key
HW BEVEL TRIM BITS Z=2 ART. A107 - B107 - C107
CNC
S∆8 WC190.350.R NEW
Z051.210.R
D 35
Z055.016.N
B 10,5
L 60
Z 3
Z052.201.N
VHW DOVETAIL BITS Z=2
CNC
ART. A108 - C108 S∆6 A107.127.R A107.143.R A107.222.R A107.254.R A107.350.R
S ∆ 1/4”(6,35) B107.127.R B107.143.R B107.222.R B107.254.R B107.350.R
S∆8
C107.222.R C107.254.R C107.350.R
D 12,7 14,3 22,2 25,4 35
α 15° 10° 23° 30° 45°
B 13 16 10 10 10
L 51 45 38 38 38
HW BEVEL TRIM BITS Z=2 ART. A107 - B107 - C107
S∆6 A108.053.R A108.078.R A108.093.R
S∆8
C108.161.R
Dowel pin nr. 1
1.10
S ∆ 1/4”(6,35) S ∆ 8 B107.030.R C107.030.R B107.045.R C107.045.R
D 12,7 12,7
α 30° 45°
B 12,7 12,7
D 5,3 7,8 9,3 15,8
α 17° 18° 19° 20°
B 4 6 7,5 13
L 43 43 43 43
Solid carbide
CNC
S∆6 A107.030.R A107.045.R
CNC
- To use for joints““Hoffmann®”system. - For frames, matchboards, drawers, window and door frames, pallets and wood products in general
L 41 41
www.sistemiklein.com
Dowel pin nr. 2
Dowel pin nr. 3
Dowel pin nr. 4
Nr. 1 2 3 4
