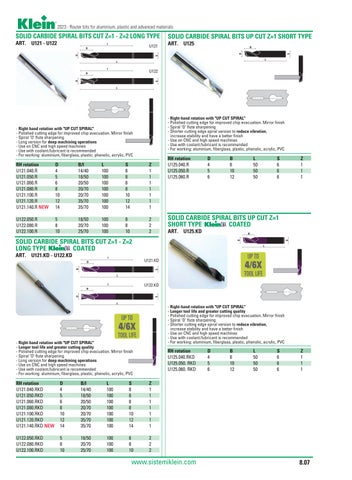

2023 - Router bits for aluminium, plastic and advanced materials
SOLID CARBIDE SPIRAL BITS CUT Z=1 - Z=2 LONG TYPE
SOLID CARBIDE SPIRAL BITS UP CUT Z=1 SHORT TYPE
ART. U121 - U122
ART. U125
I
U121
I
U122
- Right-hand rotation with "UP CUT SPIRAL" - Polished cutting edge for improved chip evacuation. Mirror finish - Spiral ‘O’ flute sharpening - Shorter cutting edge spiral version to reduce vibration, increase stability and have a better finish - Use on CNC and high speed machines - Use with coolant /lubricant is recommended - For working: aluminium, fiberglass, plastic, phenolic, acrylic, PVC
- Right-hand rotation with "UP CUT SPIRAL" - Polished cutting edge for improved chip evacuation. Mirror finish - Spiral ‘O’ flute sharpening - Long version for deep machining operations - Use on CNC and high speed machines - Use with coolant /lubricant is recommended - For working: aluminium, fiberglass, plastic, phenolic, acrylic, PVC
RH rotation U121.040.R U121.050.R U121.060.R U121.080.R U121.100.R U121.120.R U121.140.R NEW
D 4 5 6 8 10 12 14
B/I 14/40 18/50 20/50 20/70 20/70 35/70 35/70
L 100 100 100 100 100 100 100
S 8 8 8 8 10 12 14
Z 1 1 1 1 1 1 1
U122.050.R U122.080.R U122.100.R
5 8 10
18/50 20/70 25/70
100 100 100
8 8 10
2 2 2
RH rotation U125.040.R U125.050.R U125.060.R
D 4 5 6
B 8 10 12
L 50 50 50
S 6 6 6
Z 1 1 1
SOLID CARBIDE SPIRAL BITS UP CUT Z=1 SHORT TYPE COATED ART. U125.KD
SOLID CARBIDE SPIRAL BITS CUT Z=1 - Z=2 LONG TYPE COATED ART. U121.KD - U122.KD
I
UP TO
U121.KD
4/6X TOOL LIFE
I
U122.KD
- Right-hand rotation with "UP CUT SPIRAL" - Longer tool life and greater cutting quality - Polished cutting edge for improved chip evacuation. Mirror finish - Spiral ‘O’ flute sharpening - Shorter cutting edge spiral version to reduce vibration, increase stability and have a better finish - Use on CNC and high speed machines - Use with coolant /lubricant is recommended - For working: aluminium, fiberglass, plastic, phenolic, acrylic, PVC
UP TO
4/6X TOOL LIFE - Right-hand rotation with "UP CUT SPIRAL" - Longer tool life and greater cutting quality - Polished cutting edge for improved chip evacuation. Mirror finish - Spiral ‘O’ flute sharpening - Long version for deep machining operations - Use on CNC and high speed machines - Use with coolant /lubricant is recommended - For working: aluminium, fiberglass, plastic, phenolic, acrylic, PVC
RH rotation U125.040.RKD U125.050. RKD U125.060. RKD
RH rotation U121.040.RKD U121.050.RKD U121.060.RKD U121.080.RKD U121.100.RKD U121.120.RKD U121.140.RKD NEW
D 4 5 6 8 10 12 14
B/I 14/40 18/50 20/50 20/70 20/70 35/70 35/70
L 100 100 100 100 100 100 100
S 8 8 8 8 10 12 14
Z 1 1 1 1 1 1 1
U122.050.RKD U122.080.RKD U122.100.RKD
5 8 10
18/50 20/70 25/70
100 100 100
8 8 10
2 2 2
www.sistemiklein.com
D 4 5 6
B 8 10 12
L 50 50 50
S 6 6 6
Z 1 1 1
8.07
