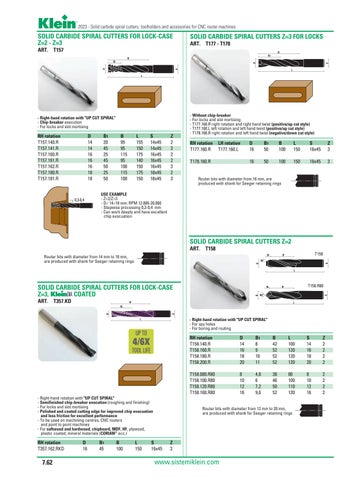

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE SPIRAL CUTTERS FOR LOCK-CASE Z=2 - Z=3
SOLID CARBIDE SPIRAL CUTTERS Z=3 FOR LOCKS ART. T177 - T178
ART. T157
- Right-hand rotation with "UP CUT SPIRAL" - Chip-breaker execution - For locks and slot mortising
RH rotation T157.140.R T157.141.R T157.160.R T157.161.R T157.162.R T157.180.R T157.181.R
D 14 14 16 16 16 18 18
B1 20 45 25 45 50 25 50
B 95 95 115 95 100 115 100
L 155 150 175 140 150 175 150
S 14x45 14x45 16x45 16x45 16x45 18x45 18x45
Z 2 3 2 2 3 2 3
- Without chip-breaker - For locks and slot mortising - T177.160.R right rotation and right hand twist (positive/up cut style) - T177.160.L left rotation and left hand twist (positive/up cut style) - T178.160.R right rotation and left hand twist (negative/down cut style)
RH rotation T177.160.R
LH rotation T177.160.L
T178.160.R
D 16
B1 50
B 100
L 150
S 16x45
Z 3
16
50
100
150
16x45
3
Router bits with diameter from 16 mm, are produced with shank for Seeger retaining rings
USE EXAMPLE - Z=2/Z=3 - D= 14÷18 mm: RPM 12.000-20.000 - Stepwise processing 0,3-0,4 mm - Can work deeply and have excellent chip evacuation
SOLID CARBIDE SPIRAL CUTTERS Z=2 ART. T158 T158
Router bits with diameter from 14 mm to 18 mm, are produced with shank for Seeger retaining rings
T158.R80
SOLID CARBIDE SPIRAL CUTTERS FOR LOCK-CASE Z=3, COATED ART. T357.KD B1
- Right-hand rotation with "UP CUT SPIRAL" - For spy holes - For boring and routing
UP TO
4/6X TOOL LIFE
- Right-hand rotation with "UP CUT SPIRAL" - Semifinished chip-breaker execution (roughing and finishing) - For locks and slot mortising - Polished and coated cutting edge for improved chip evacuation and less friction for excellent performance - To be used on machining centres, CNC routers and point to point machines - For softwood and hardwood, chipboard, MDF, HF, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T357.162.RKD
7.62
D 16
B1 45
B 100
L 150
RH rotation T158.140.R T158.160.R T158.180.R T158.200.R
D 14 16 18 20
B1 8 9 10 11
B 42 52 52 52
L 100 120 120 120
S 14 16 18 20
Z 2 2 2 2
T158.080.R80 T158.100.R80 T158.120.R80 T158.160.R80
8 10 12 16
4,8 6 7,2 9,6
38 46 50 52
80 100 110 120
8 10 12 16
2 2 2 2
Router bits with diameter from 12 mm to 20 mm, are produced with shank for Seeger retaining rings
S 16x45
Z 3
