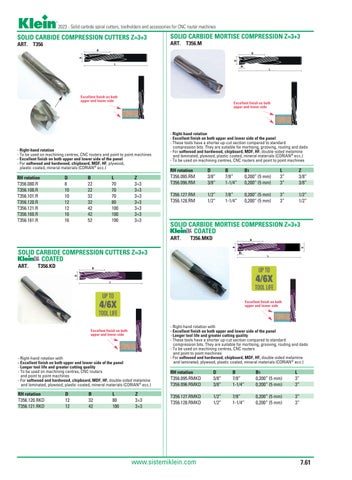

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE COMPRESSION CUTTERS Z=3+3
SOLID CARBIDE MORTISE COMPRESSION Z=3+3
ART. T356
ART. T356.M
B1
Excellent finish on both upper and lower side
Excellent finish on both upper and lower side
- Right-hand rotation - To be used on machining centres, CNC routers and point to point machines - Excellent finish on both upper and lower side of the panel - For softwood and hardwood, chipboard, MDF, HF, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T356.080.R T356.100.R T356.101.R T356.120.R T356.121.R T356.160.R T356.161.R
D 8 10 10 12 12 16 16
B 22 22 32 32 42 42 52
L 70 70 70 80 100 100 100
Z 3+3 3+3 3+3 3+3 3+3 3+3 3+3
- Right-hand rotation - Excellent finish on both upper and lower side of the panel - These tools have a shorter up-cut section compared to standard compression bits. They are suitable for mortising, grooving, routing and dado - For softwood and hardwood, chipboard, MDF, HF, double-sided melamine and laminated, plywood, plastic coated, mineral materials (CORIAN® ecc.) - To be used on machining centres, CNC routers and point to point machines
RH rotation T356.095.RM T356.096.RM
D 3/8” 3/8”
B 7/8” 1-1/4”
B1 0,200” (5 mm) 0,200” (5 mm)
L 3” 3”
Z 3/8” 3/8”
T356.127.RM T356.128.RM
1/2” 1/2”
7/8” 1-1/4”
0,200” (5 mm) 0,200” (5 mm)
3” 3”
1/2” 1/2”
SOLID CARBIDE MORTISE COMPRESSION Z=3+3 COATED ART.
T356.MKD
SOLID CARBIDE COMPRESSION CUTTERS Z=3+3 COATED ART.
B1
T356.KD
UP TO
4/6X TOOL LIFE UP TO Excellent finish on both upper and lower side
4/6X TOOL LIFE Excellent finish on both upper and lower side
- Right-hand rotation with - Excellent finish on both upper and lower side of the panel - Longer tool life and greater cutting quality - To be used on machining centres, CNC routers and point to point machines - For softwood and hardwood, chipboard, MDF, HF, double-sided melamine and laminated, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T356.120.RKD T356.121.RKD
D 12 12
B 32 42
L 80 100
Z 3+3 3+3
- Right-hand rotation with - Excellent finish on both upper and lower side of the panel - Longer tool life and greater cutting quality - These tools have a shorter up-cut section compared to standard compression bits. They are suitable for mortising, grooving, routing and dado - To be used on machining centres, CNC routers and point to point machines - For softwood and hardwood, chipboard, MDF, HF, double-sided melamine and laminated, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T356.095.RMKD T356.096.RMKD
D 3/8” 3/8”
B 7/8” 1-1/4”
B1 0,200” (5 mm) 0,200” (5 mm)
L 3” 3”
T356.127.RMKD T356.128.RMKD
1/2” 1/2”
7/8” 1-1/4”
0,200” (5 mm) 0,200” (5 mm)
3” 3”
www.sistemiklein.com
7.61
