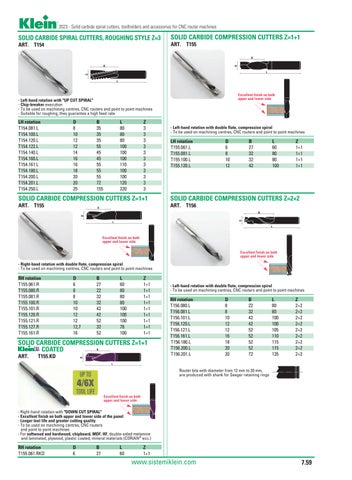

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE SPIRAL CUTTERS, ROUGHING STYLE Z=3
SOLID CARBIDE COMPRESSION CUTTERS Z=1+1
ART. T154
ART. T155
Excellent finish on both upper and lower side
- Left-hand rotation with "UP CUT SPIRAL" - Chip-breaker execution - To be used on machining centres, CNC routers and point to point machines - Suitable for roughing, they guarantee a high feed rate
LH rotation T154.081.L T154.100.L T154.120.L T154.122.L T154.140.L T154.160.L T154.161.L T154.180.L T154.200.L T154.201.L T154.250.L
D 8 10 12 12 14 16 16 18 20 20 25
B 35 35 35 55 45 45 55 55 55 72 155
L 80 80 80 100 100 100 110 100 100 120 220
Z 3 3 3 3 3 3 3 3 3 3 3
- Left-hand rotation with double flute, compression spiral - To be used on machining centres, CNC routers and point to point machines
LH rotation T155.061.L T155.081.L T155.100.L T155.120.L
D 6 8 10 12
B 27 32 32 42
L 60 80 80 100
Z 1+1 1+1 1+1 1+1
SOLID CARBIDE COMPRESSION CUTTERS Z=1+1
SOLID CARBIDE COMPRESSION CUTTERS Z=2+2
ART. T155
ART. T156 D
B
L
Excellent finish on both upper and lower side Excellent finish on both upper and lower side
- Right-hand rotation with double flute, compression spiral - To be used on machining centres, CNC routers and point to point machines
RH rotation T155.061.R T155.080.R T155.081.R T155.100.R T155.101.R T155.120.R T155.121.R T155.127.R T155.161.R
D 6 8 8 10 10 12 12 12,7 16
B 27 22 32 32 42 42 52 32 52
L 60 80 80 80 100 100 100 78 100
Z 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1 1+1
SOLID CARBIDE COMPRESSION CUTTERS Z=1+1 COATED ART.
T155.KD
- Left-hand rotation with double flute, compression spiral - To be used on machining centres, CNC routers and point to point machines
RH rotation T156.080.L T156.081.L T156.101.L T156.120.L T156.121.L T156.161.L T156.180.L T156.200.L T156.201.L
D 8 8 10 12 12 16 18 20 20
B 22 32 42 42 52 52 52 52 72
L 80 80 100 100 105 110 115 115 135
Z 2+2 2+2 2+2 2+2 2+2 2+2 2+2 2+2 2+2
Router bits with diameter from 12 mm to 20 mm, are produced with shank for Seeger retaining rings
UP TO
4/6X TOOL LIFE
Excellent finish on both upper and lower side
- Right-hand rotation with "DOWN CUT SPIRAL" - Excellent finish on both upper and lower side of the panel - Longer tool life and greater cutting quality - To be used on machining centres, CNC routers and point to point machines - For softwood and hardwood, chipboard, MDF, HF, double-sided melamine and laminated, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T155.061.RKD
D 6
B 27
L 60
Z 1+1
www.sistemiklein.com
7.59
