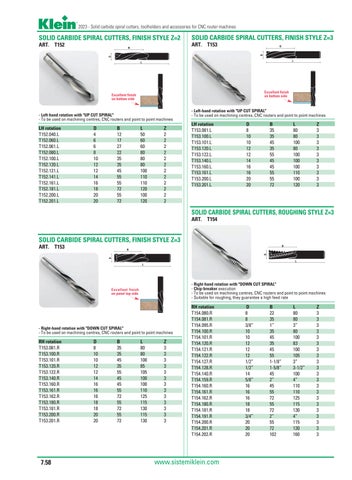

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=2
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=3
ART. T152
ART. T153
Excellent finish on bottom side
Excellent finish on bottom side
- Left-hand rotation with "UP CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
LH rotation T152.040.L T152.060.L T152.061.L T152.080.L T152.100.L T152.120.L T152.121.L T152.141.L T152.161.L T152.181.L T152.200.L T152.201.L
D 4 6 6 8 10 12 12 14 16 18 20 20
B 12 17 27 22 35 35 45 55 55 72 55 72
L 50 60 60 80 80 80 100 110 110 120 100 120
Z 2 2 2 2 2 2 2 2 2 2 2 2
- Left-hand rotation with "UP CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
LH rotation T153.081.L T153.100.L T153.101.L T153.120.L T153.122.L T153.140.L T153.160.L T153.161.L T153.200.L T153.201.L
D 8 10 10 12 12 14 16 16 20 20
B 35 35 45 35 55 45 45 55 55 72
L 80 80 100 80 100 100 100 110 100 120
Z 3 3 3 3 3 3 3 3 3 3
SOLID CARBIDE SPIRAL CUTTERS, ROUGHING STYLE Z=3 ART. T154
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=3 ART. T153
- Right-hand rotation with "DOWN CUT SPIRAL" - Chip-breaker execution - To be used on machining centres, CNC routers and point to point machines - Suitable for roughing, they guarantee a high feed rate
Excellent finish on panel top side
- Right-hand rotation with "DOWN CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
RH rotation T153.081.R T153.100.R T153.101.R T153.120.R T153.122.R T153.140.R T153.160.R T153.161.R T153.162.R T153.180.R T153.181.R T153.200.R T153.201.R
7.58
D 8 10 10 12 12 14 16 16 16 18 18 20 20
B 35 35 45 35 55 45 45 55 72 55 72 55 72
L 80 80 100 85 105 100 100 110 125 115 130 115 130
Z 3 3 3 3 3 3 3 3 3 3 3 3 3
RH rotation T154.080.R T154.081.R T154.095.R T154.100.R T154.101.R T154.120.R T154.121.R T154.122.R T154.127.R T154.128.R T154.140.R T154.159.R T154.160.R T154.161.R T154.162.R T154.180.R T154.181.R T154.191.R T154.200.R T154.201.R T154.202.R
www.sistemiklein.com
D 8 8 3/8” 10 10 12 12 12 1/2” 1/2” 14 5/8” 16 16 16 18 18 3/4” 20 20 20
B 22 35 1” 35 45 35 45 55 1-1/8” 1-5/8” 45 2” 45 55 72 55 72 2” 55 72 102
L 80 80 3” 80 100 83 100 105 3” 3-1/2” 100 4” 110 110 125 115 130 4” 115 130 160
Z 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
