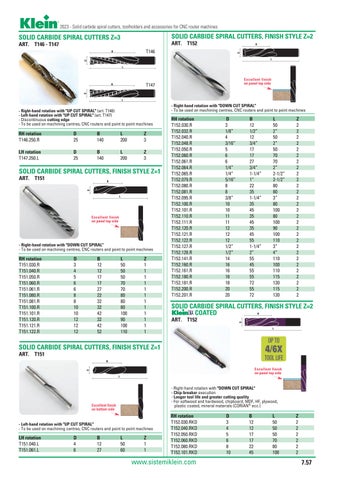

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE SPIRAL CUTTERS Z=3
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=2
ART. T146 - T147
ART. T152 T146
Excellent finish on panel top side
T147
- Right-hand rotation with "UP CUT SPIRAL" (art. T146) - Left-hand rotation with "UP CUT SPIRAL" (art. T147) - Discontinuous cutting edge - To be used on machining centres, CNC routers and point to point machines
RH rotation T146.250.R
D 25
B 140
L 200
Z 3
LH rotation T147.250.L
D 25
B 140
L 200
Z 3
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=1 ART. T151
Excellent finish on panel top side
- Right-hand rotation with "DOWN CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
RH rotation T151.030.R T151.040.R T151.050.R T151.060.R T151.061.R T151.080.R T151.081.R T151.100.R T151.101.R T151.120.R T151.121.R T151.122.R
D 3 4 5 6 6 8 8 10 10 12 12 12
B 12 12 17 17 27 22 32 32 42 32 42 52
L 50 50 50 70 70 80 80 80 100 90 100 110
Z 1 1 1 1 1 1 1 1 1 1 1 1
- Right-hand rotation with "DOWN CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
RH rotation T152.030.R T152.032.R T152.040.R T152.048.R T152.050.R T152.060.R T152.061.R T152.064.R T152.065.R T152.079.R T152.080.R T152.081.R T152.095.R T152.100.R T152.101.R T152.110.R T152.111.R T152.120.R T152.121.R T152.122.R T152.127.R T152.128.R T152.141.R T152.160.R T152.161.R T152.180.R T152.181.R T152.200.R T152.201.R
D 3 1/8” 4 3/16” 5 6 6 1/4” 1/4” 5/16” 8 8 3/8” 10 10 11 11 12 12 12 1/2” 1/2” 14 16 16 18 18 20 20
B 12 1/2” 12 3/4” 17 17 27 3/4” 1-1/4” 1” 22 35 1-1/4” 35 45 35 45 35 45 55 1-1/4” 2” 55 45 55 55 72 55 72
L 50 2” 50 2” 50 70 70 2” 2-1/2” 2-1/2” 80 80 3” 80 100 80 100 90 100 110 3” 4” 110 100 110 115 130 115 130
Z 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=2 COATED ART. T152
UP TO SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=1
4/6X
ART. T151
TOOL LIFE Excellent finish on panel top side
- Right-hand rotation with "DOWN CUT SPIRAL" - Chip-breaker execution - Longer tool life and greater cutting quality - For softwood and hardwood, chipboard, MDF, HF, plywood, plastic coated, mineral materials (CORIAN® ecc.)
Excellent finish on bottom side
- Left-hand rotation with "UP CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
LH rotation T151.040.L T151.061.L
D 4 6
B 12 27
L 50 60
Z 1 1
RH rotation T152.030.RKD T152.040.RKD T152.050.RKD T152.060.RKD T152.080.RKD T152.101.RKD
www.sistemiklein.com
D 3 4 5 6 8 10
B 12 12 17 17 22 45
L 50 50 50 70 80 100
Z 2 2 2 2 2 2
7.57
