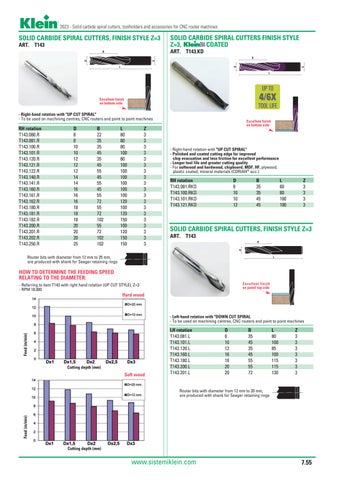

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=3 ART. T143
SOLID CARBIDE SPIRAL CUTTERS FINISH STYLE Z=3, COATED ART. T143.KD
UP TO
4/6X
Excellent finish on bottom side
TOOL LIFE
- Right-hand rotation with "UP CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
RH rotation T143.080.R T143.081.R T143.100.R T143.101.R T143.120.R T143.121.R T143.122.R T143.140.R T143.141.R T143.160.R T143.161.R T143.162.R T143.180.R T143.181.R T143.182.R T143.200.R T143.201.R T143.202.R T143.250.R
D 8 8 10 10 12 12 12 14 14 16 16 16 18 18 18 20 20 20 25
B 22 35 35 45 35 45 55 45 55 45 55 72 55 72 102 55 72 102 102
L 80 80 80 100 80 100 100 100 100 100 100 120 100 120 150 100 120 150 150
Z 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Excellent finish on bottom side
- Right-hand rotation with "UP CUT SPIRAL" - Polished and coated cutting edge for improved chip evacuation and less friction for excellent performance - Longer tool life and greater cutting quality - For softwood and hardwood, chipboard, MDF, HF, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T143.081.RKD T143.100.RKD T143.101.RKD T143.121.RKD
D 8 10 10 12
B 35 35 45 45
L 80 80 100 100
Z 3 3 3 3
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=3 ART. T143
Router bits with diameter from 12 mm to 25 mm, are produced with shank for Seeger retaining rings
HOW TO DETERMINE THE FEEDING SPEED RELATING TO THE DIAMETER: Excellent finish on panel top side
- Referring to item T143 with right hand rotation (UP CUT STYLE), Z=3 - RPM 18.000
Hard wood
Feed (m/min)
- Left-hand rotation with "DOWN CUT SPIRAL - To be used on machining centres, CNC routers and point to point machines
Cutting depth (mm)
Soft wood
LH rotation T143.081.L T143.101.L T143.120.L T143.160.L T143.180.L T143.200.L T143.201.L
D 8 10 12 16 18 20 20
B 35 45 35 45 55 55 72
L 80 100 85 100 115 115 130
Z 3 3 3 3 3 3 3
Feed (m/min)
Router bits with diameter from 12 mm to 20 mm, are produced with shank for Seeger retaining rings
Cutting depth (mm)
www.sistemiklein.com
7.55
