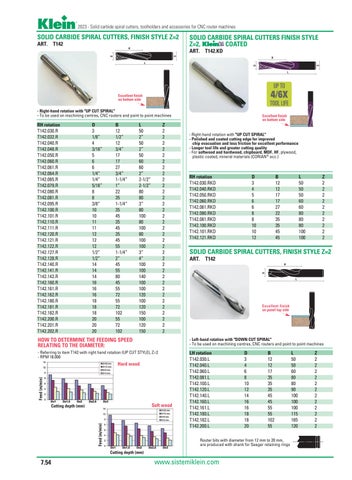

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=2 ART. T142
SOLID CARBIDE SPIRAL CUTTERS FINISH STYLE Z=2, COATED ART. T142.KD
UP TO
4/6X
Excellent finish on bottom side
TOOL LIFE
- Right-hand rotation with "UP CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
RH rotation T142.030.R T142.032.R T142.040.R T142.048.R T142.050.R T142.060.R T142.061.R T142.064.R T142.065.R T142.079.R T142.080.R T142.081.R T142.095.R T142.100.R T142.101.R T142.110.R T142.111.R T142.120.R T142.121.R T142.122.R T142.127.R T142.128.R T142.140.R T142.141.R T142.142.R T142.160.R T142.161.R T142.162.R T142.180.R T142.181.R T142.182.R T142.200.R T142.201.R T142.202.R
D 3 1/8” 4 3/16” 5 6 6 1/4” 1/4” 5/16” 8 8 3/8” 10 10 11 11 12 12 12 1/2” 1/2” 14 14 14 16 16 16 18 18 18 20 20 20
B 12 1/2” 12 3/4” 17 17 27 3/4” 1-1/4” 1” 22 35 1-1/4” 35 45 35 45 35 45 55 1-1/4” 2” 45 55 80 45 55 72 55 72 102 55 72 102
L 50 2” 50 2” 50 60 60 2” 2-1/2” 2-1/2” 80 80 3” 80 100 80 100 80 100 100 3” 4” 100 100 140 100 100 120 100 120 150 100 120 150
Z 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Excellent finish on bottom side
- Right-hand rotation with "UP CUT SPIRAL" - Polished and coated cutting edge for improved chip evacuation and less friction for excellent performance - Longer tool life and greater cutting quality - For softwood and hardwood, chipboard, MDF, HF, plywood, plastic coated, mineral materials (CORIAN® ecc.)
RH rotation T142.030.RKD T142.040.RKD T142.050.RKD T142.060.RKD T142.061.RKD T142.080.RKD T142.081.RKD T142.100.RKD T142.101.RKD T142.121.RKD
D 3 4 5 6 6 8 8 10 10 12
B 12 12 17 17 27 22 35 35 45 45
L 50 50 50 60 60 80 80 80 100 100
Z 2 2 2 2 2 2 2 2 2 2
SOLID CARBIDE SPIRAL CUTTERS, FINISH STYLE Z=2 ART. T142
Excellent finish on panel top side
HOW TO DETERMINE THE FEEDING SPEED RELATING TO THE DIAMETER:
- Left-hand rotation with "DOWN CUT SPIRAL" - To be used on machining centres, CNC routers and point to point machines
- Referring to item T142 with right hand rotation (UP CUT STYLE), Z=2 - RPM 18.000
LH rotation T142.030.L T142.040.L T142.060.L T142.081.L T142.100.L T142.120.L T142.140.L T142.160.L T142.161.L T142.180.L T142.182.L T142.200.L
Feed (m/min)
Hard wood
Soft wood
Feed (m/min)
Cutting depth (mm)
B 12 12 17 35 35 35 45 45 55 55 102 55
Router bits with diameter from 12 mm to 20 mm, are produced with shank for Seeger retaining rings Cutting depth (mm)
7.54
D 3 4 6 8 10 12 14 16 16 18 18 20
www.sistemiklein.com
L 50 50 60 80 80 90 100 100 100 115 165 120
Z 2 2 2 2 2 2 2 2 2 2 2 2
