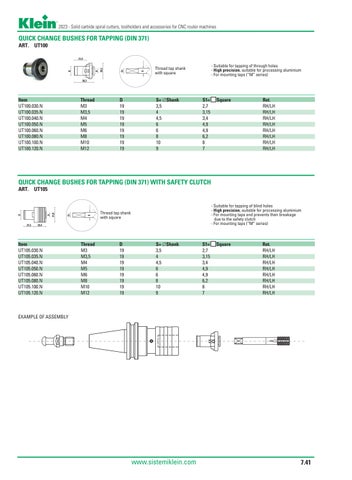

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
QUICK CHANGE BUSHES FOR TAPPING (DIN 371) ART. UT100
S
S1
S
30,2
D
21,5
- Suitable for tapping of through holes - High precision, suitable for processing aluminium - For mounting taps (“M” series)
Thread tap shank with square
30,3
Item UT100.030.N UT100.035.N UT100.040.N UT100.050.N UT100.060.N UT100.080.N UT100.100.N UT100.120.N
Thread M3 M3,5 M4 M5 M6 M8 M10 M12
D 19 19 19 19 19 19 19 19
S= ∆Shank 3,5 4 4,5 6 6 8 10 9
S1= 2,7 3,15 3,4 4,9 4,9 6,2 8 7
Square
Rot. RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH
QUICK CHANGE BUSHES FOR TAPPING (DIN 371) WITH SAFETY CLUTCH
S
S1
S 21,5
31,8
D
ART. UT105 - Suitable for tapping of blind holes - High precision, suitable for processing aluminium - For mounting taps and prevents their breakage due to the safety clutch - For mounting taps (“M” series)
Thread tap shank with square
25,4
Item UT105.030.N UT105.035.N UT105.040.N UT105.050.N UT105.060.N UT105.080.N UT105.100.N UT105.120.N
Thread M3 M3,5 M4 M5 M6 M8 M10 M12
D 19 19 19 19 19 19 19 19
S= ∆Shank 3,5 4 4,5 6 6 8 10 9
S1= 2,7 3,15 3,4 4,9 4,9 6,2 8 7
Square
Rot. RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH
EXAMPLE OF ASSEMBLY
www.sistemiklein.com
7.41
