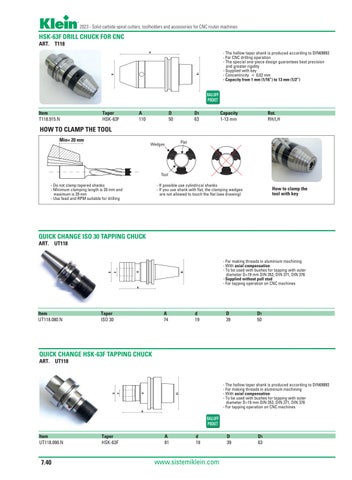

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
HSK-63F DRILL CHUCK FOR CNC ART. T118 - The hollow taper shank is produced according to DIN69893 - For CNC drilling operation - The special one-piece design guarantees best precision and greater rigidity - Supplied with key - Concentricity ＜ 0,02 mm - Capacity from 1 mm (1/16”) to 13 mm (1/2”)
D
A
BALLUFF POCKET
Item T118.915.N
Taper HSK-63F
A 110
D 50
D1 63
Capacity 1-13 mm
Rot. RH/LH
HOW TO CLAMP THE TOOL Min= 20 mm
Flat
Wedges
Tool
- Do not clamp tapered shanks - Minimum clamping length is 20 mm and maximum is 29 mm - Use feed and RPM suitable for drilling
- If possible use cylindrical shanks - If you use shank with flat, the clamping wedges are not allowed to touch the flat (see drawing)
How to clamp the tool with key
QUICK CHANGE ISO 30 TAPPING CHUCK
- For making threads in aluminium machining - With axial compensation - To be used with bushes for tapping with outer diameter D=19 mm DIN 352, DIN 371, DIN 376 - Supplied without pull stud - For tapping operation on CNC machines
D1
d
D
ART. UT118
A
Item UT118.080.N
Taper ISO 30
A 74
d 19
D 39
D1 50
QUICK CHANGE HSK-63F TAPPING CHUCK
- The hollow taper shank is produced according to DIN69893 - For making threads in aluminium machining - With axial compensation - To be used with bushes for tapping with outer diameter D=19 mm DIN 352, DIN 371, DIN 376 - For tapping operation on CNC machines
D1
d
D
ART. UT118
A
BALLUFF POCKET
Item UT118.090.N
7.40
Taper HSK-63F
A 81
d 19
www.sistemiklein.com
D 39
D1 63
