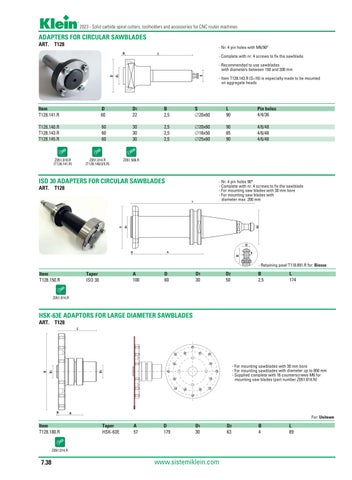

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
ADAPTERS FOR CIRCULAR SAWBLADES ART. T128
- Nr. 4 pin holes with M6/90° - Complete with nr. 4 screws to fix the sawblade - Recommended to use sawblades with diameters between 150 and 200 mm - Item T128.143.R (S=16) is especially made to be mounted on aggregate heads
Item T128.141.R
D 60
D1 22
B 2,5
S ∆20x60
L 90
Pin holes 4/4/36
T128.140.R T128.143.R T128.145.R
60 60 60
30 30 30
2,5 2,5 2,5
∆20x60 ∆16x50 ∆25x60
90 85 90
4/6/48 4/6/48 4/6/48
Z051.018.R (T128.141.R)
Z051.014.R (T128.140/3/5.R)
Z051.506.R
ISO 30 ADAPTERS FOR CIRCULAR SAWBLADES
- Nr. 4 pin holes 90° - Complete with nr. 4 screws to fix the sawblade - For mounting saw blades with 30 mm bore - For mounting saw blades with diameter max 200 mm
ART. T128
D2
D1
D
L
12 B
A
8 24
- Retaining pawl T118.891.R for: Biesse
Item T128.150.R
A 100
Taper ISO 30
D 60
D1 30
D2 50
B 2,5
L 174
Z051.014.R
HSK-63E ADAPTORS FOR LARGE DIAMETER SAWBLADES ART. T128
- For mounting sawblades with 30 mm bore - For mounting sawblades with diameter up to 850 mm - Supplied complete with 16 counterscrews M6 for mounting saw blades (part number Z051.014.N)
B
For: Uniteam
Item T128.180.R
Taper HSK-63E
A 57
D 179
D1 30
Z051.014.R
7.38
www.sistemiklein.com
D2 63
B 4
L 89
