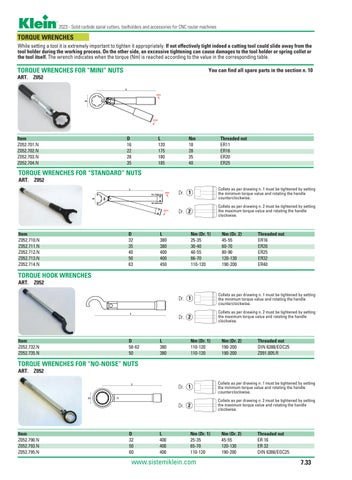

TORQUE WRENCHES While setting a tool it is extremely important to tighten it appropriately. If not effectively tight indeed a cutting tool could slide away from the tool holder during the working process. On the other side, an excessive tightening can cause damages to the tool holder or spring collet or the tool itself. The wrench indicates when the torque (Nm) is reached according to the value in the corresponding table.
TORQUE WRENCHES FOR “MINI” NUTS
You can find all spare parts in the section n. 10
ART. Z052
LOOSEN
TIGHTEN
Item Z052.701.N Z052.702.N Z052.703.N Z052.704.N
D 16 22 28 35
L 120 175 180 185
Nm 18 28 35 40
Threaded nut ER11 ER16 ER20 ER25
TORQUE WRENCHES FOR “STANDARD” NUTS ART. Z052 MAX. TORQUE VALUE
LOOSEN
Dr. 1
Collets as per drawing n. 1 must be tightened by setting the minimum torque value and rotating the handle counterclockwise.
Dr. 2
Collets as per drawing n. 2 must be tightened by setting the maximum torque value and rotating the handle clockwise.
MIN. TORQUE VALUE
Item Z052.710.N Z052.711.N Z052.712.N Z052.713.N Z052.714.N
D 32 35 40 50 63
L 380 380 400 400 450
Nm (Dr. 1) 25-35 30-40 40-55 66-70 110-120
Nm (Dr. 2) 45-55 60-70 80-90 120-130 190-200
Threaded nut ER16 ER20 ER25 ER32 ER40
TORQUE HOOK WRENCHES ART. Z052
Item Z052.732.N Z052.735.N
D 58-62 50
Dr. 1
Collets as per drawing n. 1 must be tightened by setting the minimum torque value and rotating the handle counterclockwise.
Dr. 2
Collets as per drawing n. 2 must be tightened by setting the maximum torque value and rotating the handle clockwise.
L 380 380
Nm (Dr. 1) 110-120 110-120
Nm (Dr. 2) 190-200 190-200
Threaded nut DIN 6388/EOC25 Z091.005.R
TORQUE WRENCHES FOR “NO-NOISE” NUTS ART. Z052
Item Z052.790.N Z052.793.N Z052.795.N
D 32 50 60
L 400 400 400
Dr. 1
Collets as per drawing n. 1 must be tightened by setting the minimum torque value and rotating the handle counterclockwise.
Dr. 2
Collets as per drawing n. 2 must be tightened by setting the maximum torque value and rotating the handle clockwise.
Nm (Dr. 1) 25-35 65-70 110-120
www.sistemiklein.com
Nm (Dr. 2) 45-55 120-130 190-200
Threaded nut ER 16 ER 32 DIN 6388/EOC25
