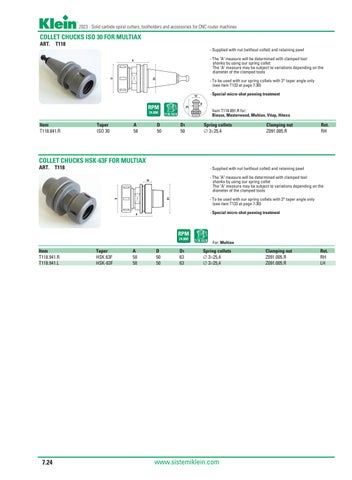

COLLET CHUCKS ISO 30 FOR MULTIAX ART. T118 - Supplied with nut (without collet) and retaining pawl - The "A" measure will be determined with clamped tool shanks by using our spring collet The "A" measure may be subject to variations depending on the diameter of the clamped tools
D
D1
A
- To be used with our spring collets with 3° taper angle only (see item T133 at page 7.30) - Special micro-shot peening treatment
12 8
RPM T 24.000
Item T118.841.R
Taper ISO 30
A 58
D 50
24
T139.150.N
T139.157.N
D1 50
Item T118.891.R for:
T139.158.N Biesse, T139.163.N T139.164.N T139.001.N Masterwood, Multiax, T139.185.N Vitap, Hiteco
Spring collets ∆ 3÷25,4
Clamping nut Z091.005.R
Rot. RH
COLLET CHUCKS HSK-63F FOR MULTIAX ART. T118
- Supplied with nut (without collet) and retaining pawl - The "A" measure will be determined with clamped tool shanks by using our spring collet The "A" measure may be subject to variations depending on the diameter of the clamped tools - To be used with our spring collets with 3° taper angle only (see item T133 at page 7.30) - Special micro-shot peening treatment
RPM 24.000
Item T118.941.R T118.941.L
7.24
Taper HSK 63F HSK-63F
A 58 58
D 50 50
D1 63 63
T139.163.N
For: Multiax
Spring collets ∆ 3÷25,4 ∆ 3÷25,4
www.sistemiklein.com
Clamping nut Z091.005.R Z091.005.R
Rot. RH LH
