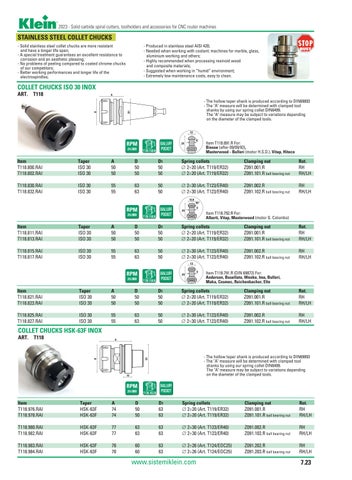

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
STAINLESS STEEL COLLET CHUCKS - Solid stainless steel collet chucks are more resistant and have a longer life span; - A special treatment guarantees an excellent resistance to corrosion and an aesthetic pleasing; - No problems of peeling compared to coated chrome chucks of our competitors; - Better working performances and longer life of the electrospindles;
- Produced in stainless steel AISI 420; - Needed when working with coolant: machines for marble, glass, aluminium working and others; - Highly recommended when processing resinoid wood and composite materials; - Suggested when working in “humid” environment; - Extremely low maintenance costs, easy to clean.
RUST
COLLET CHUCKS ISO 30 INOX ART. T118
A
D
D1
- The hollow taper shank is produced according to DIN69893 - The "A" measure will be determined with clamped tool shanks by using our spring collet DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools. 12
RPM 24.000
T139.150.N
BALLUFF POCKET
8 24
Item T118.891.R For: Biesse (after 09/09/92), Masterwood - Bulleri (motor H.S.D.), Vitap, Hiteco
Item T118.800.RAI T118.802.RAI
Taper ISO 30 ISO 30
A 50 50
D 50 50
D1 50 50
Spring collets ∆ 2÷20 (Art. T119/ER32) ∆ 2÷20 (Art. T119/ER32)
Clamping nut Z091.001.R Z091.101.R ball bearing nut
Rot. RH RH/LH
T118.830.RAI T118.832.RAI
ISO 30 ISO 30
55 55
63 63
50 50
∆ 2÷30 (Art. T123/ER40) ∆ 2÷30 (Art. T123/ER40)
Z091.002.R Z091.102.R ball bearing nut
RH RH/LH
12,8 45°
RPM 24.000
T139.150.N
BALLUFF POCKET
9
24
Item T118.792.R For: Alberti, Vitap, Masterwood (motor G. Colombo)
Item T118.811.RAI T118.813.RAI
Taper ISO 30 ISO 30
A 50 50
D 50 50
D1 50 50
Spring collets ∆ 2÷20 (Art. T119/ER32) ∆ 2÷20 (Art. T119/ER32)
Clamping nut Z091.001.R Z091.101.R ball bearing nut
Rot. RH RH/LH
T118.815.RAI T118.817.RAI
ISO 30 ISO 30
55 55
63 63
50 50
∆ 2÷30 (Art. T123/ER40) ∆ 2÷30 (Art. T123/ER40)
Z091.002.R Z091.102.R ball bearing nut
RH RH/LH
13
RPM 24.000
T139.150.N
BALLUFF POCKET
24
9
Item T118.791.R (DIN 69872) For: Anderson, Busellato, Weeke, Ima, Bulleri, Maka, Cosmec, Reichenbacher, Elte
Item T118.821.RAI T118.823.RAI
Taper ISO 30 ISO 30
A 50 50
D 50 50
D1 50 50
Spring collets ∆ 2÷20 (Art. T119/ER32) ∆ 2÷20 (Art. T119/ER32)
Clamping nut Z091.001.R Z091.101.R ball bearing nut
Rot. RH RH/LH
T118.825.RAI T118.827.RAI
ISO 30 ISO 30
55 55
63 63
50 50
∆ 2÷30 (Art. T123/ER40) ∆ 2÷30 (Art. T123/ER40)
Z091.002.R Z091.102.R ball bearing nut
RH RH/LH
COLLET CHUCKS HSK-63F INOX ART. T118
- The hollow taper shank is produced according to DIN69893 - The "A" measure will be determined with clamped tool shanks by using our spring collet DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
RPM 24.000
T139.163.N
BALLUFF POCKET
Item T118.976.RAI T118.978.RAI
Taper HSK-63F HSK-63F
A 74 74
D 50 50
D1 63 63
Spring collets ∆ 2÷20 (Art. T119/ER32) ∆ 2÷20 (Art. T119/ER32)
Clamping nut Z091.001.R Z091.101.R ball bearing nut
Rot. RH RH/LH
T118.980.RAI T118.982.RAI
HSK-63F HSK-63F
77 77
63 63
63 63
∆ 2÷30 (Art. T123/ER40) ∆ 2÷30 (Art. T123/ER40)
Z091.002.R Z091.102.R ball bearing nut
RH RH/LH
T118.983.RAI T118.984.RAI
HSK-63F HSK-63F
78 78
60 60
63 63
∆ 2÷26 (Art. T124/EOC25) ∆ 2÷26 (Art. T124/EOC25)
Z091.202.R Z091.203.R ball bearing nut
RH RH/LH
www.sistemiklein.com
7.23
