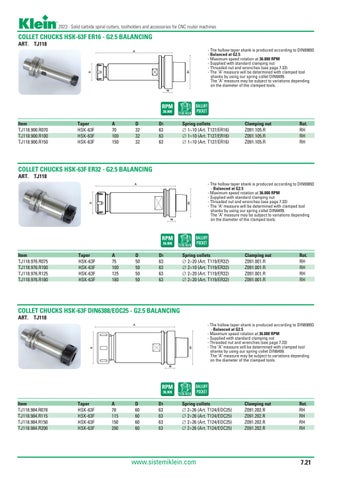

2023 - Solid carbide spiral cutters, toolholders and accessories for CNC router machines
COLLET CHUCKS HSK-63F ER16 - G2.5 BALANCING ART. TJ118 - The hollow taper shank is produced according to DIN69893 - Balanced at G2.5 - Maximum speed rotation at 36.000 RPM - Supplied with standard clamping nut - Threaded nut and wrenches (see page 7.33) - The "A" measure will be determined with clamped tool shanks by using our spring collet DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
RPM 36.000
Item TJ118.900.R070 TJ118.900.R100 TJ118.900.R150
Taper HSK-63F HSK-63F HSK-63F
A 70 100 150
D 32 32 32
T139.163.N
D1 63 63 63
BALLUFF POCKET
Spring collets ∆ 1÷10 (Art. T127/ER16) ∆ 1÷10 (Art. T127/ER16) ∆ 1÷10 (Art. T127/ER16)
Clamping nut Z091.105.R Z091.105.R Z091.105.R
Rot. RH RH RH
COLLET CHUCKS HSK-63F ER32 - G2.5 BALANCING ART. TJ118 - The hollow taper shank is produced according to DIN69893 - Balanced at G2.5 - Maximum speed rotation at 36.000 RPM - Supplied with standard clamping nut - Threaded nut and wrenches (see page 7.33) - The "A" measure will be determined with clamped tool shanks by using our spring collet DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
RPM 36.000
Item TJ118.976.R075 TJ118.976.R100 TJ118.976.R125 TJ118.976.R180
Taper HSK-63F HSK-63F HSK-63F HSK-63F
A 75 100 125 180
D 50 50 50 50
T139.163.N
D1 63 63 63 63
BALLUFF POCKET
Spring collets ∆ 2÷20 (Art. T119/ER32) ∆ 2÷10 (Art. T119/ER32) ∆ 2÷20 (Art. T119/ER32) ∆ 2÷20 (Art. T119/ER32)
Clamping nut Z091.001.R Z091.001.R Z091.001.R Z091.001.R
Rot. RH RH RH RH
COLLET CHUCKS HSK-63F DIN6388/EOC25 - G2.5 BALANCING ART. TJ118 - The hollow taper shank is produced according to DIN69893 - Balanced at G2.5 - Maximum speed rotation at 36.000 RPM - Supplied with standard clamping nut - Threaded nut and wrenches (see page 7.33) - The "A" measure will be determined with clamped tool shanks by using our spring collet DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
RPM 36.000
Item TJ118.984.R078 TJ118.984.R115 TJ118.984.R150 TJ118.984.R200
Taper HSK-63F HSK-63F HSK-63F HSK-63F
A 78 115 150 200
D 60 60 60 60
D1 63 63 63 63
T139.163.N
BALLUFF POCKET
Spring collets ∆ 2÷26 (Art. T124/EOC25) ∆ 2÷26 (Art. T124/EOC25) ∆ 2÷26 (Art. T124/EOC25) ∆ 2÷26 (Art. T124/EOC25)
www.sistemiklein.com
Clamping nut Z091.202.R Z091.202.R Z091.202.R Z091.202.R
Rot. RH RH RH RH
7.21
